Modelo 3D Gridfinity Bin Generator por squinn no Printables

Descrição

There are so many great gridfinity bins already here on Printables, but I couldn't find exactly what I needed.   Therefore, I created this collection, and am also sharing the Fusion360 source files so that you can generate your own.

The things I was looking for which are incorporated here:

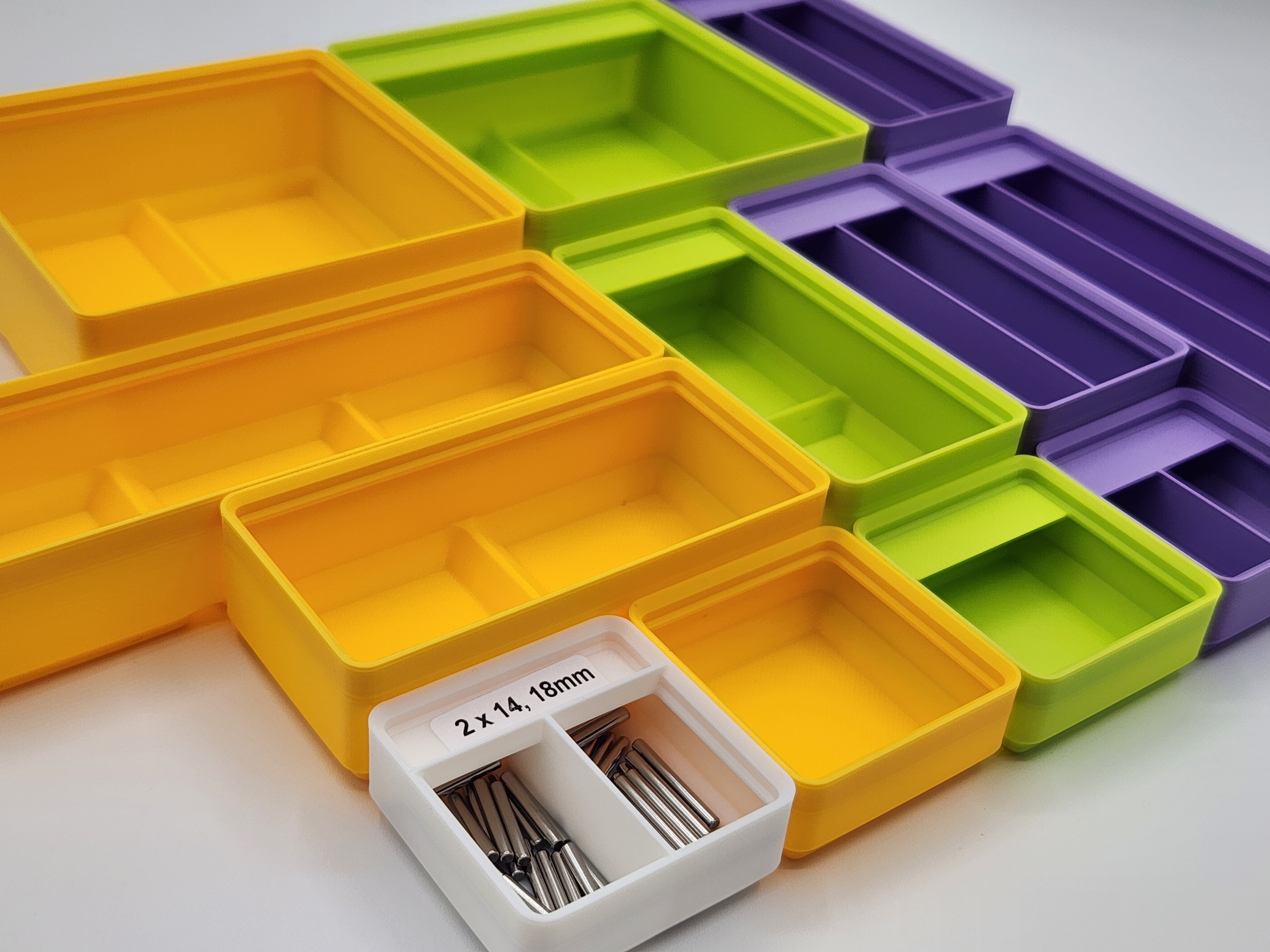

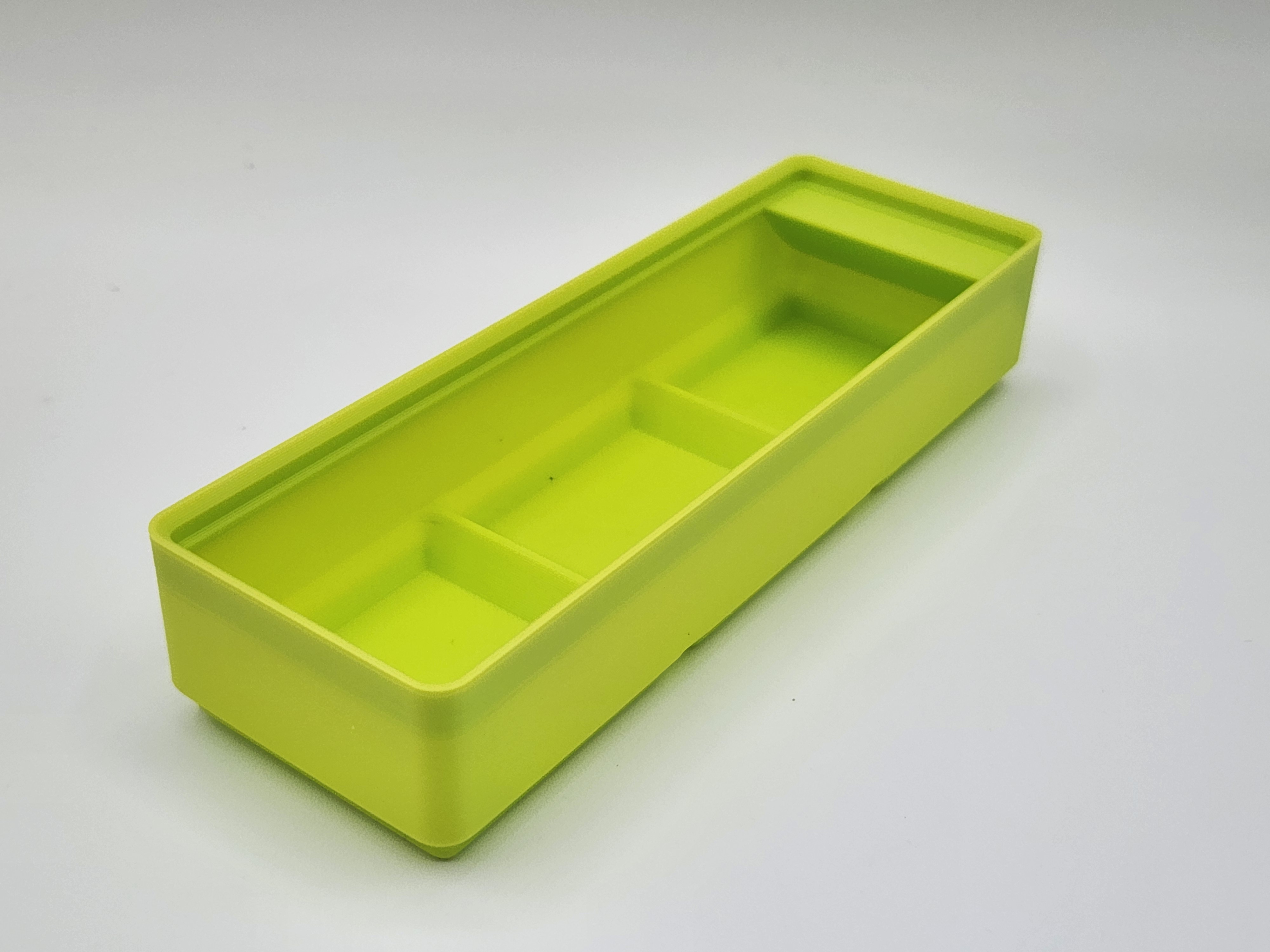

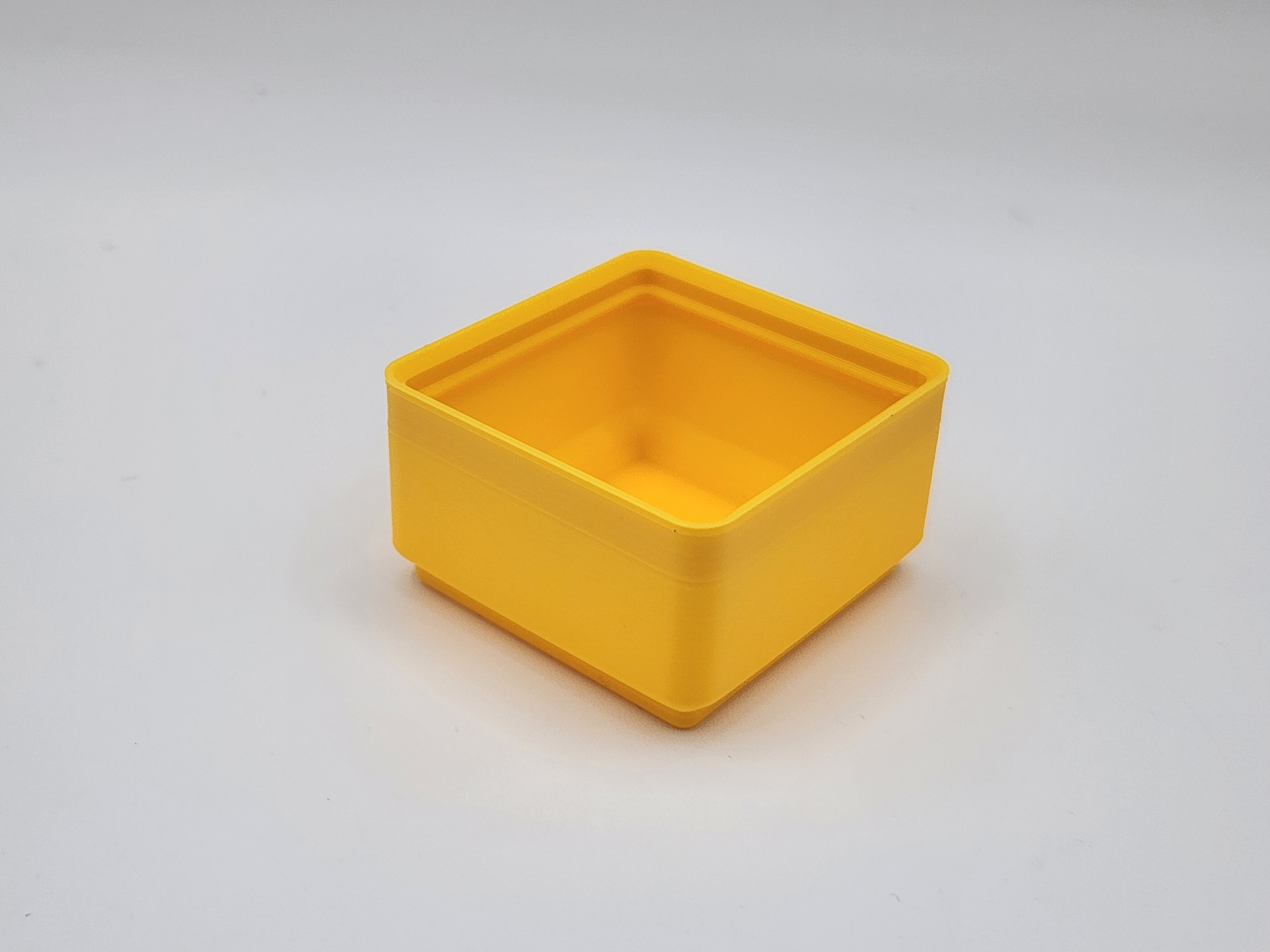

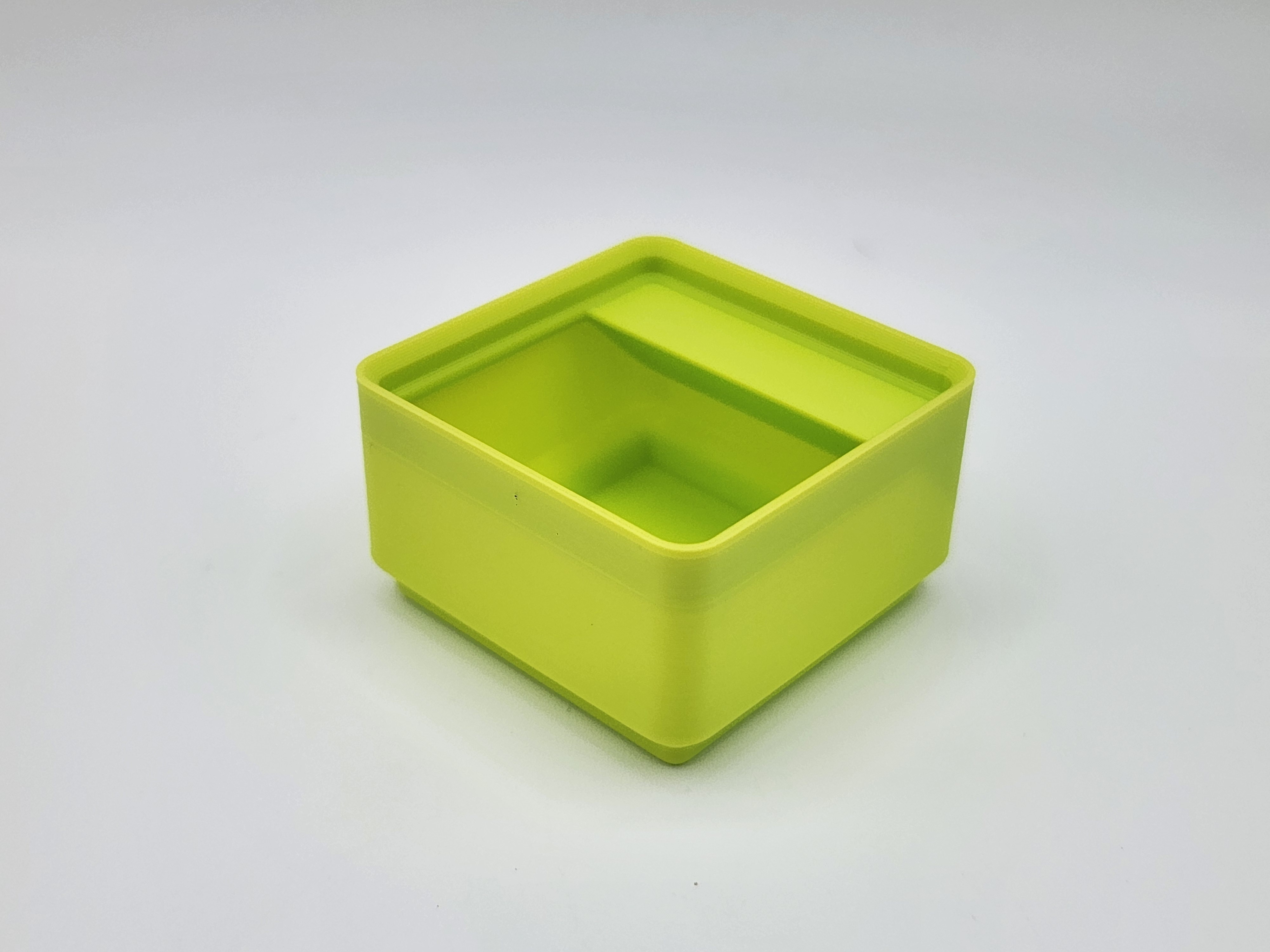

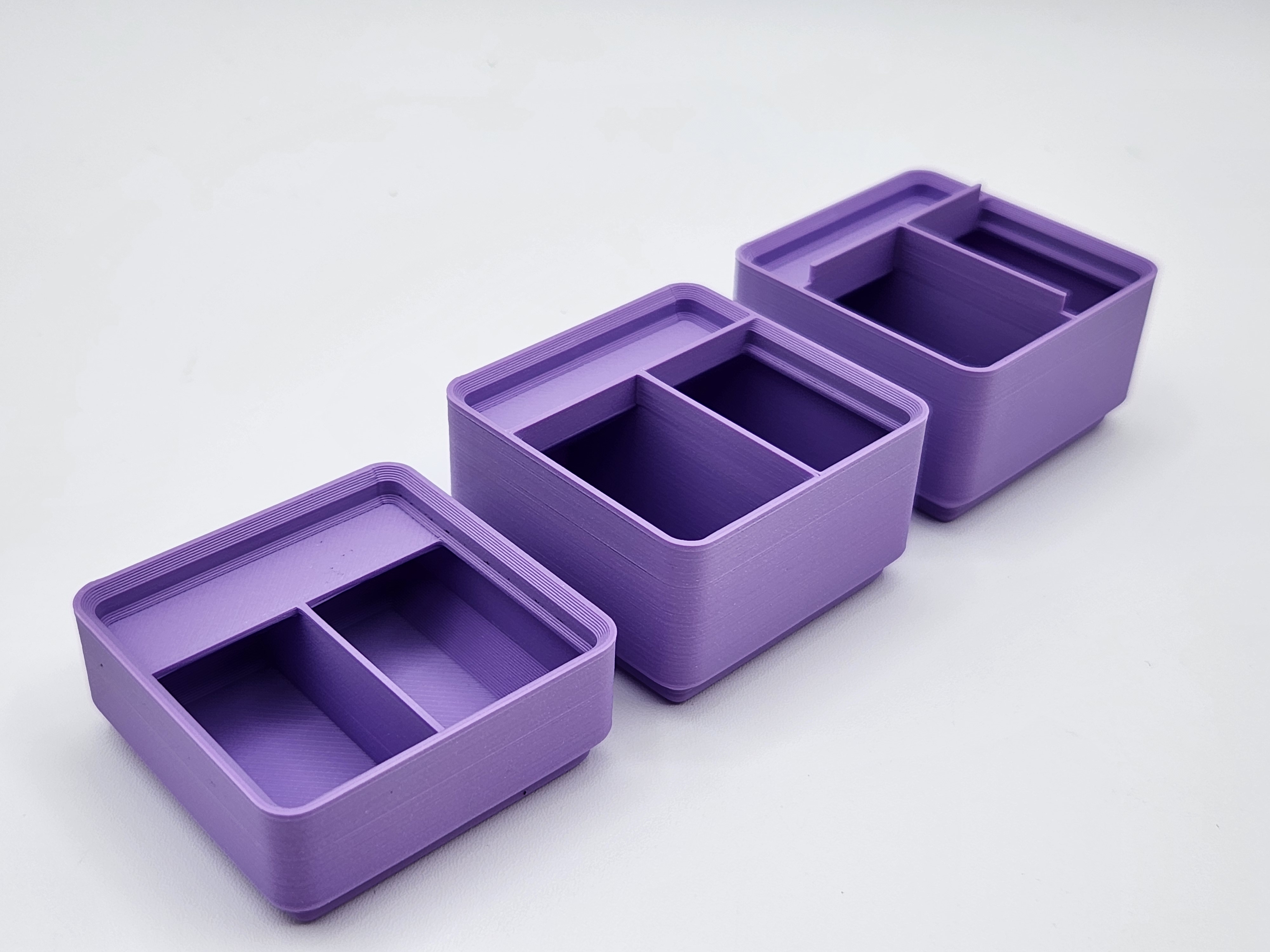

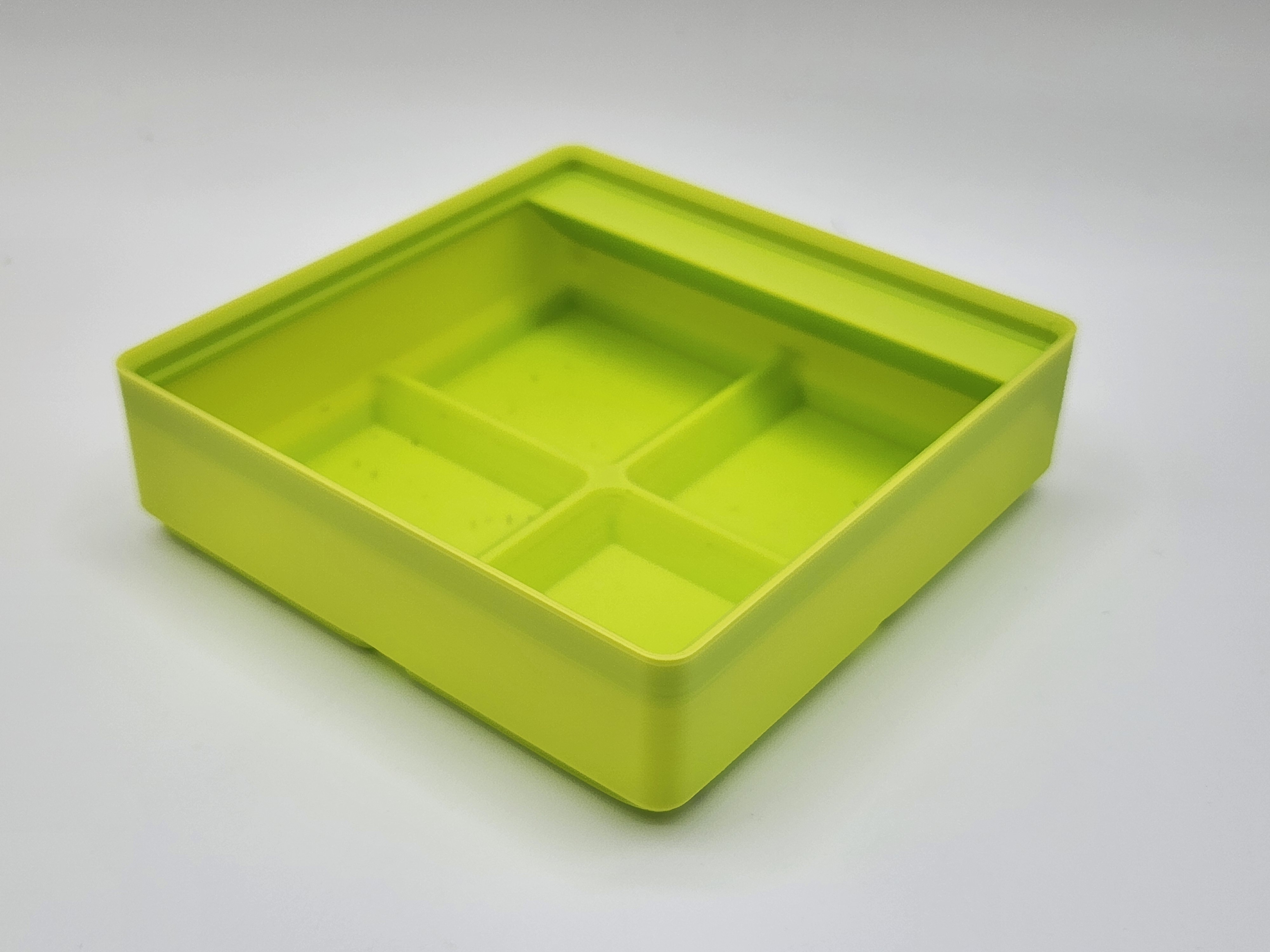

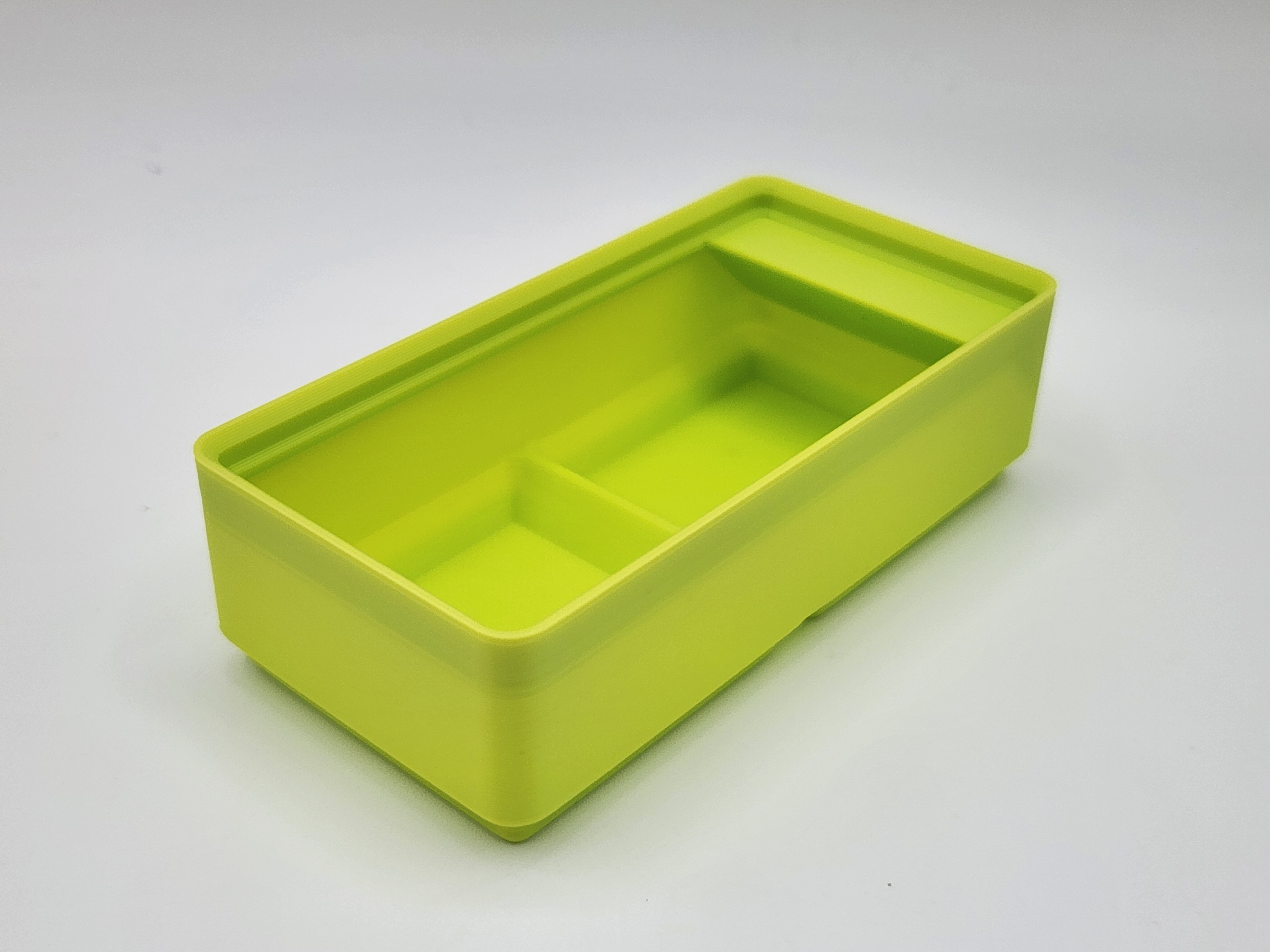

  • Basic, labeled, and divided bin styles
  • Full-depth bins for increased storage (so no space for magnets), with a “scoop” style bottom
  • Supporting bins from “1 wide x 1 deep” up to “6 wide x 6 deep”
  • Supporting bins as small as 1 gridfinity unit tall (note: each gridfinity height unit = 7 mm)
  • Customizable label depths (e.g. I wanted to use labels that were exactly 3/8", or 9.6 mm, tall)
  • Allow for the label shelf and divider walls to be moved up or down (i.e. see the ‘Label_Vertical_Offset’ parameter)
  • Adjustable wall and base thickness (e.g. I wanted bins with .8 mm walls and base)

I've included generated STLs for what I believe are the commonly needed bin configurations (each ranging from 1u to 8u in height). The source Fusion360 design files are also included though, which are setup in a fully parametric fashion so that you can generate others as needed.  If that is new to you, check out the explanatory video for one of my other models which is setup in a similar fashion.

Printables

Gridfinity Bin Generator

squinn squinn (abre em nova aba)

Publicado em 23 de nov de 2025

1,031
Curtidas
2,040
Downloads
9
Impressões
Categoria Organizers
Tags
parametric organizer fusion360 storage bin parameterized bins parameterizable gridfinity fusion360file gridfinitybin fusion360source gridfinitybins parameterised
Licença Creative Commons — Attribution
Arquivos (115)
Labeled Bin - 1Wx1Dx1H.stl 41.1 KB
Labeled Bin - 1Wx1Dx2H.stl 48.1 KB
Labeled Bin - 1Wx1Dx3H.stl 51.8 KB
Labeled Bin - 1Wx1Dx4H.stl 57.5 KB
Labeled Bin - 1Wx1Dx5H.stl 58.7 KB
Labeled Bin - 1Wx1Dx6H.stl 62.4 KB
Labeled Bin - 1Wx1Dx7H.stl 63.6 KB
Labeled Bin - 1Wx1Dx8H.stl 68.6 KB
Labeled Bin - 1Wx2Dx1H.stl 53.2 KB
Labeled Bin - 1Wx2Dx2H.stl 55.6 KB
Labeled Bin - 1Wx2Dx3H.stl 61 KB
Labeled Bin - 1Wx2Dx4H.stl 62.4 KB
Labeled Bin - 1Wx2Dx5H.stl 67.3 KB
Labeled Bin - 1Wx2Dx6H.stl 68.6 KB
Labeled Bin - 1Wx2Dx7H.stl 72.9 KB
Labeled Bin - 1Wx2Dx8H.stl 73.9 KB
Labeled Bin - 1Wx3Dx1H.stl 64.7 KB
Labeled Bin - 1Wx3Dx2H.stl 68.4 KB
Labeled Bin - 1Wx3Dx3H.stl 72.7 KB
Labeled Bin - 1Wx3Dx4H.stl 73.9 KB
Labeled Bin - 1Wx3Dx5H.stl 77.8 KB
Labeled Bin - 1Wx3Dx6H.stl 79 KB
Labeled Bin - 1Wx3Dx7H.stl 80.2 KB
Labeled Bin - 1Wx3Dx8H.stl 80.6 KB
Labeled Bin - 2Wx2Dx1H.stl 81.9 KB
Labeled Bin - 2Wx2Dx2H.stl 84.8 KB
Labeled Bin - 2Wx2Dx3H.stl 89.3 KB
Labeled Bin - 2Wx2Dx4H.stl 90.5 KB
Labeled Bin - 2Wx2Dx5H.stl 94.2 KB
Labeled Bin - 2Wx2Dx6H.stl 95 KB
Labeled Bin - 2Wx2Dx7H.stl 96.2 KB
Labeled Bin - 2Wx2Dx8H.stl 100.1 KB
Divided Bin - 1Wx1Dx1H.stl 43.4 KB
Divided Bin - 1Wx1Dx2H.stl 50.9 KB
Divided Bin - 1Wx1Dx3H.stl 54.8 KB
Divided Bin - 1Wx1Dx4H.stl 61 KB
Divided Bin - 1Wx1Dx5H.stl 61.6 KB
Divided Bin - 1Wx1Dx6H.stl 65.3 KB
Divided Bin - 1Wx1Dx7H.stl 66.5 KB
Divided Bin - 1Wx1Dx8H.stl 71.6 KB
Divided Bin - 1Wx2Dx1H.stl 57.7 KB
Divided Bin - 1Wx2Dx2H.stl 59.1 KB
Divided Bin - 1Wx2Dx3H.stl 64.7 KB
Divided Bin - 1Wx2Dx4H.stl 66.1 KB
Divided Bin - 1Wx2Dx5H.stl 71 KB
Divided Bin - 1Wx2Dx6H.stl 72.9 KB
Divided Bin - 1Wx2Dx7H.stl 77.2 KB
Divided Bin - 1Wx2Dx8H.stl 77.6 KB
Divided Bin - 1Wx3Dx1H.stl 68.6 KB
Divided Bin - 1Wx3Dx2H.stl 72.7 KB
Divided Bin - 1Wx3Dx3H.stl 77.2 KB
Divided Bin - 1Wx3Dx4H.stl 79 KB
Divided Bin - 1Wx3Dx5H.stl 82.3 KB
Divided Bin - 1Wx3Dx6H.stl 83.5 KB
Divided Bin - 1Wx3Dx7H.stl 84.7 KB
Divided Bin - 1Wx3Dx8H.stl 85 KB
Divided Bin - 2Wx2Dx1H.stl 91.9 KB
Divided Bin - 2Wx2Dx2H.stl 95.6 KB
Divided Bin - 2Wx2Dx3H.stl 102 KB
Divided Bin - 2Wx2Dx4H.stl 103.4 KB
Divided Bin - 2Wx2Dx5H.stl 108.1 KB
Divided Bin - 2Wx2Dx6H.stl 108.7 KB
Divided Bin - 2Wx2Dx7H.stl 105.7 KB
Divided Bin - 2Wx2Dx8H.stl 109.1 KB
Divided Bin Full - 1Wx1Dx1H.stl 44.6 KB
Divided Bin Full - 1Wx1Dx2H.stl 52 KB
Divided Bin Full - 1Wx1Dx3H.stl 55.9 KB
Divided Bin Full - 1Wx1Dx4H.stl 61.6 KB
Divided Bin Full - 1Wx1Dx5H.stl 63.2 KB
Divided Bin Full - 1Wx1Dx6H.stl 66.9 KB
Divided Bin Full - 1Wx1Dx7H.stl 66.5 KB
Divided Bin Full - 1Wx1Dx8H.stl 73.1 KB
Divided Bin Full - 1Wx2Dx1H.stl 58.7 KB
Divided Bin Full - 1Wx2Dx2H.stl 61.4 KB
Divided Bin Full - 1Wx2Dx3H.stl 67.1 KB
Divided Bin Full - 1Wx2Dx4H.stl 68.8 KB
Divided Bin Full - 1Wx2Dx5H.stl 73.9 KB
Divided Bin Full - 1Wx2Dx6H.stl 75.3 KB
Divided Bin Full - 1Wx2Dx7H.stl 79.6 KB
Divided Bin Full - 1Wx2Dx8H.stl 80.6 KB
Basic Bin - 1Wx1Dx1H.stl 42.9 KB
Basic Bin - 1Wx1Dx2H.stl 49.9 KB
Basic Bin - 1Wx1Dx3H.stl 51.8 KB
Basic Bin - 1Wx1Dx4H.stl 55.7 KB
Basic Bin - 1Wx1Dx5H.stl 58.5 KB
Basic Bin - 1Wx1Dx6H.stl 62 KB
Basic Bin - 1Wx1Dx7H.stl 61.6 KB
Basic Bin - 1Wx1Dx8H.stl 68.2 KB
Basic Bin - 1Wx2Dx1H.stl 54.6 KB
Basic Bin - 1Wx2Dx2H.stl 56.5 KB
Basic Bin - 1Wx2Dx3H.stl 59.3 KB
Basic Bin - 1Wx2Dx4H.stl 62 KB
Basic Bin - 1Wx2Dx5H.stl 67.1 KB
Basic Bin - 1Wx2Dx6H.stl 67.1 KB
Basic Bin - 1Wx2Dx7H.stl 72.9 KB
Basic Bin - 1Wx2Dx8H.stl 72.5 KB
Basic Bin - 1Wx3Dx1H.stl 65.9 KB
Basic Bin - 1Wx3Dx2H.stl 69 KB
Basic Bin - 1Wx3Dx3H.stl 71.8 KB
Basic Bin - 1Wx3Dx4H.stl 74.1 KB
Basic Bin - 1Wx3Dx5H.stl 76.8 KB
Basic Bin - 1Wx3Dx6H.stl 79.2 KB
Basic Bin - 1Wx3Dx7H.stl 79.2 KB
Basic Bin - 1Wx3Dx8H.stl 80.7 KB
Basic Bin - 2Wx2Dx1H.stl 85.4 KB
Basic Bin - 2Wx2Dx2H.stl 85.4 KB
Basic Bin - 2Wx2Dx3H.stl 88.2 KB
Basic Bin - 2Wx2Dx4H.stl 90.5 KB
Basic Bin - 2Wx2Dx5H.stl 93.2 KB
Basic Bin - 2Wx2Dx6H.stl 95.2 KB
Basic Bin - 2Wx2Dx7H.stl 95.2 KB
Basic Bin - 2Wx2Dx8H.stl 100.3 KB
Gridfinity Labeled Bin.f3d 2 MB
Gridfinity Divided Bin.f3d 2.3 MB
Gridfinity Basic Bin.f3d 1.3 MB
