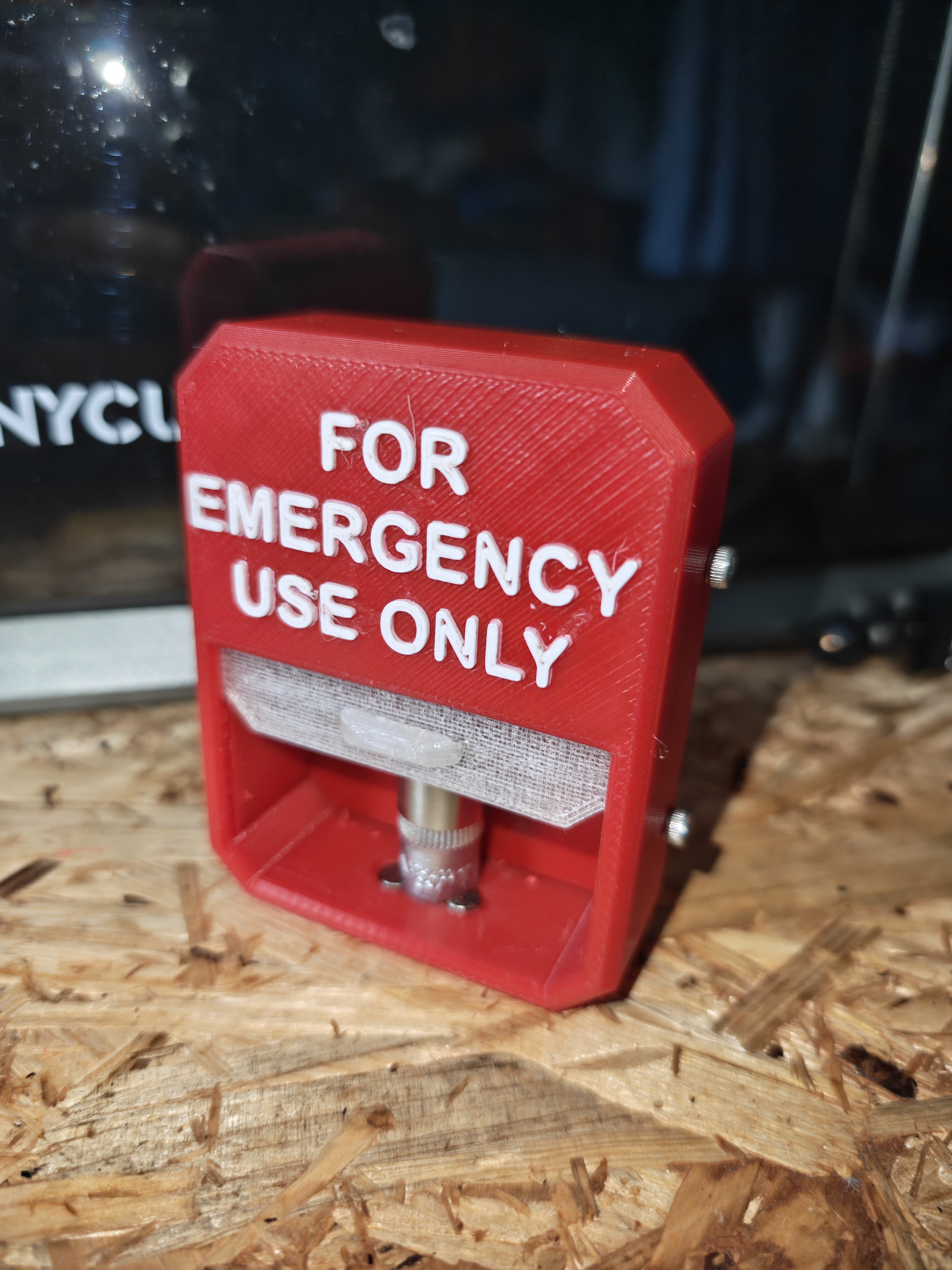

Modelo 3D Emergency use 10mm socket display por Premier no Printables

Descrição

Hi everyone,

I'd just like to make a little disclaimer: the print is highly dependant on your printer tolerances and support settings. There is a huge overhang so just keep in mind that you might need to take some 30 minutes or so cleaning the underside (inside of the front part). If you skip the step, the “glass door" won't open smoothly.

Speaking of the glass. As you probably noticed I haven't achieved a perfect look. I will however point you to this video which might help:

Apart from that it's quite easy:

Pause at layer to change filament or use some fancier 3d printer and colour the text in. Alternatively don't do that and paint it with a marker.

The back part has 2 variations. One with 3.1mm screw hole and the other with 3.2mm, choose based on your printer settings and tolerance.

Hardware used:

4 pcs …. M3x6 screws (you can fit longer, but these will be flush )

2 pcs … 6x3mm magnets (holes are 6.2mm, so it might be loose, just glue it)

There is a  hole for wall mounting available. 4mm diameter screw, but since I won't be using it. I just put it there as an option.

Anyways, good luck and I hope u enjoy. Please, if you have any questions, just ask and I will try to reply asap.



Printables

Emergency use 10mm socket display

Publicado em 20 de nov de 2025

160
Curtidas
253
Downloads
2
Impressões
Categoria Automotive
Tags
gift socket 10mm giftbox socketholder
Licença Creative Commons — Attribution
Arquivos (4)
back_32.stl 70.7 KB
back_31.stl 70.7 KB
slider_door.stl 14.1 KB
front.stl 301.9 KB
