Description

Requirements:

2x M3*12mm bolts with cylindrical hex head (like those from the following set: [https://www.amazon.com/Stainless-Steel-Socket-Screws-Assortment/dp/B01N3YT1OZ](https://www.amazon.com/Stainless-Steel-Socket-Screws-Assortment/dp/B01N3YT1OZ))

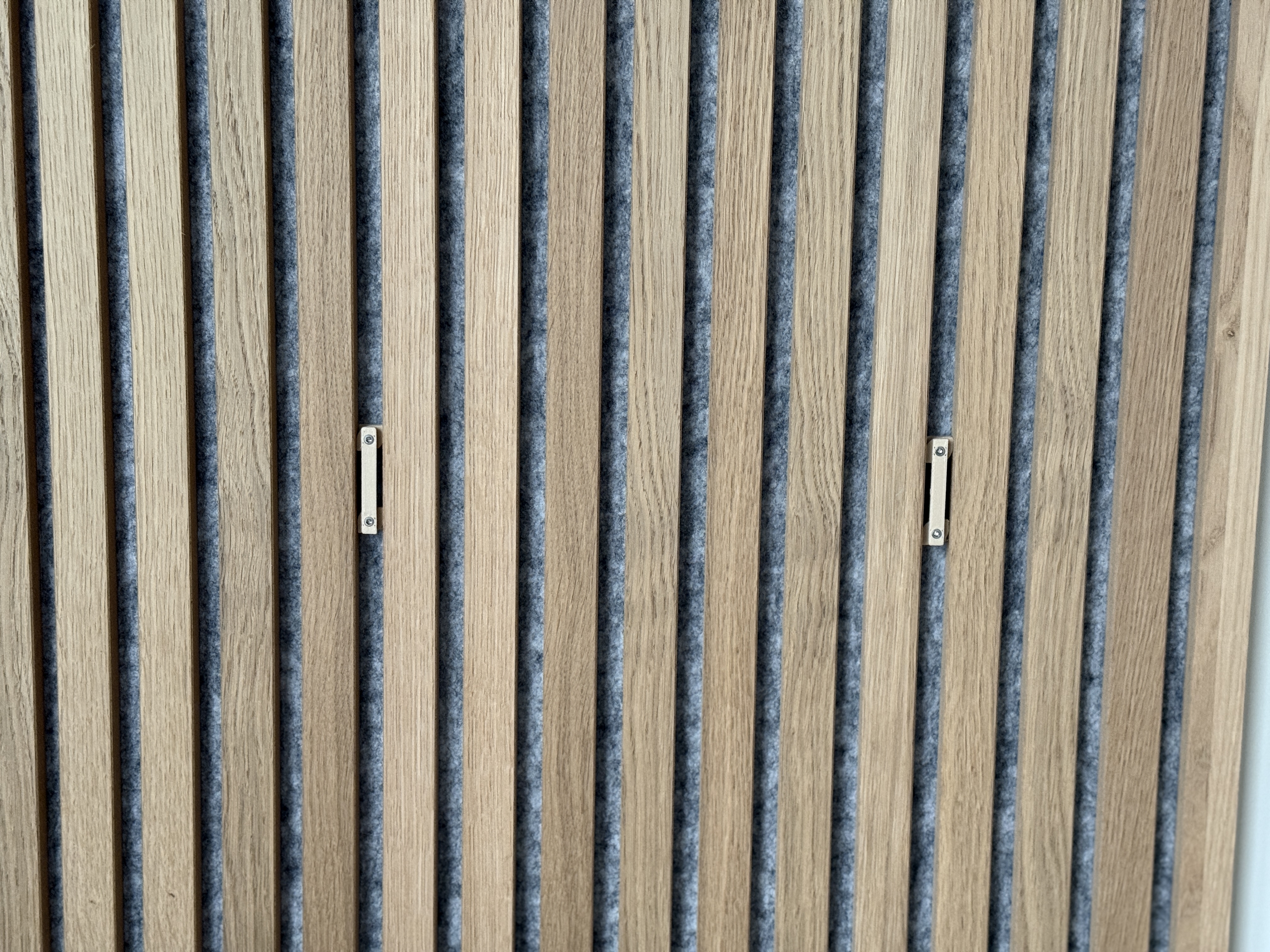

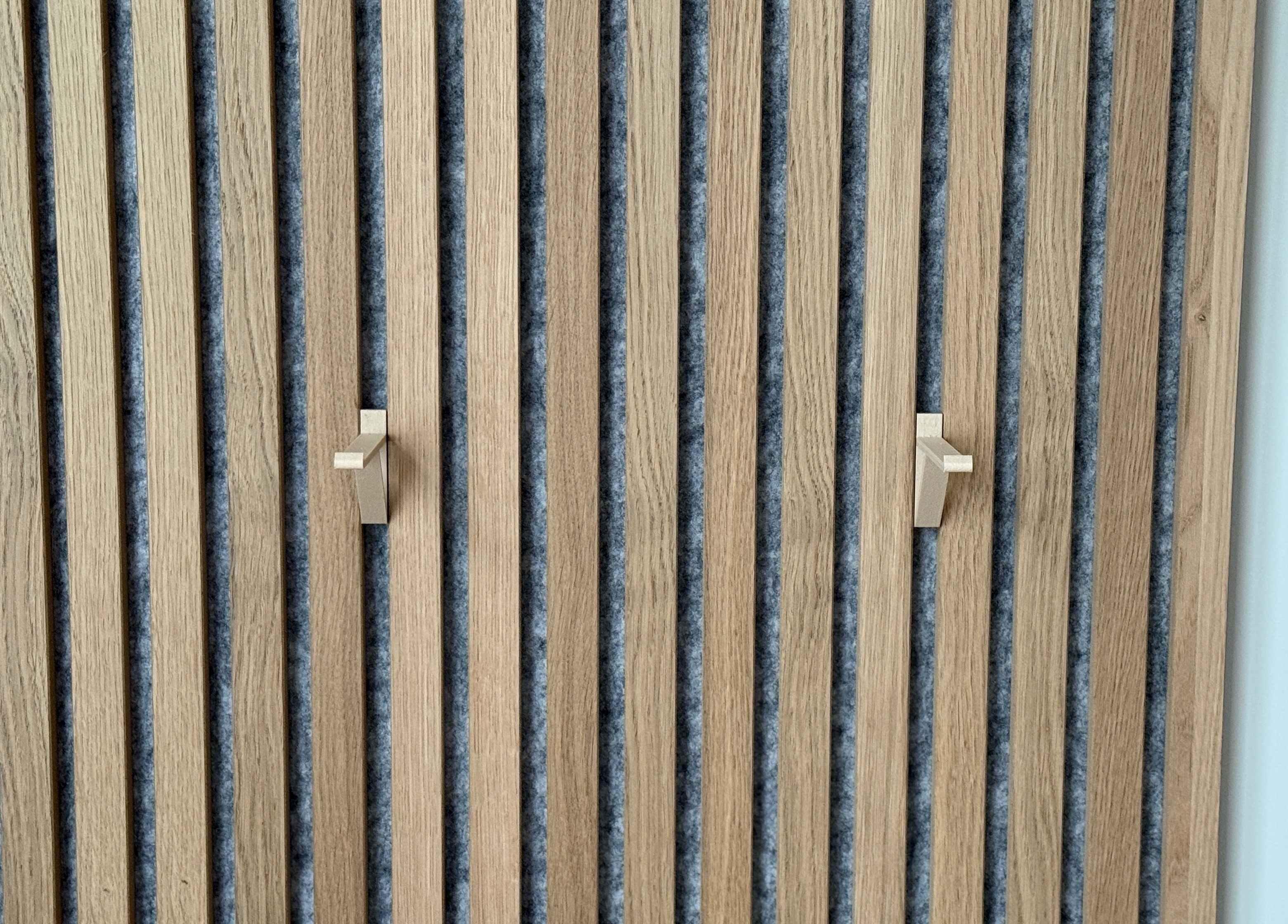

The first thing to do is lock two hook-roots in-between the wooden strips and turn 90 degrees. Than screw the hook-inner into the hook-roots with the two bolts.

Afterwards, slide the hook over the hook-inner, and you're done!

We printed using a Prusa i3 MK3S+ with Tinmorry PETG-GF

• 0.20mm QUALITY
• Prusament PETG settings but with nozzle temp set to 285
• Infill 15%
• Supports:
  • Paint on support for the shelf-bracket with 45°
  • Type Organic
  • For support enforcers only
