There are four“groups” of files here:

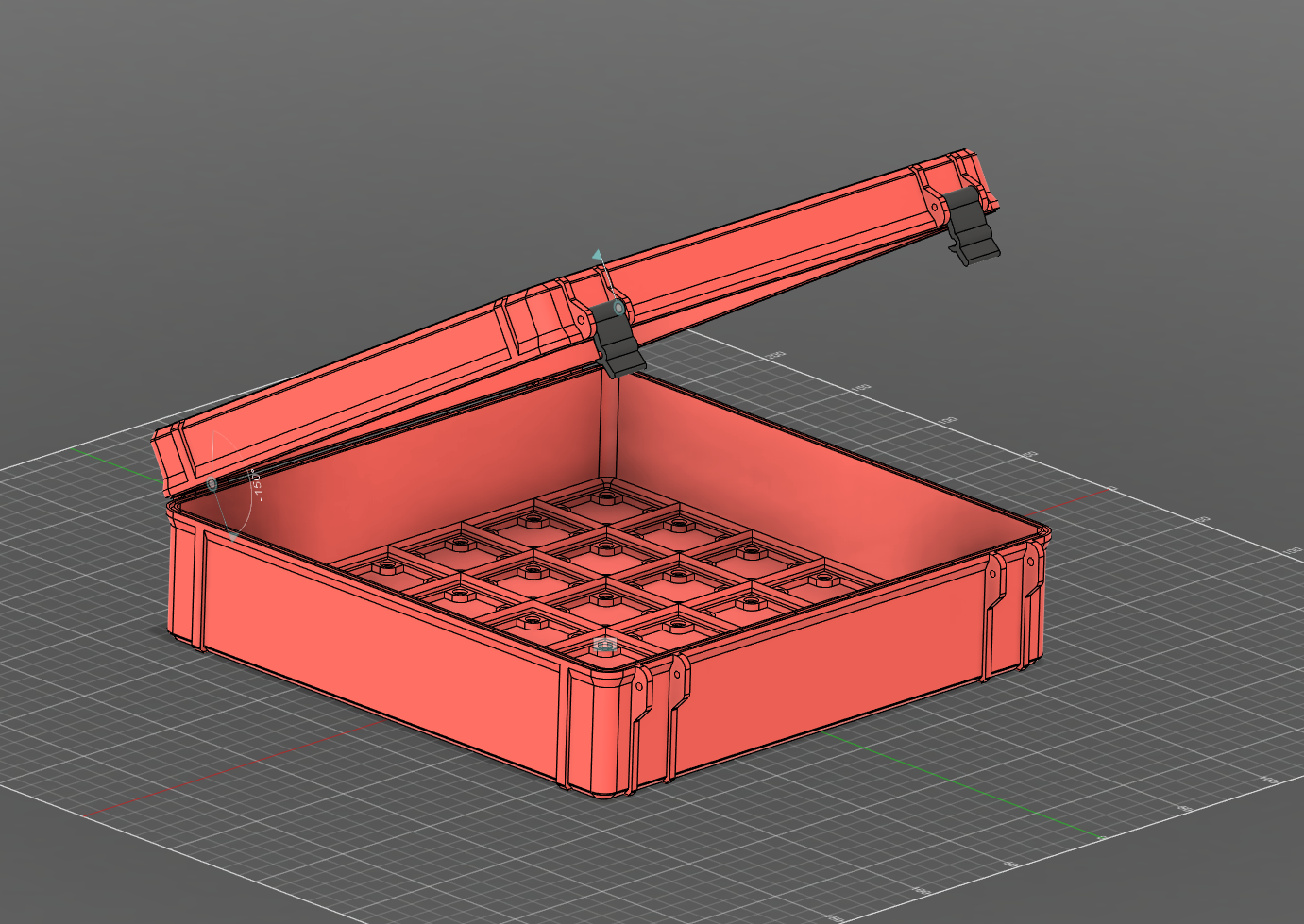

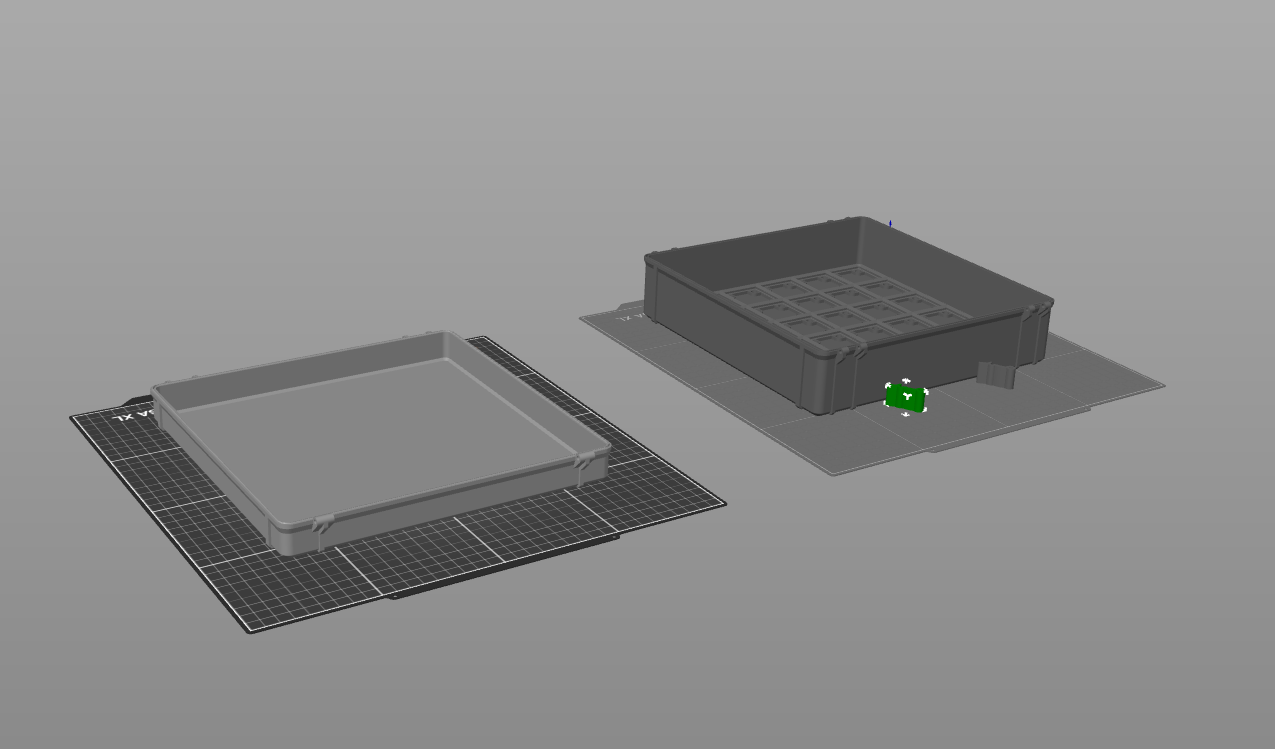

1. “outer” box. This is the large box that holds everything. There is a 6x6 gridfinity base built in

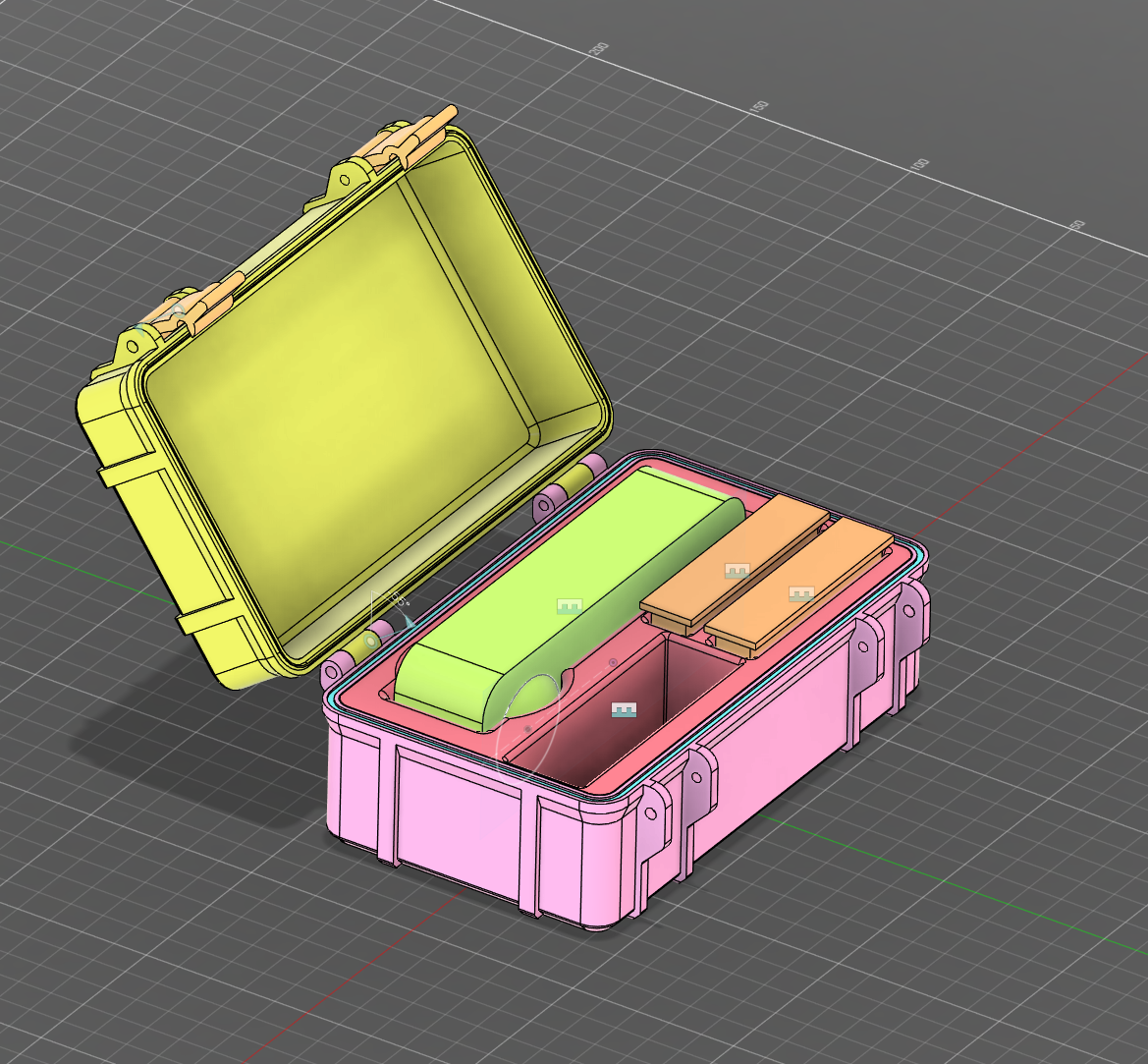

2. “inner” box. This is a smaller container that holds just the x5 and a few batteries / SD cards
3. a few gridfinity bins to hold things in the outer box; this includes a 1x6 selfie stick and a 4x3 for the inner box
4. a few crude models that I used to approximate the camera/battery while designing. They're not perfect but maybe they'll help you.

I have uploaded everything in STEP format so it should be easy to modify.

Make sure you split into objects/parts and adjust the orientation.

All screws are m3x35mm. You will need 6 per box; 2x for hinges and 2x for each of the 2x latches.

I used ABS for everything but the seals; that was TPU.

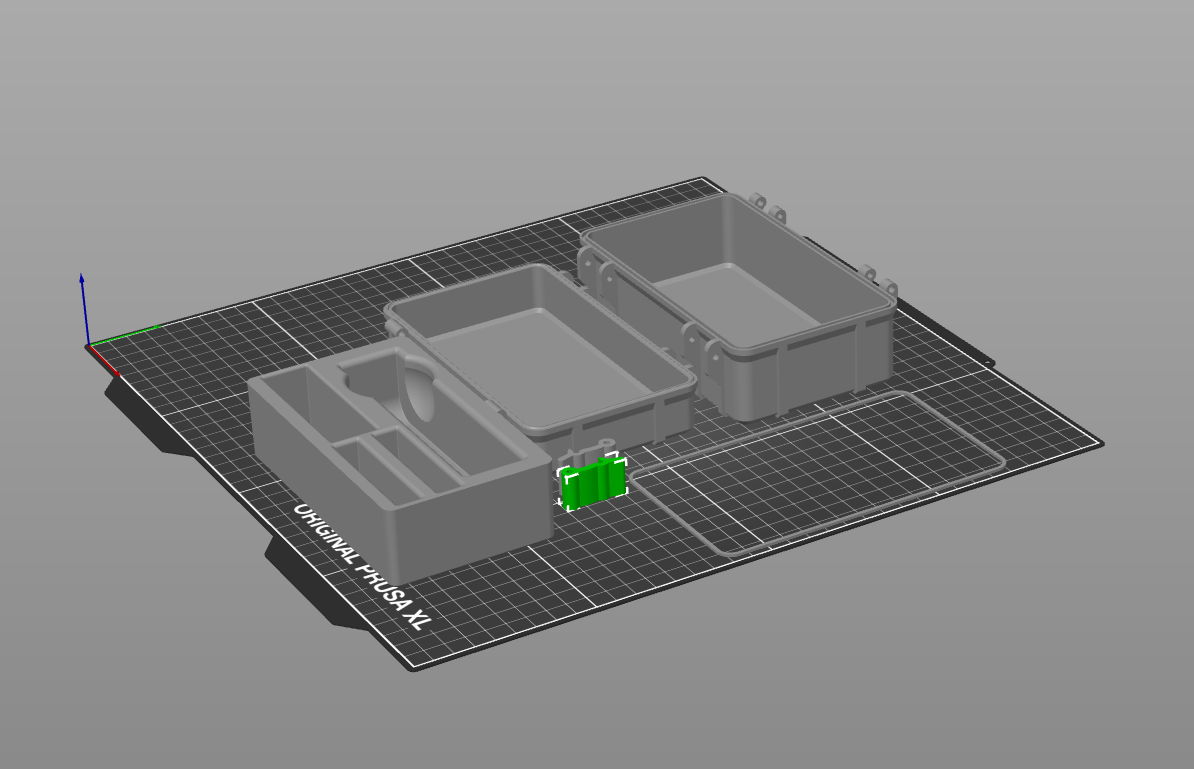

The inner box is empty, the insert part is what holds everything. I did that so you could easily integrate just that with other things.

The models that I created are licensed Attribution—Noncommercial—Share Alike . The parametric boxes are also under this license.

Credits:

Inspired by:

[https://www.printables.com/model/818827-insta360-x3-cases](https://www.printables.com/model/818827-insta360-x3-cases)

[https://www.printables.com/model/788354-insta360-x3-case-with-battery-and-microsd-storage](https://www.printables.com/model/788354-insta360-x3-case-with-battery-and-microsd-storage)

And built with the amazing parametric box: [https://www.printables.com/model/258431-rugged-box-parametric/files](https://www.printables.com/model/258431-rugged-box-parametric/files)
