1) Scale dimensions (concrete numbers)

I used a compact-car baseline (full-size examples) and scaled to 1:34:

Full-size (example) → scaled (÷34):

Overall length 3,800 mm → 111.8 mm

Width 1,700 mm → 50.0 mm

Height 1,450 mm → 42.6 mm

Wheelbase 2,500 mm → 73.5 mm

Wheel diameter 600 mm → 17.65 mm

Wheel circumference ≈ 55.44 mm

(These are typical target dimensions — adjust if you want a truck or microcar style.)

2) What “front-engine 4WD” means on this scale (two practical approaches)

Real 4WD: engine in the front, gearbox/transfer case sends power to both front and rear differentials via a driveshaft. On 1:34 scale you can implement this realistically or choose simplified methods:

A — Realistic shaft-driven AWD (authentic, more complex)

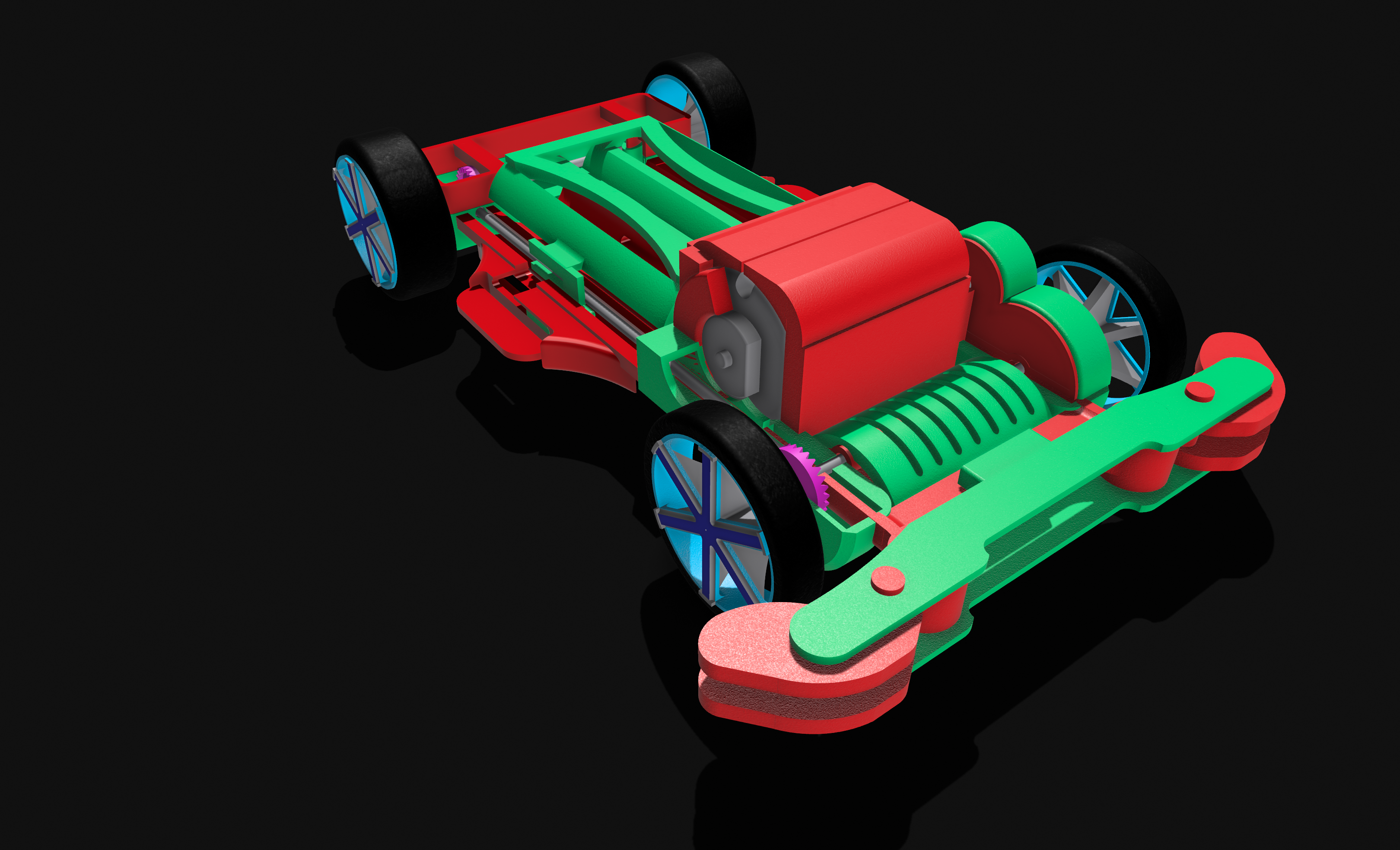

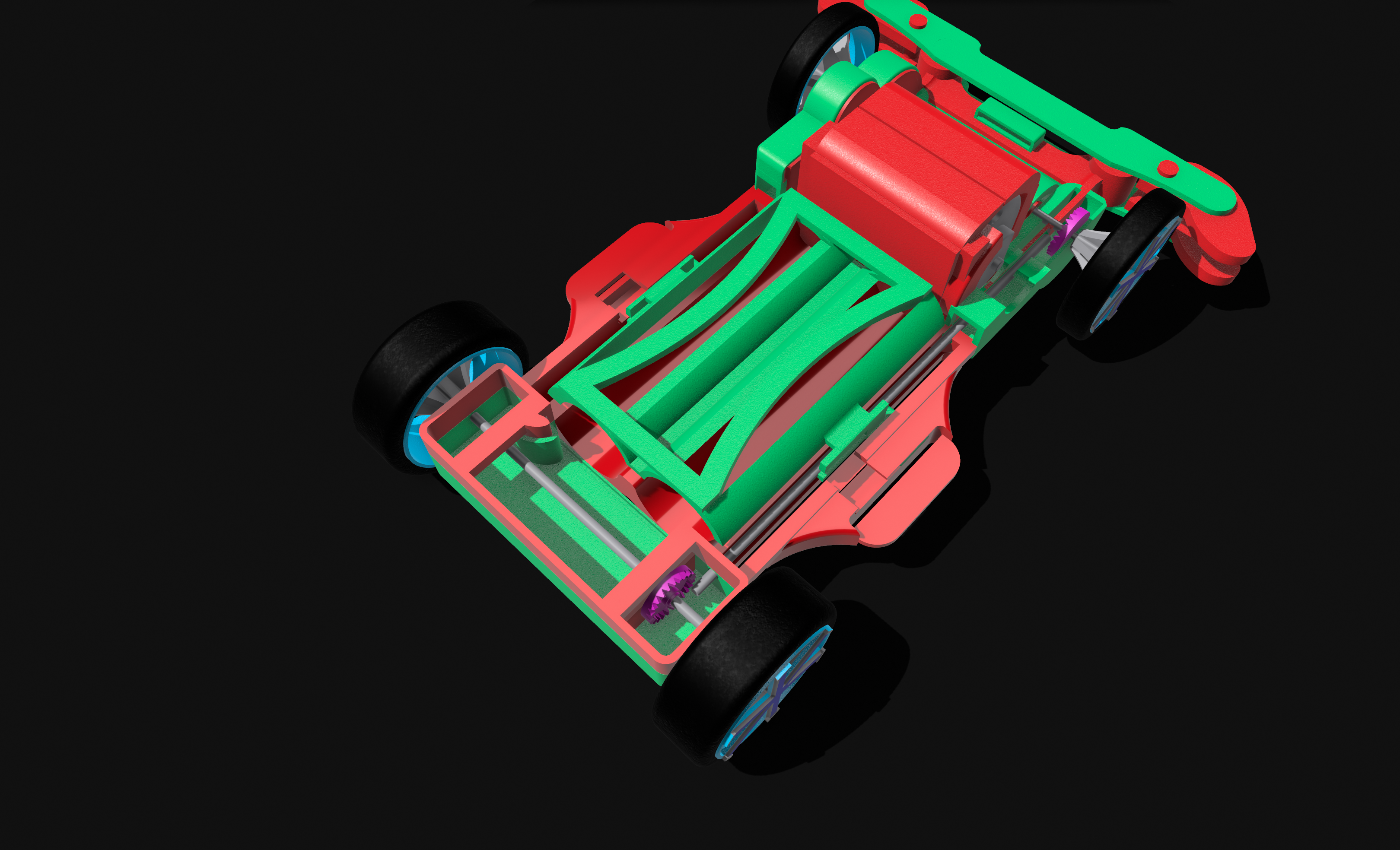

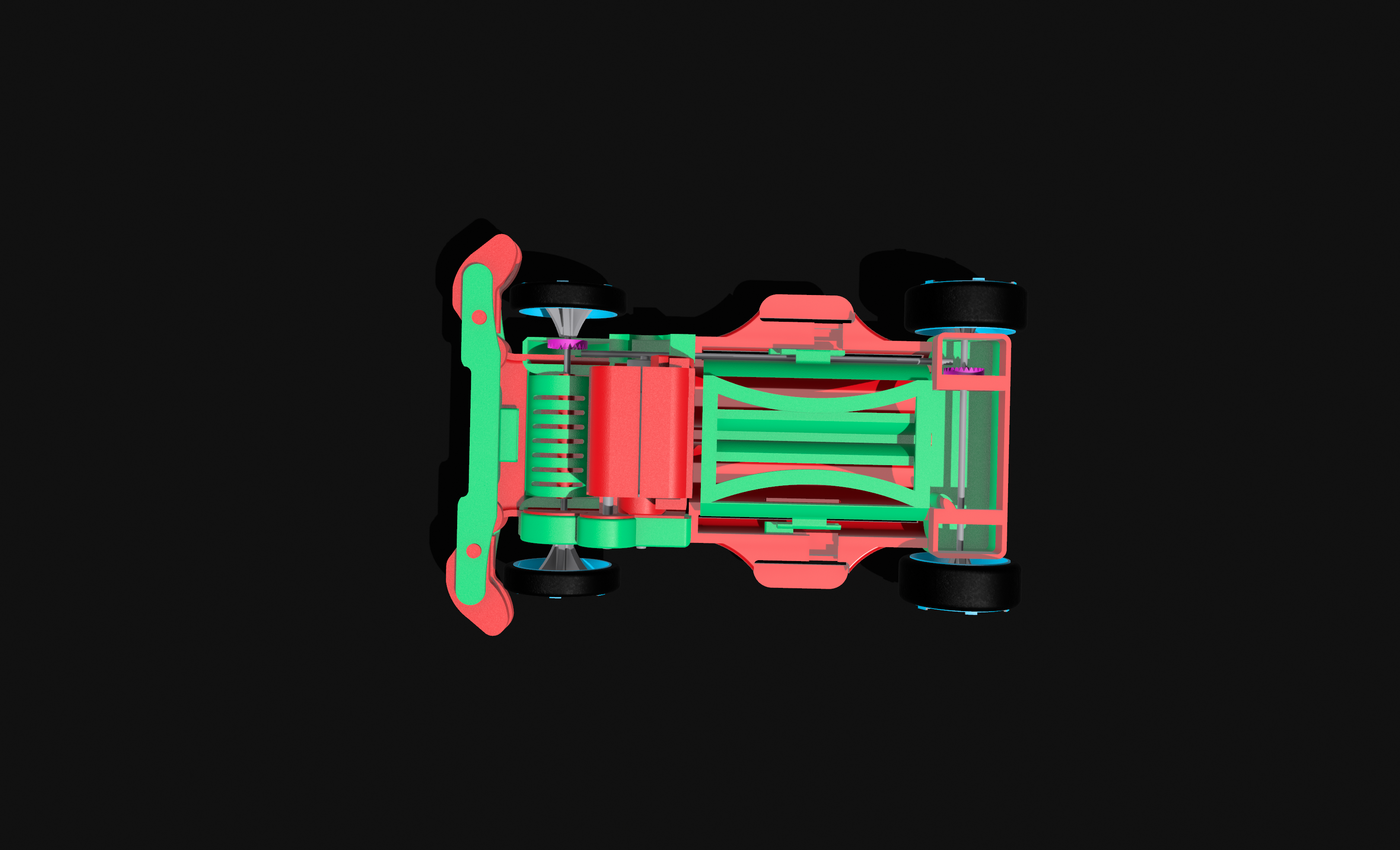

Layout: motor/“engine” at front (represented by small gearbox), transmission/transfer-case under/behind it, a central driveshaft to rear diff, front diff integrated with trans output, CV axles to front wheels, rear diff with half-shafts.

Pros: authentic articulation, correct driveline geometry, nice scale realism.

Cons: miniature universal joints, slippery tiny bevel gears, more machining/printing precision required.

B — Dual-motor AWD (practical for small RC models)

Put a small geared motor driving the front axle and another motor driving the rear axle. Front motor packaged inside the “engine bay” to maintain front-engine visual. Use independent gearboxes to the front and rear diffs.

Pros: simpler (no long driveshaft), easier to build, easier torque distribution control.

Cons: slightly less realistic driveline, needs careful electrical control if you want synchronized torque.

Both are valid — choose A for scale-accuracy; B for simplicity & reliability.

3) Recommended powertrain components (practical choices)

Motors: small coreless brushed or brushless micro motors. Example specs that fit scale:

Motor rpm ~10,000 rpm (typical for small coreless) with a gearbox.

Use a planetary or worm gearbox module to bring high rpm down.

Suggested gear reduction (example): 50:1 gearbox → wheel rpm ~200 (if motor 10k rpm).

With wheel circumference 55.44 mm and wheel RPM 200, model speed ≈ 0.66 km/h (good for display/walkaround; reduce reduction for higher speed).

Differentials: tiny bevel-gear diffs (3D-print housings and use metal bevel gears), or use slip-clutch pinion for simple limited-slip effect.

Drive methods for tiny shafts: brass universal joints or flexible carbon fiber drive shafts for small misalignment.

4) Suspension & steering (scale-friendly designs)

Front: double-wishbone or simple MacPherson strut layout (strut simpler to package in small scale). Use miniature compression springs (3–6 mm travel).

Rear: solid axle with trailing arms (if you want scale truck) OR independent trailing arms for better articulation.

Steering: rack-and-pinion sized to width (rack length ≈ track width minus tolerance). Use micro servo (if RC) mounted central under dash to keep scale cockpit intact.

5) Chassis concept & construction

Floorpan: sandwich structure — 0.8–1.5 mm sheet (ABS or 3D-printed infill) as backbone.

Bulkheads: integrated mounts for gearbox(s), servo, battery and electronics.

Battery/electronics: small LiPo pouch (2–3 cell slim) or button batteries for display models. In dual-motor AWD, put battery longitudinally along centerline under seats to lower CG.

Weight distribution: keep mass low and slightly forward to reflect front engine; but not too nose-heavy — aim for ~55% front / 45% rear.

6) Materials, printing & tolerances

Body: PLA or PETG for prototyping; ABS or ASA for final if you want durability and heat resistance.

Chassis/structural parts: PETG or nylon for toughness.

Bearing surfaces: press-fit brass tubes or tiny ball bearings (1.5–3 mm ID).

Print tolerances: ±0.1 mm where possible; for shafts and press-fit bosses design clearance ~0.2 mm (test prints recommended).

Fasteners: use M1.2–M1.6 screws or 0.8–1 mm pins for tiny assemblies.

7) BOM (short)

1× small coreless motor + gearbox (or 2× if dual motor)

1× micro servo (steering)

1× tiny bevel differential (front) + 1× rear diff (or two half-axle assemblies)

Brass universal joints or flexible shafts

Wheels & tires (17–18 mm diameter)

Battery: small LiPo (e.g., 2S 200–400 mAh) or coin cells for display

Electronics: ESC(s) or motor driver board, micro receiver or switch

Structural: 3D-printed chassis parts, screws, shafts, bearings

8) Gear & speed example (worked numbers)

Example: motor 10,000 rpm, gearbox 50:1 → wheel RPM = 200 rpm.

Wheel circumference = π * 17.647 mm ≈ 55.44 mm

Linear speed = 55.44 mm * 200 / 60 ≈ 184.8 mm/s → 0.665 km/h (slow, display pace).
To increase speed, reduce reduction (e.g., 25:1 → ~1.33 km/h) or use higher motor rpm.

9) Assembly & CAD checklist (so you can start CAD/prints)

Define exact wheelbase & track widths (I used 73.5 mm wheelbase).

Layout motor(s) & gearbox location (front bay) and decide driveshaft routing to rear diff (realistic) or rear motor placement (dual-motor).

Design differential housings with 0.2 mm clearance for bevel gears.

Provide mount pillars for servo and battery with access panels.

Keep centerline channel for driveshaft (if used) and flexible coupling points.

Design shock towers and ensure minimum 3–4 mm suspension travel.

Add inspection ports for maintenance (tiny screws).

Export parts as STL with support-friendly orientation; add chamfers on screw holes for easy assembly.

10) Problems you’ll meet & tips

Tiny bevel gears are fragile — prefer small metal gears for diff pinions.

Long, thin printed driveshafts can flex — use thin metal shaft through printed sleeve or carbon rod.

Cooling of motors: cramped front bay can trap heat — add vents in bonnet.

Fine-tune gear backlash: too tight → binds; too loose → noisy. Aim ~0.05–0.15 mm backlash for tiny gear pairs.

11) Final suggestions & next steps

If you want maximum realism, I’ll describe exact CAD dimensions for each part (diff housing, gearbox mount, shaft lengths) and produce dimensioned drawings.

If you want faster build, I can give a parts list with specific off-the-shelf micro motors/gearboxes and link to suppliers (if you want me to look them up, I can search the web for current part models).

If you want, I can also sketch a simple exploded view (text description) or provide a parametric parts list you can drop into Fusion360.
