DotNote LED Matrix Case


⚠ AI-Enhanced Description

Custom 3D printable case designed specifically for the DotNote project - a Raspberry Pi Zero 2W LED matrix message display.


Features

✅ Perfect fit for Raspberry Pi Zero 2W
✅ Accommodates MAX7219 LED Matrix (8x8x4 modules)
✅ Space for optional buzzer
✅ Cable management channels
✅ Screw mounting assembly
✅ Two top options: IKEA Skadis mount or flat desktop version
✅ Clean, minimalist design


What's Included

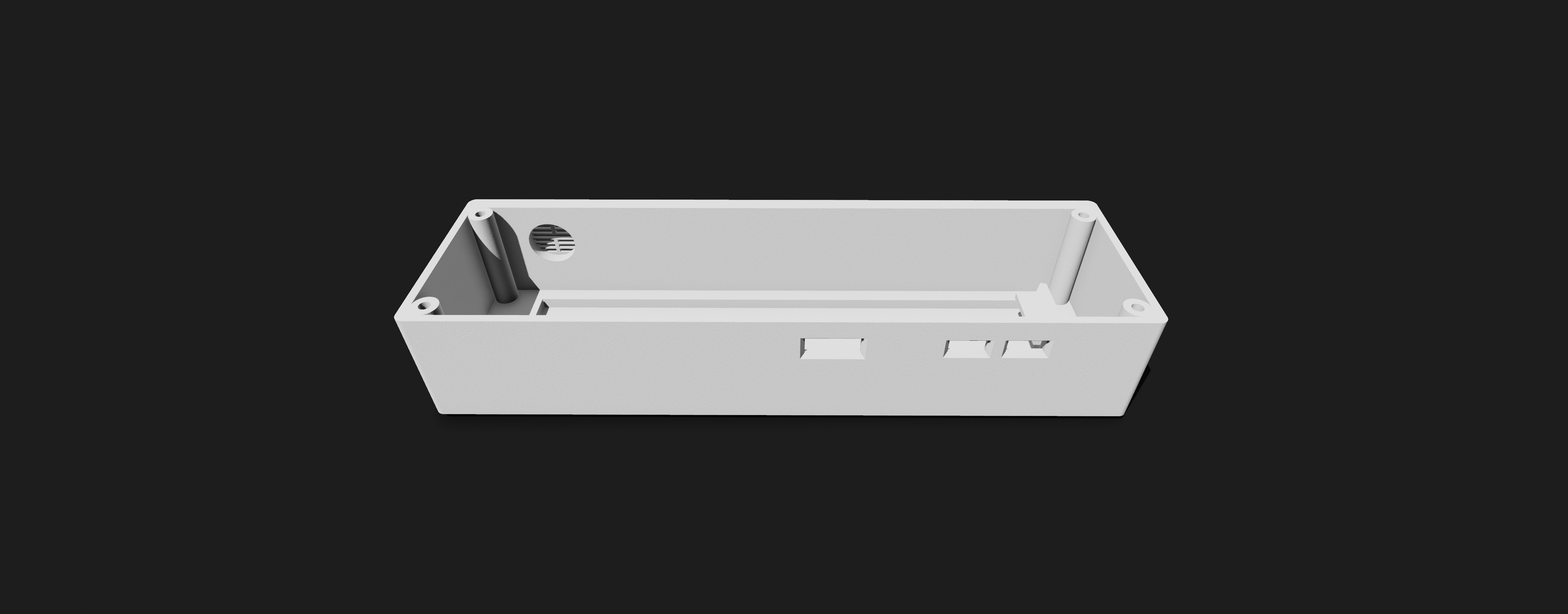

• Case bottom
• Case top

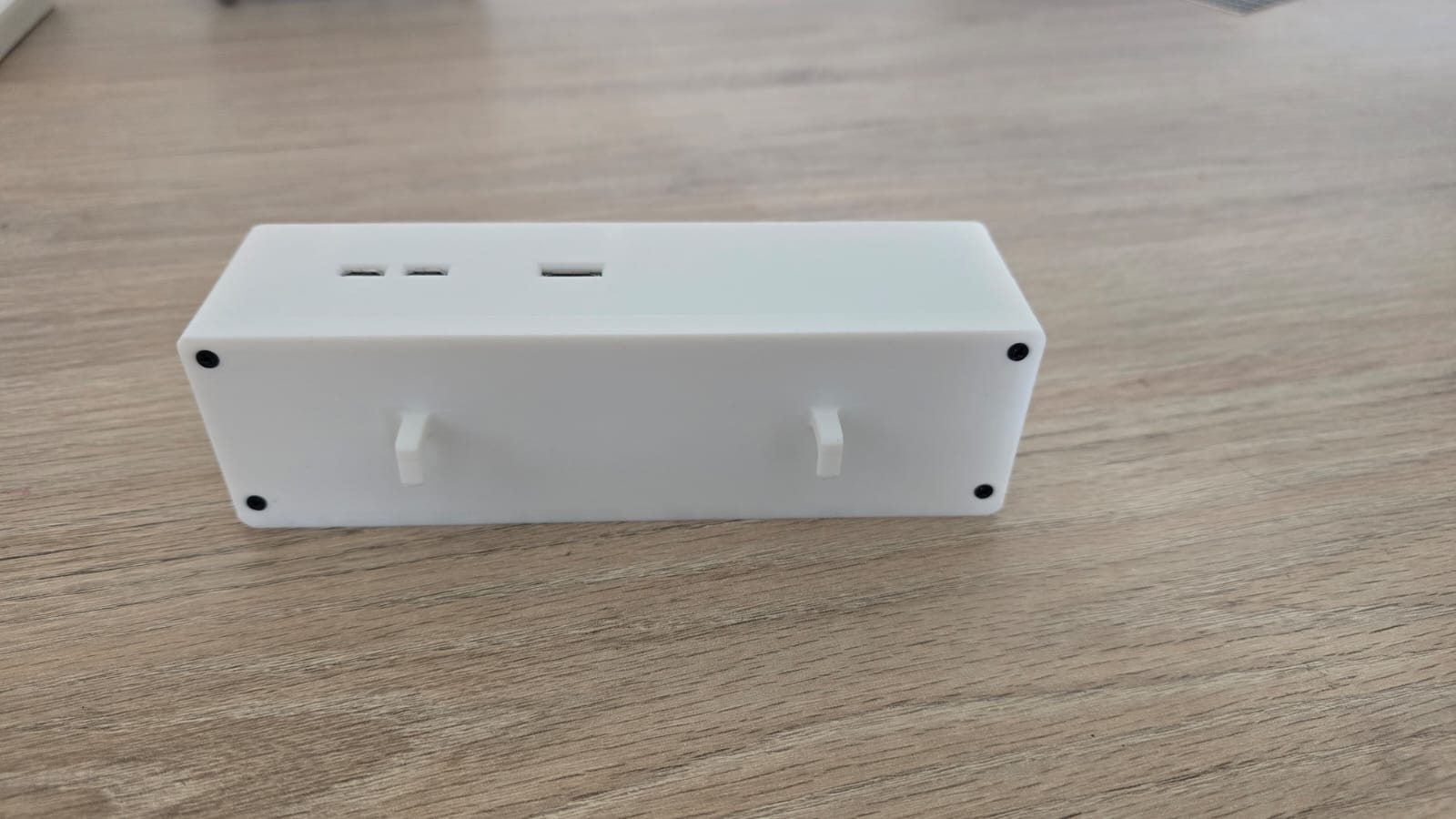

- Skadis mount (for IKEA pegboard system)

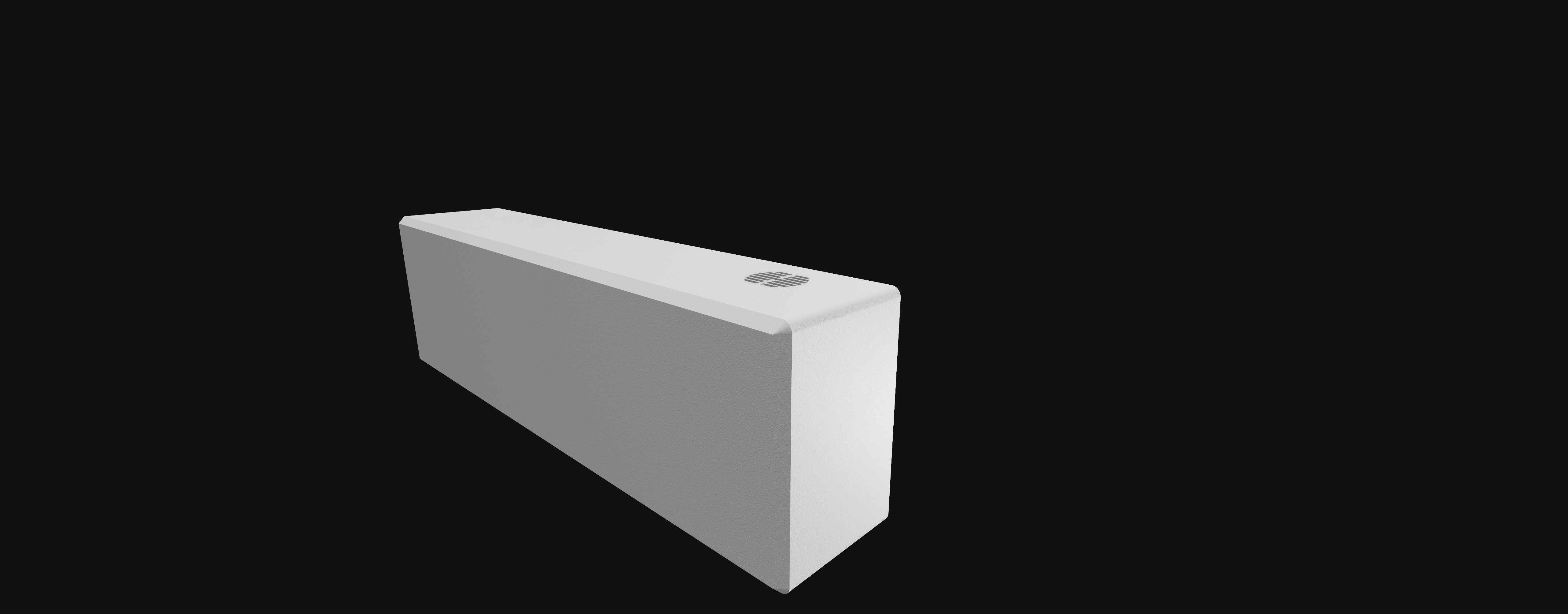

• Case top - Flat (for desktop use)


Required Hardware

• Raspberry Pi Zero 2W
• MAX7219 LED Matrix Display (4x 8x8 modules)
• 6x M2.5 screws
• Standard GPIO buzzer (optional)


Print Settings

Layer Height: 0.2mm
Infill: 15%
Supports: Yes (minimal)
Material: PLA


About DotNote

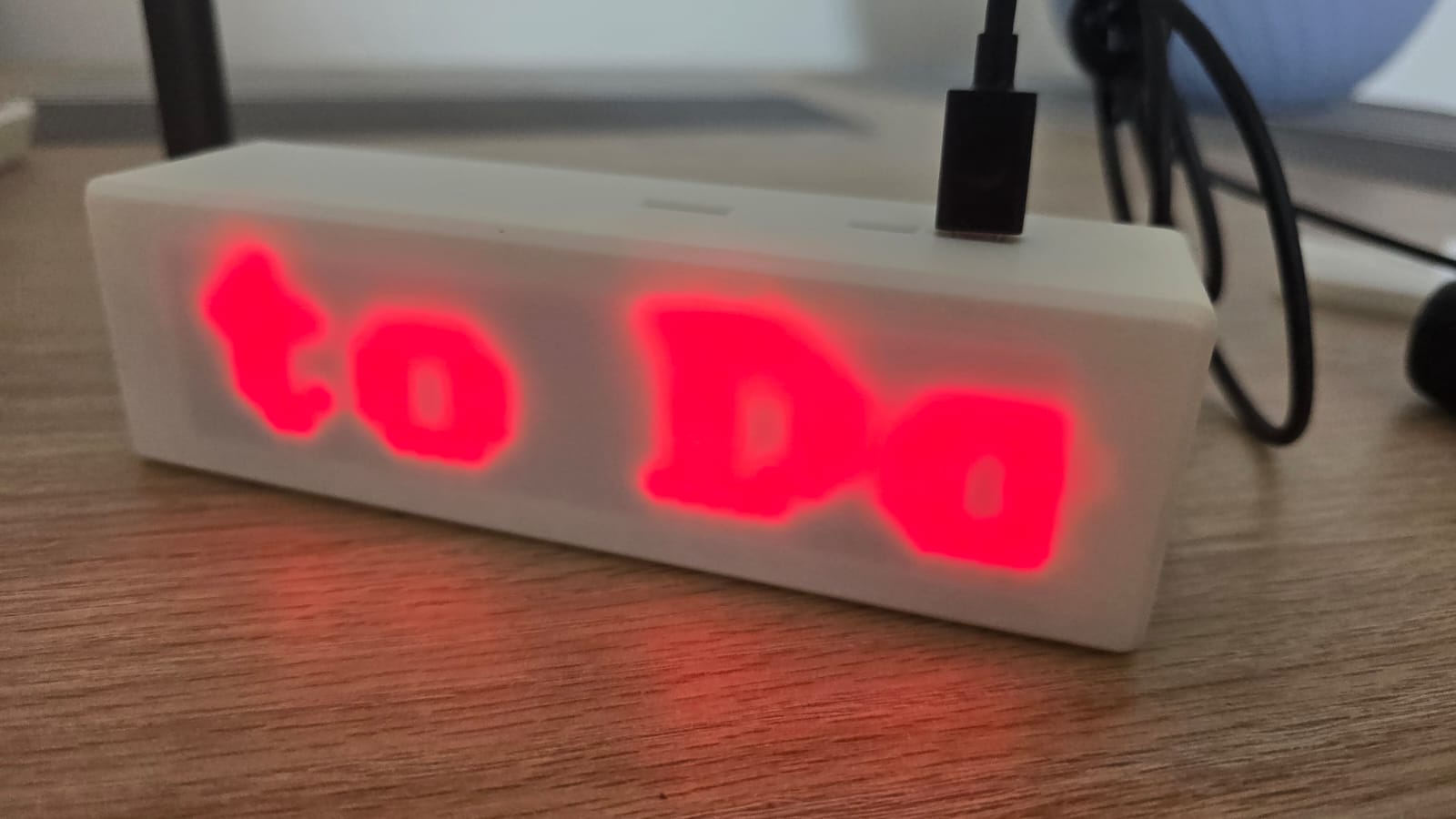

DotNote is an open-source LED matrix message display project that lets you show scrolling messages controlled via a web interface or API. Perfect for door signs, notifications, and creative displays.

Project Repository: [https://github.com/SebasPinto/DotNote-py](https://github.com/SebasPinto/DotNote-py)


Assembly

1. Print all parts (choose Skadis or flat top)
2. Mount LED matrix modules
3. Insert Raspberry Pi Zero 2W into case bottom
4. Connect wiring (see repository for wiring diagram)
5. Secure top with 6x M2.5 screws

Mounting Options

Skadis Top: Hang on IKEA Skadis pegboard system for wall mounting

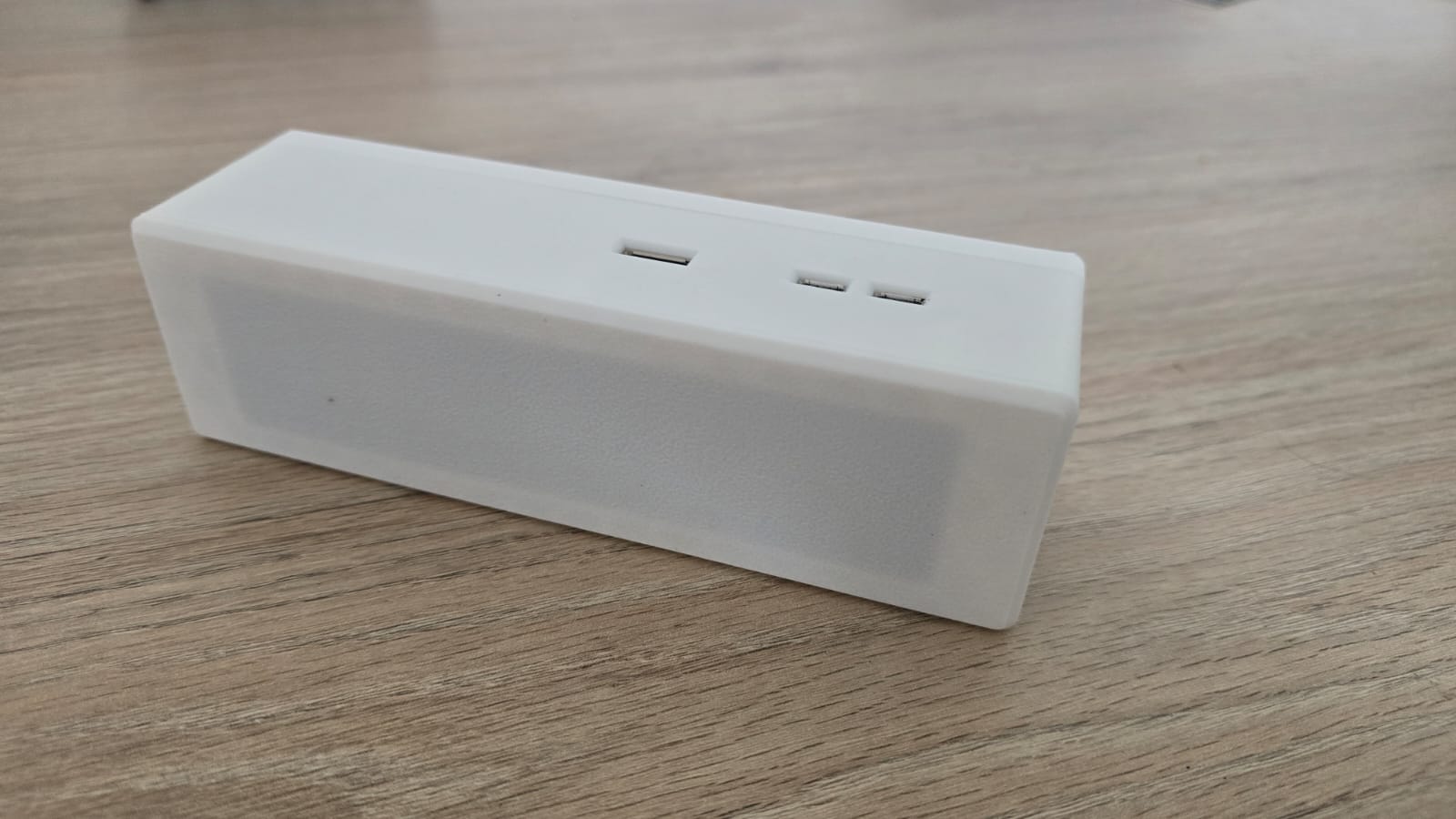

Flat Top: Place on desk or shelf for standalone use


Support

If you build this project, please share your makes! ⭐

☕ Support the project: [https://buymeacoffee.com/sebaspinto](https://buymeacoffee.com/sebaspinto)


Part of the DotNote project - Making LED displays simple and elegant
