What is this?

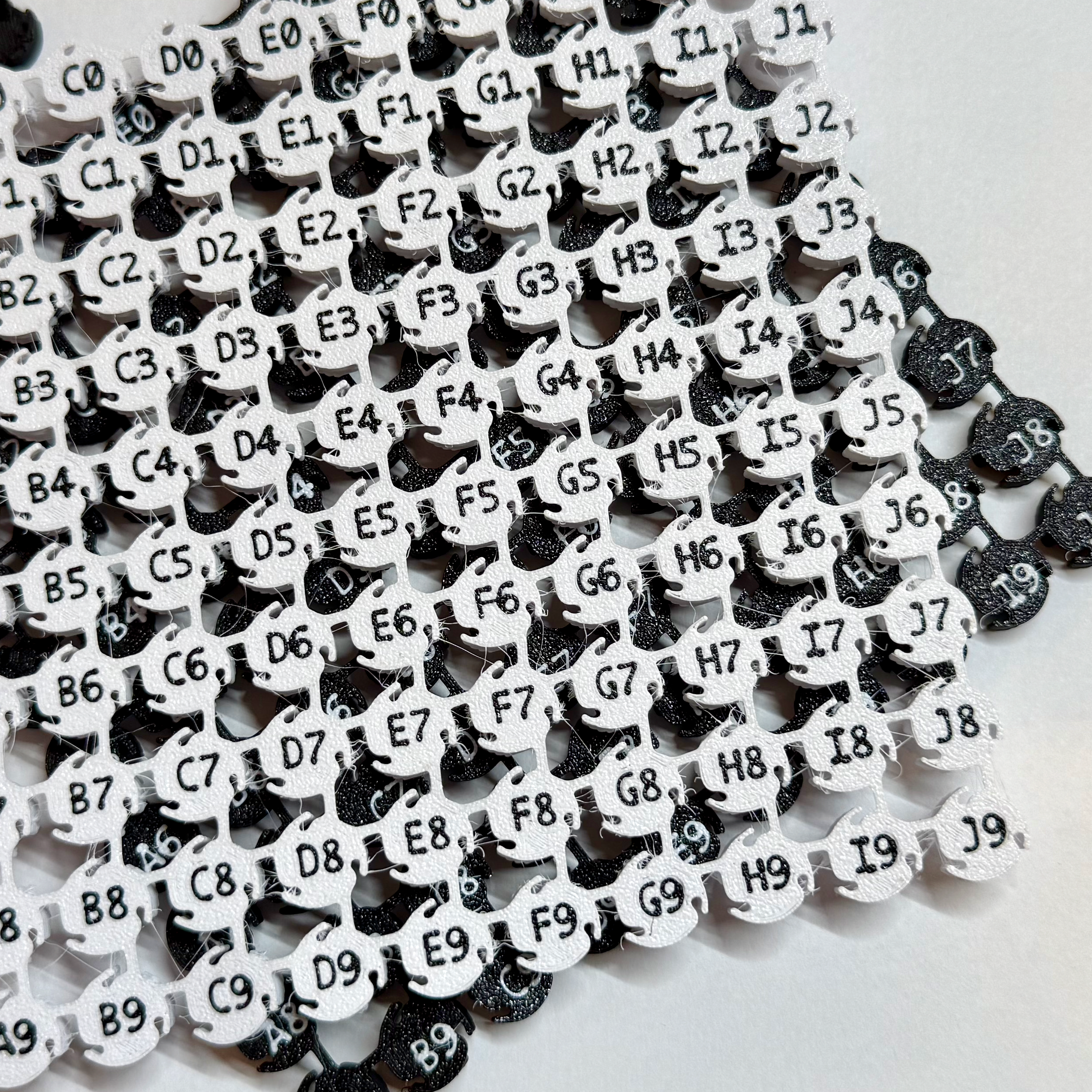

These are customisable cryotube inserts that fit nunc and other standard cryotubes tops. You can colour them to your hearts content and make it easier to find your tubes in the deep freeze. They're printed on a 10x10 grid to make it easier to organise and print.

Please note that using cryotube dots are no substitute for labelling your samples correctly!

Customising

If you have the urge to customise them yourself, please see my github. It has the original step and f3d files, and a python script to make the grid of your organisational dreams. If you need a hand to customise it please reach out to me.

[https://github.com/stansfie/Cryotube-Dots](https://github.com/stansfie/Cryotube-Dots)

Printing

Nozzle size - 0.25mm for lettering, 0.4 for plain
Layer height - 0.2mm
Filament - Your choice; PETG is reported to be more stable in liquid nitrogen and PLA has more colours. Your milage may vary!

Insertion

Setting them in is easy, you just need a pencil or something to force them in. the side of the tube clips off the extra tags

Removal

Removal is a little more tricky. Each dot is printed to have 3 tension springs to hold it in place so they're less likely to fall out. To remove the dot insert a paperclip in one of the holes and remove.

Support

Research is expensive, but you should be able to get the resources you need to keep things organised. So I've made this freely available but draw the line at commercialising. Please contact me directly if you would like to obtain a commercial licence.

If you like the work and want to contribute to our work and medical research please consider donating to either the Monash Foundation or the Hudson Institute for medical research

You can also support me directly here - because who doesn't like coffee?
