Modelo 3D Simple LCD 1602 tilted holder - bracket por Sarunas-Zilinskas no Printables

Descrição

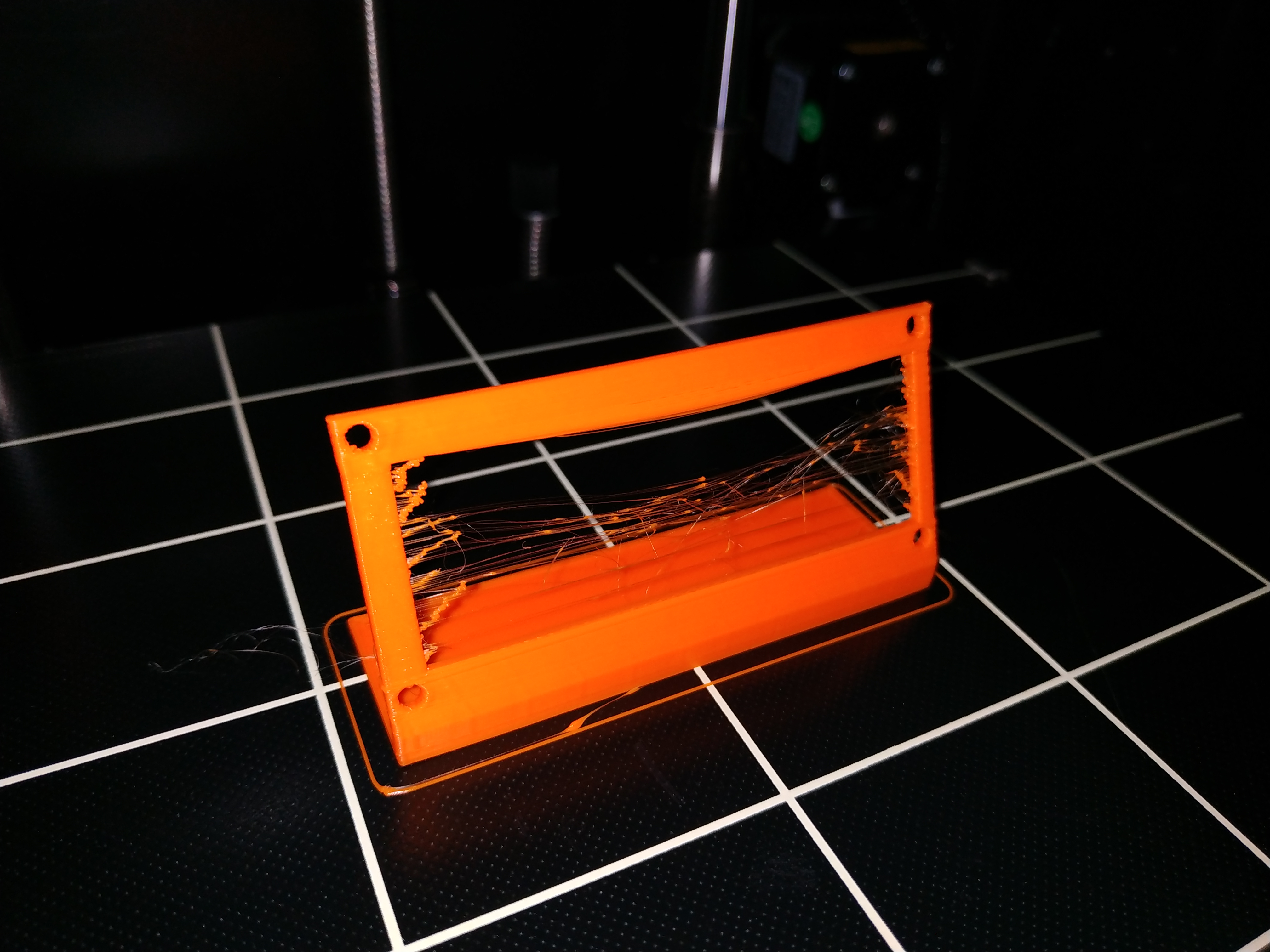

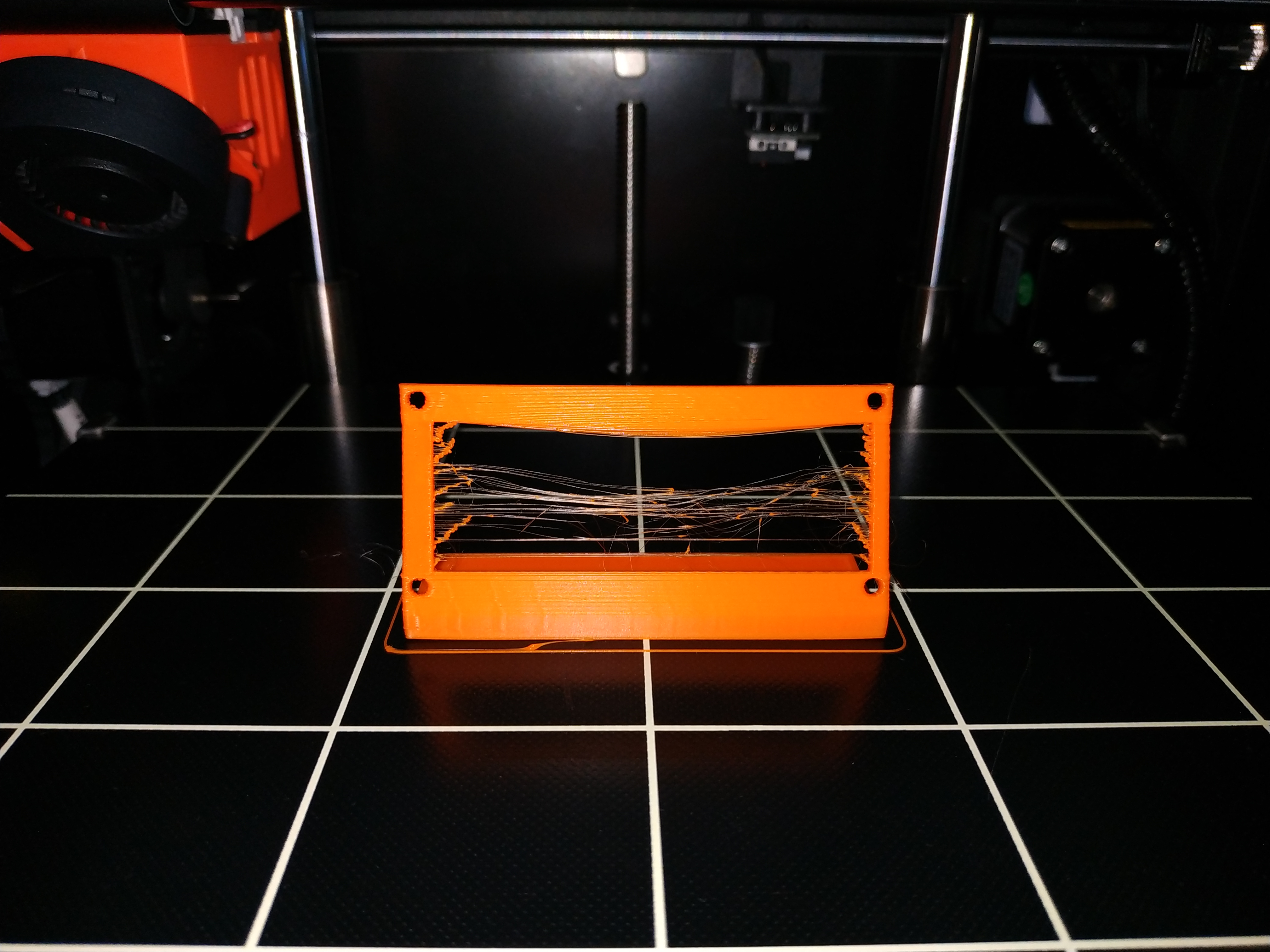

Printed without any supports. There was some stringing and sagging but nothing major. Cleaned it up in less than 5 minutes and it was good to go.



Holes are 3.2mm wide so M3 screw should go in without any problems.

What's needed [optional]:

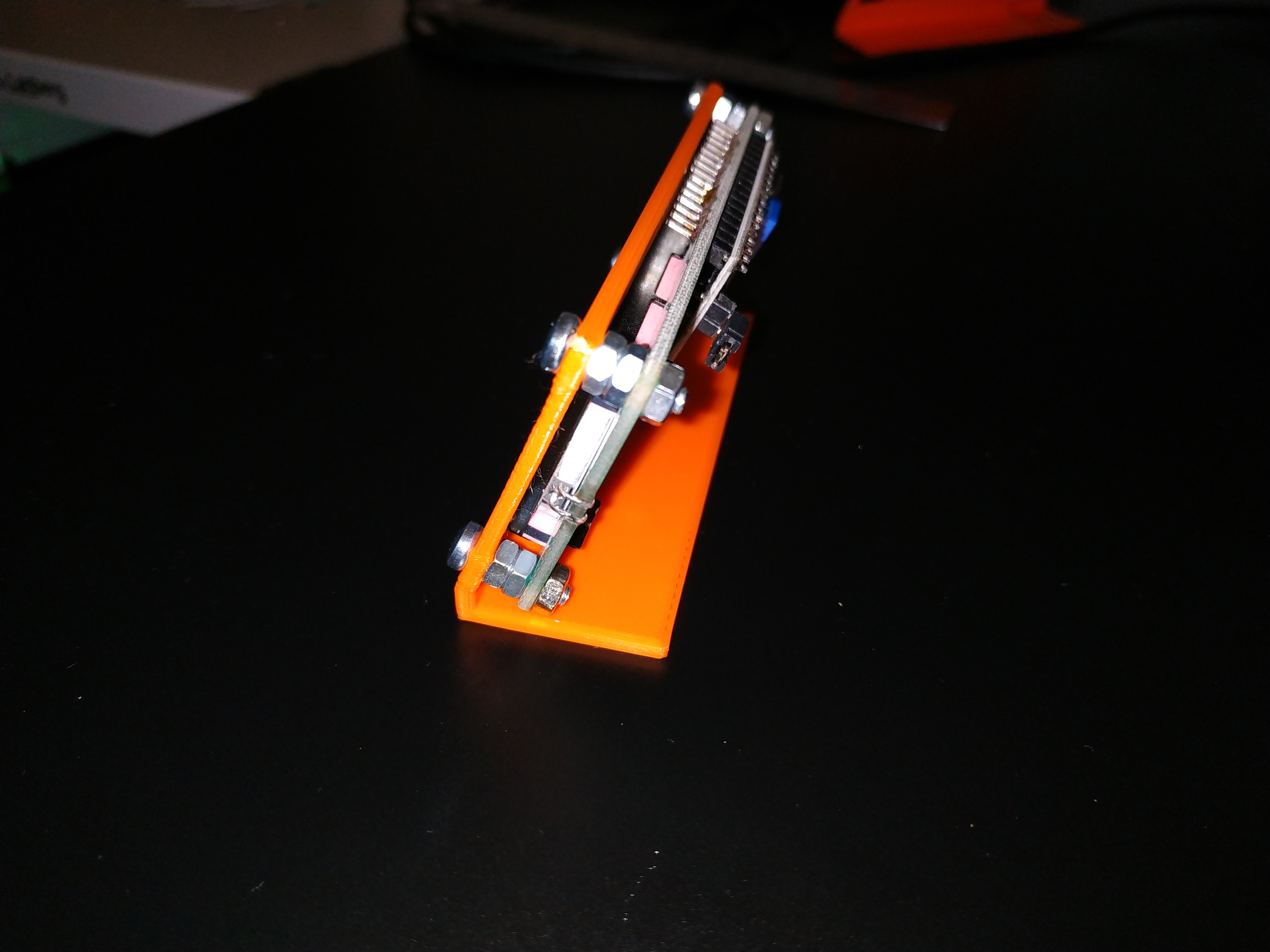

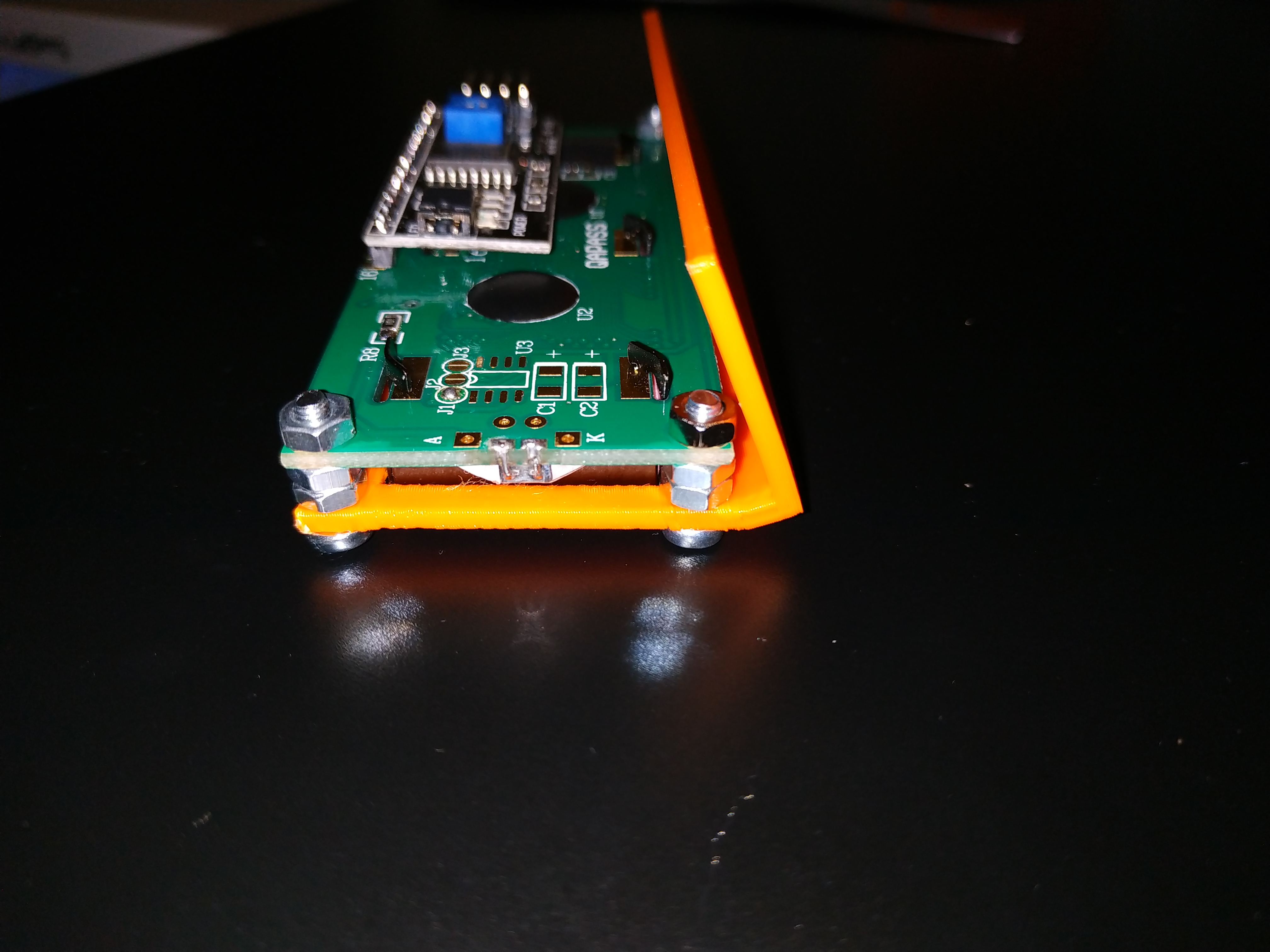

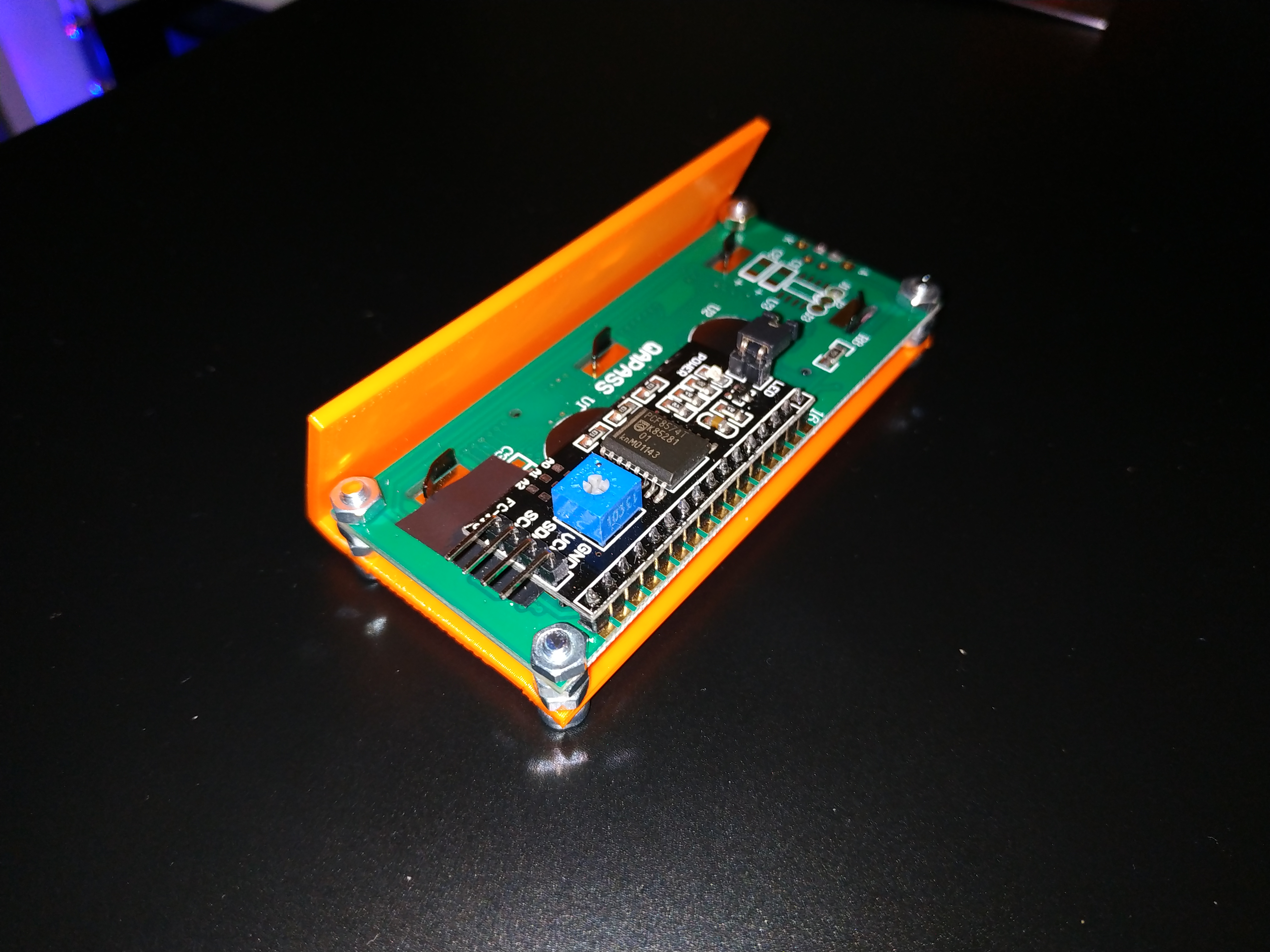

  • 4 pcs: M3 x 12mm Flat head screws.
  • 12 pcs [8 pcs]: M3 screw nuts (Can be either 12 pcs or [8 pcs], depends on wether you want the screen to extrude or not.
  • [4pcs: washers]
  • Screwdriver.
Printables

Simple LCD 1602 tilted holder - bracket

Publicado em 6 de mar de 2022

9
Curtidas
181
Downloads
1
Impressões
Categoria Electronics
Tags
holder arduino bracket raspberrypi lcd 16x2 16x02 1602
Licença Creative Commons — Attribution — Noncommercial
Arquivos (1)
LCD_1602_holder_v4.stl 22.4 KB
