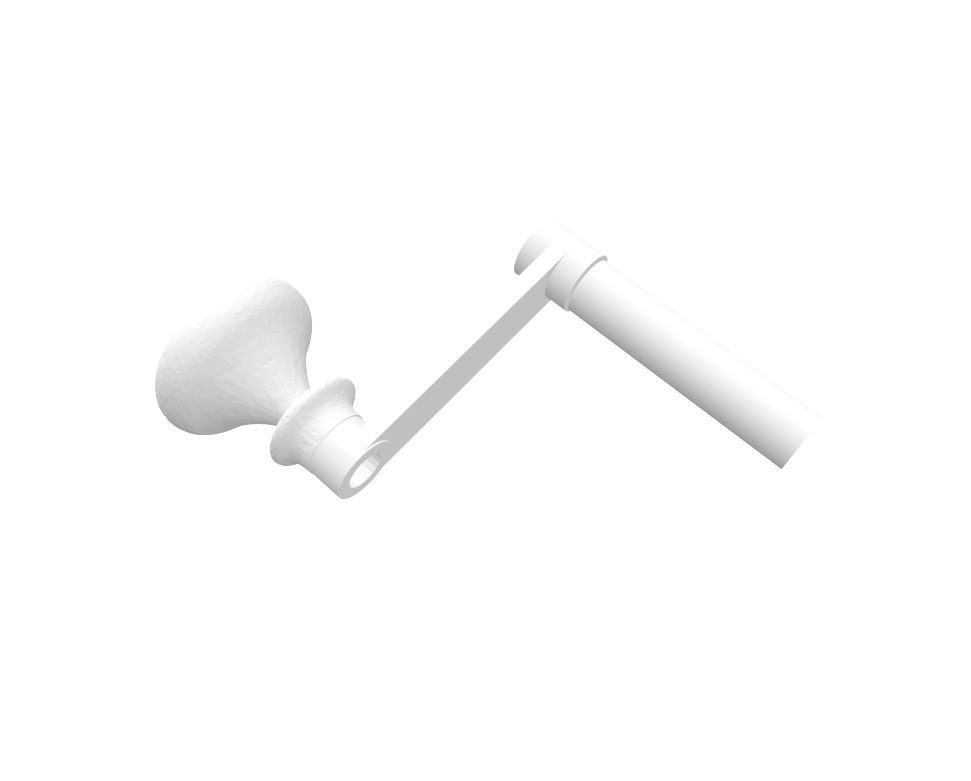

This was created to add to my Clock 45 from Brian Law's Wooden Clocks. It needed a winder so here you go.  The square key hole on the winder is 4.6mm wide and 11.75mm deep.

Total print time is about 2:30

Filament: PLA

A raft is recommended as these are pretty small.

Supports:

You should not need supports for the Barrel and Knob if printed vertically and you use a raft, but the Arm will need supports if you do not print it on it's side.

Hardware:

2x - M3x10 Screws

When fitting the knob to the arm, leave it a bit loose so the knob will spin.

This model is open and available to the public on TinkerCad here: [https://www.tinkercad.com/things/9CYt2KKoTQs-clock-winder-v1-0](https://www.tinkercad.com/things/9CYt2KKoTQs-clock-winder-v1-0)

Happy Printing!
