Modelo 3D Inky pHAT case (with RaspberryPi Zero) por Cesare no Printables

Descrição

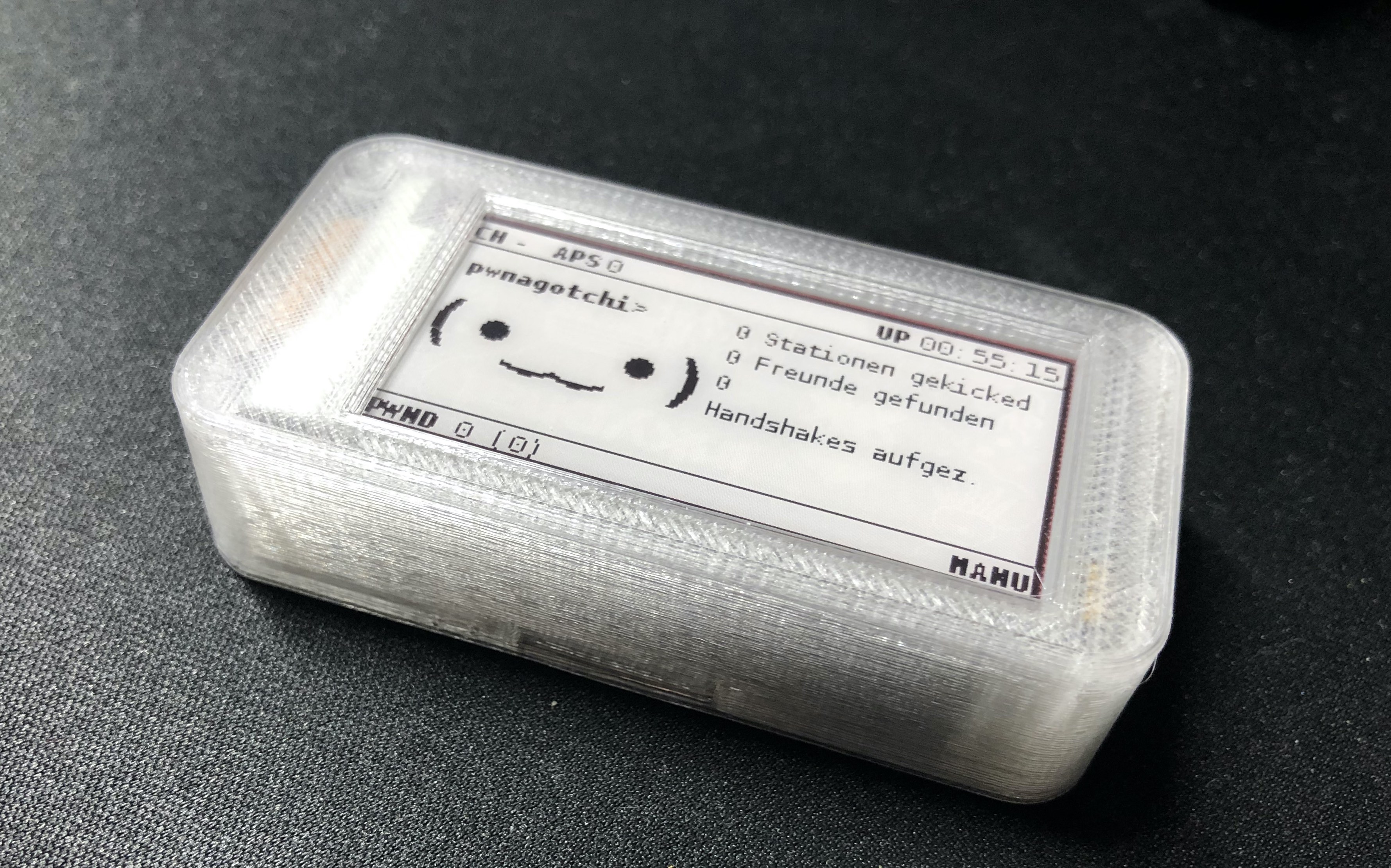

Just a little case for the Pimoroni Inky pHAT (with RaspberryPi Zero).
The case can be clicked together without any screws.
The camera port, the SD Card and the two USB Ports are accessible, however, the HDMI Port is inaccessible.

Print instructions

I printed the case in a transparent PLA on the Mk3s with a 0.3mm Layer Height.

  1. Put the spacer on the RaspberryPi.
  2. Gently push the Inky pHAT onto the header. (without force)
  3. Insert the assembly into the top part.
  4. Insert the bottom plate on the header side first and maybe squeeze the sidewall a little bit with a flathead screwdriver outside to close up the case.
Printables

Inky pHAT case (with RaspberryPi Zero)

Publicado em 17 de dez de 2019

24
Curtidas
191
Downloads
3
Impressões
Categoria Electronics
Tags
case zero pimoroni epaper phat inky
Licença Creative Commons — Attribution — Share Alike
Arquivos (3)
inky_bottom.stl 15.5 KB
inky_top.stl 49.9 KB
inky_spacer.stl 29.3 KB
