Descrição

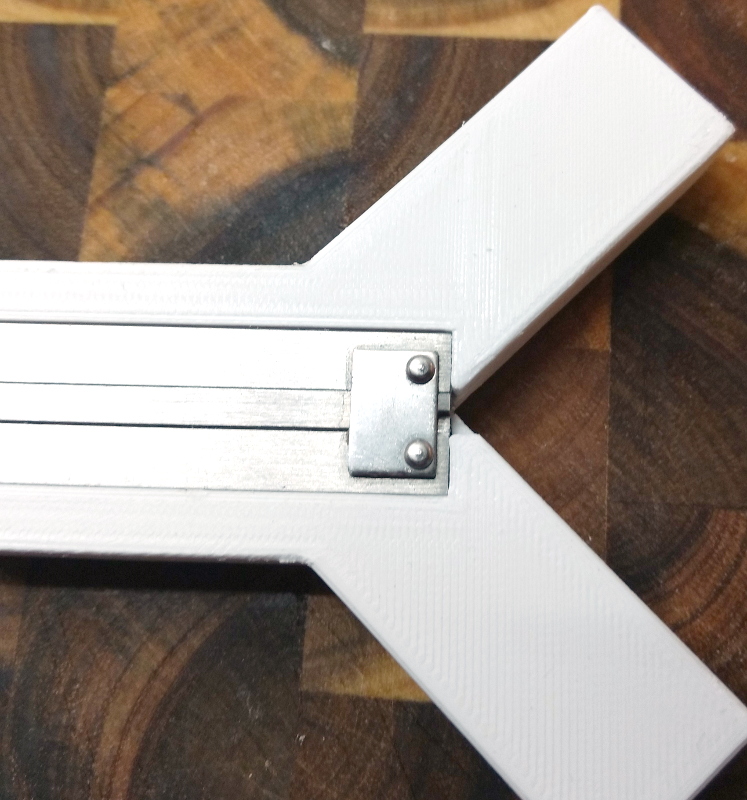

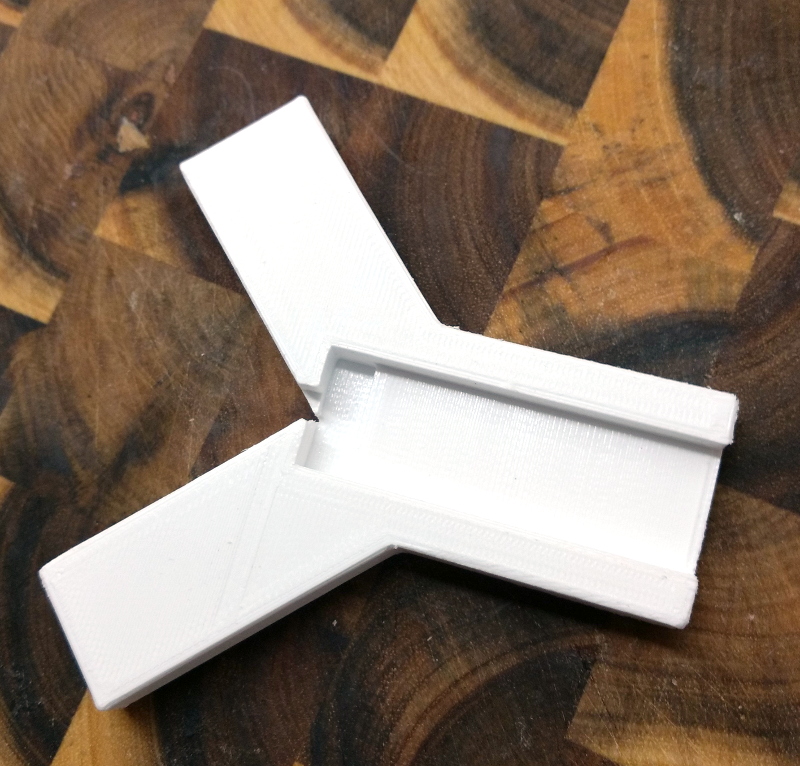

This small tool attaches to the depth gauge of a standard size caliper (16mm wide) to create a radius gauge. The depth reading is linear with the radius: the caliper reading needs to be multiplied by 2.41 (which is sqrt(2)+1) to get the radius.
See also my project page:
[http://www.theiling.de/cnc/date/2019-12-17.html](http://www.theiling.de/cnc/date/2019-12-17.html)
98
Curtidas
695
Downloads
18
Impressões
Categoria
Tools
Tags
radius
radiusgauge
calipers
measurement
Licença
GNU General Public License v2.0
Arquivos (2)
radiusgaugegauge.stl
540.6 KB
radiusgaugegauge.scad
12.9 KB
