Descrição

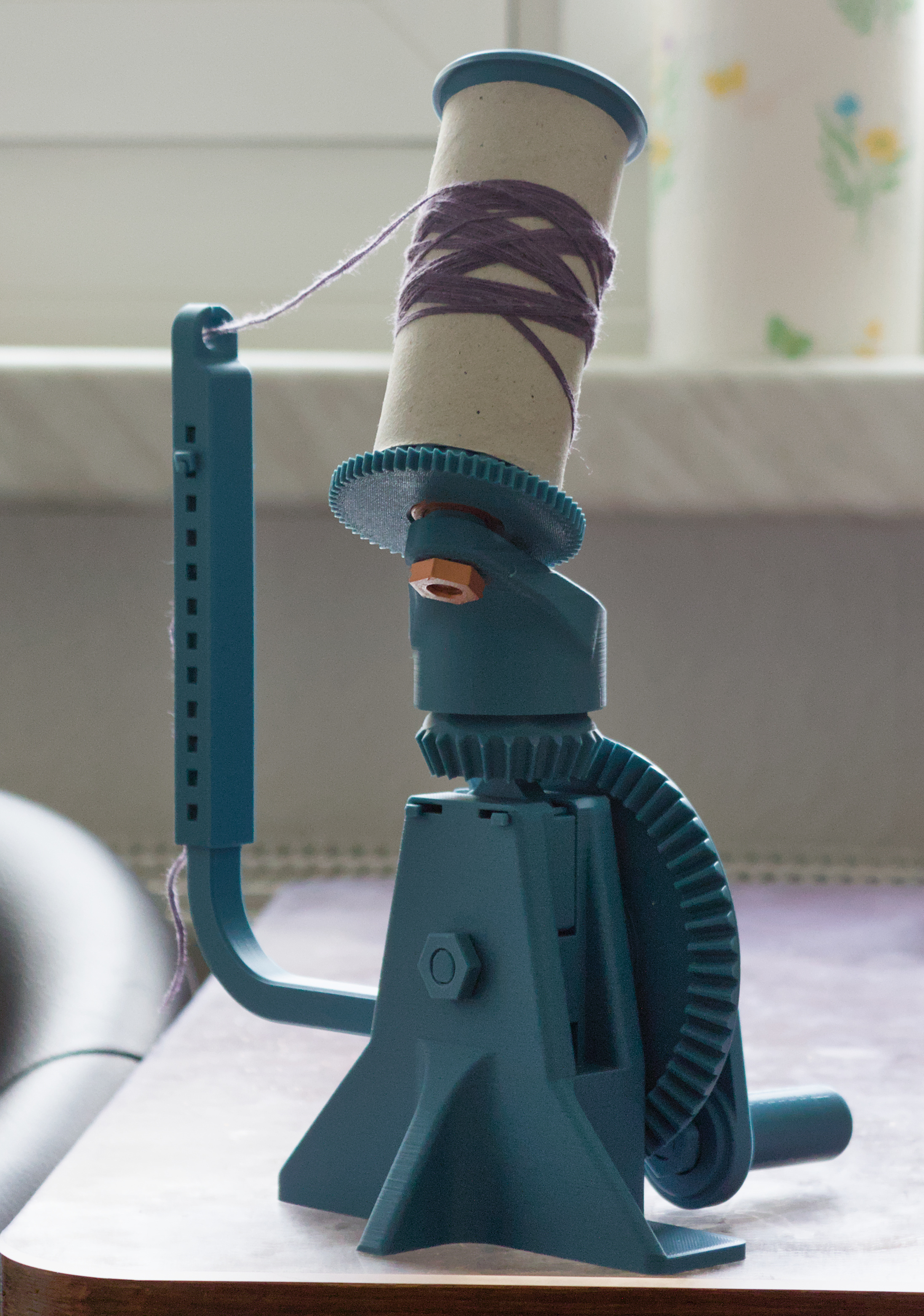

Why do you need that? I don't know, my girlfriend wanted it, so I made it for her! Nearly everything is 3D printed, you just need these part:
- 6900 Bearings (x6), can be 3D printed, but won't last long
- Clamps (to clamp it to a desk), I printed these: [https://www.printables.com/model/839279-strong-printable-clamp](https://www.printables.com/model/839279-strong-printable-clamp)
- Toilet paper Core (optional) (print: Hat_Toilet_Paper.stl)
TIP: Print “Bevel_Pinion_Gear_Big" first and check the bearing fitting.
Note to bearings:
- Outer Diameter: 22mm
- Inner Diameter: 10mm
- Height: 6mm
Print instructions:
- Files with number at the end, like “Nut_x4”. That's how often you have to print the part
- Files containing the word “support” at the end, require support
- Every standard material should work (I used PLA)
- at least 3 Walls
- 30% Infill
- You don't need supports
Assembly
Detailed Pictures with descriptive names are in the .zip file.
Bearing Placements

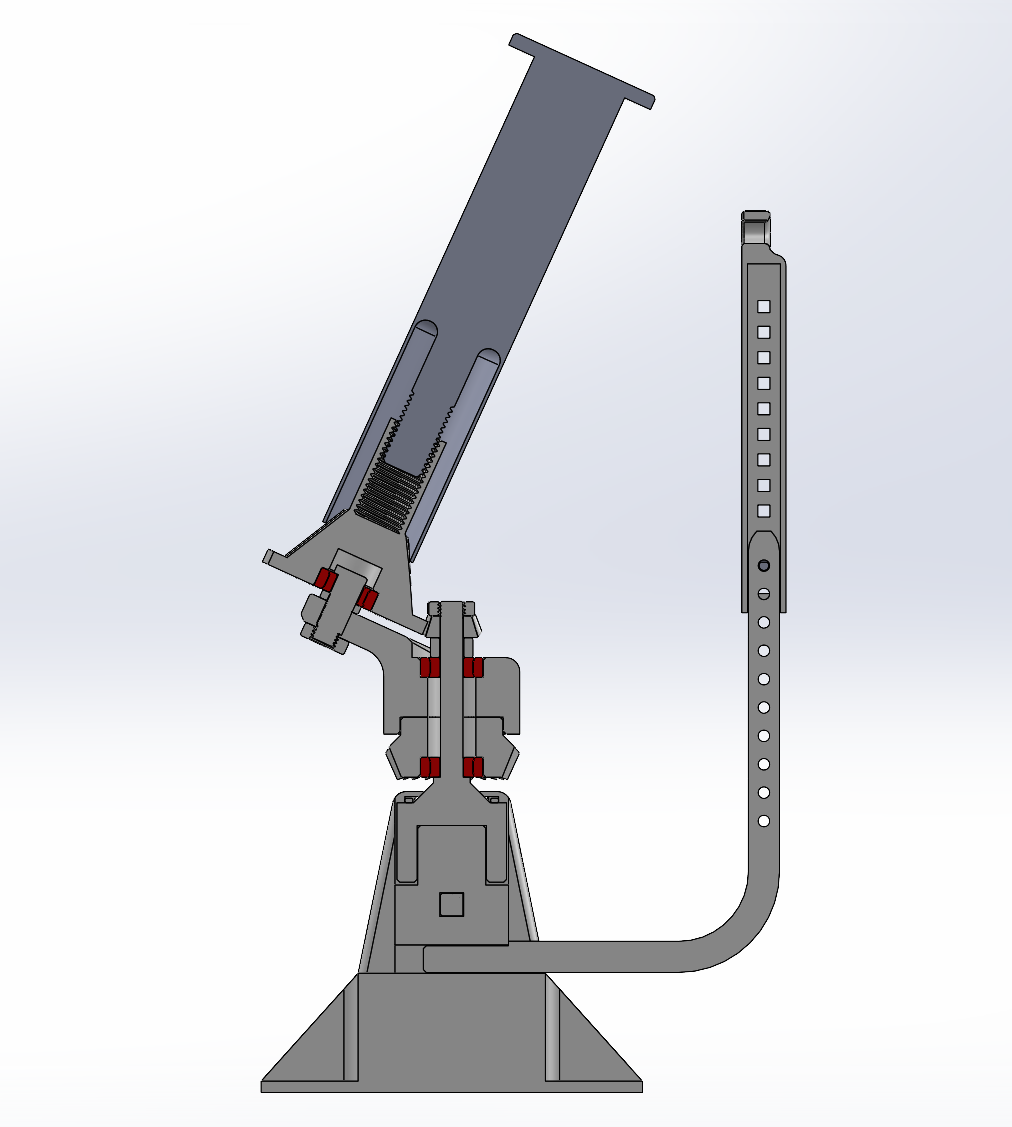

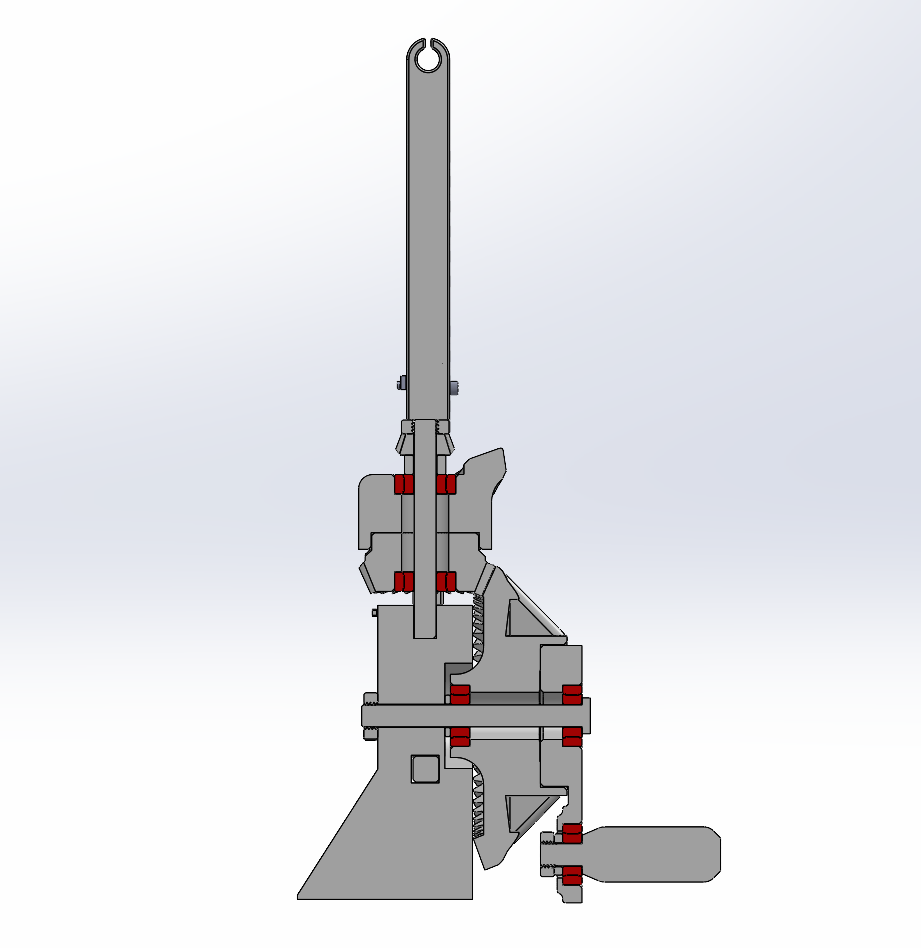

The placement of the bearing is shown in the subsequent pictures in red. Press them in hard, for example by pressing the part on a flat surface.
175
Curtidas
301
Downloads
3
Impressões
Categoria
Other Gadgets
Tags
recycling
diy
608
wool
woolwinder
toilettenpapier
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (20)
spacer_small_x3.stl
59.5 KB
fixateur_x2.stl
8.9 KB
bevel_pinion_gear_big.stl
575.2 KB
crank_support.stl
620.9 KB
pin.stl
175.3 KB
spacer_big.stl
57.1 KB
spool_holder_support.stl
681 KB
main_shaft.stl
425.9 KB
bevel_gear_crank.stl
1.8 MB
bevel_pinion_gear_small.stl
559.7 KB
spur_gear_support.stl
3.1 MB
small_shaft.stl
605.3 KB
long_shaft.stl
369.6 KB
nut_x4.stl
712.8 KB
hat_toilet_paper.stl
2.1 MB
handle.stl
701.8 KB
guide.stl
184.7 KB
guide_hat.stl
305.6 KB
main_body.stl
139.7 KB
hat.stl
1.2 MB
