Sober wall hook revisited, robust & -to my taste- esthetic.

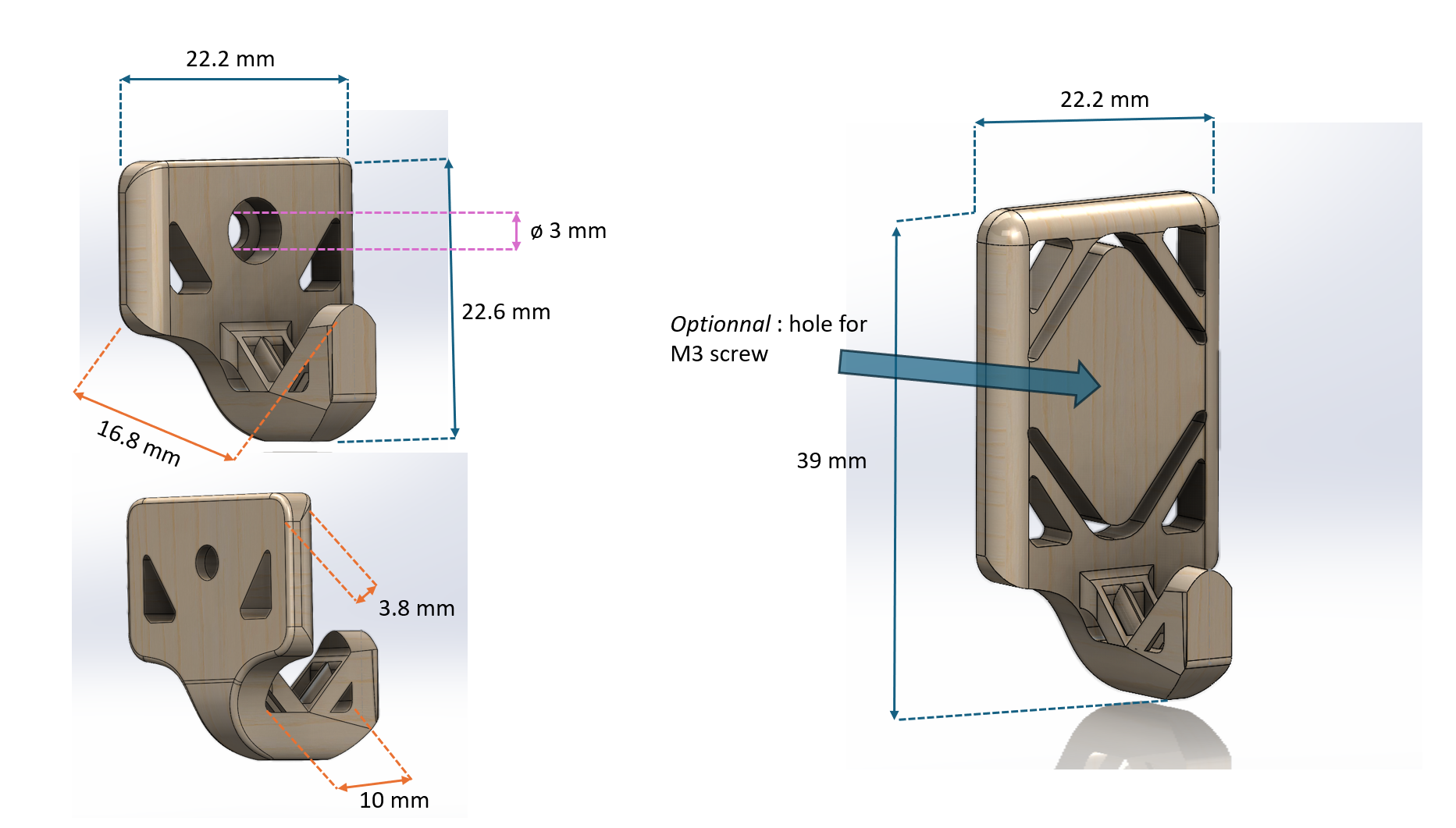

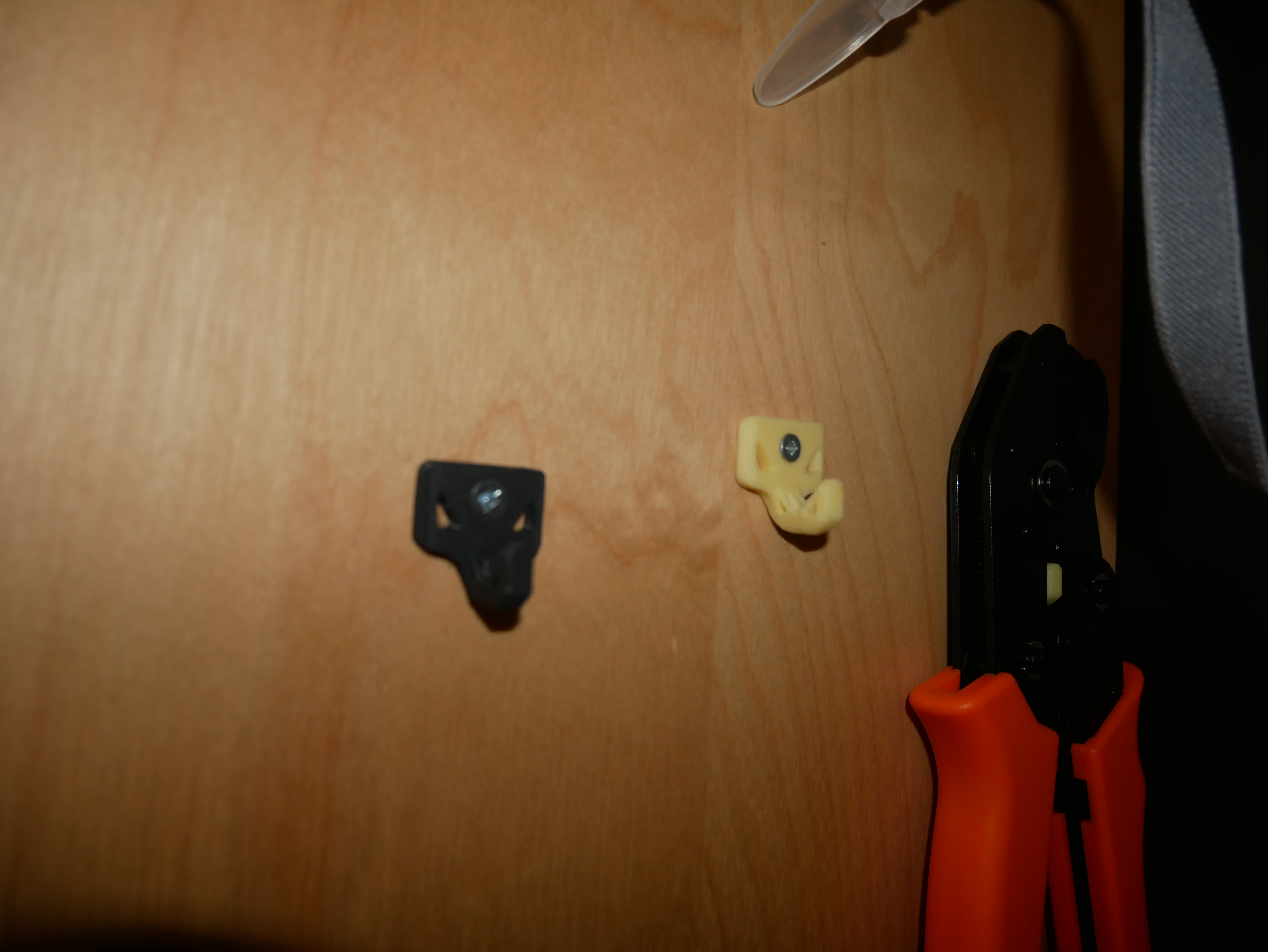

There are 2 versions : the mini is specially made for screw mount, the biggie (std) one has more surface to mount more doublesided tape, if you take this solution to mount the wall hook. Both will be largely sufficient for 2- kg loads.

The hole is made for 3 mm diameter screw (wood screw or hexheaded/BTR), 10 mm long or more (recommended : 15+ mm).

__________________

Technical info :

• for the material, see chart below
• 0.2 mm layer height
• 5 walls
• 40 % infill
• no supports.

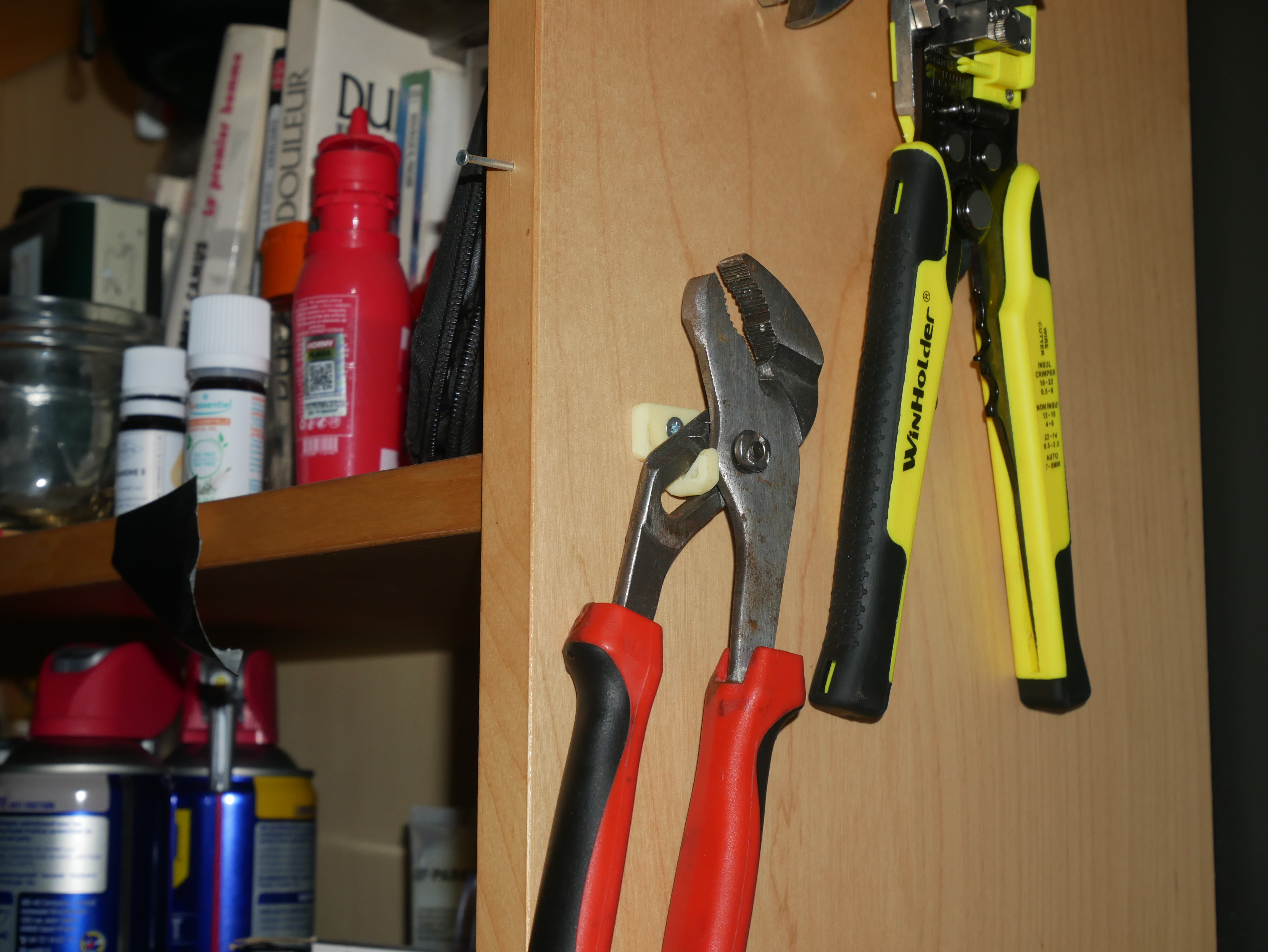

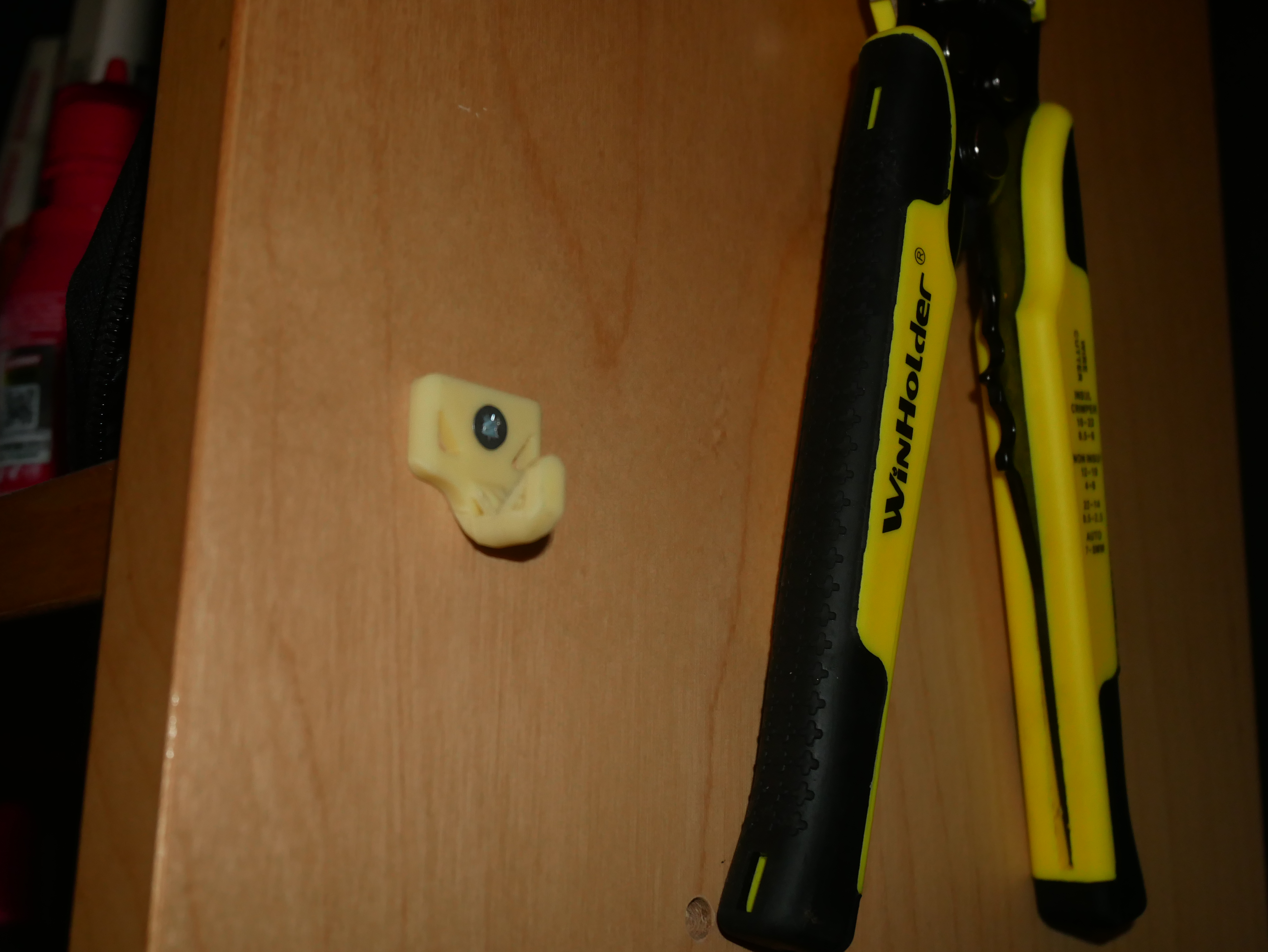

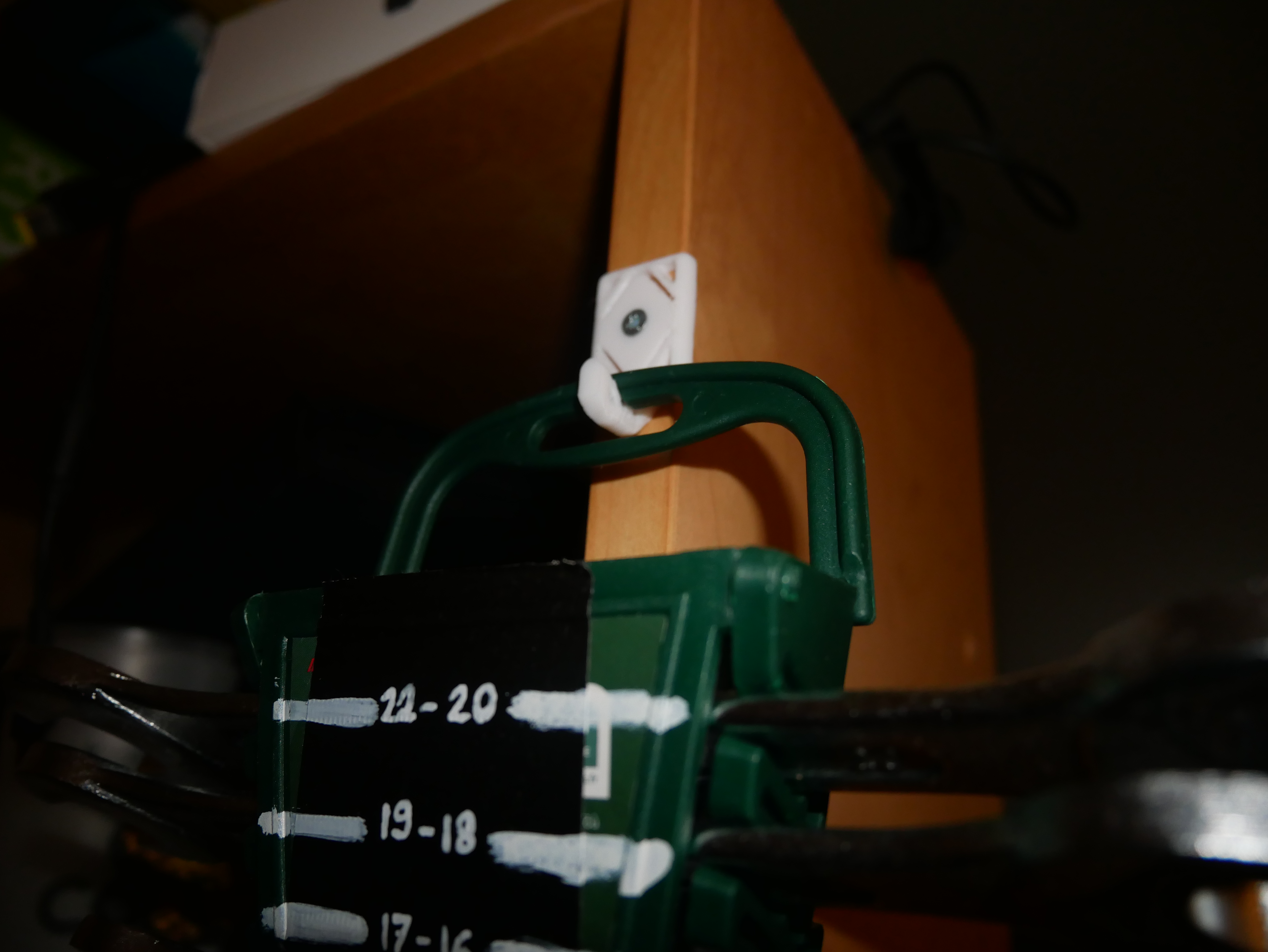

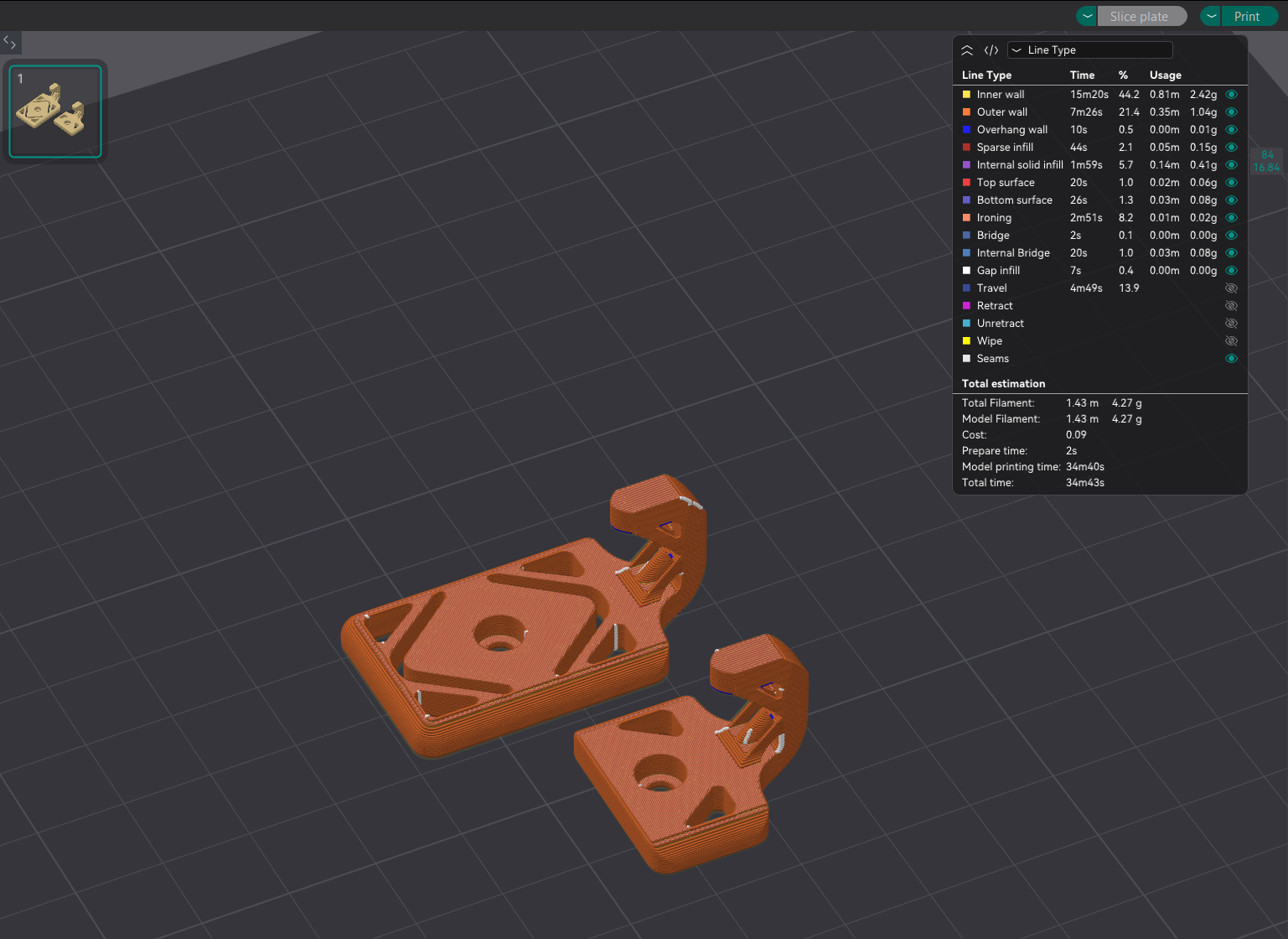

If you print the part as I did (see pictures above), the wall hook will tank way more load. (With PLA+, the difference is 7 / 10 → 2 / 3 kgf working load).

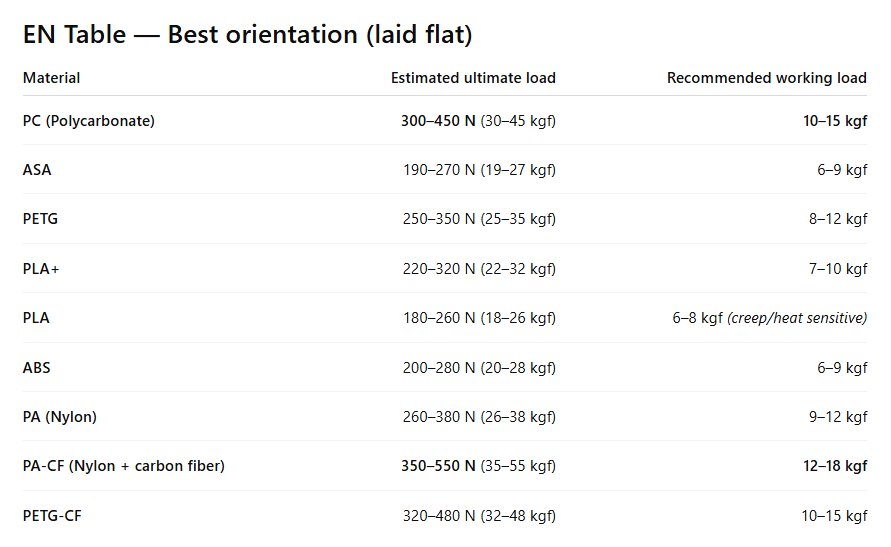

See the worksheet below estimating the max & recommended working loads for several materials :

It is calculated for parameters set to the above section (0.4 mm nozzle, well calibrated printer).

generated by Chatgpt 5. 14th October 2025.

__________________

Have a good printing :))
