DESCRIPTION:

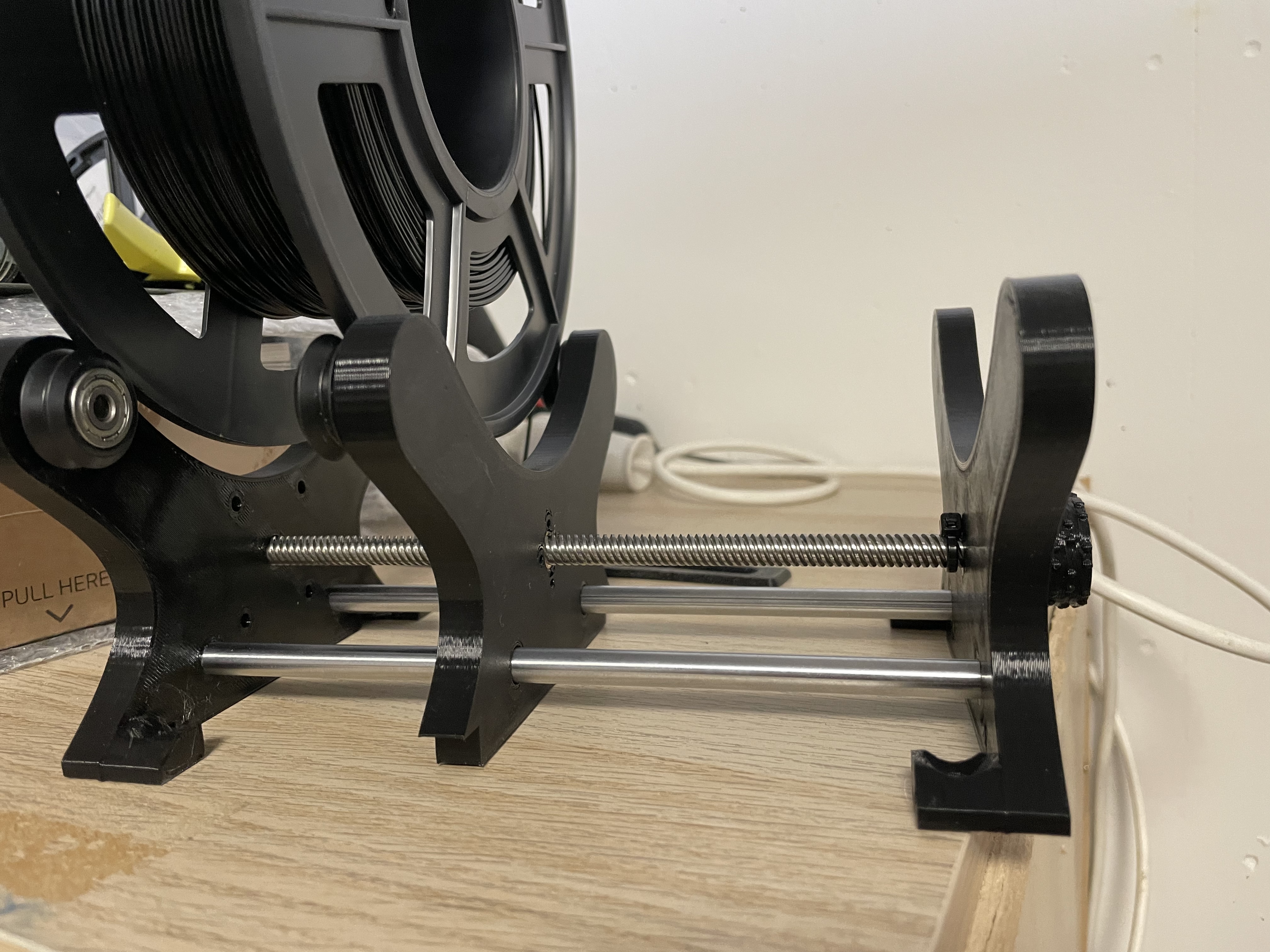

I created an adjustable spoolholder for my ikea LACK enclosure, because most of my spools have different widths. After a few rolls I got tired off manualy rotating the knob for the  moving plate, so I also included a mount for NEMA17 stepper motors.

Things not 3D-printable:

• 2x linear rods (8mm diameter, ca. 200mm length)
• 1x Leadscrew (8mm diameter, ca. rodlength + 40mm)
• 1x Leadscrew-nut (light gray in picture)
• 4x VSlot-Rolls (https://amzn.to/3CfIsYA used in this design)
• 13x Threaded Insert M3 (https://amzn.to/3vBZrmr used in this design)
• 13x M3 Screws
• Zip-Ties to keep Lead-Screw in place

For Use with Stepper Motor additionally:

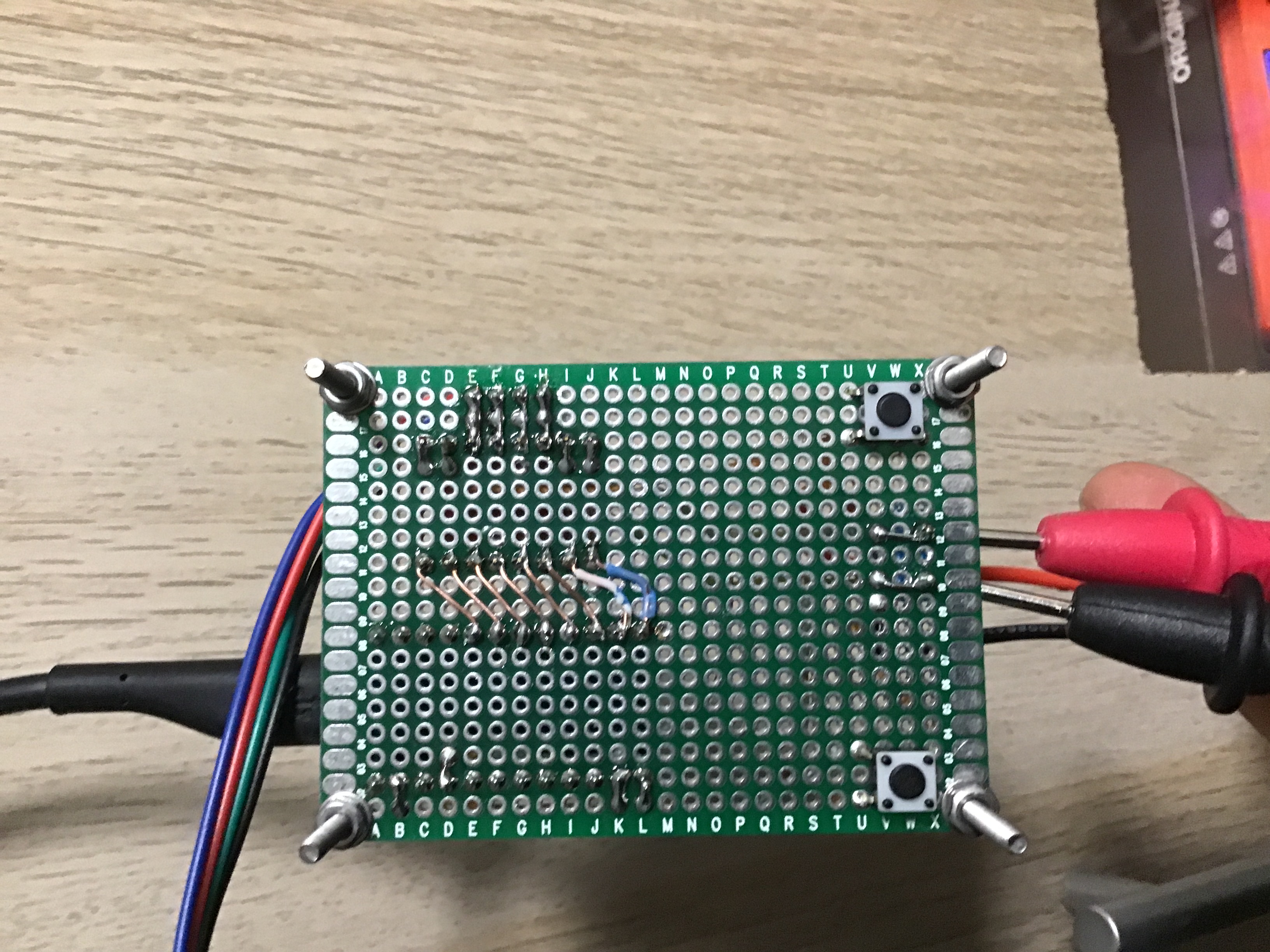

• 1x Electronics: Arduino, NEMA17 Stepper, 2 Pushbuttons, Stepperdriver (e.g. A4988)
• 1x Powersupply (1x for Arduino, 1x for stepper (can be used from printer)
• 1x Motor coupler 5mm to 8 mm (https://amzn.to/35IgqbI used in this design)
• 1x DC/DC converter (https://amzn.to/35vRsNm I use this one) for 12/24V to 5V for Arduino

Have fun with it.

Please feel free to comment or recommend changes.

________________________________________

FILES:

• GCode for my 0.3 mm Layer height settings (for Prusa i3 MK3S)
• individual .3mf files if you want to slice on your own (e.g. for different printers)
• spoolholder.ino as firmware for the Arduino (mostly commented) (Arduino IDE required to flash and edit the firmware)

________________________________________

CHANGELOG:

• 0001: 03-03-2022-10-25: Moving plate and frame plates updated to smaller size, they now fit spools with ~20cm diameter
• 0002: 03-03-2022-11-58: Added spoolholder.ino Arduino firmware
• 0003: 03-03-2022-12-18: Added MovingPlate and FramePart1 3MF files for mounting VSlot-Wheels with M5 Bolts and threaded inserts (ruthex recommended); also added GCode for this Version (for Prusa i3 MK3S)

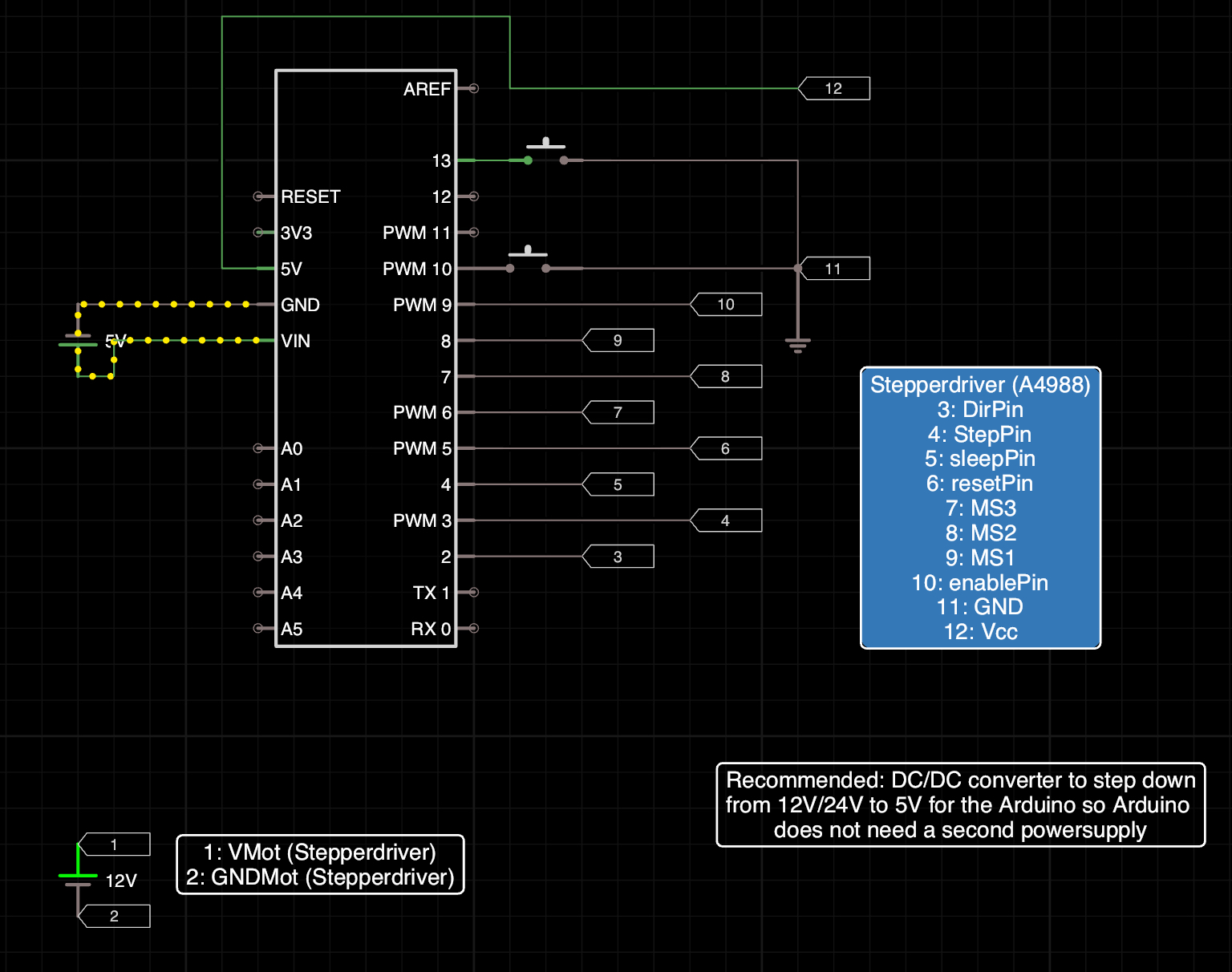

• 0004: 07-03-2022-18-47: Added Circuit diagram for my firmware (Note: on circuit diagram above the second switch should be on Pin 16 as in firmware) (limited to components from iCircuit so Arduino Uno in this circuit diagram)

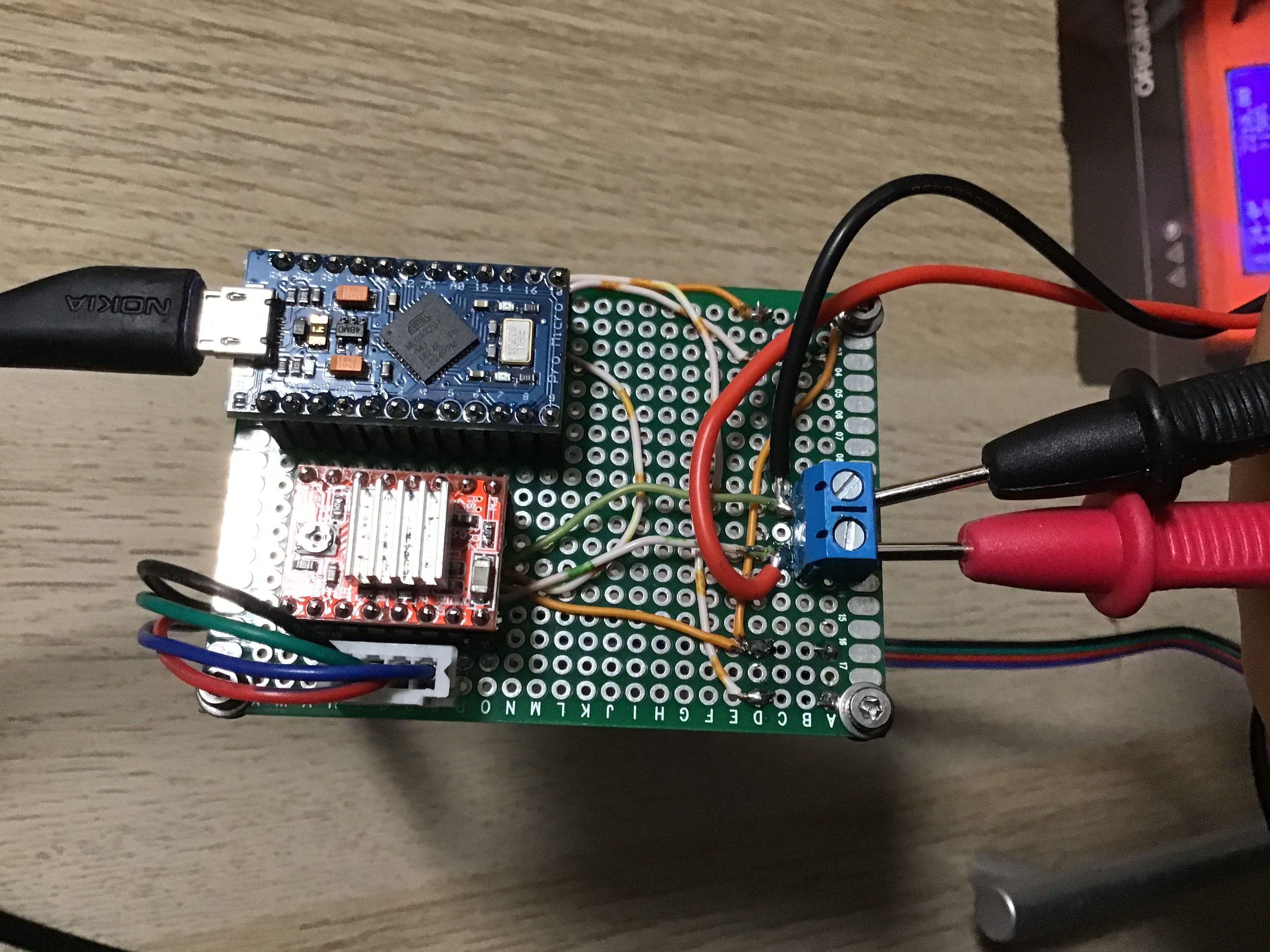

• 0005: 07-03-2022-19-07: Added "spoolholder_ArduinoMicroA4988.ino" which is the firmware used for my setup as shown in pictures

________________________________________

FUTURE CHANGES / RECOMMENDATIONS

• Limitswitch should be added
• NumPad support to enter spool widths (needs limitswitch) instead of jogging manually
• GCode support (which command should be used? G1 because linear move?)
