Descrição

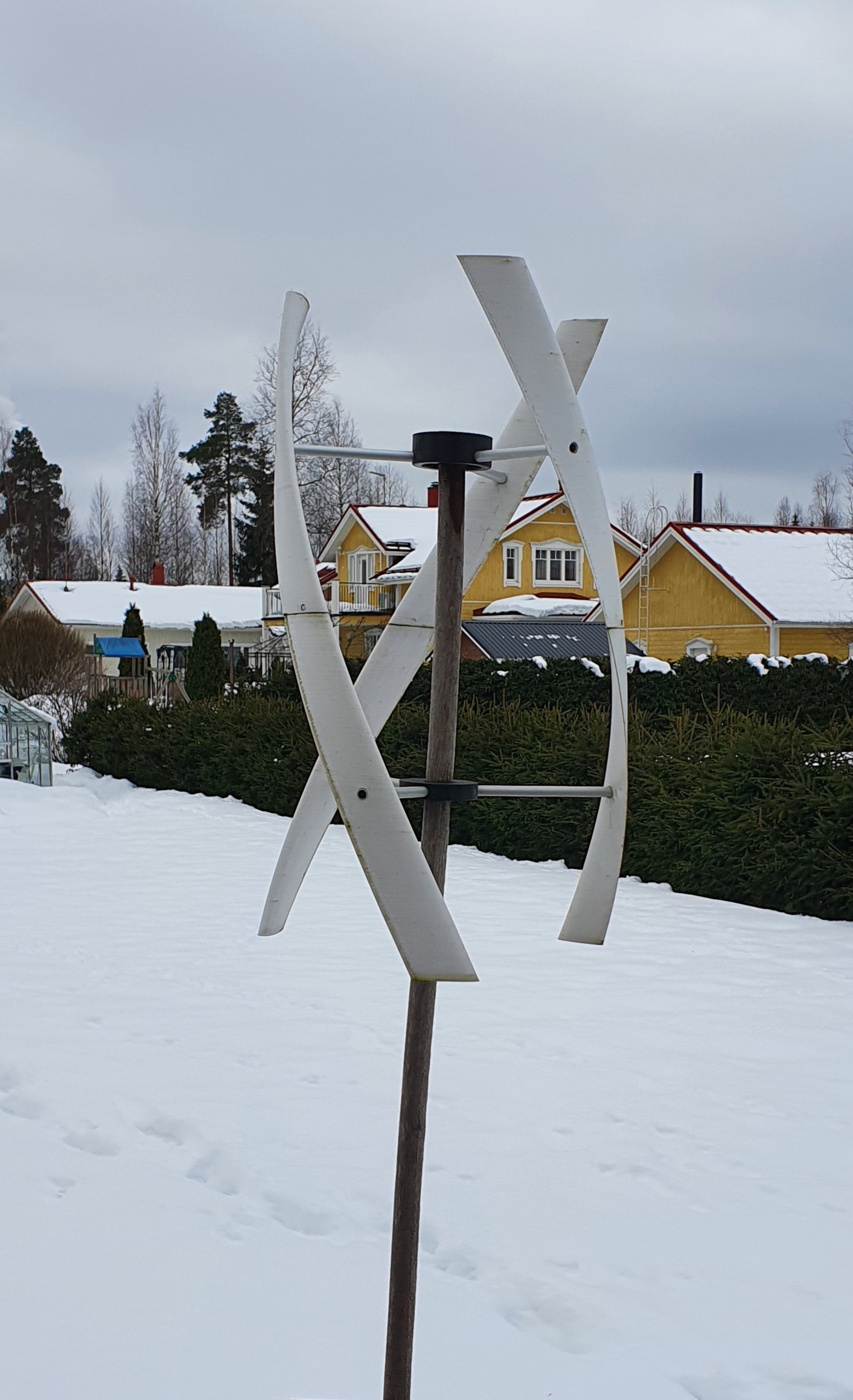

Due to the loss of interest to this windmill project… if anyone wants to continue, here you can download 3D models.
Turbine height 625 mm, diameter 300mm.
Aluminum rods length 135mm, diameter 10 mm.
Main shaft 24 mm.
Bearing SKF6006.
More information can find the link below.
[https://www.mdpi.com/1996-1073/11/6/1517/htm](https://www.mdpi.com/1996-1073/11/6/1517/htm)
158
Curtidas
622
Downloads
1
Impressões
Categoria
Outdoor & Garden
Tags
turbine
wind
vertical
windmill
0024
naca0024
Licença
Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (16)
blade_asm_af3_asm.stp
22.8 KB
blade_asm_af4_asm.stp
22.8 KB
pin_prt.stp
39.3 KB
bearingskf6006_prt.stp
481.9 KB
hub_prt.stp
134.1 KB
rod_prt.stp
42.1 KB
shaft_prt.stp
42 KB
hub_asm_asm.stp
39.6 KB
blade_asm_af0_asm.stp
30 KB
blade_top_prt.stp
437 KB
holkki_prt.stp
48.7 KB
vertical_windmill_naca0024.stp
36.3 KB
blade_bottom_prt.stp
395.3 KB
blade_top.stl
52.4 MB
pin.stl
334.6 KB
blade_bottom.stl
57.6 MB
