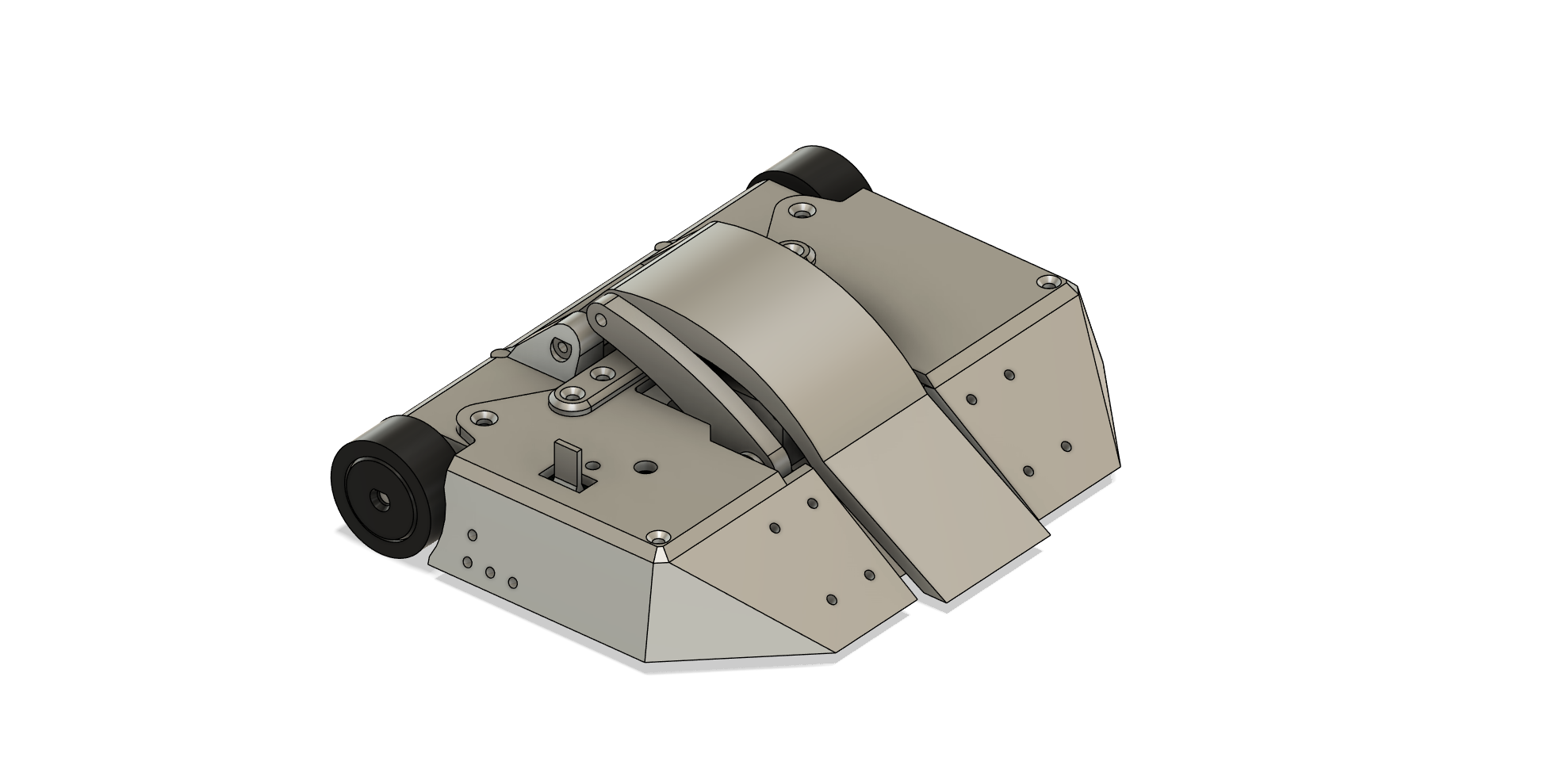

This design is optimised to use in the sportsman 150g class, needs a flex frame printed in TPU while all the other files tagged as RIGID can be any material of your choice, we suggest PLA-ST for use in the full combat class.

designed to work with:

• PTK9497MG-D servo

• N20 12v 1000rpm or n10 6v 1000rpm motors

• BristolBotBuilders or slot.it 22mm tyres code dwg1323

• 2s lipo 150-250mah

• a robot controller of your choice

• screws: m2 bolts for the flipper and servo axle and 2.5 and 2mm wooden screws to fix top plates to the frame


optional servo parts include support to use with the cheaper ptk7465w servo and aluminium servo horn

optional wheel parts include rim to use with 19x3.1 O-rings in case it's hard to source slot.it dwg1323 tyres

other files has an assembly guide (in italian atm) that indicates screw lenghts and placement m2 = bolt, legno = wooden screws
