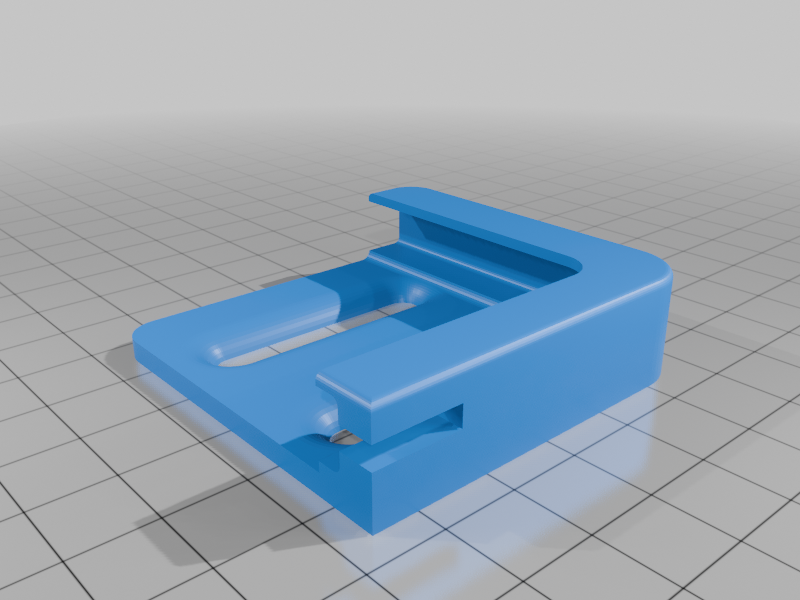

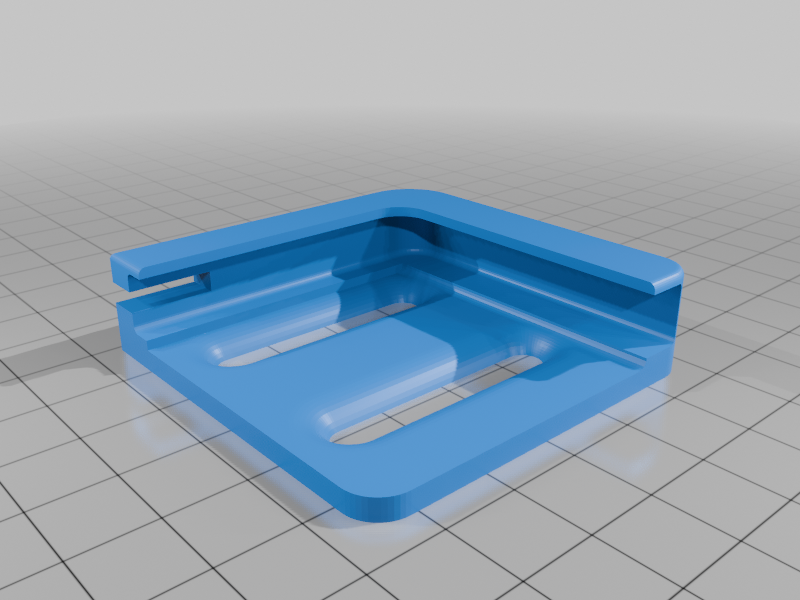

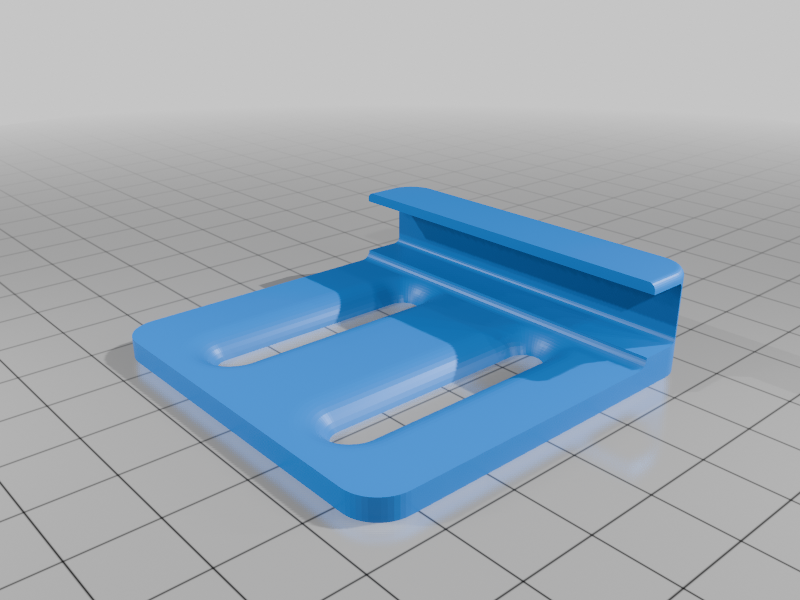

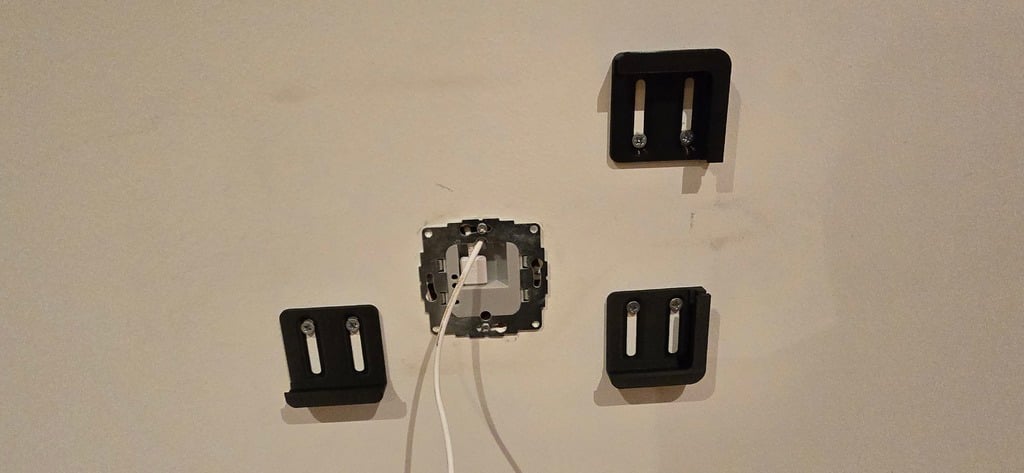

This wall mount consists of 3 separate parts that are individually screwed to the wall.

By adjusting the distance between the parts, the mount can be adapted to fit different tablet sizes.

How to print:

I recommend to print it flat with tree support, this will make for a smoother visible layer. Everywhere where the tree support goes you wont see anyways. For a perfect look, ironing could be used as well.

Features:

near universal fit: Works with many different tablets – just change the spacing between the parts.

Adjustable slots: Each part has a slot hole, allowing you to fine-tune the position later without drilling new holes.

Easy installation: Only three parts to mount, simple and flexible.

Two Version: Classic: Tablet with thickness up to 8.5 mm Slim: Tablet with thickness up to 7 mm

Use cases:

Smart home control center Media player or info display wall mount

Great if you swap your tablet out for a new one.

This is a remix of my old Wall Mount for Galaxy Tab A 10.1 (2019). Since I did change to a new one that is a bit larger, it did change the design so I would not need to drill new holes.

Category: Tablet
