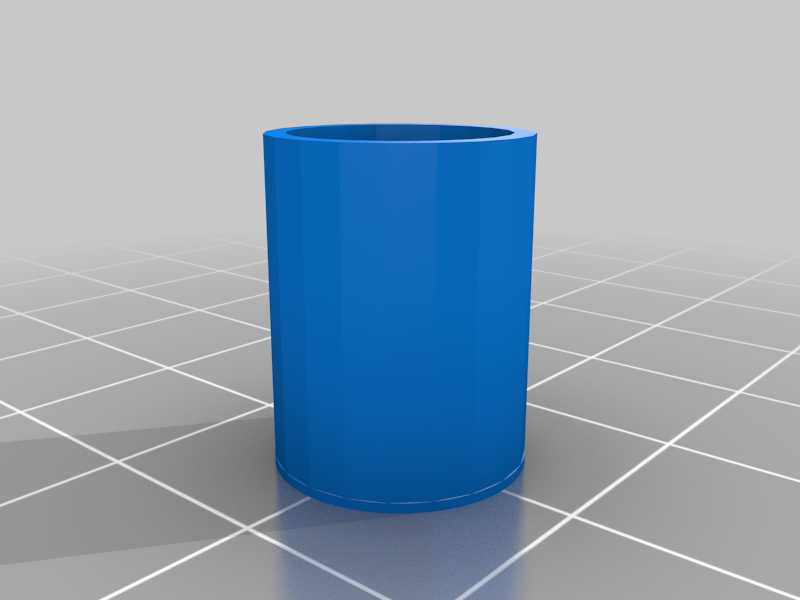

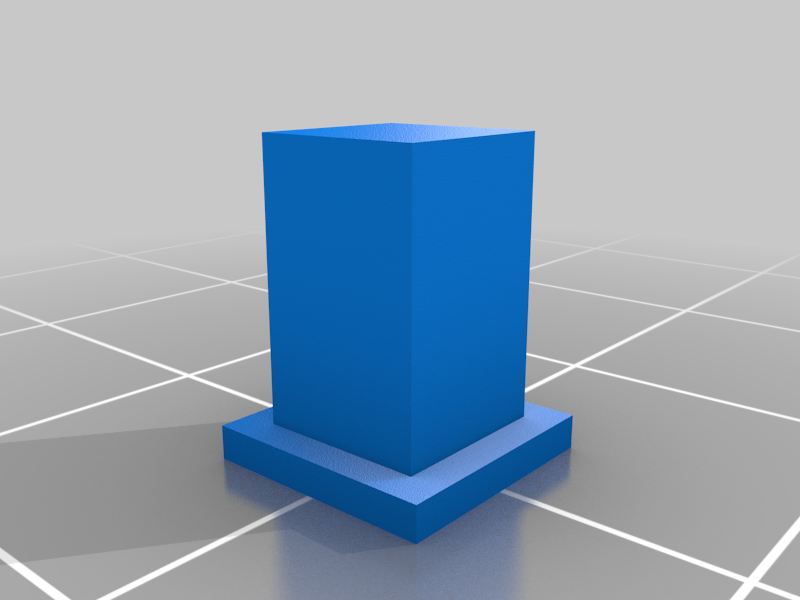

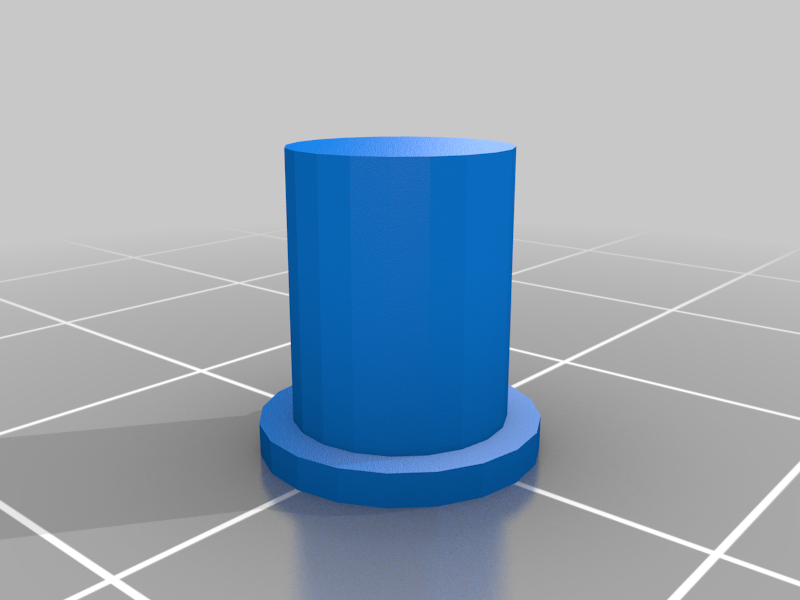

This is a faceplate, case, knobs and buttons for the Grateful Dead Time Machine V2.0 designed by Steve Eichblatt.

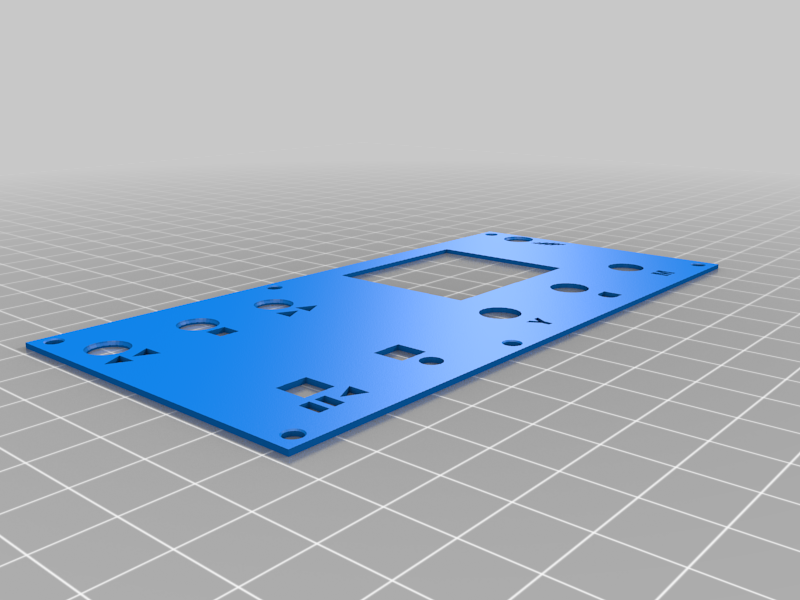

Carved faceplate goes above the blank faceplate if you don't want to see through to the board. Or if you want a full case, the carved faceplate would sit on top of the "New Shell"

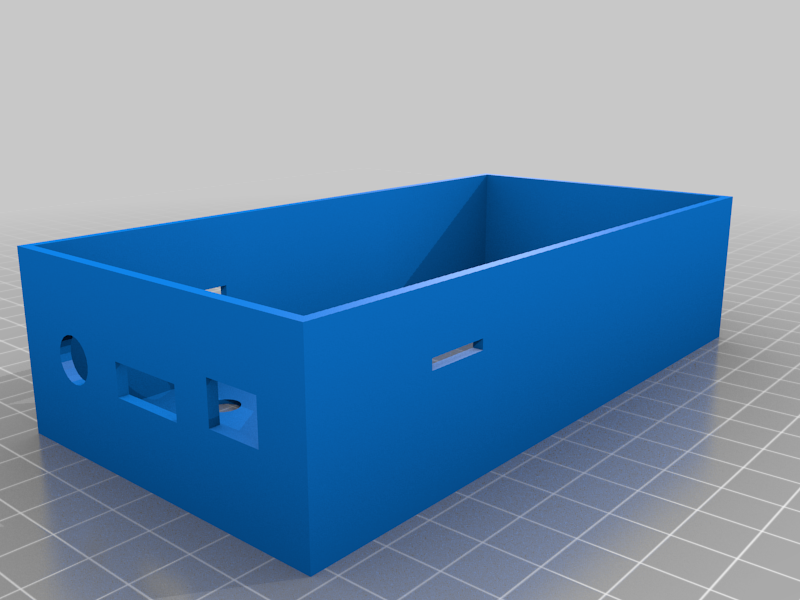

The New Shell with PWR & Sound only, only has ports for power & sound if you don't need to access the SD card or HDMI ports on the PI. There are cutouts inside the case to allow room for the ports & for when a card is inserted.

Added GDTM New Shell Angled, which, oddly enough, is angled.

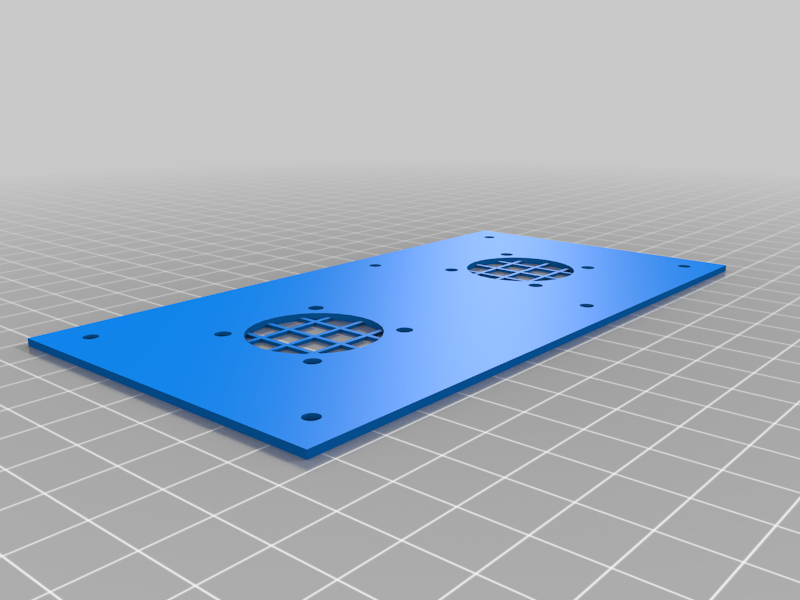

Bottom panel has cutouts to add fans, which I would recommend if you are enclosing the entire unit.

[https://www.gratefuldeadtimemachine.com/home](https://www.gratefuldeadtimemachine.com/home)

Print Settings

Printer Brand:

Creality

Printer:

Ender 3

Rafts:

No

Supports:

No

Infill:

25

Filament:

Hatchbox Wood PLA

Wood

Category: Electronics
