I needed a Raspberry Pi Zero 2W case for my Mini but couldn't find a solution I liked. My wishes:

• Mounted out of sight.
• Easy acces to the Pi and it's micro sd card.
• As open as possible to prevent cooling issues with the Pi or the DC converter.
• It schould fit the Pi with a USB HUB HAT and a DC-DC converter connected to the power inlet of the Buddy Board.

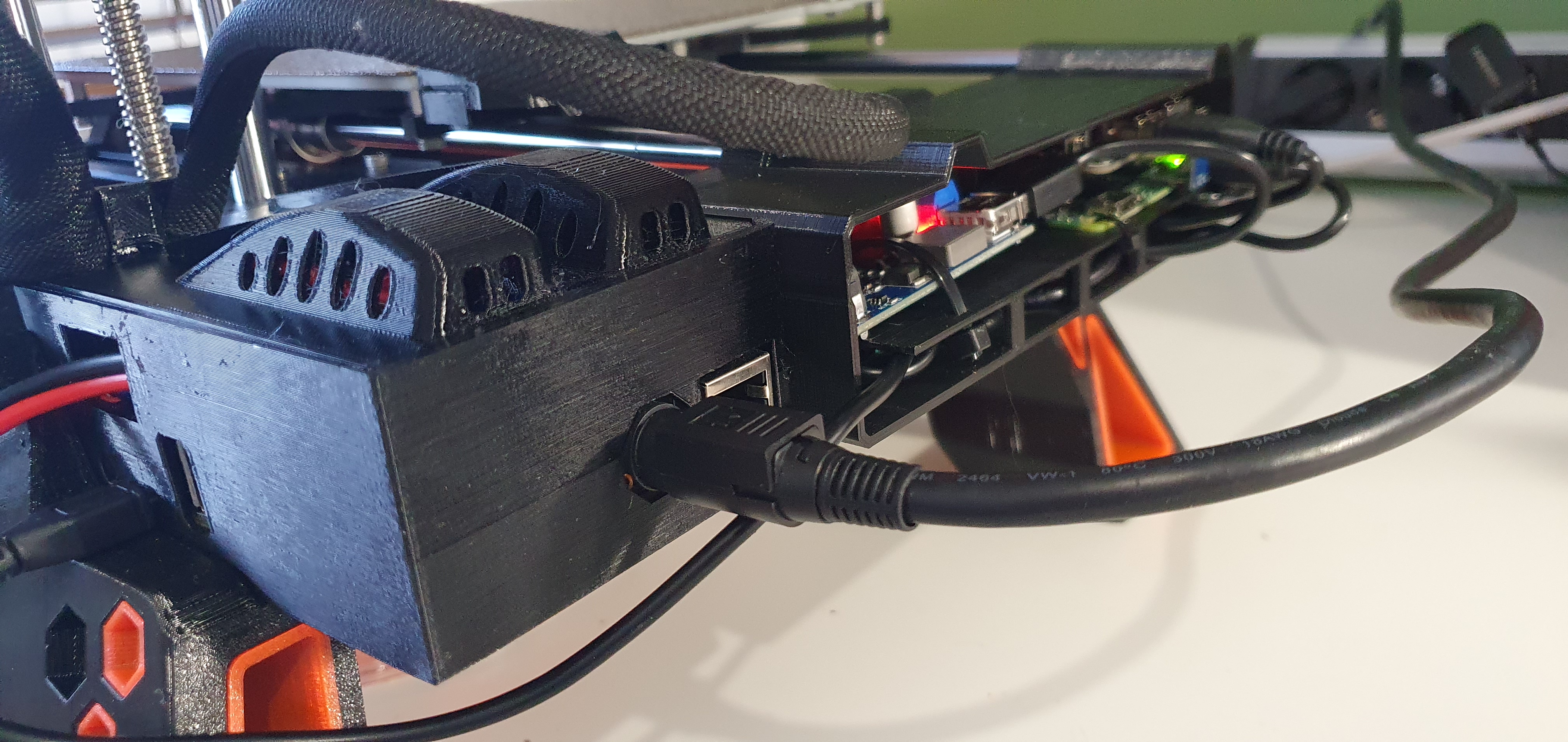

The design I made in Fusion 360 screws on the backplate of the Mini with the top 2 screws. The Y axis motor cable runs through the case, as is the 24v power cable from the Buddy board. I split the power before the powerbutton so the Pi is powered as long as the power chord of the Mini is connected.

DC-DC converter:  [https://www.amazon.nl/gp/product/B07RGB2HB6?psc=1](https://www.amazon.nl/gp/product/B07RGB2HB6?psc=1)

USB HUB HAT: [https://www.amazon.nl/gp/product/B07PMCCF1W?psc=1](https://www.amazon.nl/gp/product/B07PMCCF1W?psc=1)

I included the step file.
