Descrição
Instructions

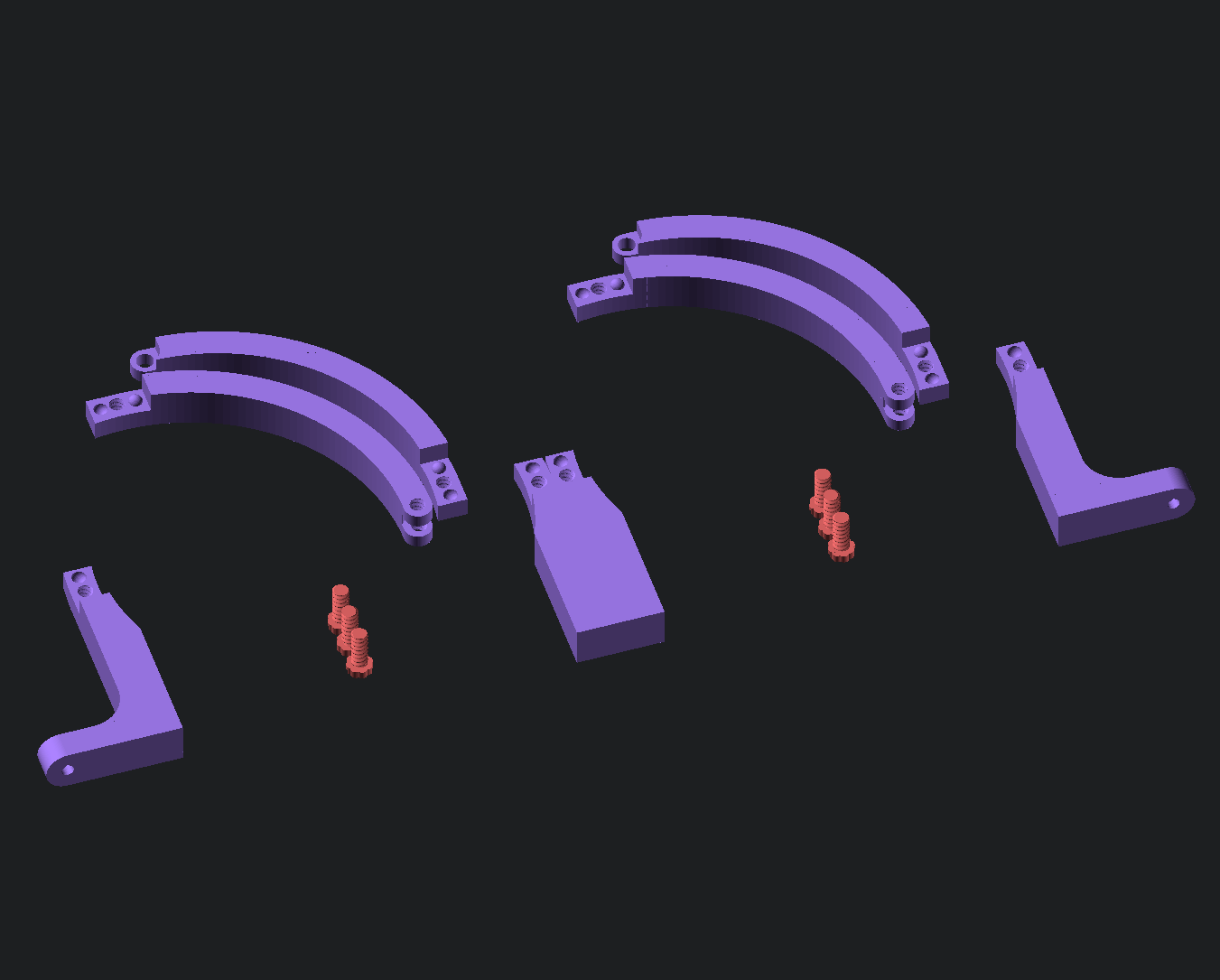

- Vertical and horizontal splits are supported for printing of large brackets
- Multi-duct brackets are supported
- Custom hardware size, bracket thickness, chamfer scale, etc.
- All sizes are in mm. 1" == 2.54mm
- In the supplied print profiles screw diameter is set to 4mm.
Local
- Download the latest OpenSCAD Development Snapshot. OpenSCAD is free software.
- Launch it and open the attached cable-clip.scad
- If you do not see the "Customizer" pane click on Window -> Hide Customizer
- Enter whatever parameters you want
- Press F6 or Design -> Render
- Press F7 or File -> Export -> Export as STL
Web (Alternative)
If for some reason you can't get it working locally you can use [https://ochafik.com/openscad2/](https://ochafik.com/openscad2/) to customize the model using your browser.
Common sizes:
4" = 102
6" = 152.5
7" = 178
8" = 203.5
9" = 229
10" = 254
12" = 305
14" = 356
16" = 406.5
Printables

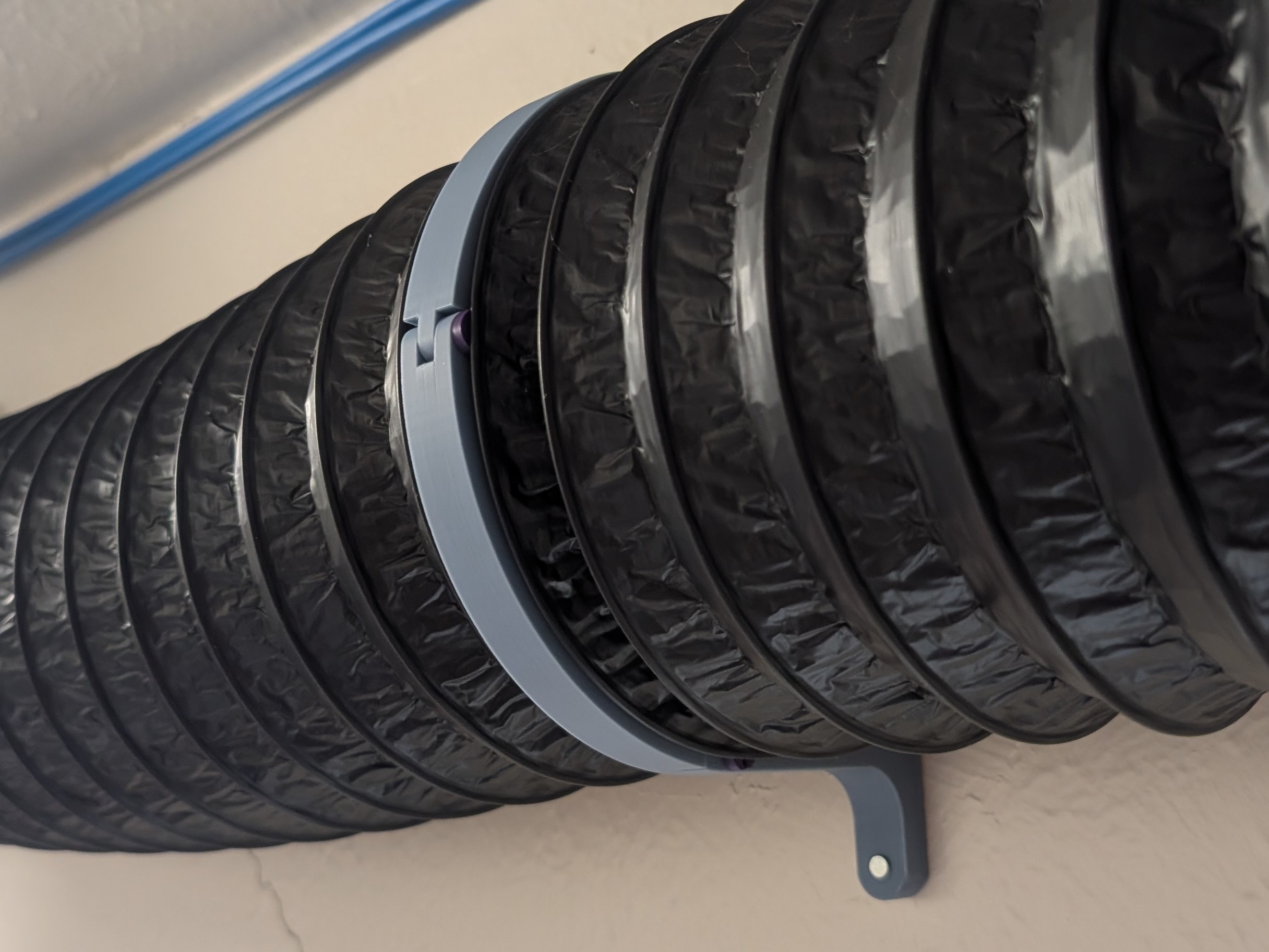

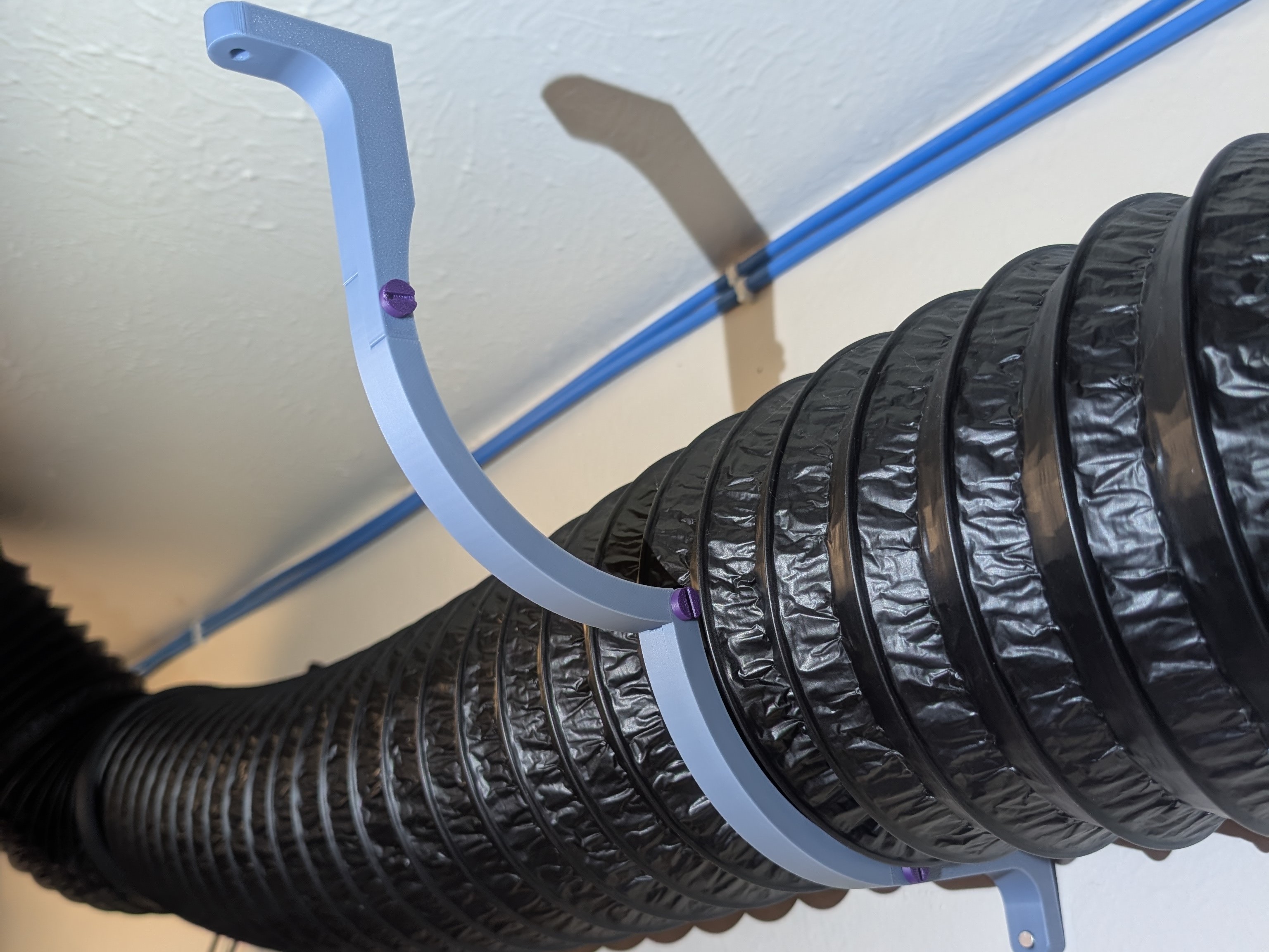

Customizable Duct Bracket (1-16")
Publicado em 20 de set de 2025
3
Curtidas
14
Downloads
Categoria
Other House Equipment
Tags
parametric
brace
pipe
customizable
bracket
duct
openscad
pipeclamp
ductbracket
Licença
GNU General Public License v3.0
