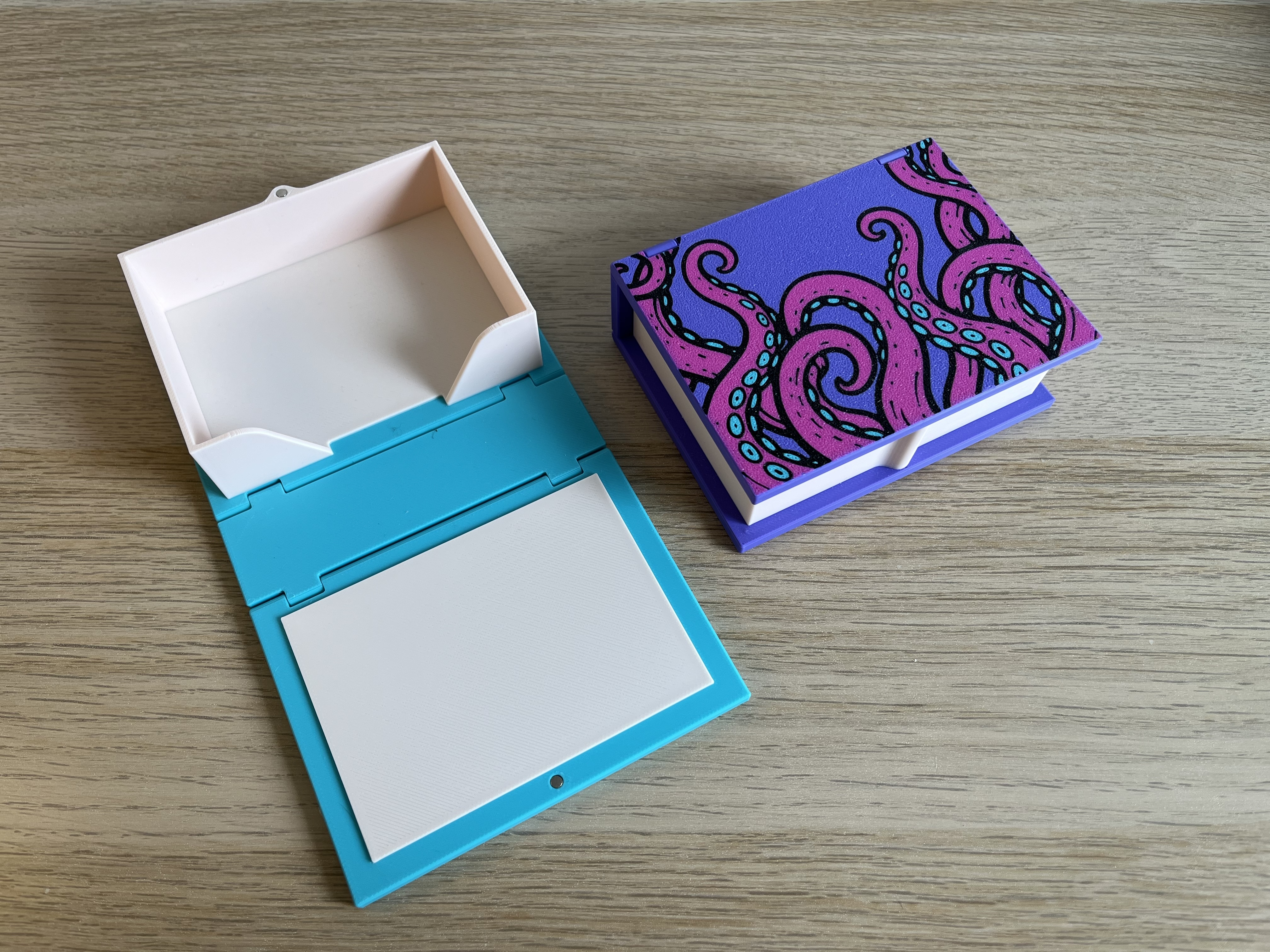

A playing/collection cards case that closes on itself like a book.
Made to hold a deck of 25/30 collection cards (with 66x91mm Ultra Pro sleeves).

• Print-in-place design (no assembly required).

• No excessive overhangs (max. 35° on conical hinge pins and max. 45° hinge knuckles).

• Easy multi-color printing with a minimum number of filament swaps.

• Optional magnet holds (recommanded if you plan to store the case vertically).

• Last-card cutout, picker aid.

• Cover lid to prevent the first card from slipping out too easily.

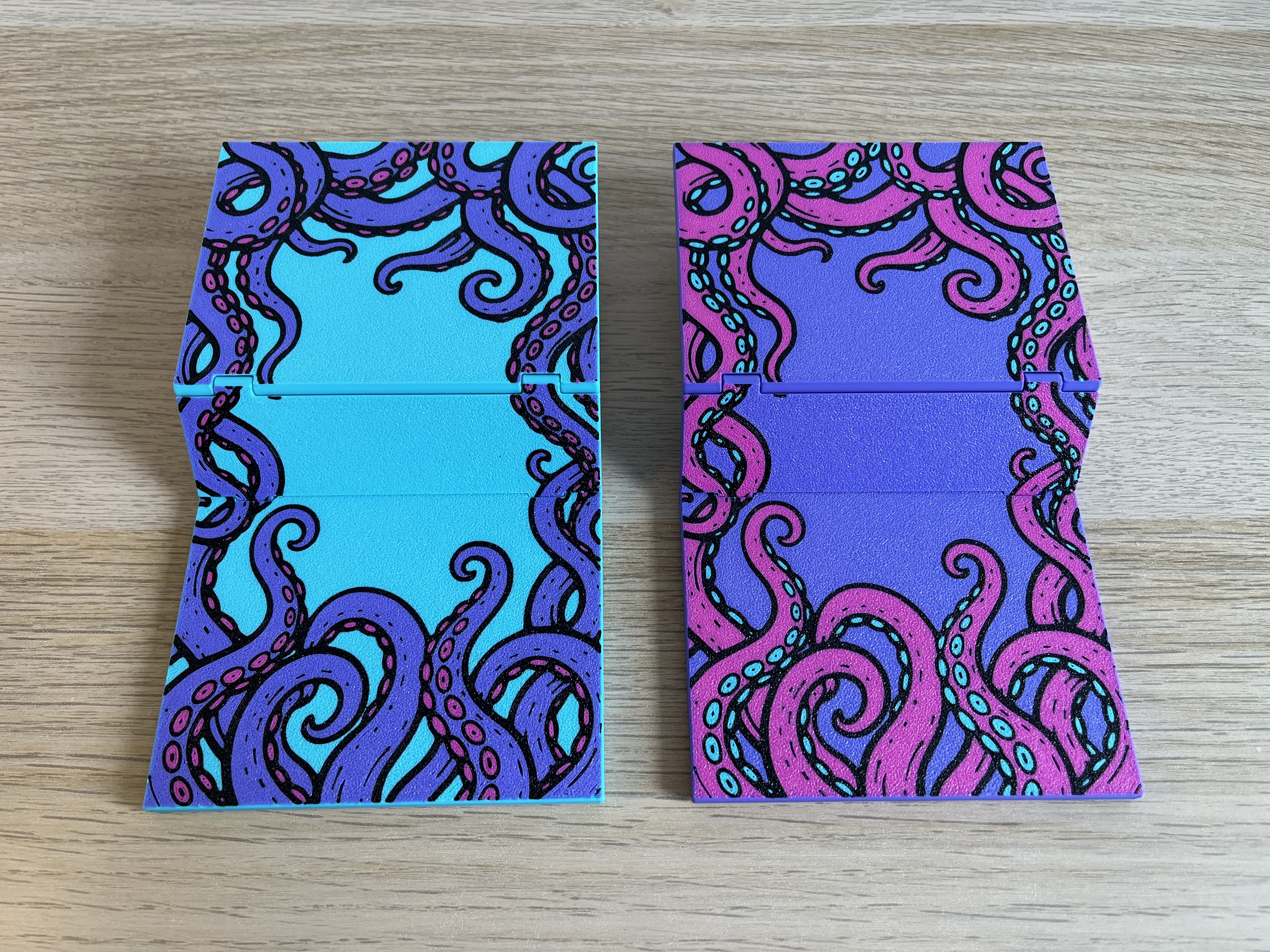

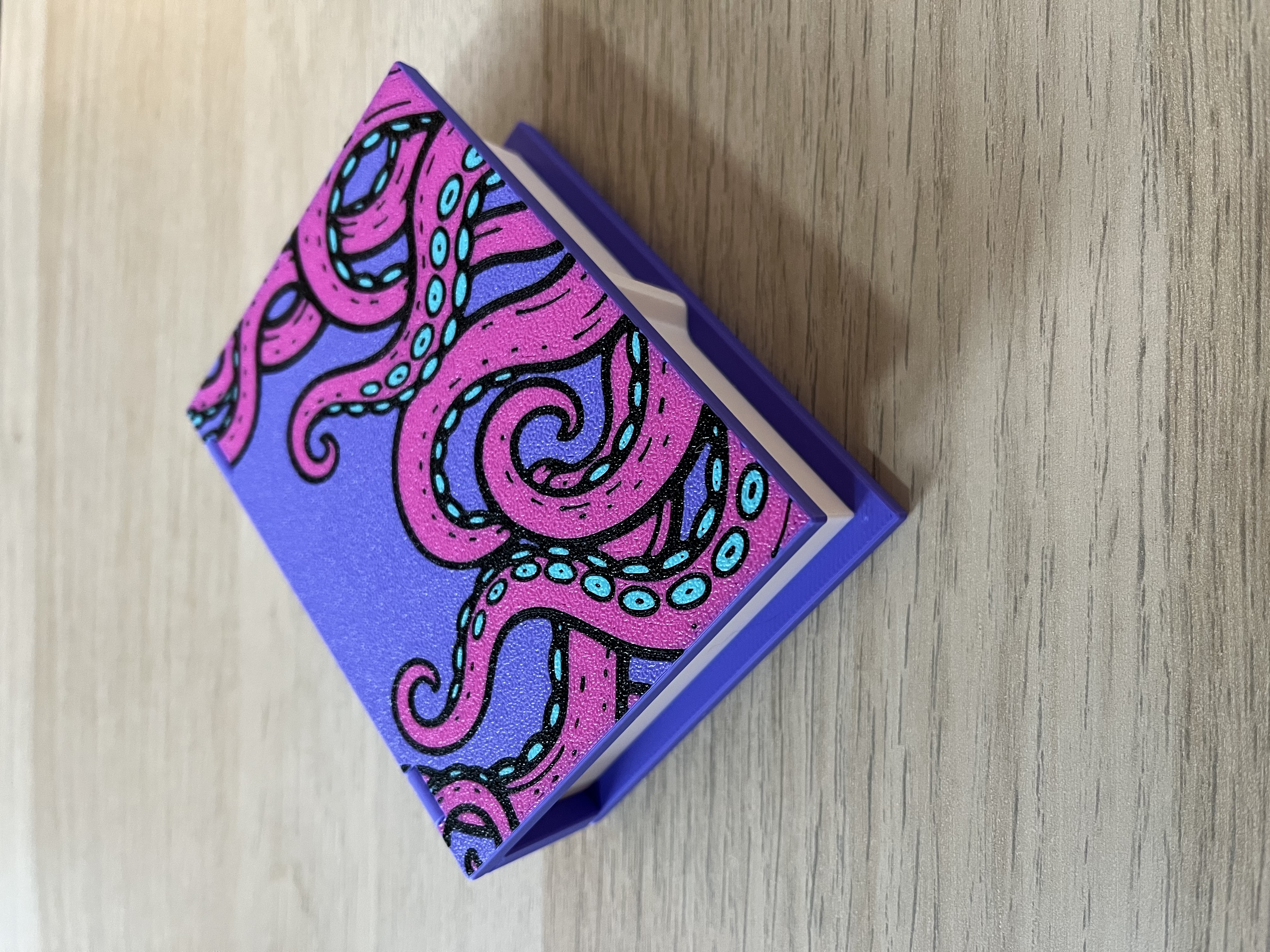

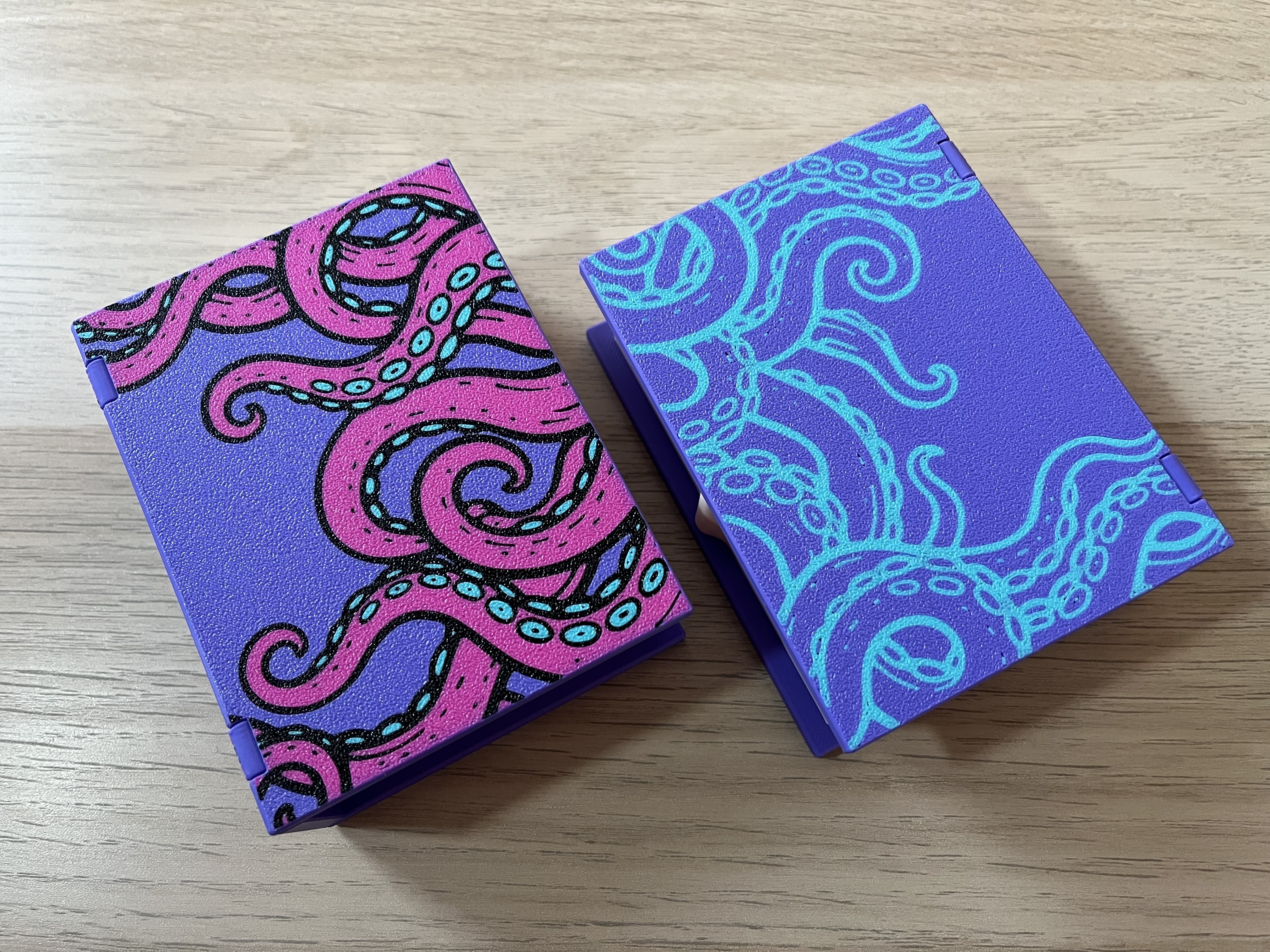

Themed version

This version is themed with tentacles all over the cover.
For a blank or other themed versions, please check the original model.

The original model was used with the parameters below:

• card_width: 66 mm

• card_height: 91 mm

• deck_height: 20 mm

The artwork has been AI-generated and vectorized using potrace.

• The illustrations are made to be printed using an AMS.

• For best results, please use the Arachne wall generator on your slicer.

Magnets

The model includes two magnet holes to help keep the case closed:

• Cover: Ø 3 mm x 1 mm

• Case: Ø 3 mm x 2 mm
