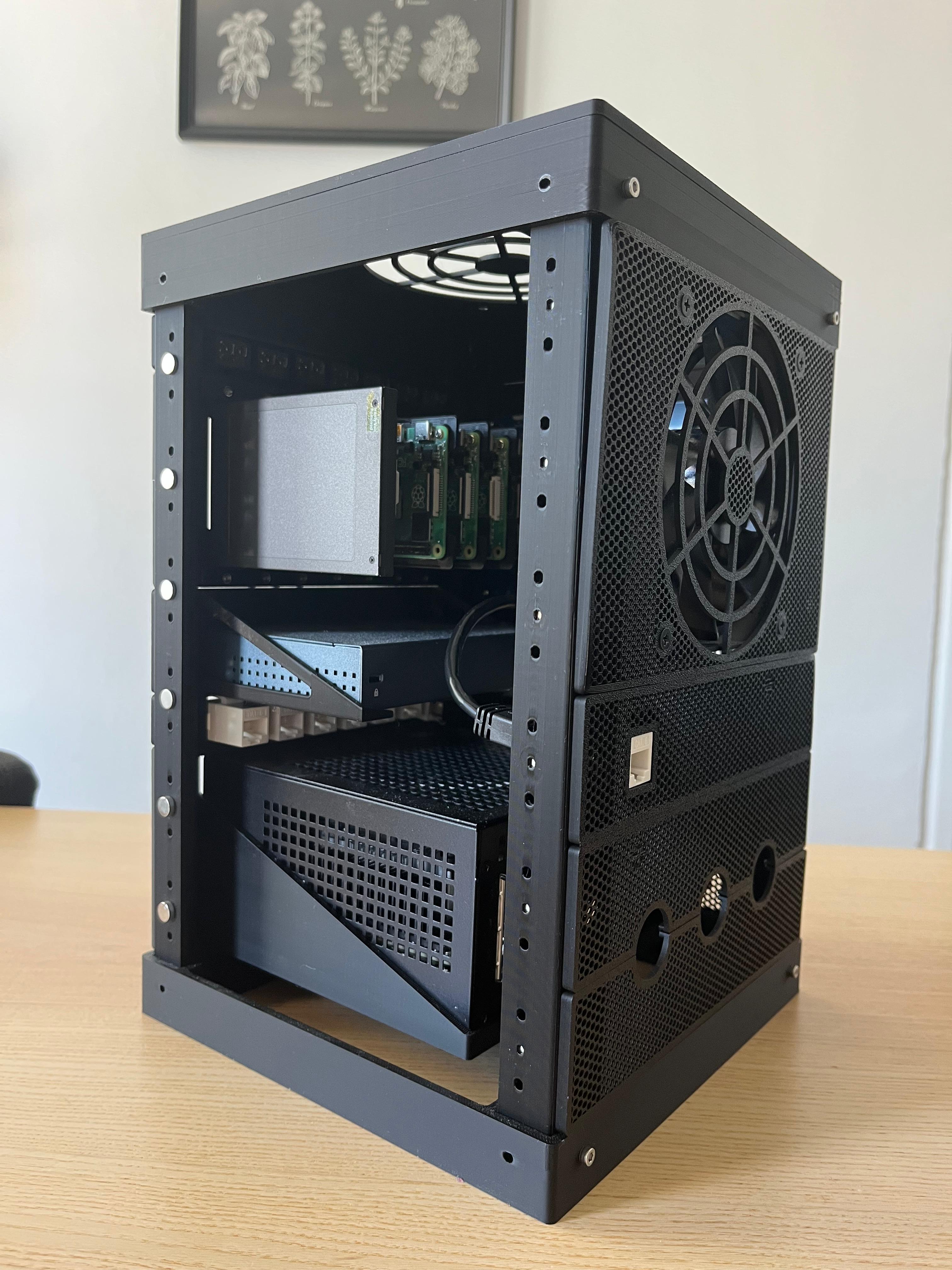

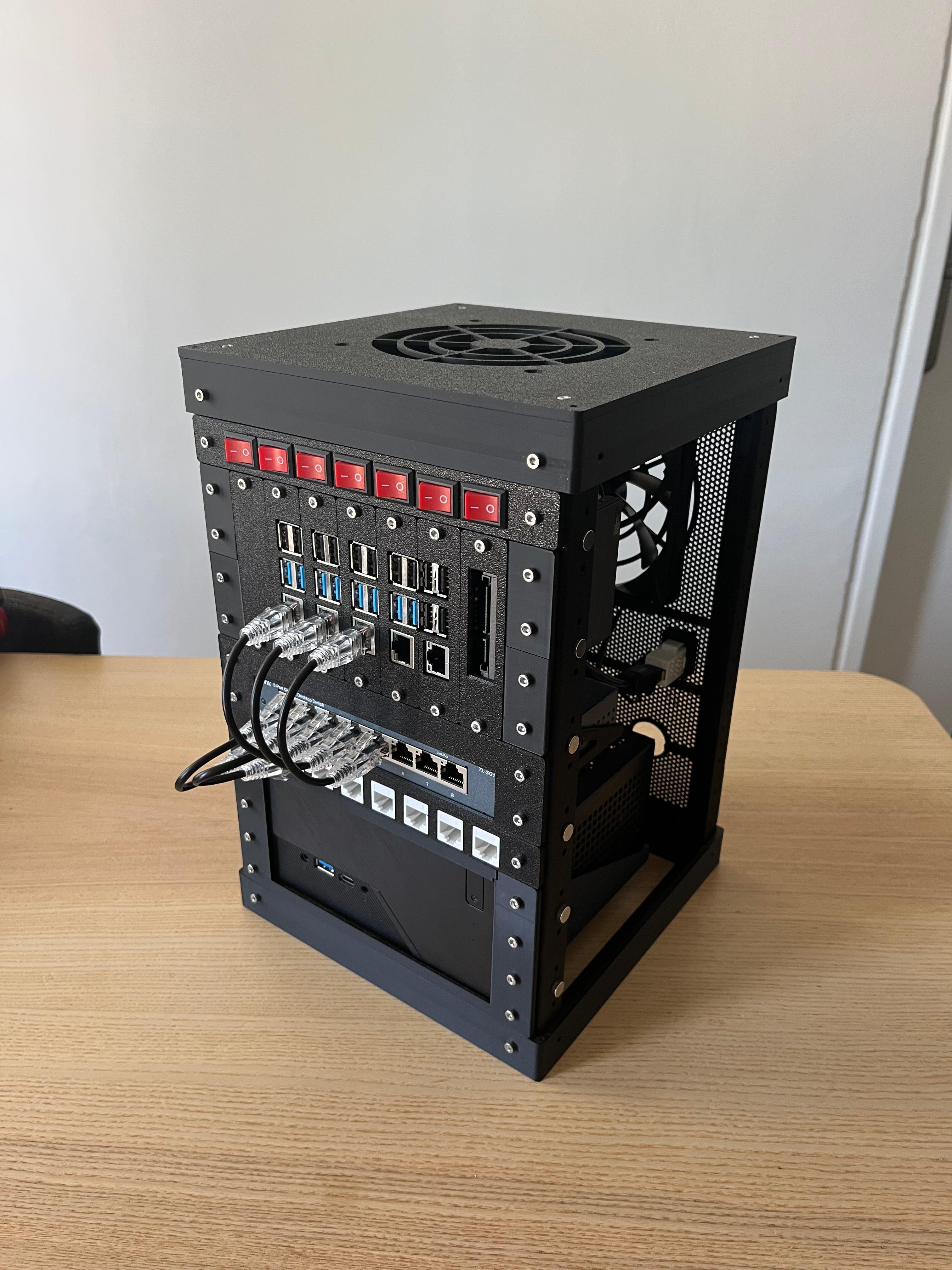

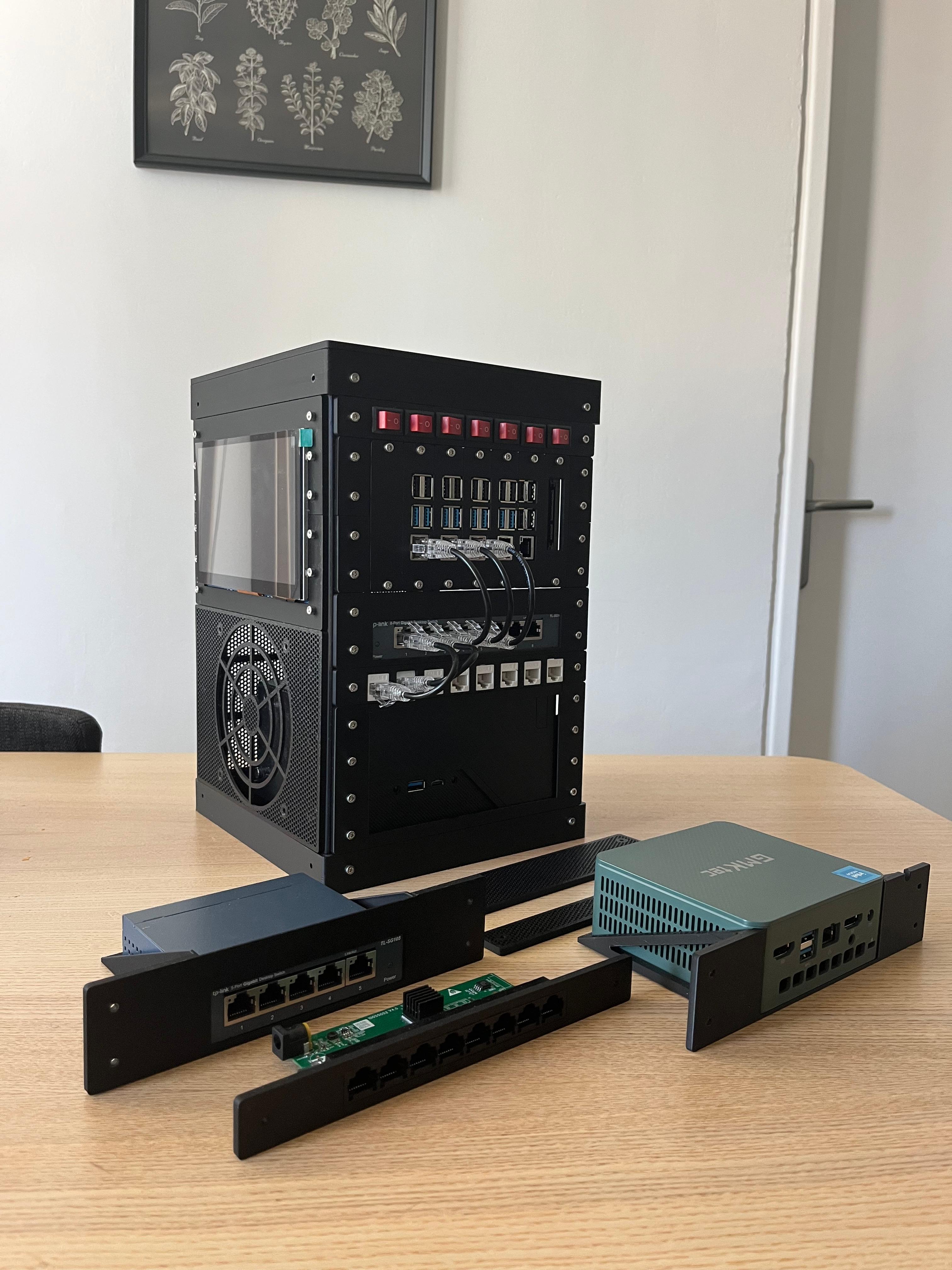

Microlab 2 — Modular 3D-Printable Mini Homelab
Microlab 2 is a fully modular, open-source mini-rack system designed for makers, homelab enthusiasts, and anyone who wants a compact, customizable workspace for electronics or servers.
Unlike common 10″ racks, Microlab 2 is:
- Compact & Square – Small footprint, flexible orientation.
- Fully Modular – Columns, caps, trays, and panels snap together with M3 screws or magnets.
- 100% 3D-Printable – Print the entire project with just a couple of PLA rolls.
- Open & Hackable – Build trays and panels for Raspberry Pi, SATA drives, fans, screens, buttons, switches, and more.
Key Features
- Scalable frame: Start with 6U and extend vertically as needed.
- Universal panel standard: Any panel or tray can be mounted on any side.

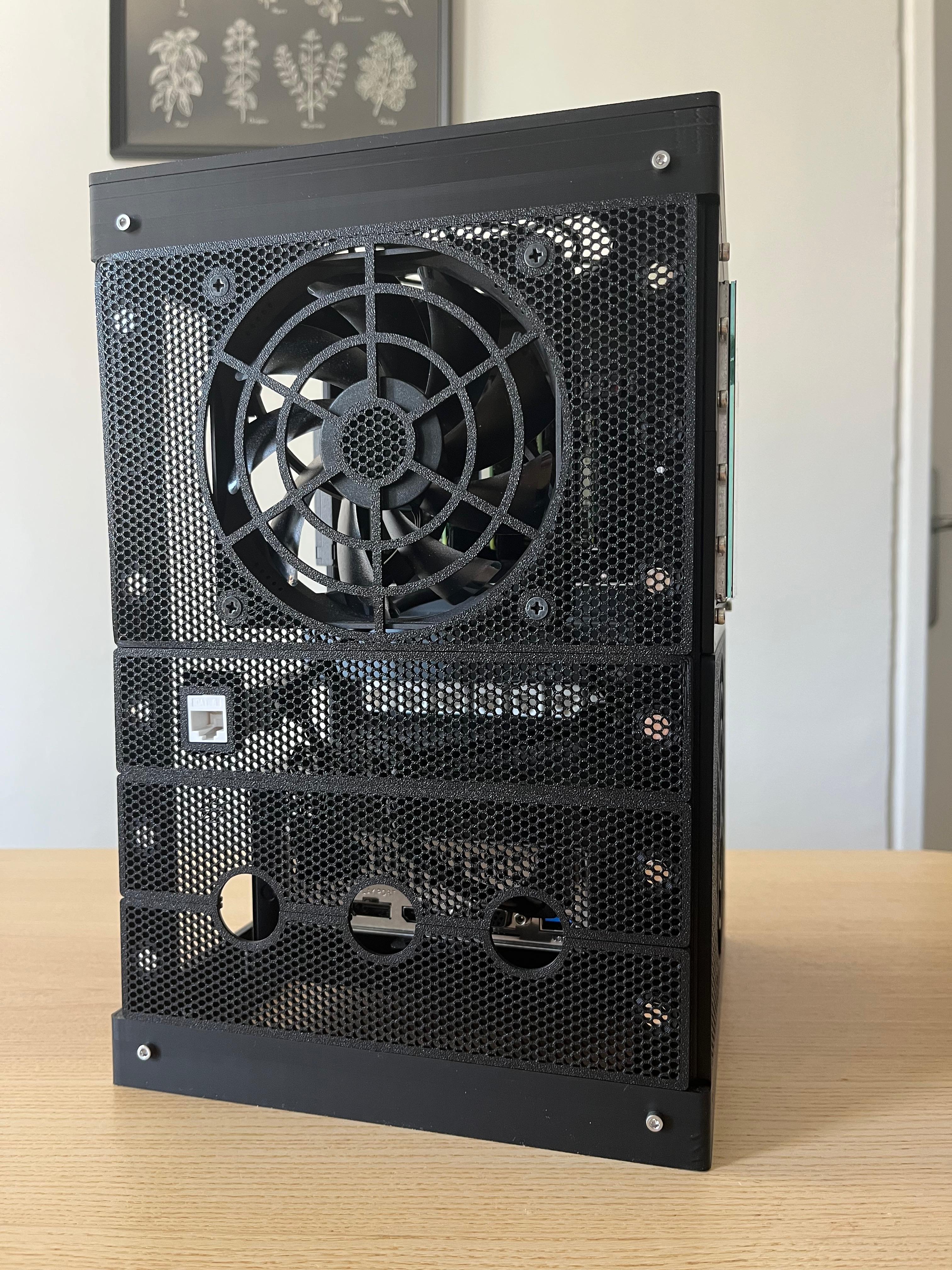

- Cooling options: Perforated panels, magnetic fan mounts, and vertical airflow support.

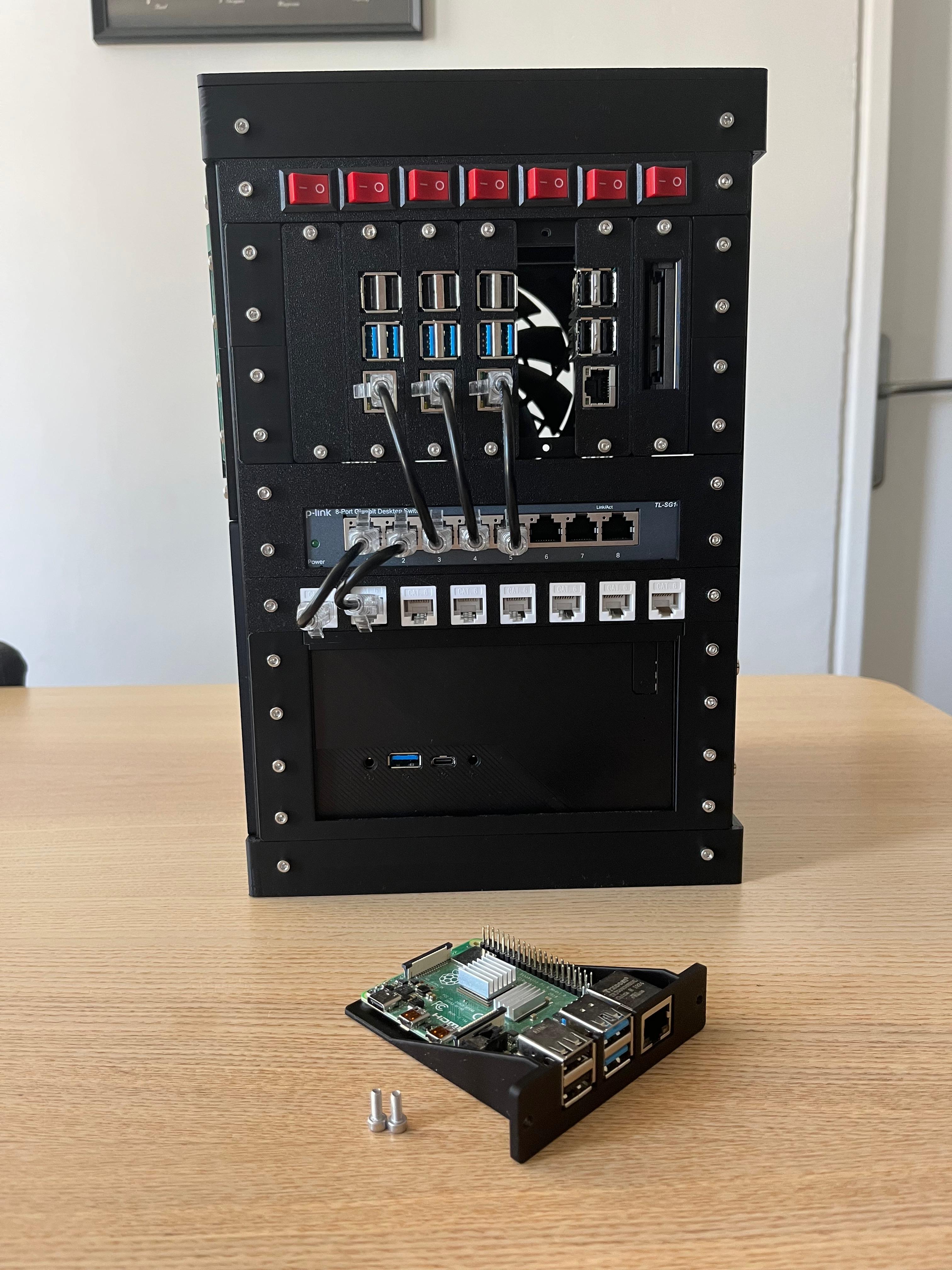

- Accessory ecosystem: Mini-trays for SBCs and 2.5″ drives, panels for keystones, switches, rotary encoders, and displays up to 7″.

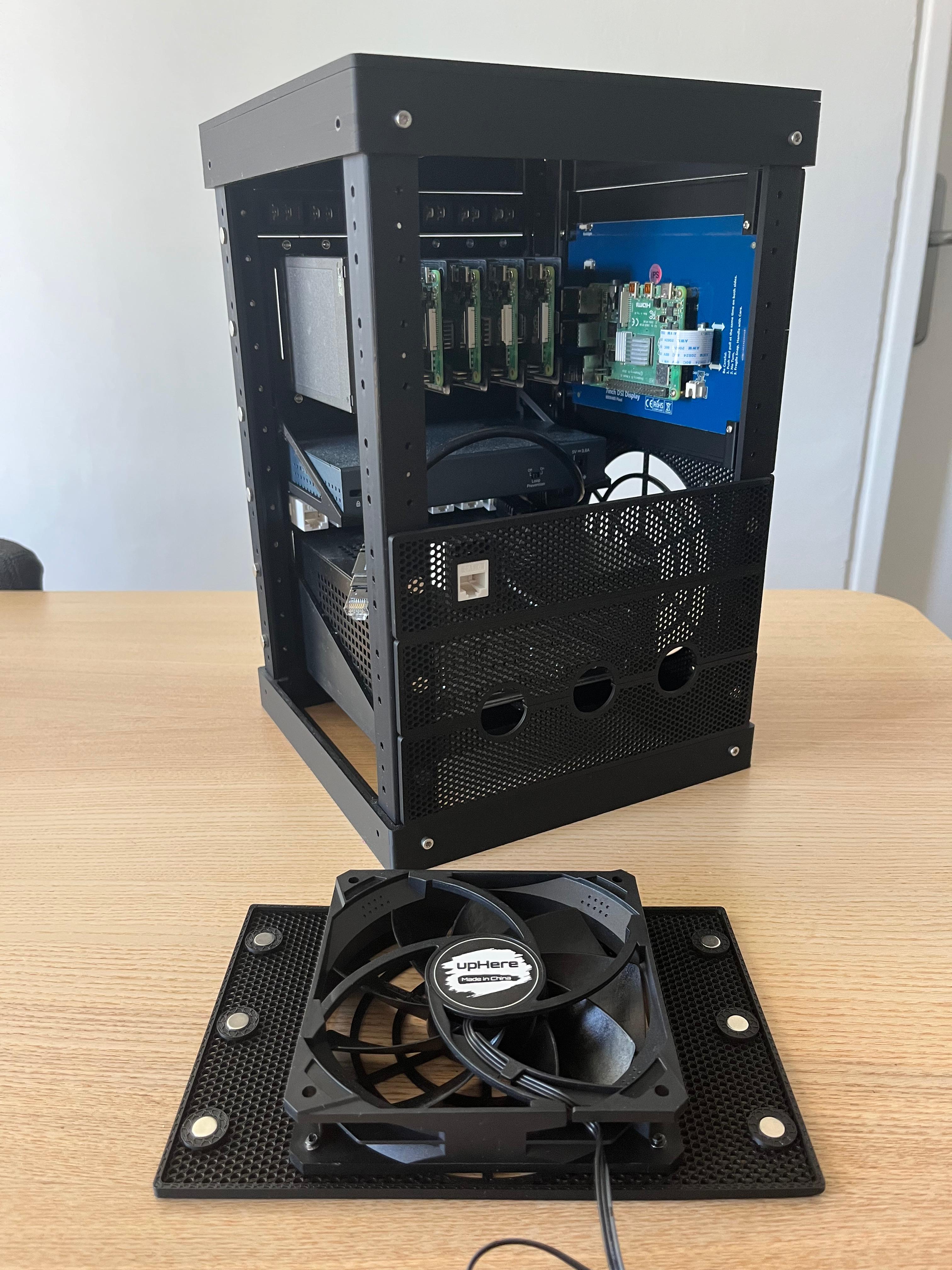

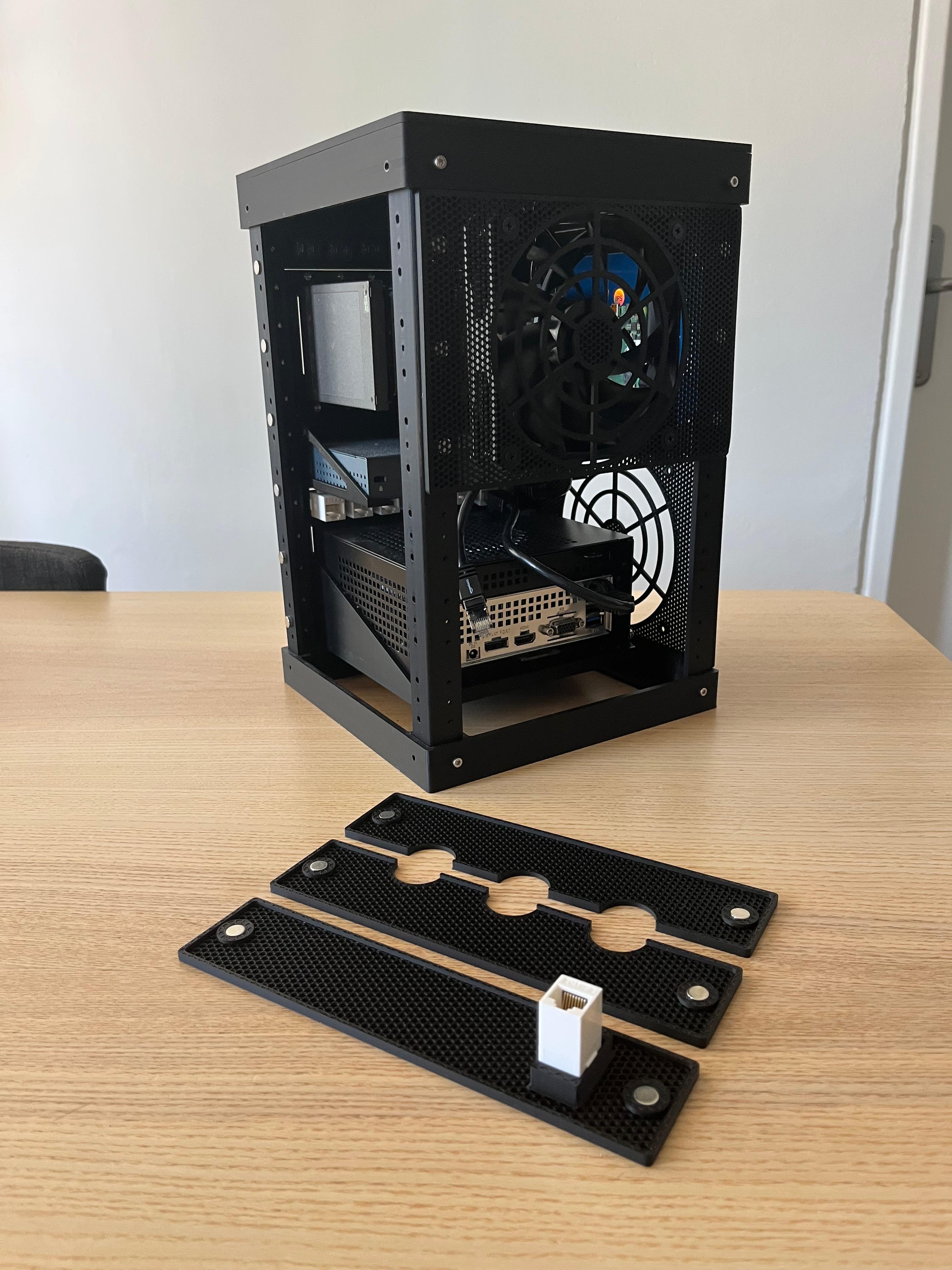

- Magnetic or screw-mounted side panels for quick swaps.
Printing & Assembly
- Print the columns, caps, and trays in PLA or PETG.
- Use standard M3 screws and nuts (optional 8×3 mm magnets for tool-less panels).
- All files are modular — you only print what you need.
Materials
- M3x10 or M3x12 screws & nuts
- Minimum: ~32 pairs (all magnetic panels)
- Full 6U build: ~112 pairs
- Large setups (e.g., 6U+4U extension): ~160–180 pairs
- Optional: 8×3 mm magnets (4 per 1U panel) for magnetic mounting
Tip: Glue the magnets and let the adhesive dry before attaching panels. Make sure all magnets share the same polarity for maximum flexibility.
Example Use Cases

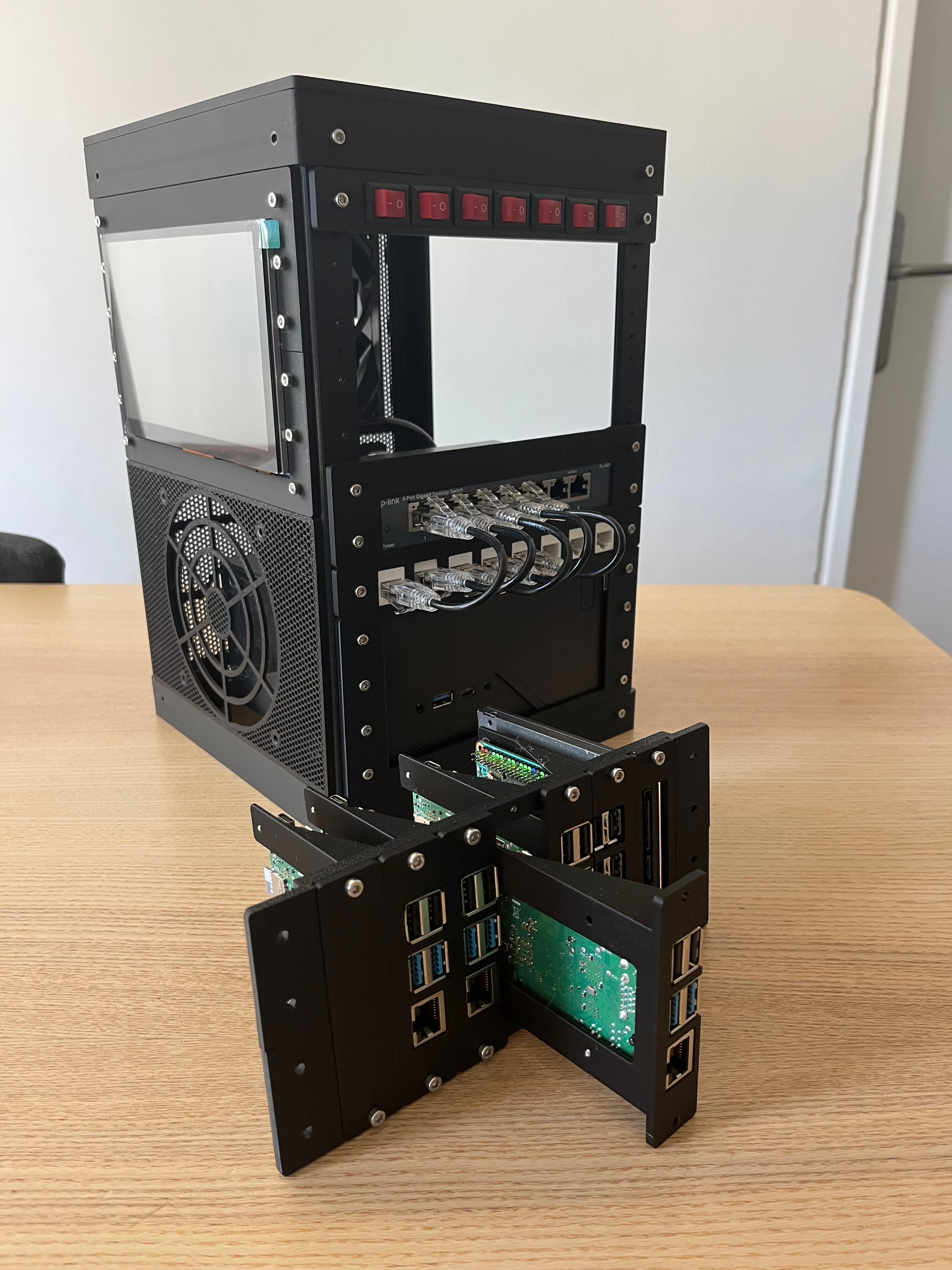

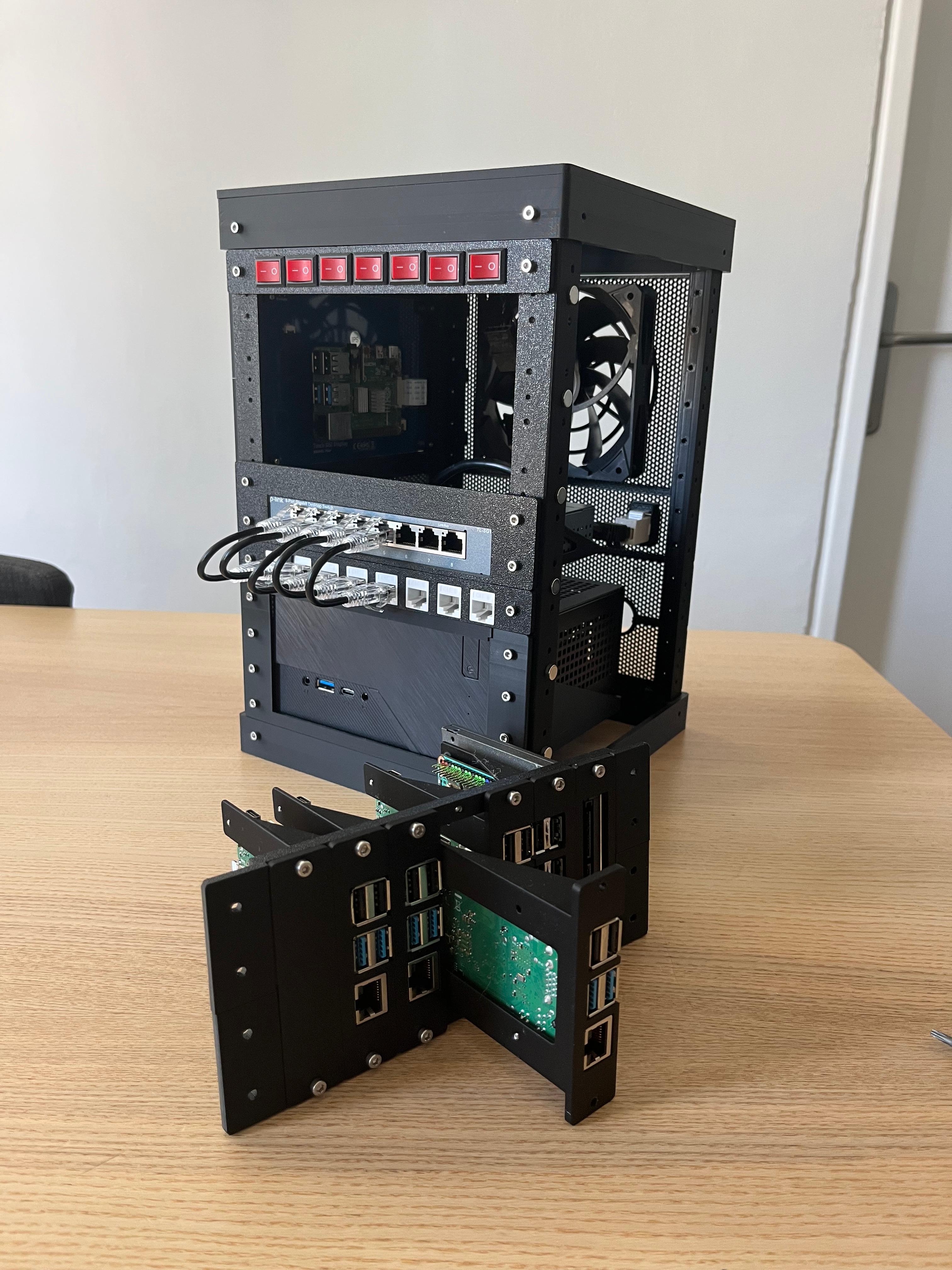

- Raspberry Pi clusters or NAS builds
- Compact home servers and firewalls
- Network switch + mini PC combos
- Sensor dashboards, HMI, or DIY control panels
More info: [https://github.com/canberkdurmus/microlab-2](https://github.com/canberkdurmus/microlab-2)
Printables
Microlab 2 - Mini Modular Home Server Rack
Publicado em 14 de set de 2025
76
Curtidas
264
Downloads
3
Impressões
Categoria
Computers
Tags
rack
raspberrypi
raspberrypi4
rackmount
raspberrypi3
homelab
minilab
microlab
raspberrypi5
Licença
Creative Commons — Attribution
Arquivos (73)
Top-Panel-Fan-120.step
171.7 KB
Mini-Tray-0.5-RPi4.step
79.4 KB
Tray-1U-Template-Starter.step
37.8 KB
Panel-1U-Mag-Button12mm.step
34.1 KB
Tray-0.5U-RPi5.step
82 KB
Mini-Frame-3.5U.step
108.2 KB
Panel-1U-fan-40x2.step
72 KB
Tray-0.5U-RPi4.step
81.3 KB
Structure-Feet-Round-15mm.step
9.3 KB
Structure-Col-4U.step
220.7 KB
Panel-3U-Fan-120.step
200.8 KB
Tray-1U-Switch-Netgear-GS308.step
104.4 KB
Tray-0.5U-Switch-Tenda-SG108.step
74.2 KB
Panel-1U-Knob-7mm.step
41.8 KB
Top-Panel-Slots.step
113.4 KB
Panel-0.5U-7x-Power-Switch.step
61.6 KB
Panel-2U-fan-80.step
141.4 KB
Panel-2U-fan-60.step
141.4 KB
Top-Panel-Solid.step
55.1 KB
Mini-Tray-0.5-RPi5.step
79.1 KB
Panel-1U-Button12mm.step
41 KB
Extension-ITX-4U.step
1.2 MB
Mini-Tray-0.5-SATA2.5.step
63.5 KB
Panel-1U-Mag-1xKeystone.step
65.1 KB
Tray-1U-Switch-TpLink-TLSG105.step
101.5 KB
Mini-Tray-0.5-Blank.step
19.6 KB
Extension-ITX-1U.step
418.1 KB
Mini-Tray-0.5-SATA2.5-Closed.step
44.4 KB
Panel-1U-Solid-1xKeystone.step
76.3 KB
Tray-1U-GMKTec-G3.step
83.9 KB
Panel-1U-fan-40x1.step
55.7 KB
Panel-1U-Mag-fan-40x2.step
64.8 KB
Extension-ITX-2U.step
721.3 KB
Tray-0.5U-RPi4-SATA.step
146.5 KB
Extension-ITX-3U.step
982.6 KB
Panel-1U-fan-40x3.step
88.2 KB
Tray-2U-X300-Acc.step
27.9 KB
Panel-3U-Solid.step
76.7 KB
Panel-0.5U-Solid.step
31.5 KB
Structure-Col-Guard-6U.step
55.4 KB
Tray-2U-X300.step
69.4 KB
Extension-ITX-5U.step
1.5 MB
Panel-1U-Mag.step
32.6 KB
Panel-1U-8xKeystone.step
220.2 KB
Tray-0.5U-RPi5x2.step
147.6 KB
Panel-2U-Mag.step
41.6 KB
Panel-3U-Disp7-Top.step
123.4 KB
Panel-1U-Solid.step
39.4 KB
Structure-Feet-Round-10mm.step
9.3 KB
Panel-1U-Mag-Knob-7mm.step
34.1 KB
Tray-0.5U-Template-Starter.step
34.9 KB
Panel-3U-Mag.step
50.8 KB
Panel-2U-Mag-fan-60.step
128.7 KB
Structure-Cap-v2.step
610.8 KB
Panel-2U-fan-60x2.step
227.2 KB
Panel-1U-Mag-fan-40x3.step
81 KB
Panel-0.5U-Keystone8.step
293.7 KB
Structure-Mid-Extender.step
388.8 KB
Tray-0.5U-RPi4x2.step
146.7 KB
Structure-Col-6U-dual-magnet.step
355.4 KB
Panel-4U-Solid.step
94.5 KB
Panel-2U-Mag-fan-60x2.step
215.8 KB
Panel-4U-Mag.step
60 KB
Tray-1.5U-SFX-L.step
93.4 KB
Mini-Frame-3.5U-2.step
105.3 KB
Panel-1U-Mag-Passthrough.step
48.1 KB
Panel-3U-Disp7-Bottom.step
123.4 KB
Panel-2U-Solid.step
55.7 KB
Panel-2U-Mag-fan-80.step
128.7 KB
Panel-3U-Mag-Fan-120.step
174.4 KB
Tray-1U-Switch-TpLink-TLSG108.step
108 KB
Panel-1U-Mag-fan-40x1.step
48.6 KB
Tray-1U-Template-Starter-2.step
31.8 KB
