DO NOT PRINT. USE THE REMIX INSTEAD!

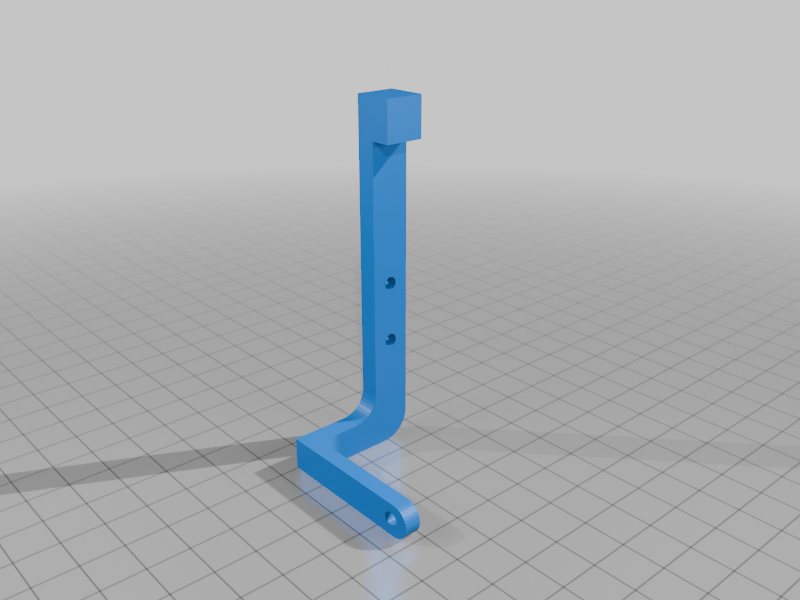

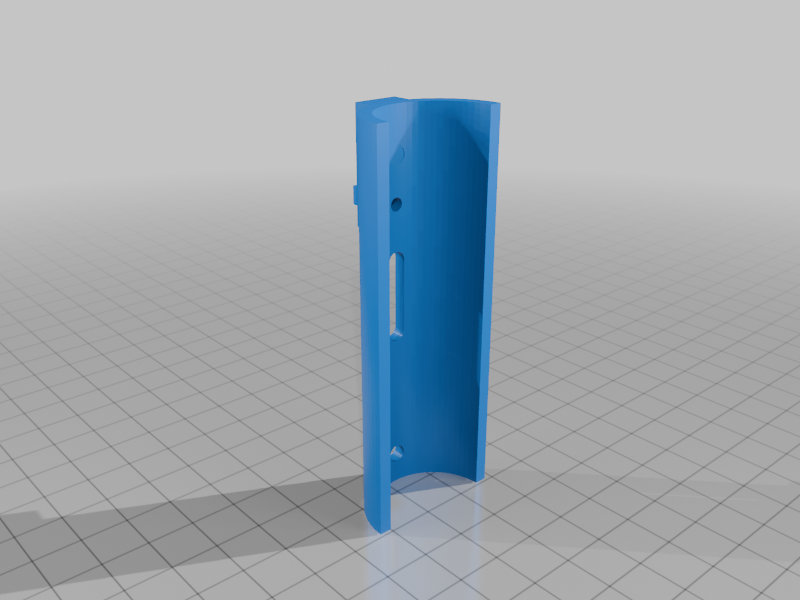

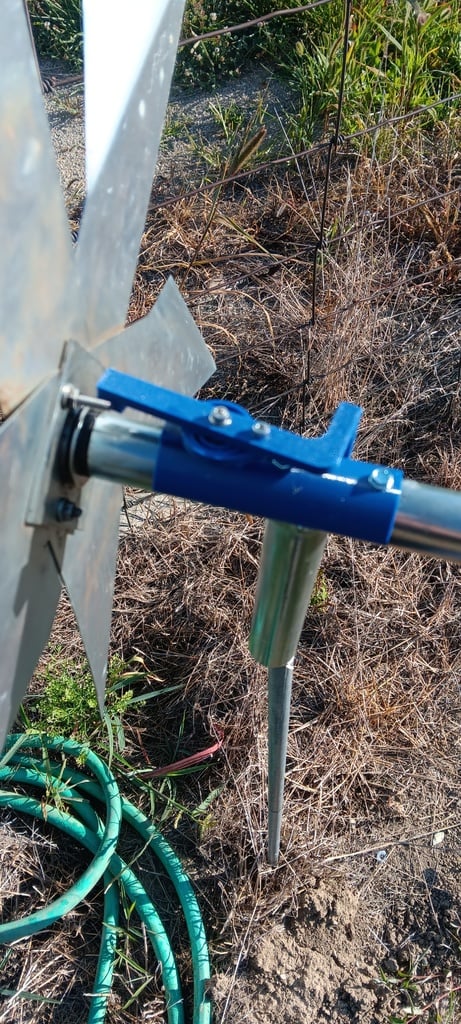

A clanger for a mole windmill to tap on the ground rod. The noise is supposed to deter moles. It's powered by the windmill. Used some common bolts and 3D printed parts. The main body will need supports and a brim. All parts printed in PETG for weather resistance and flexibility.

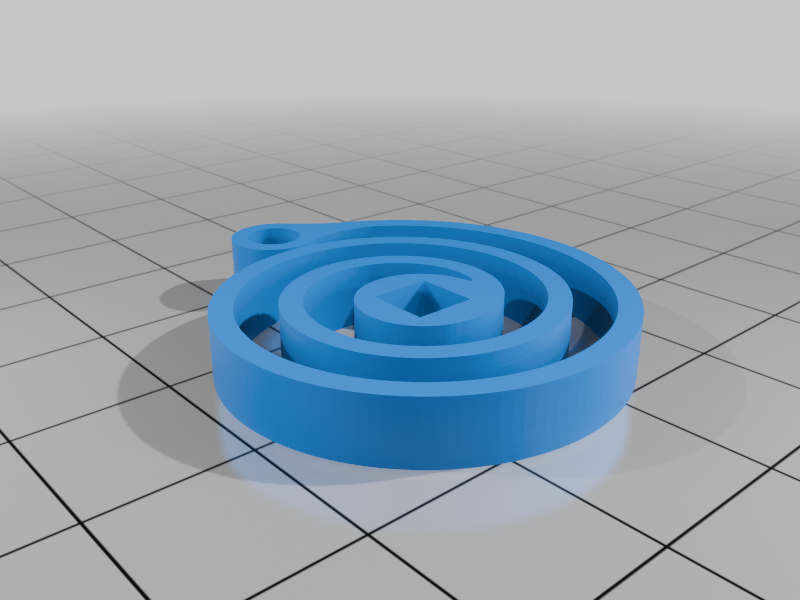

The torsion spring is not my design. It can be found here: [https://www.printables.com/model/380701-torsion-spring](https://www.printables.com/model/380701-torsion-spring)

The mole windmill I used is this one: [https://www.lehmans.com/product/mole-chasing-windmill/](https://www.lehmans.com/product/mole-chasing-windmill/)

Also needed: M4x6 (clanger), M4x20 (trip, replaces a screw holding the blades together) M3x12 (pivot) M3x8 (connects to spring, M3x12 should work too.) 2 self tapping screws
