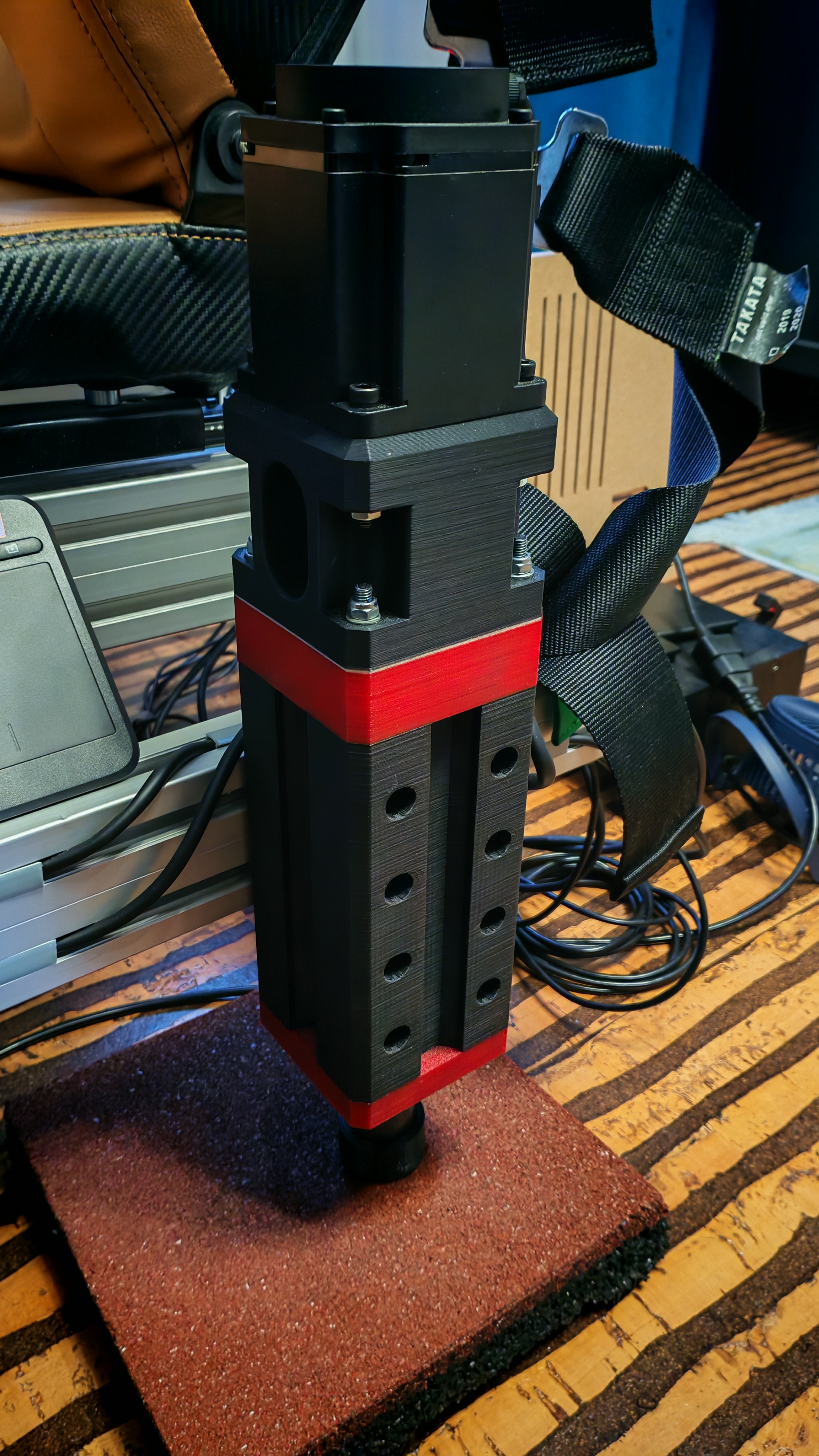

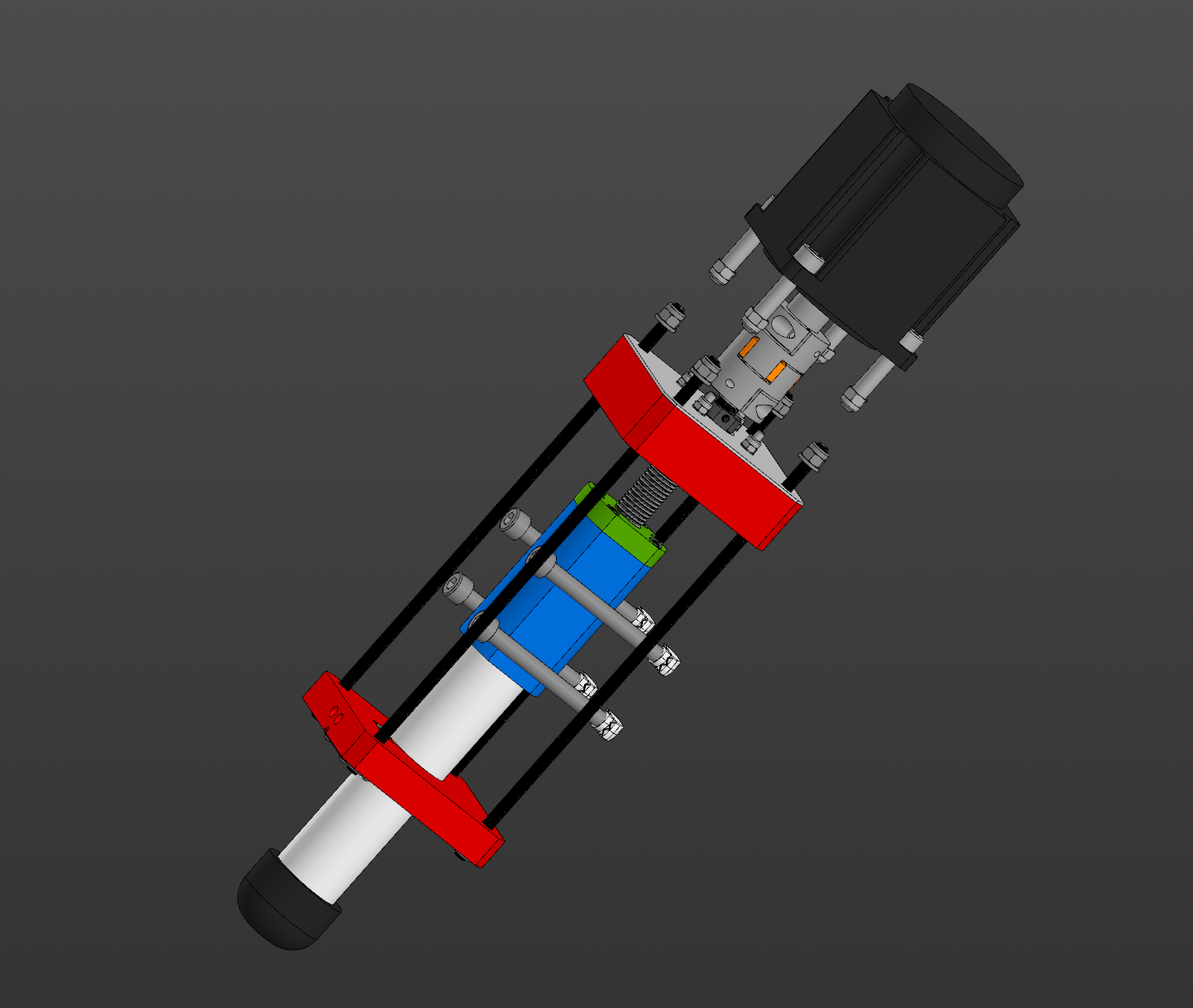

This is my updated version of Linear Actuator: [https://www.printables.com/model/961759-linear-actuator-for-motion-platforms-sim-racing](https://www.printables.com/model/961759-linear-actuator-for-motion-platforms-sim-racing)

Parts for full set of actuators:

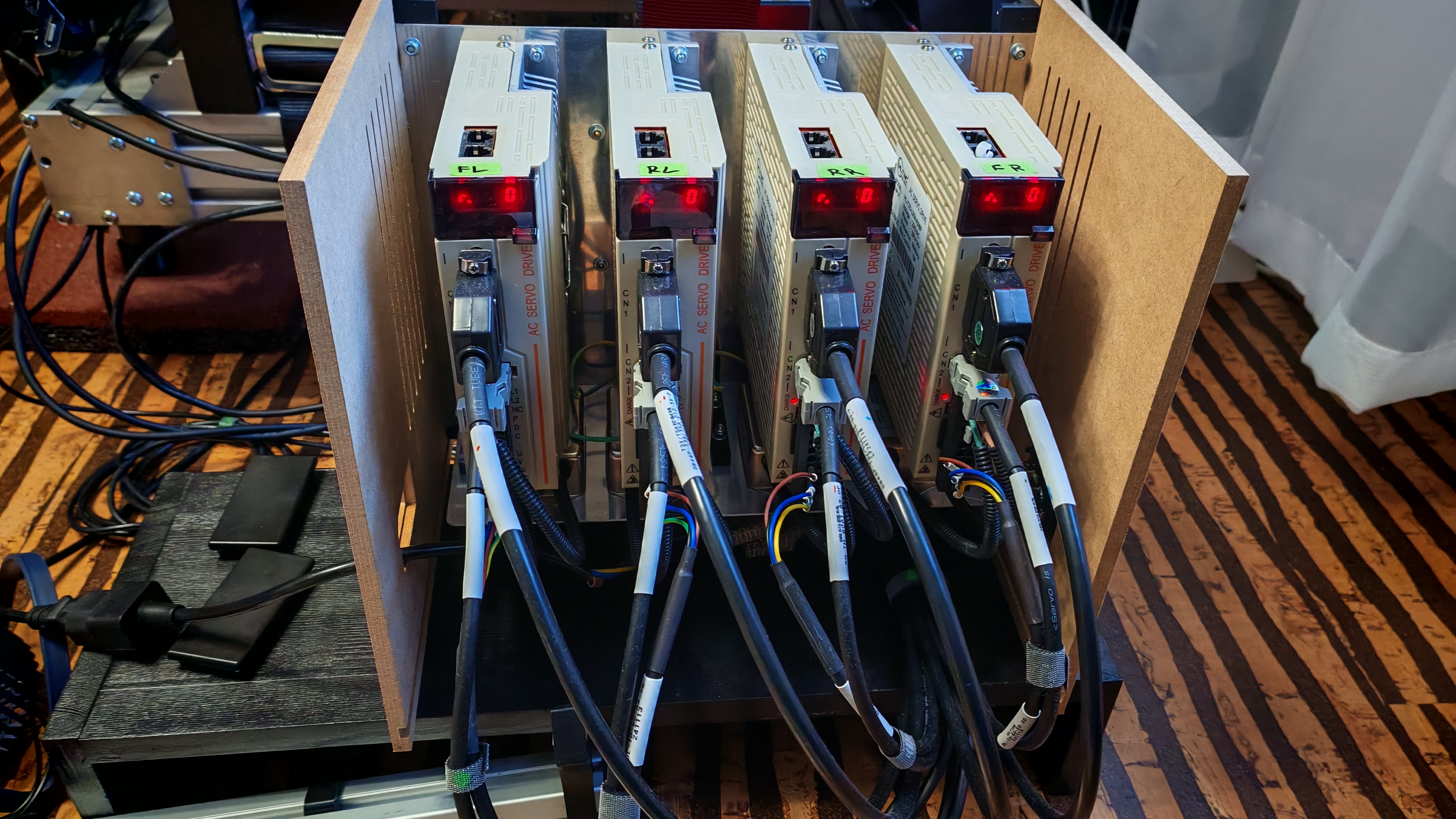

- HLTNC 80 AST 750W 2.4N 220v Servo Kit - 4 pcs
- EMI Filter CW4L2-20A-T -4 pcs
- SFU 1610 200-250mm - 4 pcs
- Coupler 10x19 mm D35L50 - 4 pcs
- FK12 C7 - 4 pcs
- Steel pipe (outer dia 34mm, inner dia 28mm) - 1 meter ( 4 x 250 mm)
- Power cord
- STM32F103C8T6 (not original, clone) - 5 pcs
- Micro end switch SM5-00N-115 - 4 pcs
- Usb cable 3m or similar cheap cable (for end switches) - 4 pcs

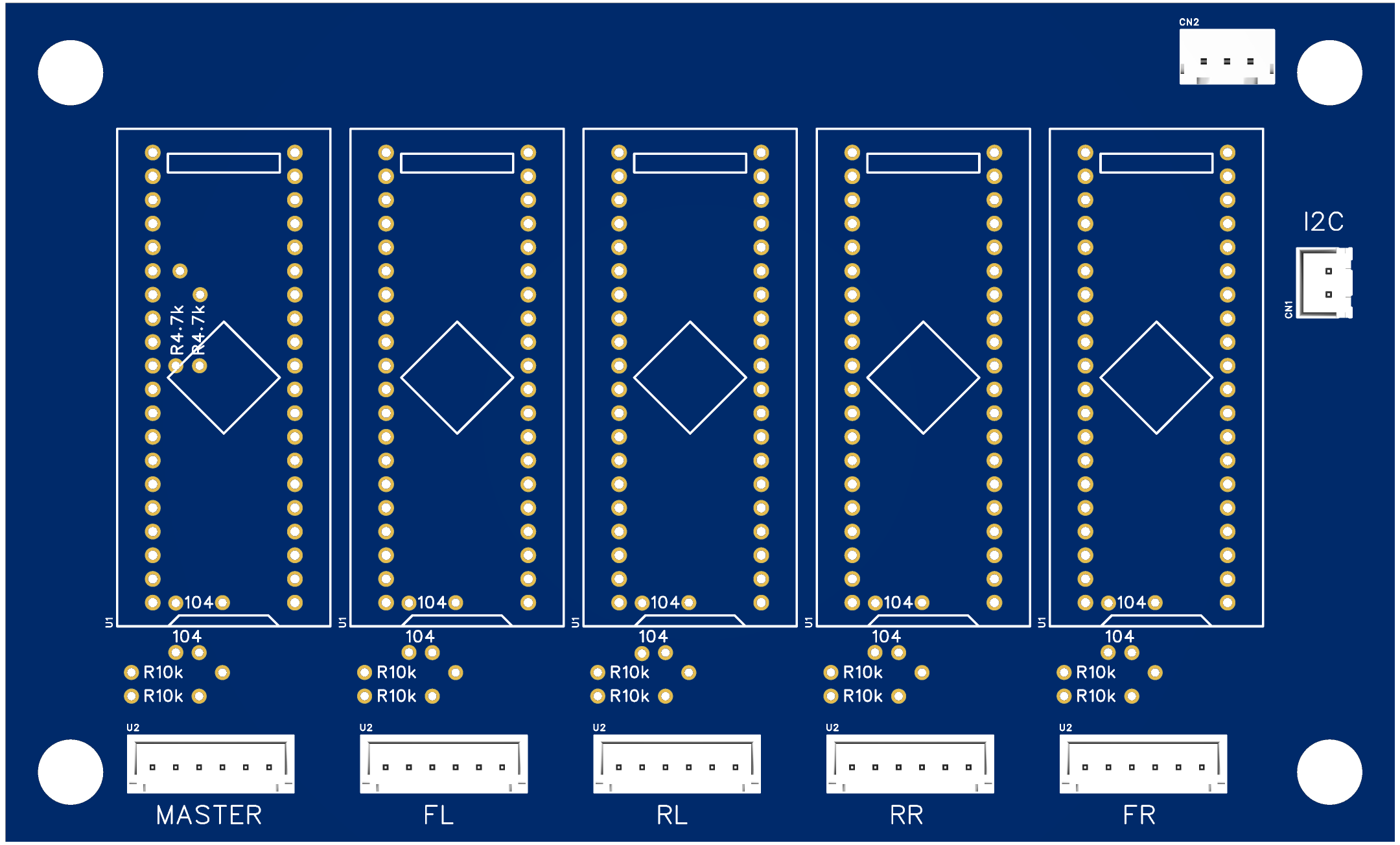

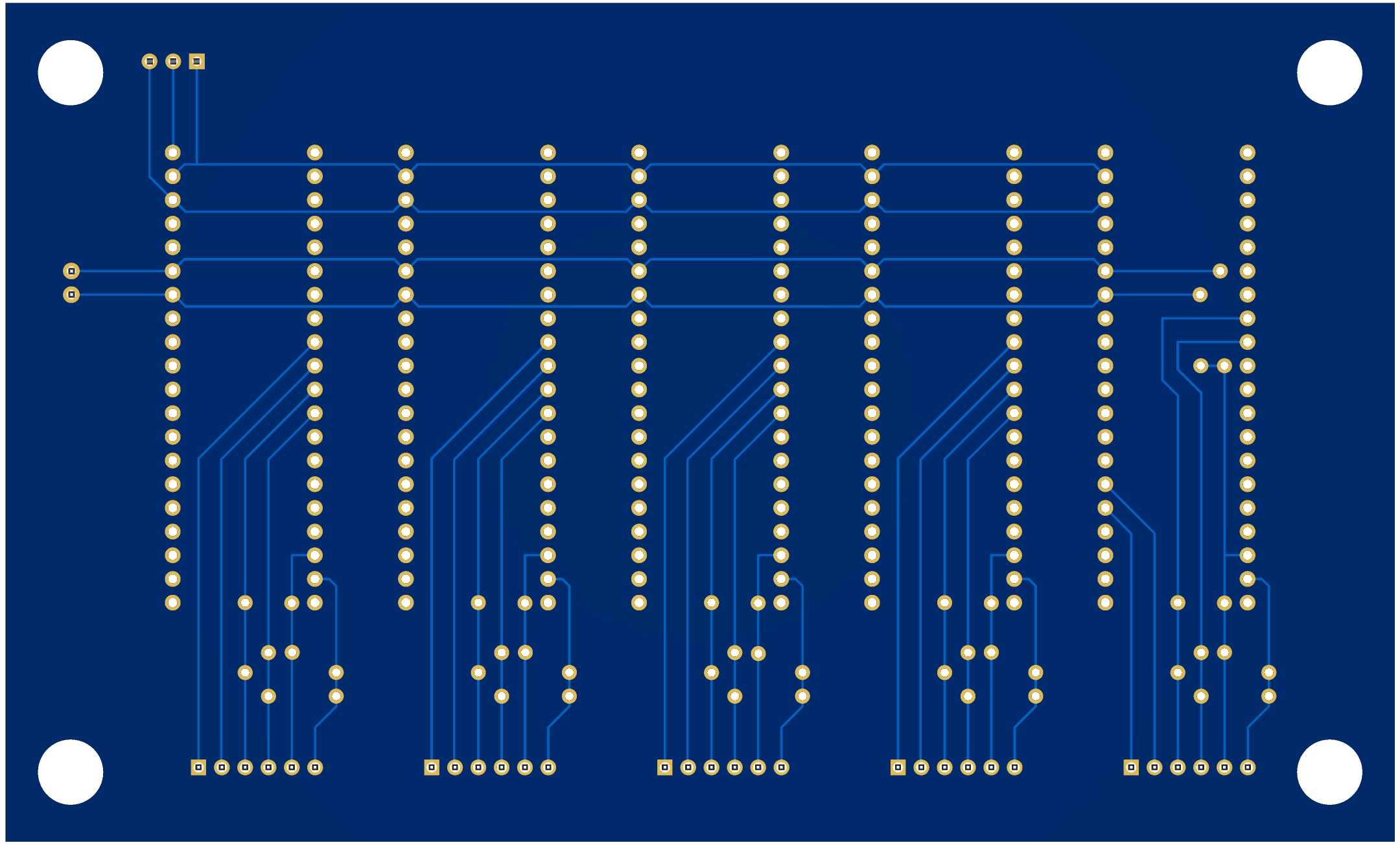

- Arduino IDE sketches and PCB  [https://github.com/vazhure/STM32MotionController](https://github.com/vazhure/STM32MotionController)
- Threaded stud DIN 975, M6  -4m
- Bunch of screws and bolts
- bunch of hot inserts
- Bunch of resistors and capacitors
- Lubricant

Free software: [https://github.com/vazhure/vAzhureRacingHub](https://github.com/vazhure/vAzhureRacingHub)

My Discord: [https://discord.gg/ynHCkrsmMA](https://discord.gg/ynHCkrsmMA)
