Description

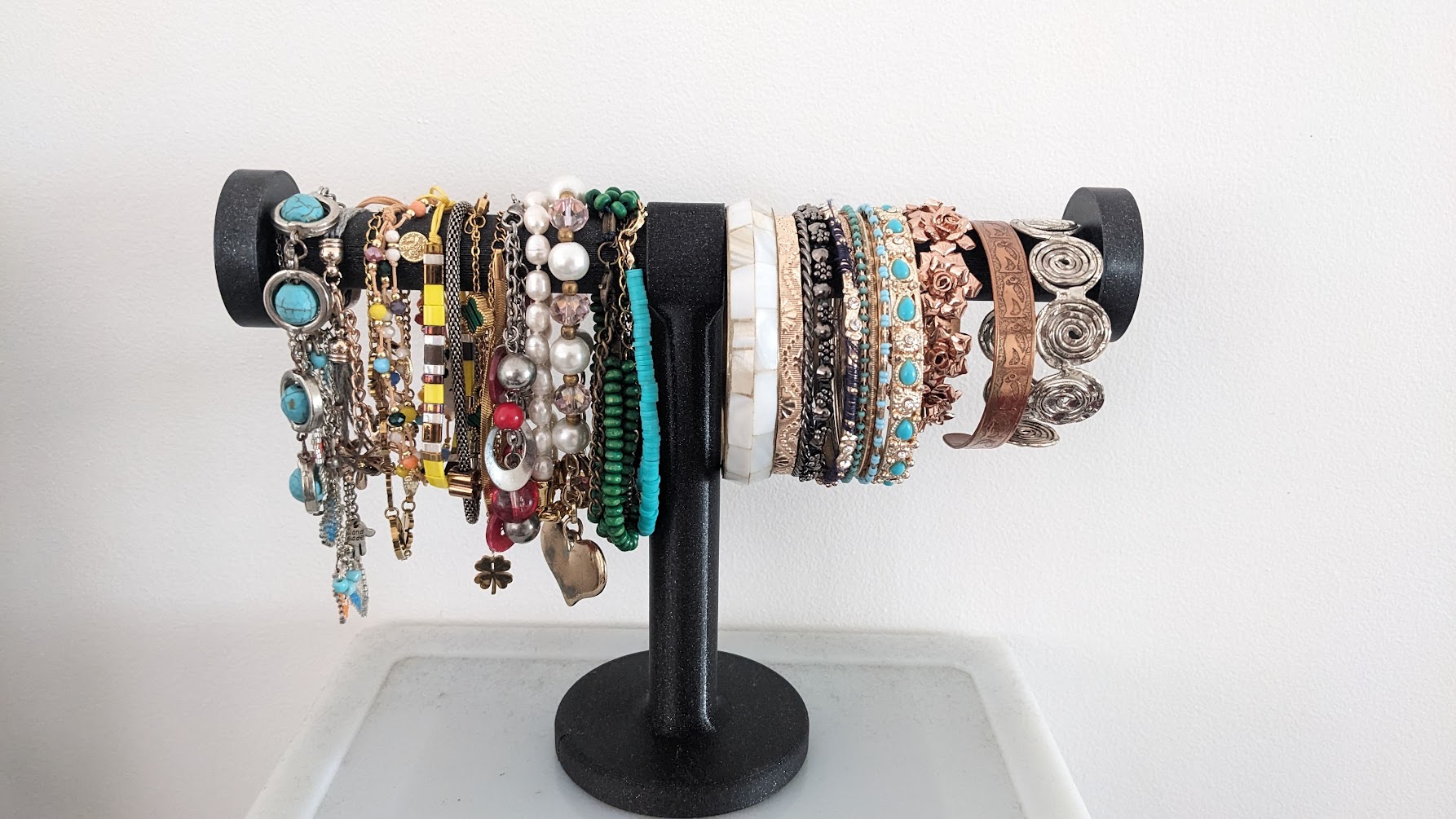

This accessory holder consists of four separately printed parts, optimized for the Prusa MINI+ build plate (or any plate of equal or larger size). The base comes in two heights: 128 mm and 158 mm. The smaller one can be placed in front of the taller one so both sets of bracelets remain visible.

Printing

All parts were printed at 0.2mm layer height with 10% gyroid infill (except the base, see tip). All threads have 0.2mm clearance.

Assembly

1. Slide the shaft into the base by matching the key on it with the slot in the base.
2. When the slot has slid into the middle of the base, turn the shaft by 90 degrees to lock it in place (attention: there is only one correct rotation direction!).
3. Screw on both end caps to the ends of the shaft

Tips

• For better stability, print the bottom of the base with higher infill than the vertical section (e.g., 30% bottom disc, 10% vertical pole). This setting is already included in the provided .3mf file.
• Print the shaft horizontally if possible. It's much faster and still fits. However, you will possibly need to clean up the area around the threads just a bit.
• Using variable layer height (for example on the base) can help with more accurate holes and lower printing times.
