Modelo 3D Modular Skadis Container System (M) por gimpelginster no Printables

Descrição

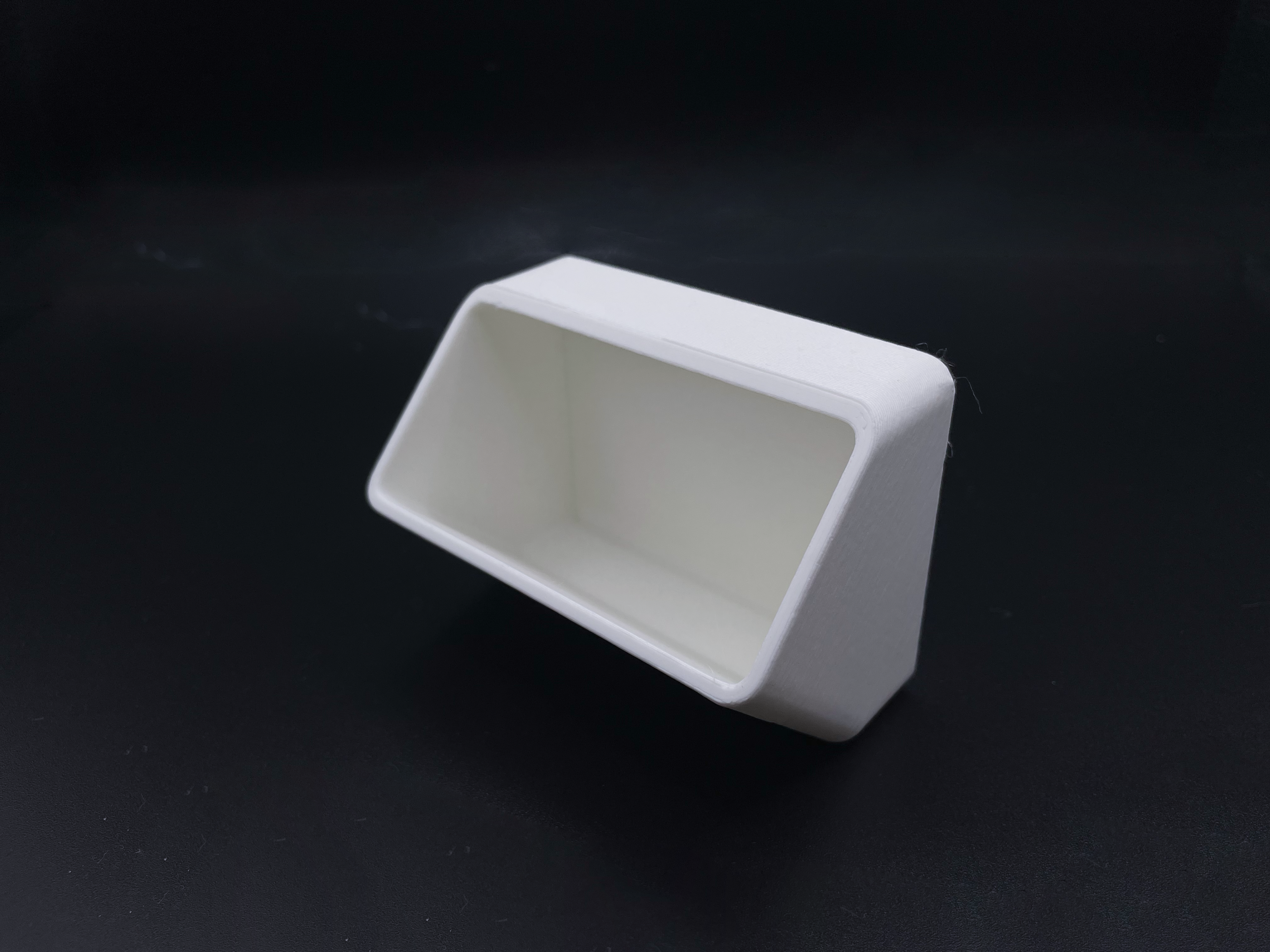

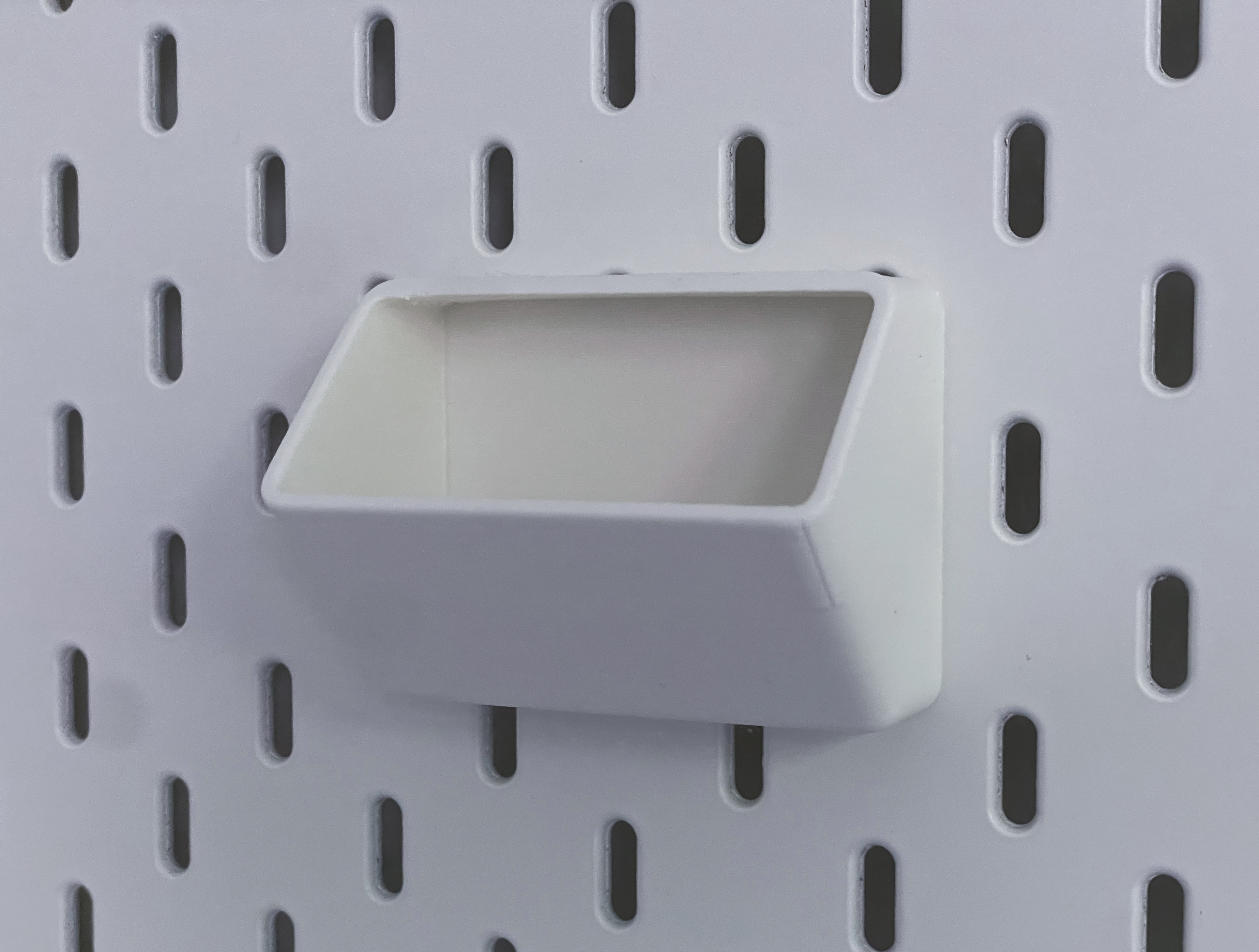

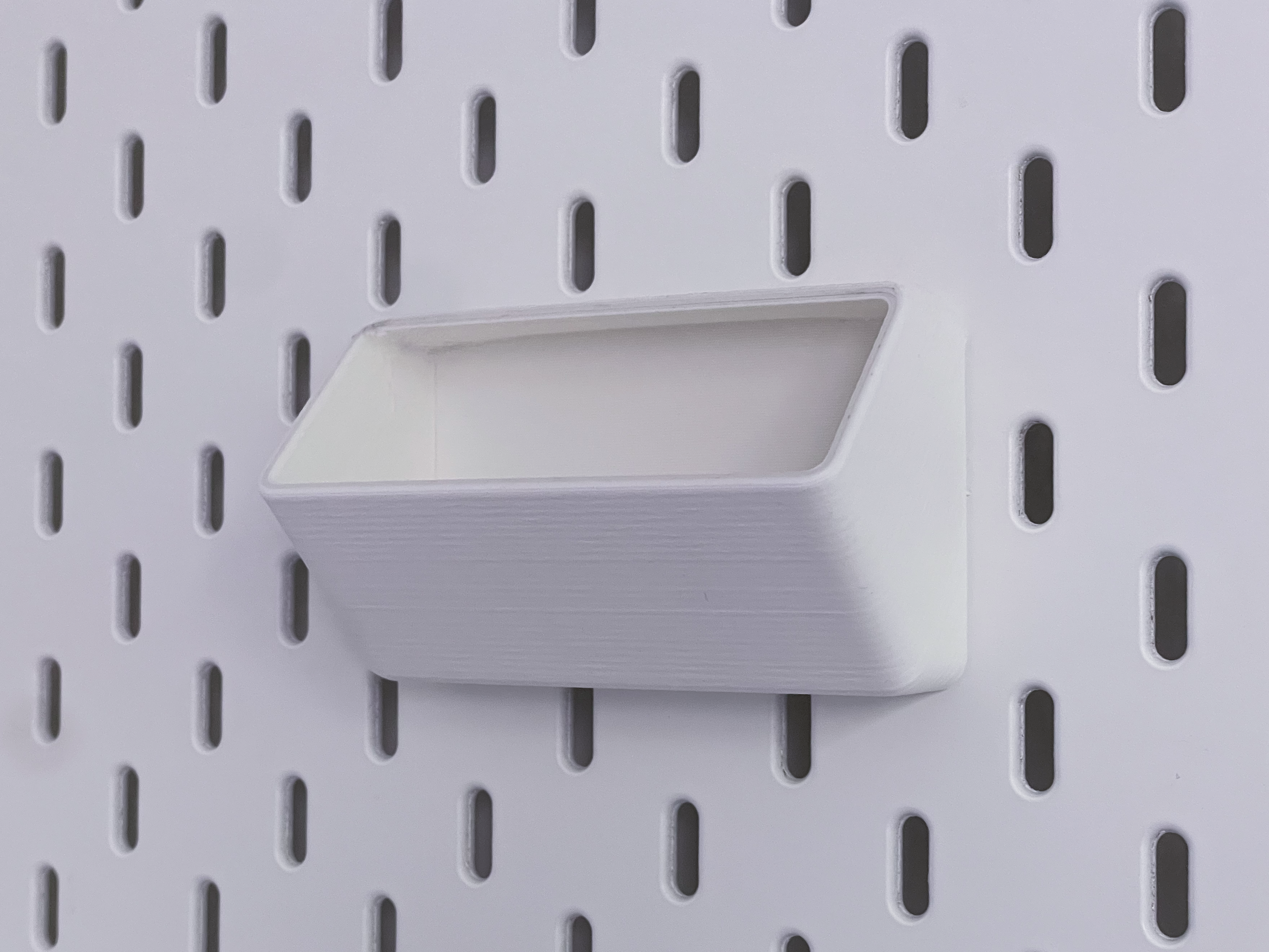

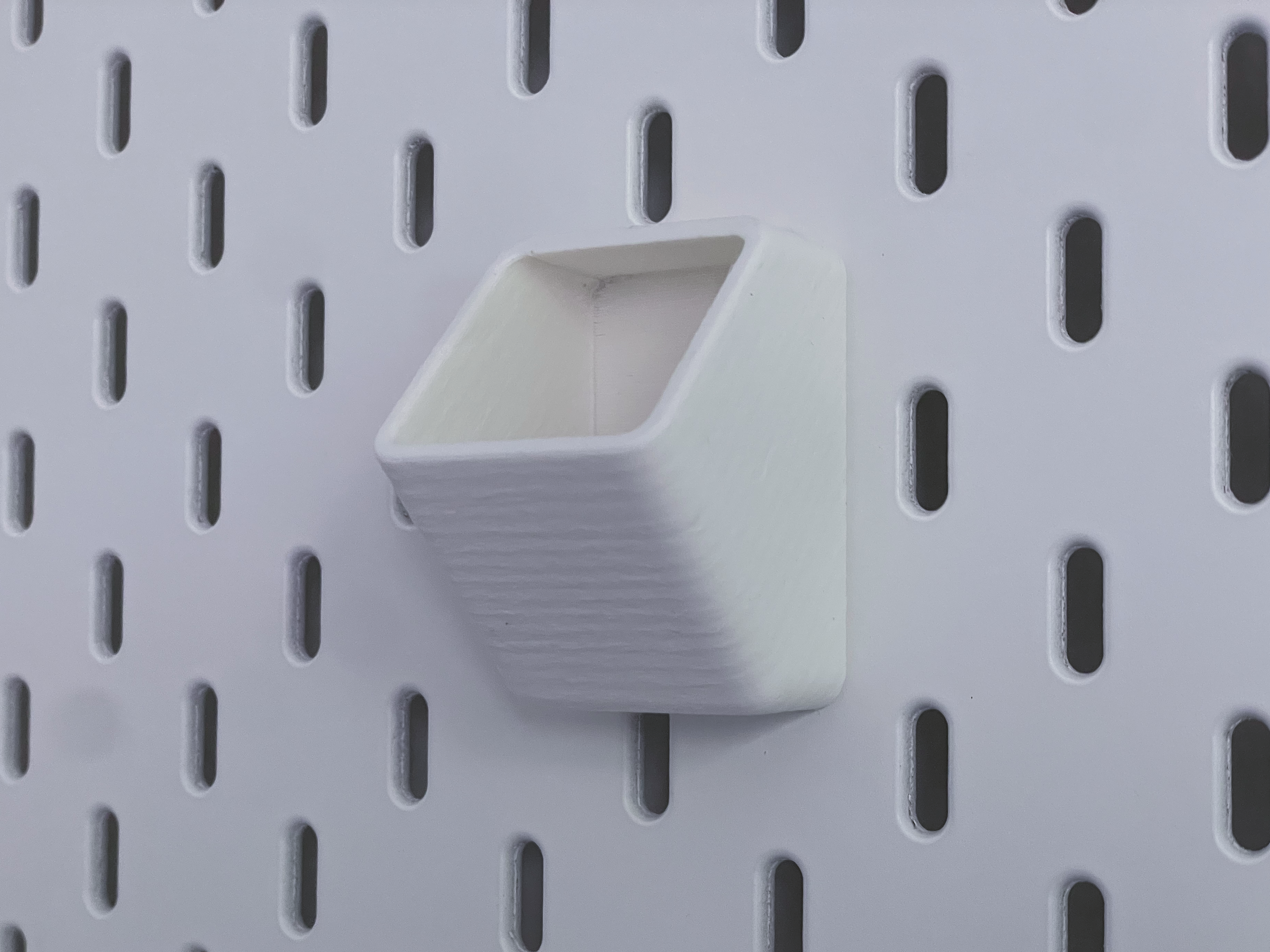

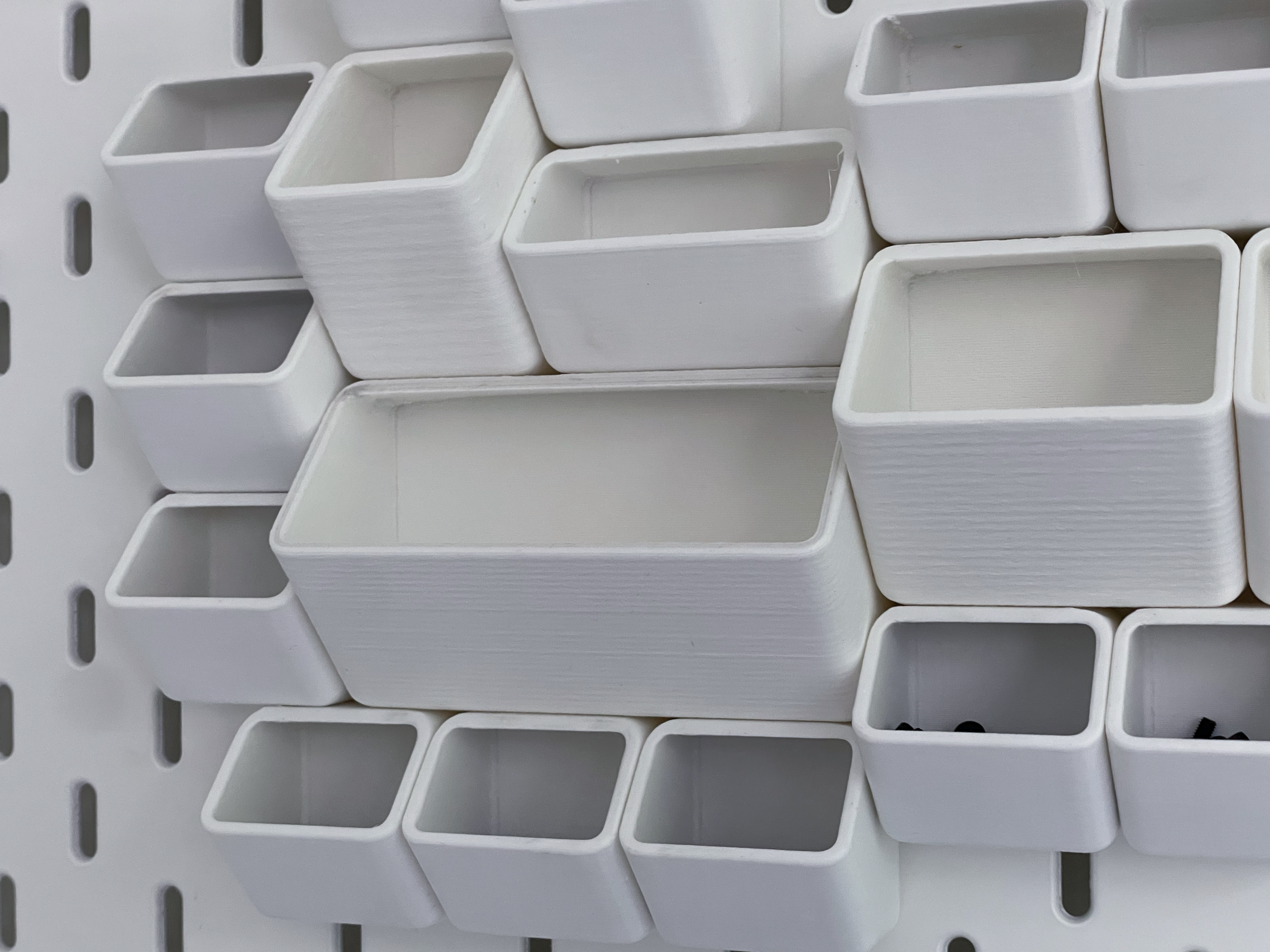

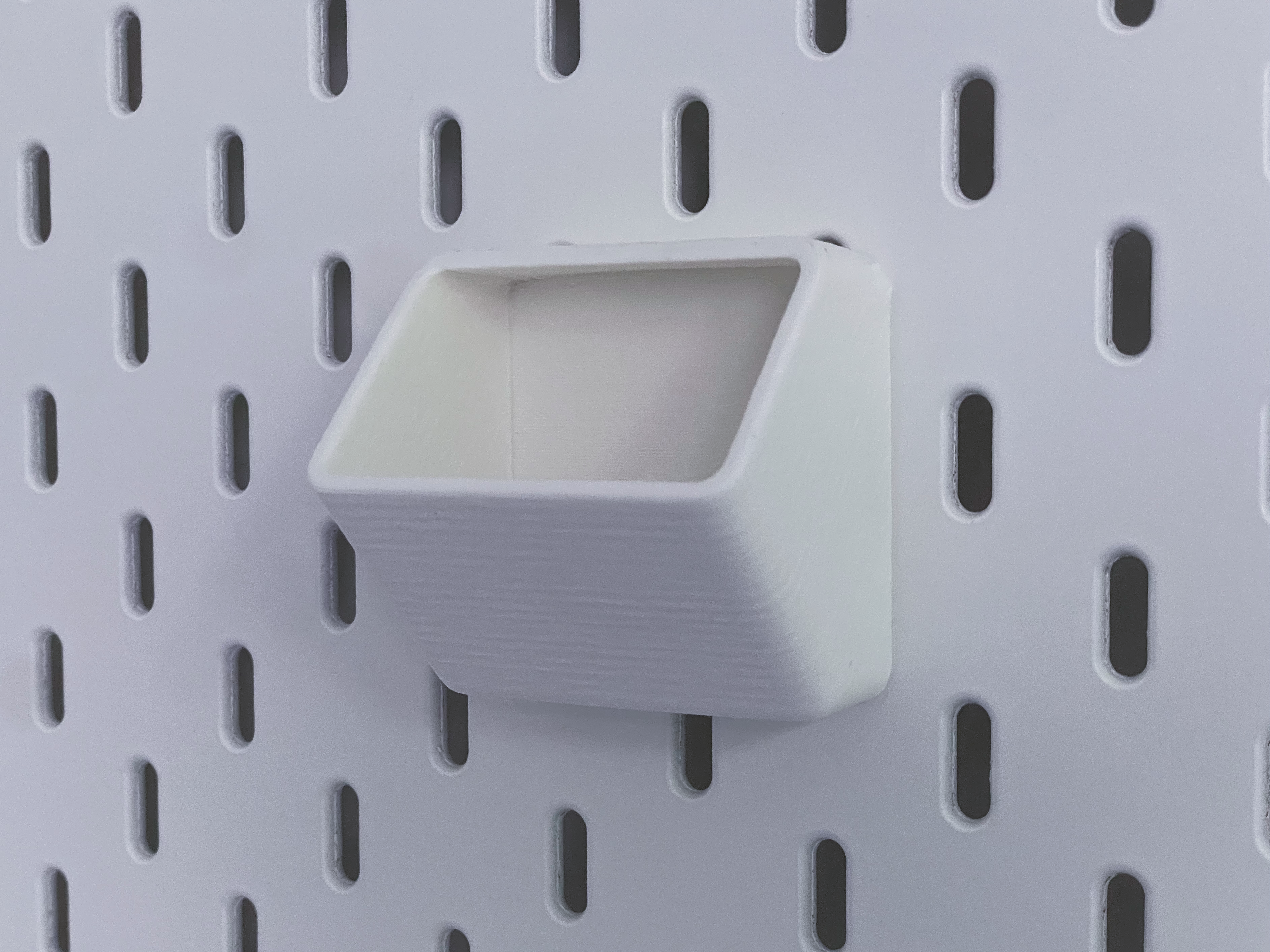

These are some skadis containers in different lengths. One container is one solid part. Neither do they require any separate hooks nor supports while printing.

They are compatible with my Modular Skadis Container System (S), and (L).

Use cases

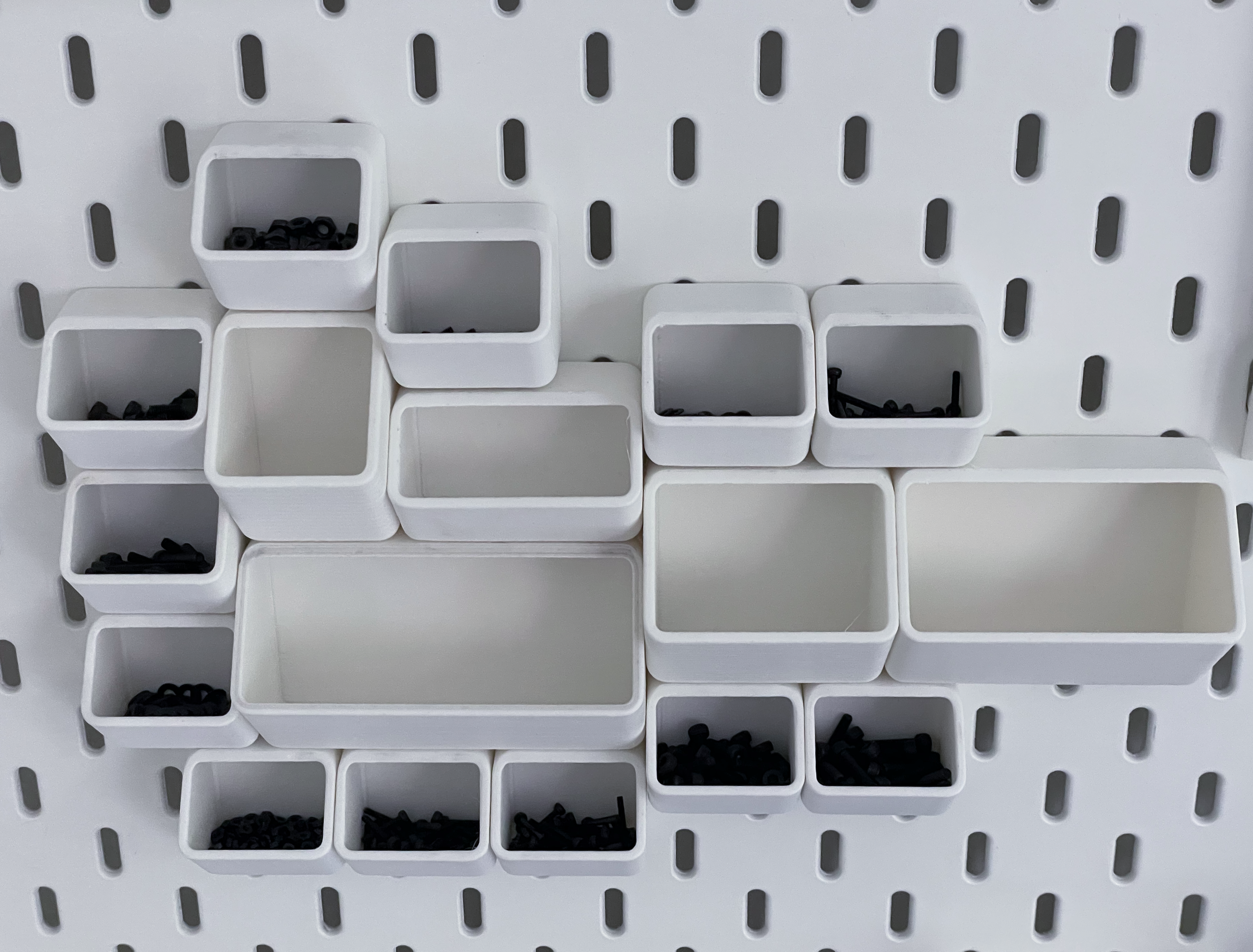

I use the containers to keep my dice sorted, but in the end you could use them for whatever you like.

The walls are 2,5 mm thick, so the usable length inside would be the outer length (40 mm, 60 mm, 80 mm, 100 mm or 120 mm) minus 5 mm. The inner height of all of these boxes is 55 mm and their maximum depth is 35 mm.

Nomenclature

The first number represents the width of the box in millimetres. 40 mm is one full unit, after that the hook pattern repeats itself.

The second number indicates wether the hooks are placed high or low (back view, left to right).

Printing

You don't need any supports or extra hooks for this print. They are supposed to be printed in the orientation thy are uploaded. Depending on how well your filament sticks to your plate, you might want to add a brim for extra stability.

Inspiration

Shape and print orientation are inspired by SMACKMAX' Skadis Pockets / Bins / Tool holder. You should definitely consider printing those as well.

Printables

Modular Skadis Container System (M)

Publicado em 17 de set de 2025

808
Curtidas
1,784
Downloads
20
Impressões
Categoria Organizers
Tags
box organizer ikea container storage storagebox storagesystem sorting bin skadis containers ikeaskadis sortingbox storagecontainer skadisikea skadisholder storagebin containerbox
Licença Creative Commons — Attribution — Noncommercial
Arquivos (10)
M 40 10.stl 169.4 KB
M 40 01.stl 169.4 KB
M 60 00.stl 169.4 KB
M 60 11.stl 168.6 KB
M 80 01.stl 172.3 KB
M 80 10.stl 172.3 KB
M 100 11.stl 164.7 KB
M 100 00.stl 165.5 KB
M 120 10.stl 171.1 KB
M 120 01.stl 170.5 KB
