Gladiator Track Accessories

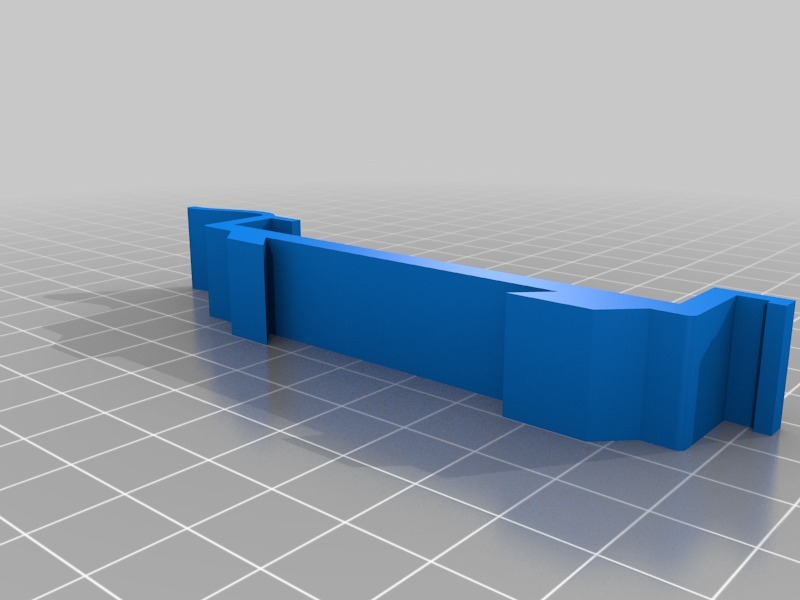

The base track piece fits in the track and is easy to install and remove. It is strong enough for any type of hook.

So far, the "S" hook needs something else to be useful, not sure what to do for it yet. However, everything else works as intended. More accessories are on the way.

For production, use a dot of super glue to keep the base and attachment from sliding on each other.

Updates:

06-12-15 Fixed default orientation of basket 07-17-15 Added V3 Loop kit in correct orientation 07-30-15 Added V7 of the base, now 1 solid body 02-06-16 Fixed basket, didn't lay flat on print bed

Instructions

IMPORTANT PRINTING INSTRUCTIONS

ABS Tends to need a raft for me (for small parts), but PLA sticks to the glass better.

No Supports needed unless specified:

Base Mount: 20% fill, ABS or PLA, both tested fine. The rest of this section handles exceptions to the default or norm.

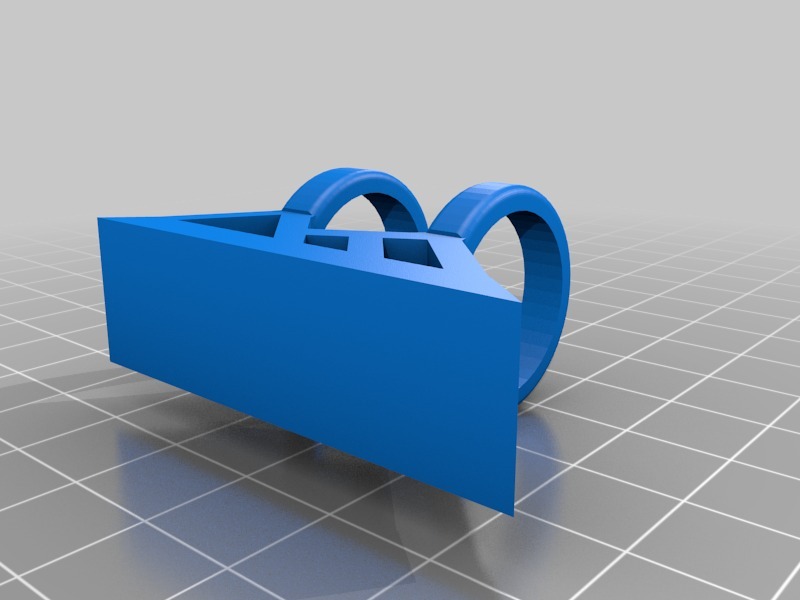

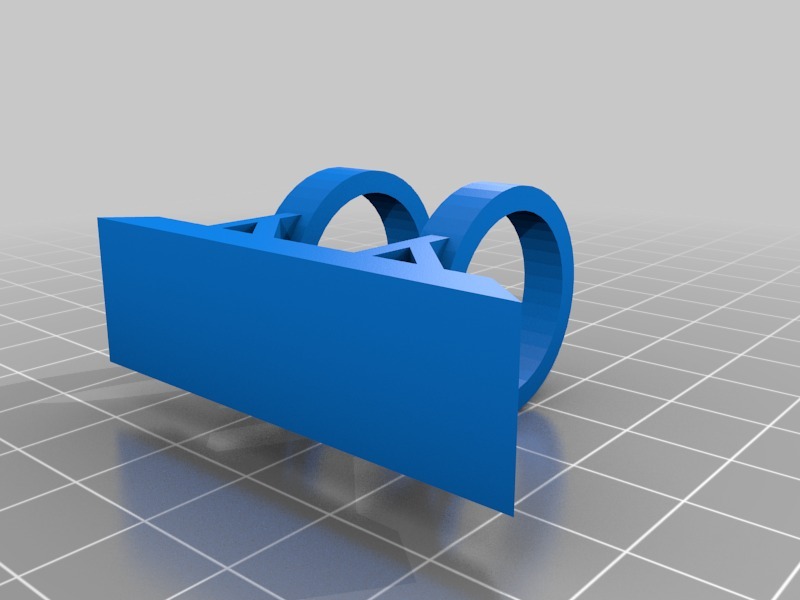

Mini loop hook: Position on back so loops are UP, no support needed. Choose density appropriate to weight of intended use. V1 is for light use, V3 is much stronger, but uses more material.

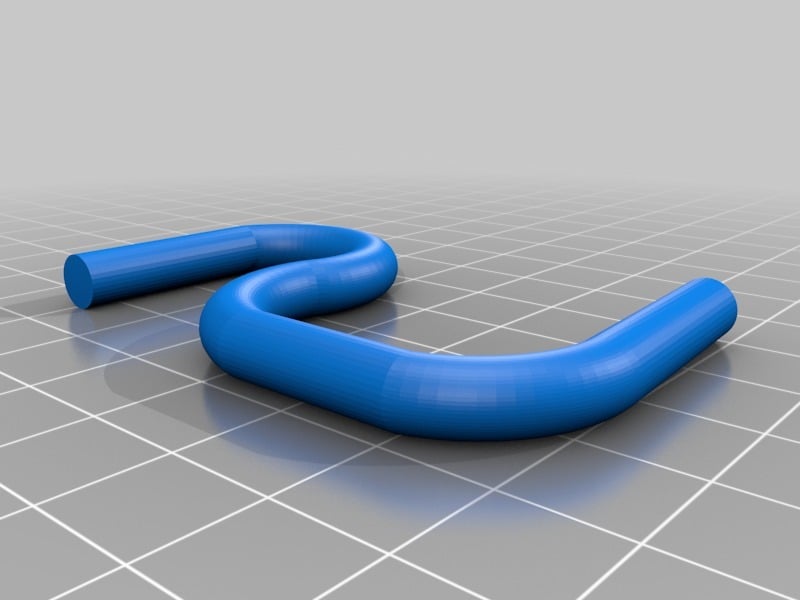

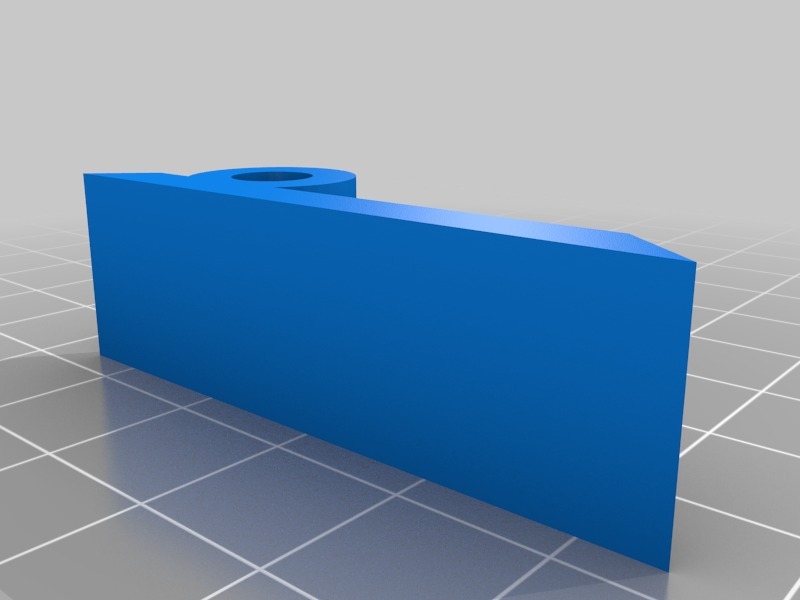

S-Hook: Failed proof of concept, needs something else to be useful. I may revisit this later. I don't recommend printing S hook..

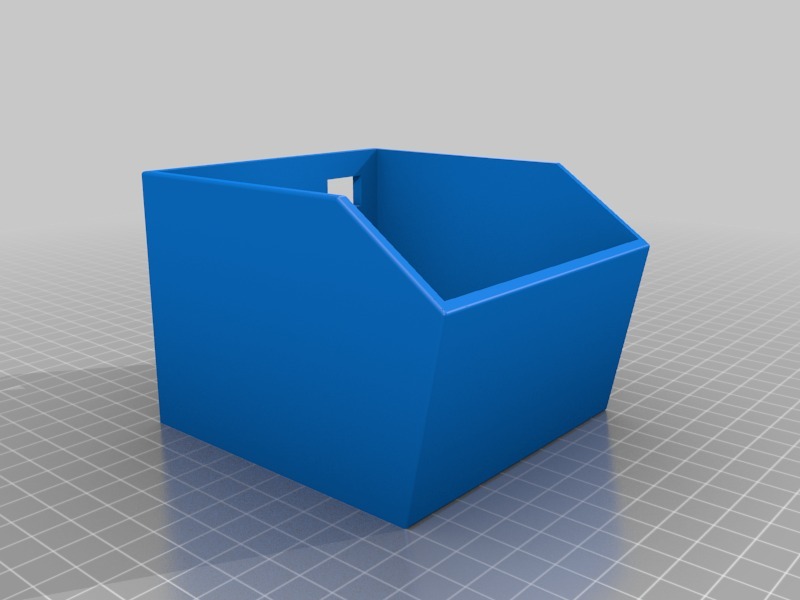

BASKET: Fixed so there is nothing special, just print it. Takes 6 hours for me.

Category: Organization
