A convenient way to transport your Keychron V1 Max mechanical keyboard. TPU gasket is incorporated within the model to provide some resistance to liquid and other exposures. TPU liner rests against the frame of the keyboard so that the keys do not contact the case. An empty space in the back allows your hand to fit for easy removal.

.3mf files listed for both OrcaSlicer and PrusaSlicer.

Recommend Prusa XL multitool. Hard shell can be printed in either PLA or PETG. Soft liner printed in TPU 95A HF. Latches and handle printed in either PLA or PETG. Recommend using brim ears if available.

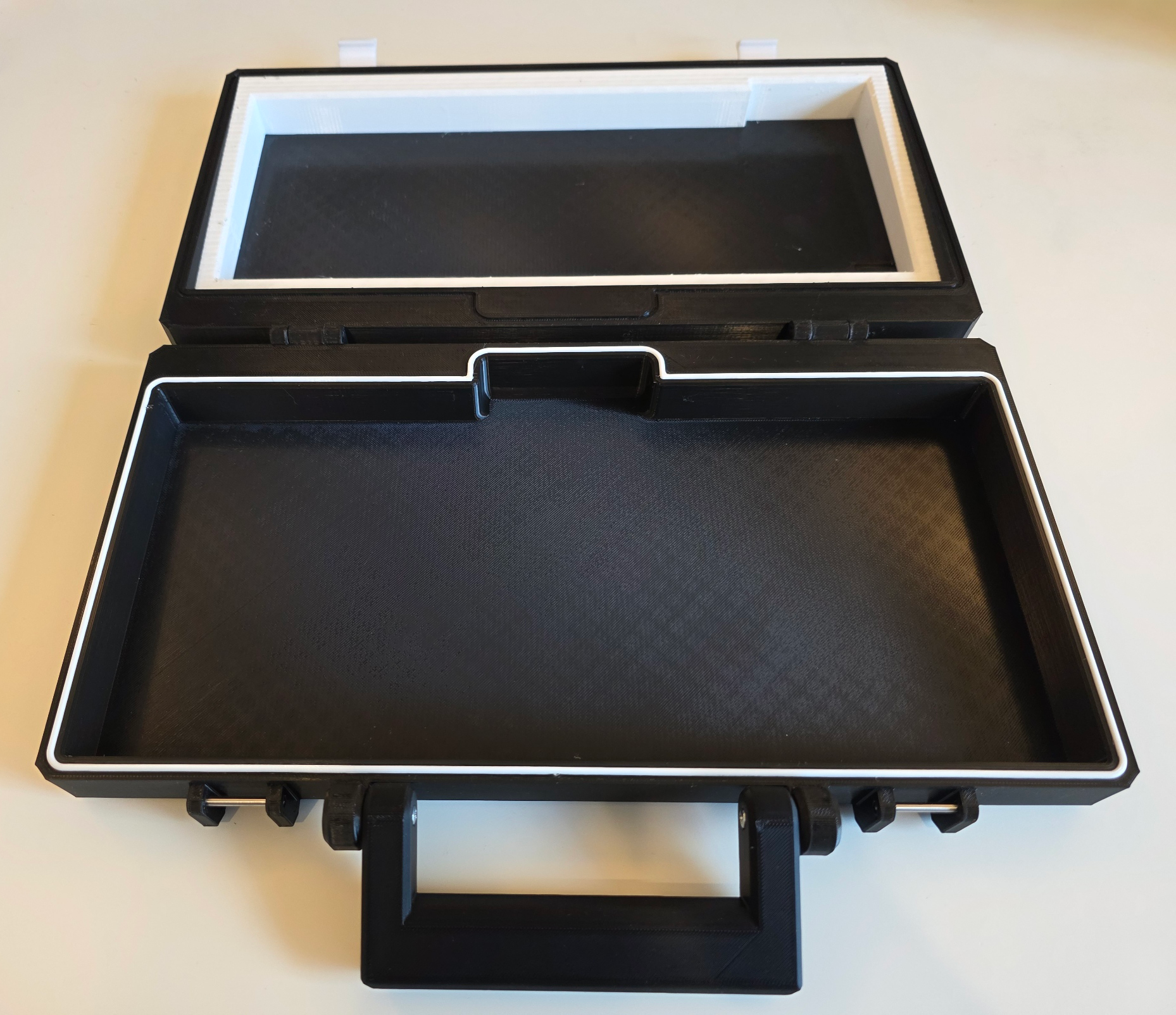

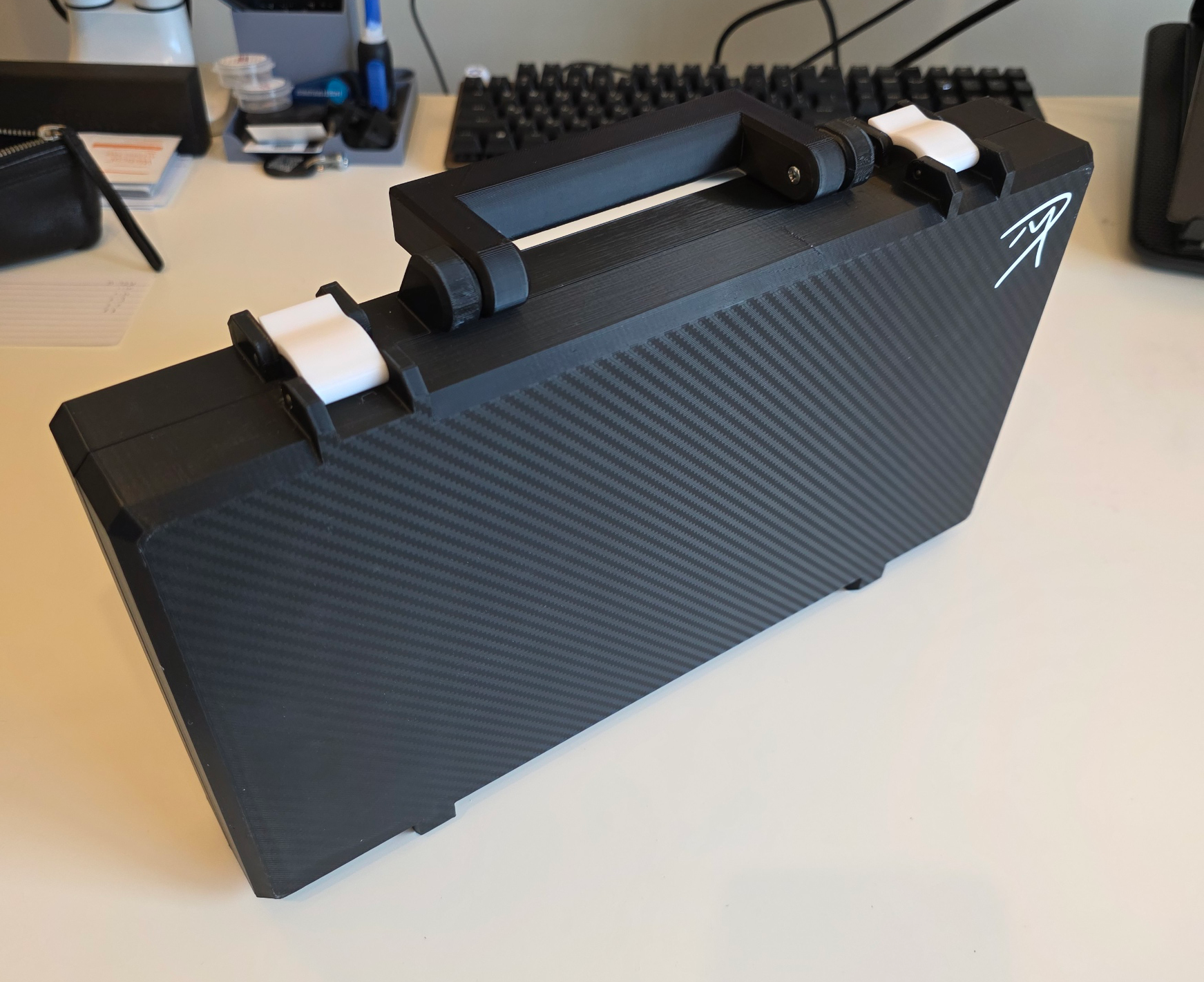

The pictured model is a PLA and TPU case with PLA handle and PETG latches. A carbon fiber effects plate was used for the case.

Hardware:

• Six 3x30 mm dowel pins (hinge and clasp)
  • may be substituted with m3x30 machine screws, but this will be less aesthetic as the screw heads will be exposed
• Two m3x20 machine screws (handle)
