Modelo 3D Multi-purpose wall hook (v1) por Printiti no Printables

Descrição

/!\ Go see the v2 : Multi-purpose wall hook (v2) par Printiti | Téléchargez gratuitement un modèle STL | Printables.com /!\

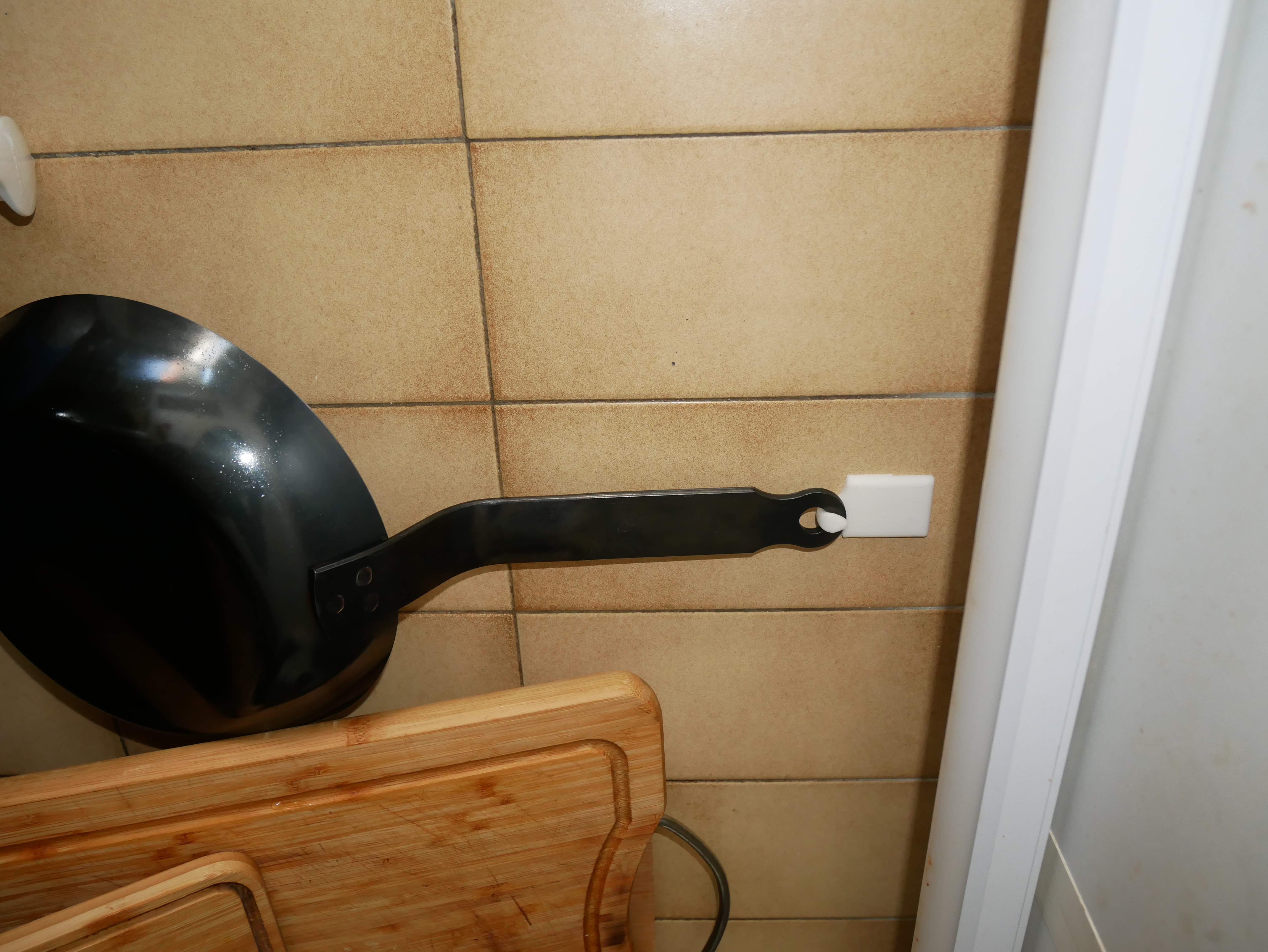

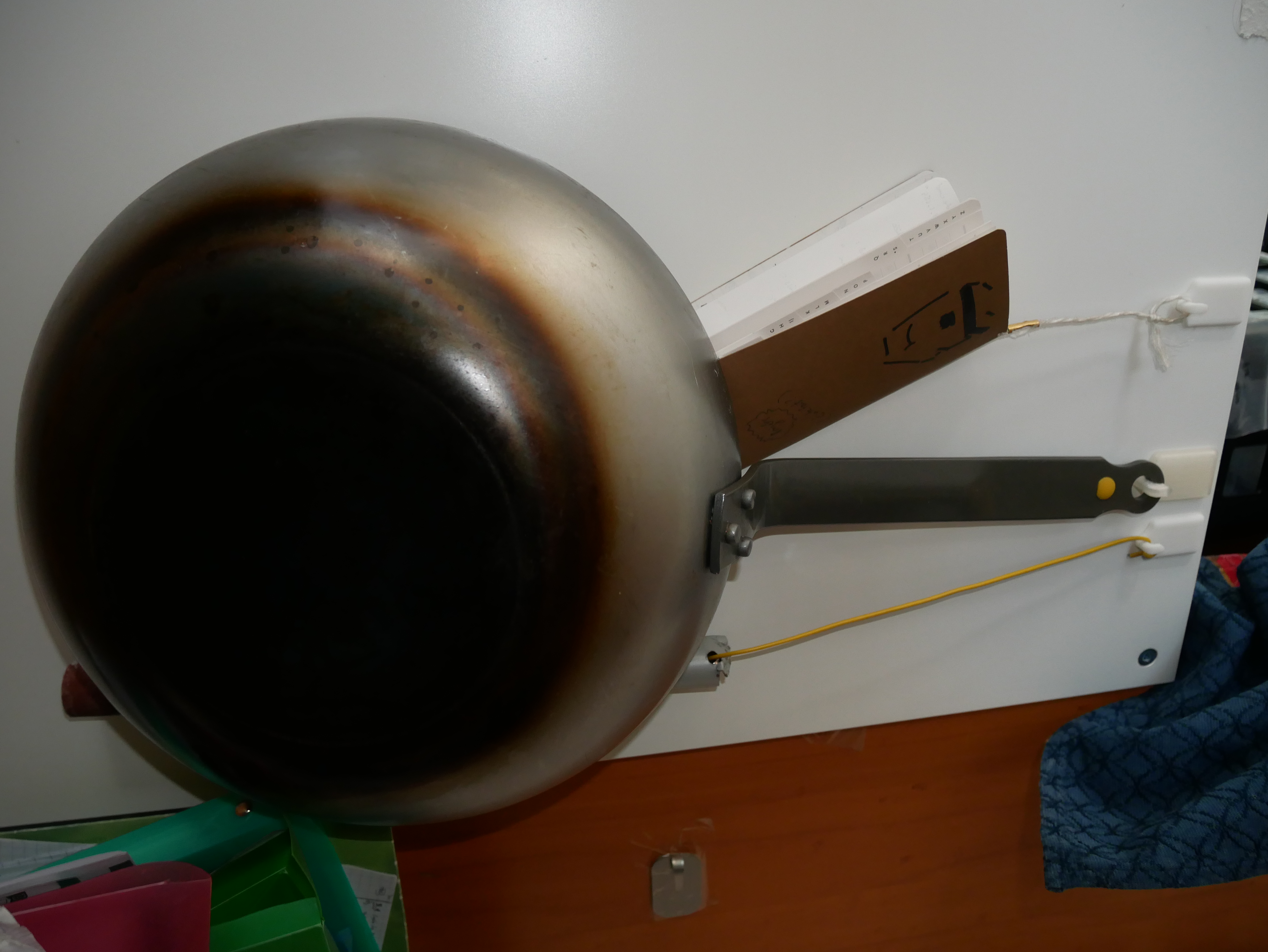

Sober wall hook, capable of supporting a big 28 cm wok. And probably more. I didn't test.

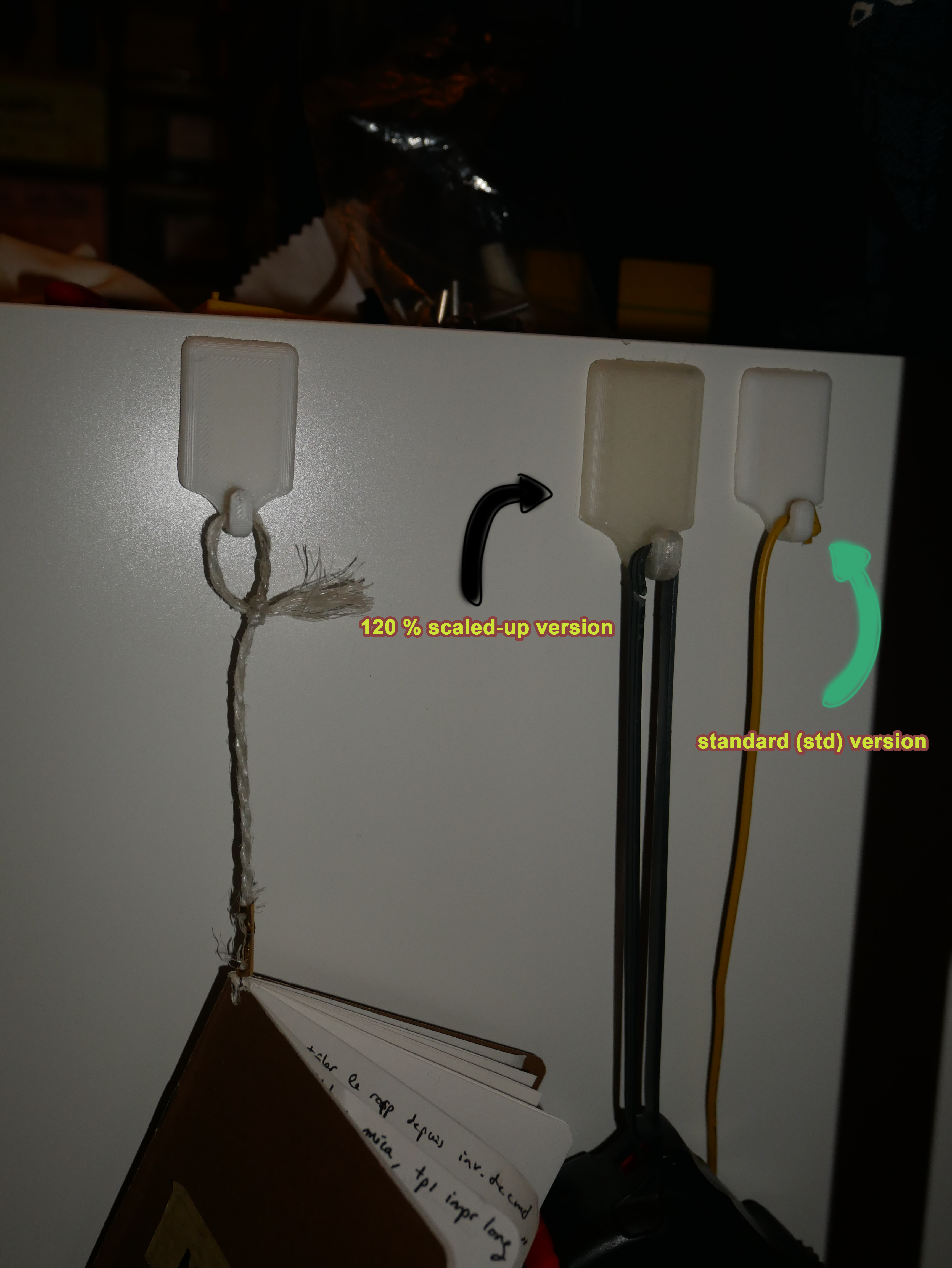

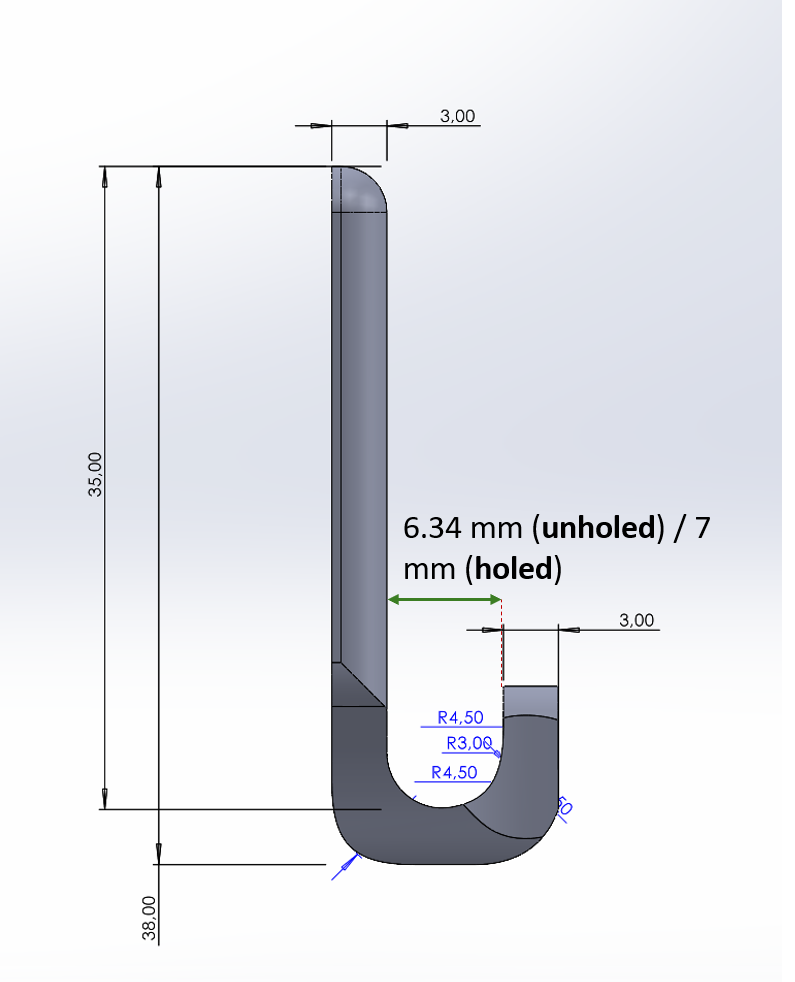

There is a standard sized version (std) and a bigger one (big), scaled at 120%. But you'll have to pass on the holed version or do some math to get the proper hole for your screw (or modify the CAD, which is available here !).
Also, the hole is made for an M3 hex-headed screw, 10 mm long or more (recommended : 15+ mm).
__________________

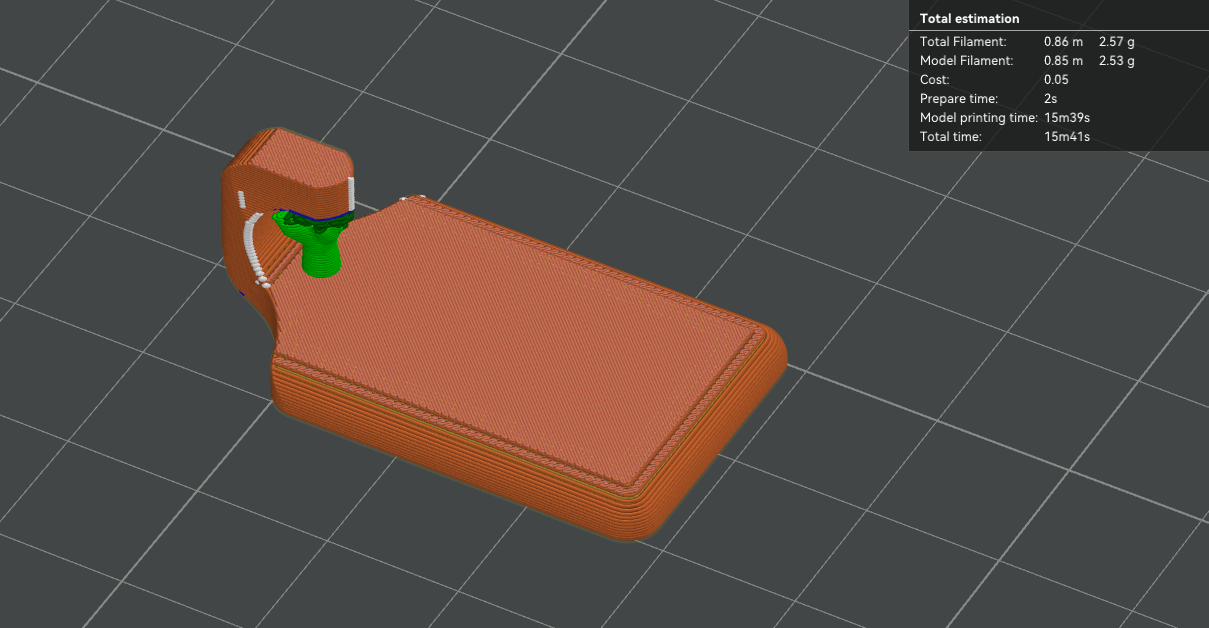

Technical info :

  • PLA + recommended, PLA is fine but not sure about the durability.
  • 0.2 mm layer height is ok
  • 5 walls
  • Tree supports (or normal), 30°.

__________________

Other info :

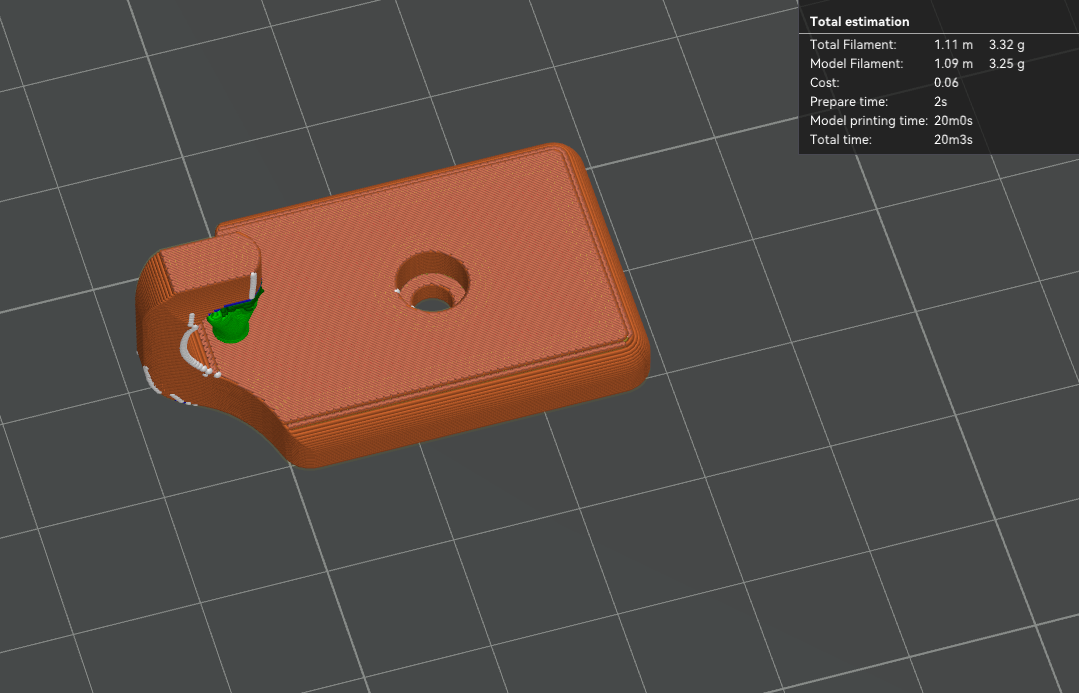

The CSK version is slighlty tougher, because thicker of 1.7 mm but it's equivalent.


__________________


Have a good printing :))

Printables

Multi-purpose wall hook (v1)

Publicado em 12 de out de 2025

2
Curtidas
18
Downloads
Categoria Organizers
Tags
wall hook m3 m3screw doublesidedtape hookmount m3hexhead
Licença Creative Commons — Public Domain
Arquivos (9)
wall_hook_std.stl 50 KB
wall_hook_std_CSK_M3.stl 75 KB
wall_hook_big.stl 84.3 KB
wall_hook_big_CSK_M3.stl 98.9 KB
wall_hook_std.3mf 55.3 KB
wall_hook_std.sldprt 177.7 KB
wall_hook_std_CSK_M3.sldprt 198.1 KB
wall_hook_big.sldprt 224.3 KB
wall_hook_big_CSK_M3.sldprt 238.9 KB
