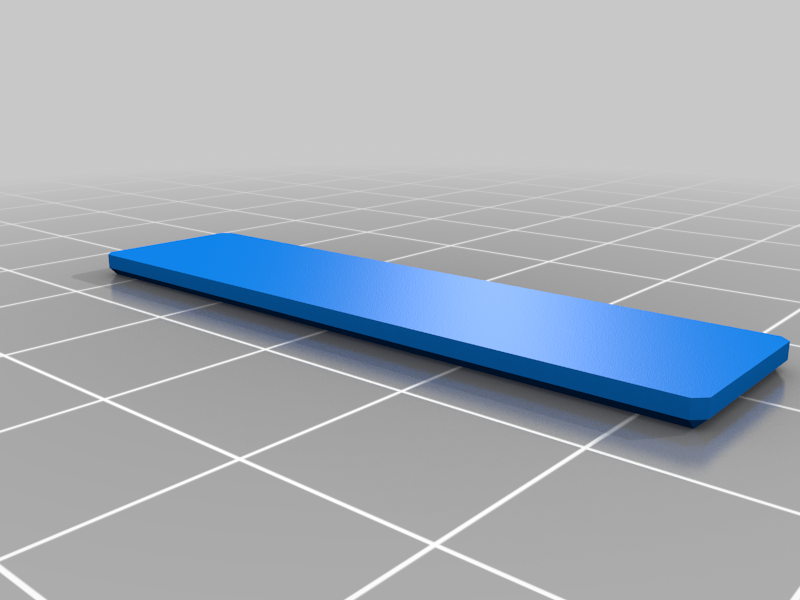

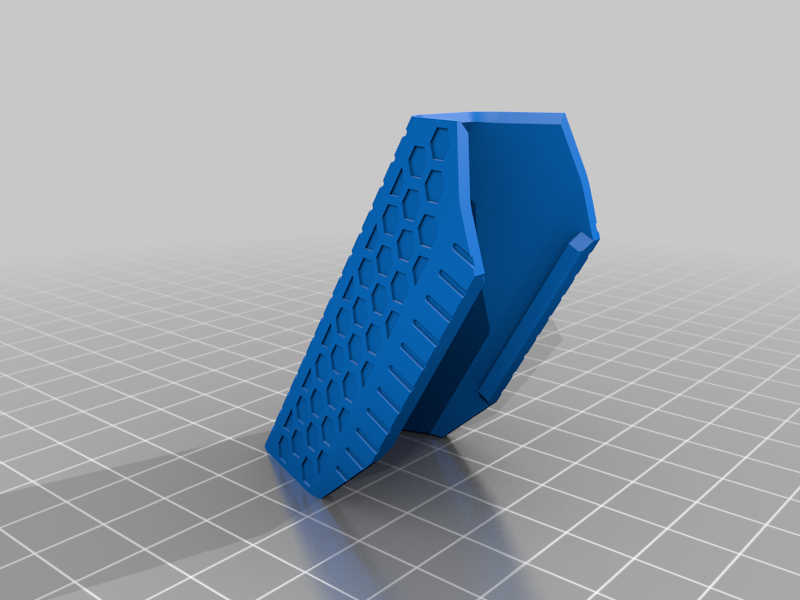

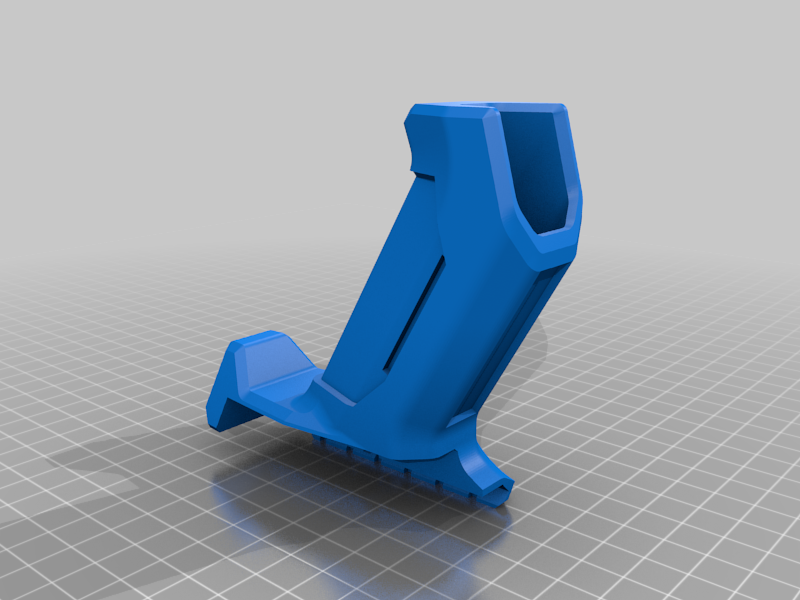

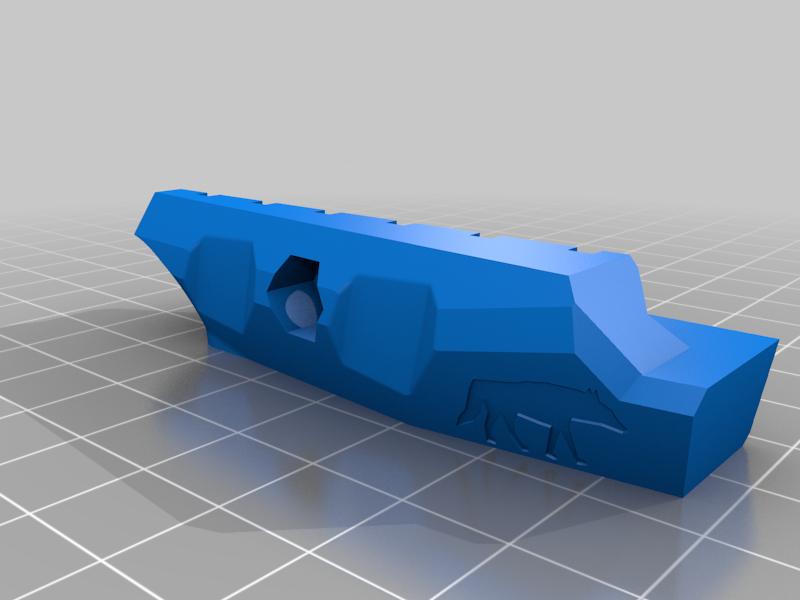

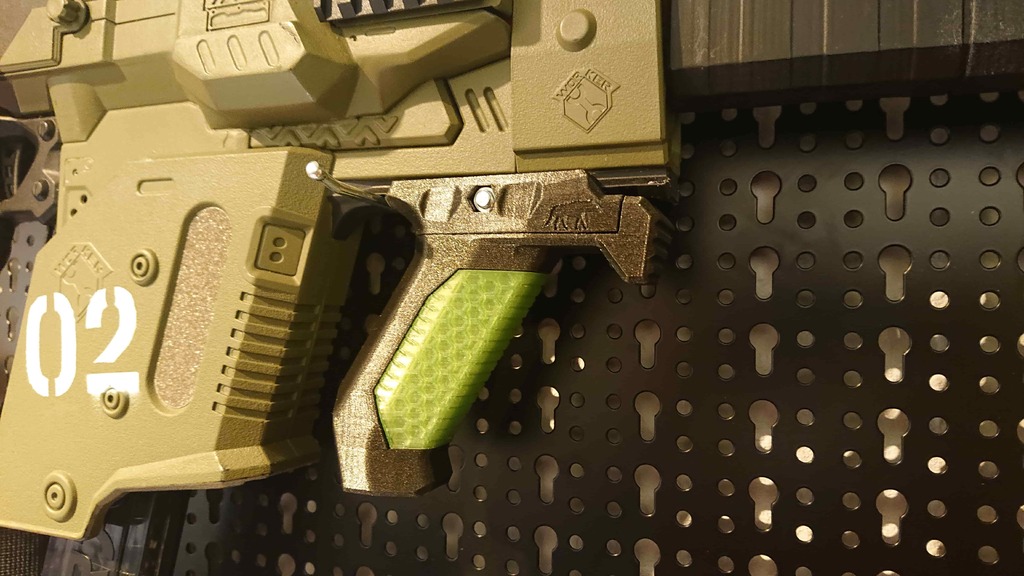

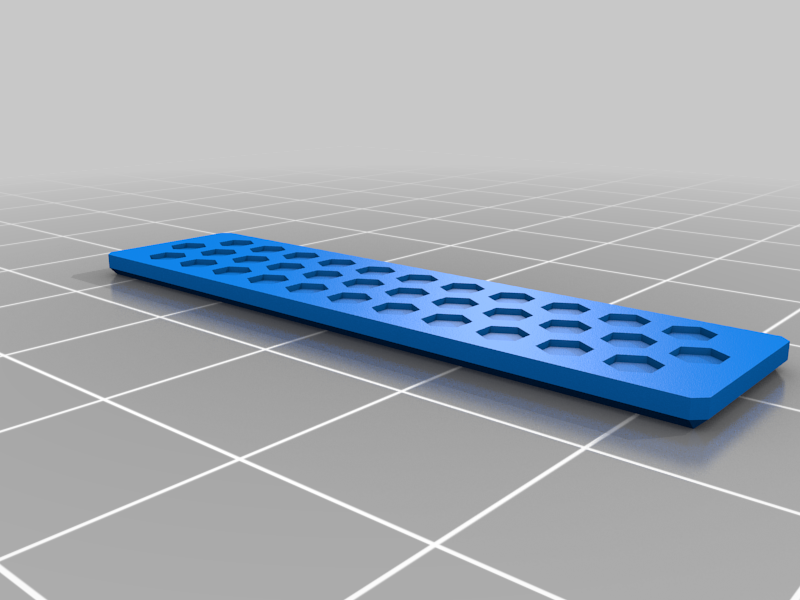

So this is the Tone Foregrip. An angled foregrip along the same lines as my Shade Vertical Foregrip, designed for Nerf and Airsoft. The grip prints in four separate pieces, two for the body and two separate panels that can be customized and printed in different colors. This allows you to give your grip a multi color look and customize it to your liking. Panels just snap in without any additional glue or hardware. A single M5 nut and M5x30mm bolt fasten the grip to both Nerf- and Picatinny-Rails. Additional notches in the interface lock into the rib of the Nerf rail. The design was inspired by attachments from Recover Tactical and Strike Industries, however I tried to add my own touch to it. The block in the front of the grip acts as a finger stop and doubles as a place to be braced against low walls and barricades.

As always, I have included the .STEP files so you can easily customize my design. I always enjoy any feedback and suggestions.

Print Settings

Infill:

50% for the body and bracket

Notes:

Category: Toy & Game Accessories
