Descrição

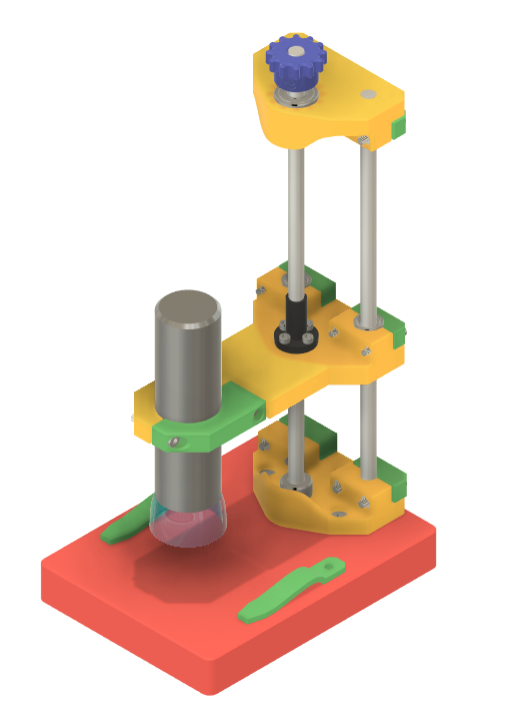

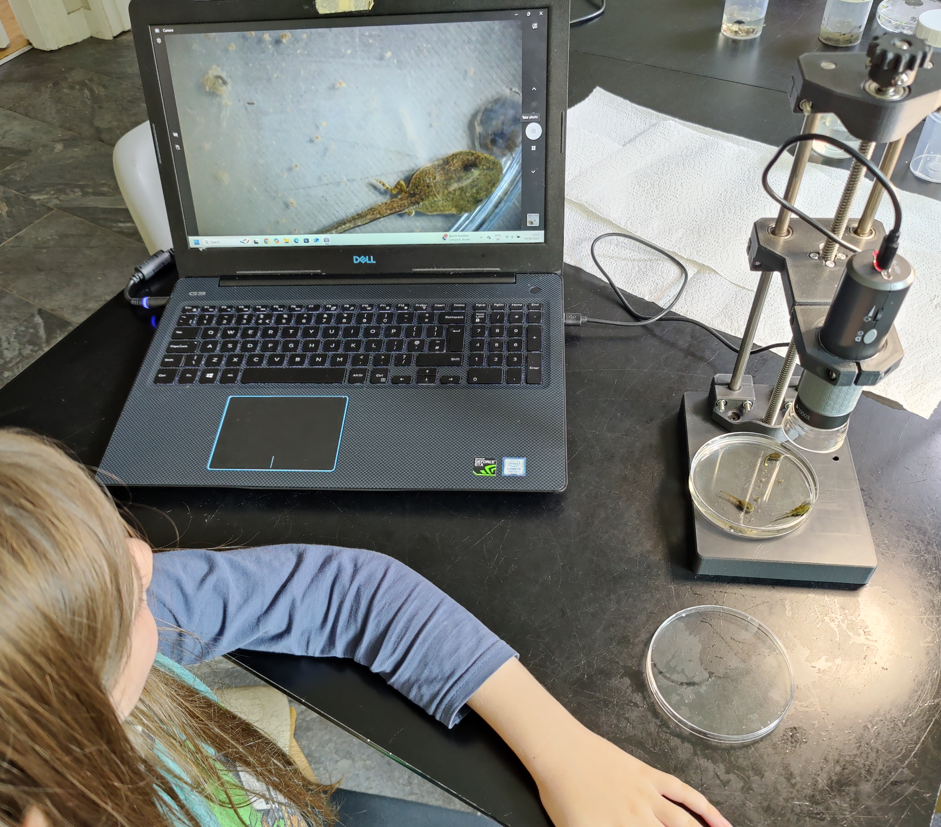

This is a microscope stand with vertical adjustment that I designed to suit a “Ninyoon 4K WiFi Microscope” although there will be others it fits I expect. The clamp suits a barrel size of 33mm but I have included step files so you could modify if you want.
Vertical axis is a pair of 8mm steel rods and a lead screw, lead screw can be any 8mm rod but I used a 4 start lead screw and anti-backlash nut that I had knocking around.
The bearings and shafts are the common 608 and LM8UU types, all old print building supplies basically.

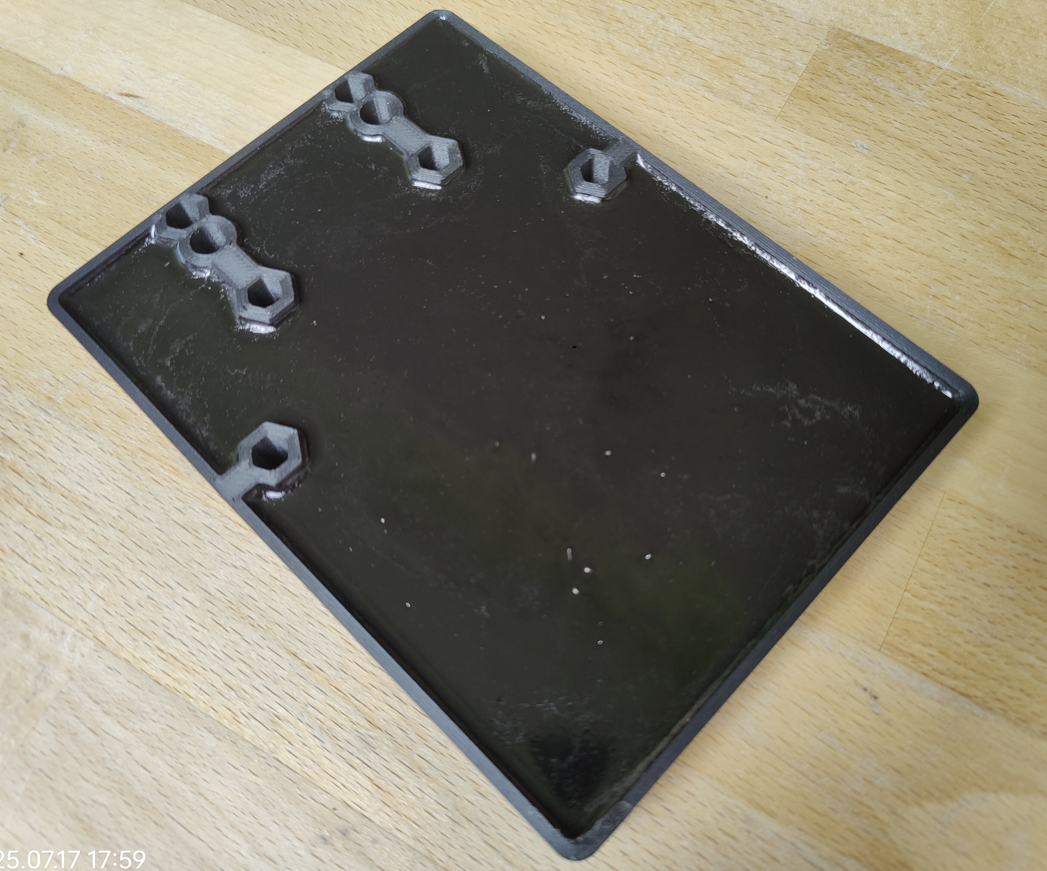

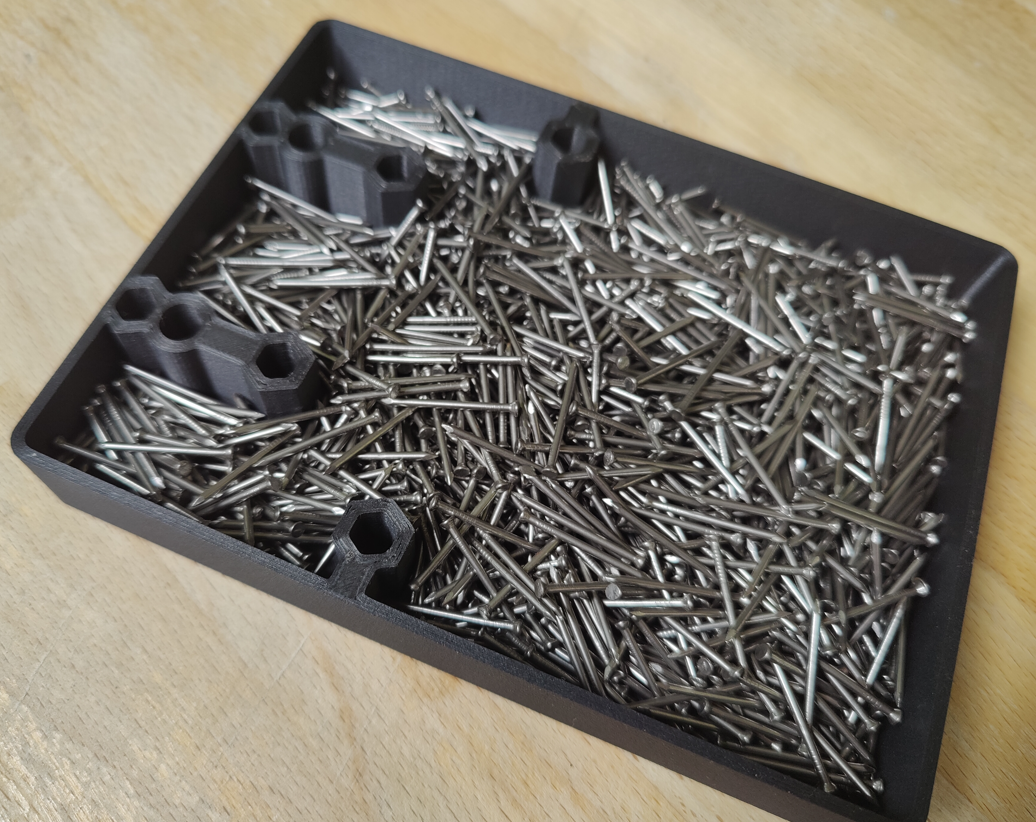

I weighted the base by filling it full of tacks and the then potting with resin but I want to write a tutorial for that separately as it’s a useful technique.
Bill of Materials
| Qty | Part Number |
| 1 | ClampPt1 |
| 2 | BearingClamp |
| 1 | LeadScrewNut |
| 1 | ClampPt2 |
| 2 | LM8UU Linear and Rotary Ball Bearing |
| 1 | DIN 912 - M4 x 0.7 x 40 Steel 4.6 Plain |
| 9 | DIN 912 - M4 x 0.7 x 25 Steel 4.6 Plain |
| 4 | DIN 912 - M3 x 0.5 x 25 Steel 4.6 Plain |
| 4 | DIN 912 - M3 x 0.5 x 16 Steel 4.6 Plain |
| 16 | DIN 934 - M4 x 0.7 Steel 6 Plain |
| 8 | DIN 934 - M3 x 0.5 Steel 6 Plain |
| 2 | 8mmRod |
| 1 | 8mmLeadScrew |
| 2 | 8mm Shaft Collar |
| 2 | 608ZZ Ball Bearing |
| 1 | TopSupport |
| 4 | ShaftClamp |
| 1 | BottomSupport |
| 1 | WeightedBase |
| 4 | DIN 7991 - M4x16 Steel 4.6 Plain |
| 1 | Knob |
| 2 | Clamp |
