Descrição

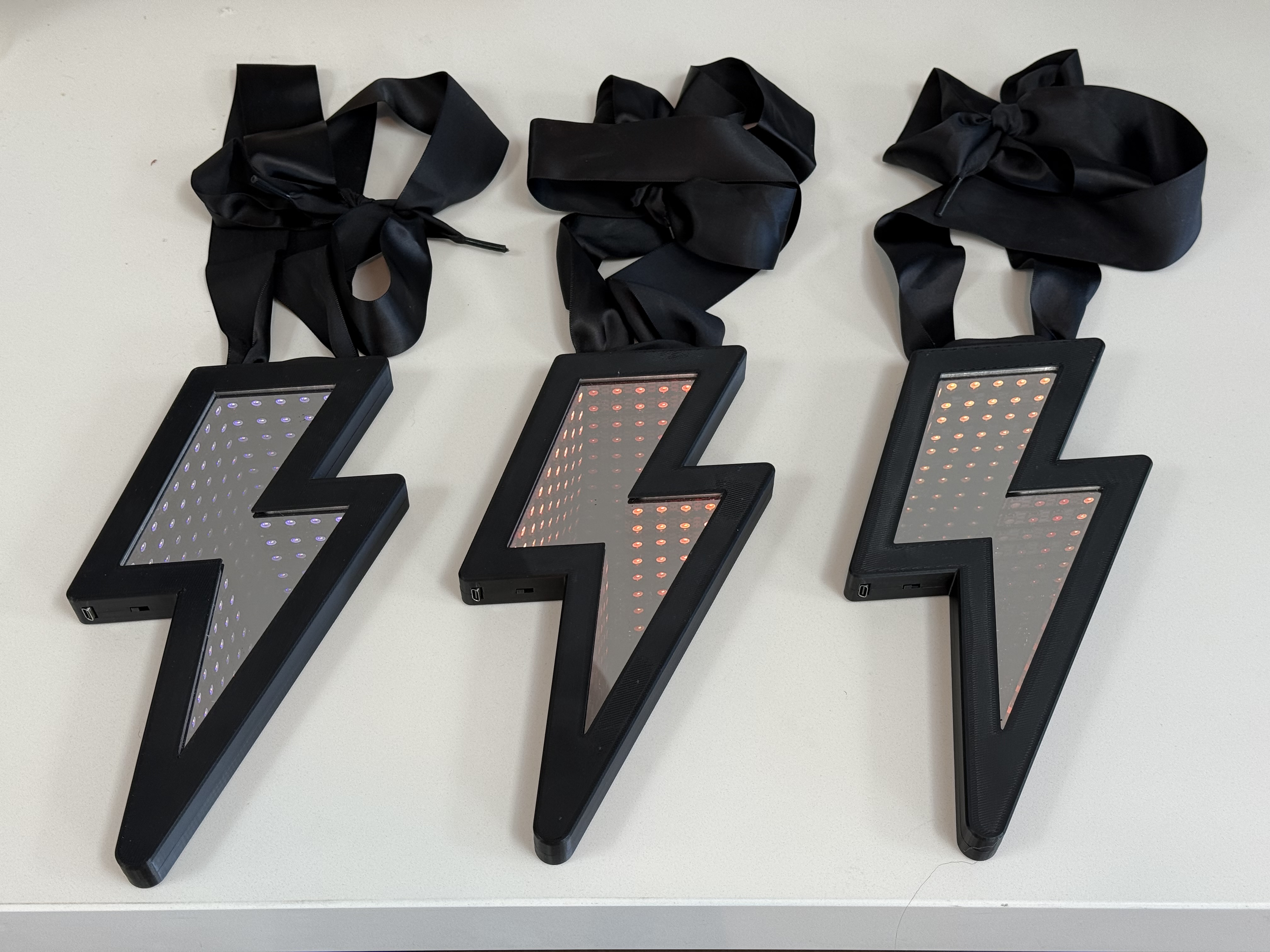

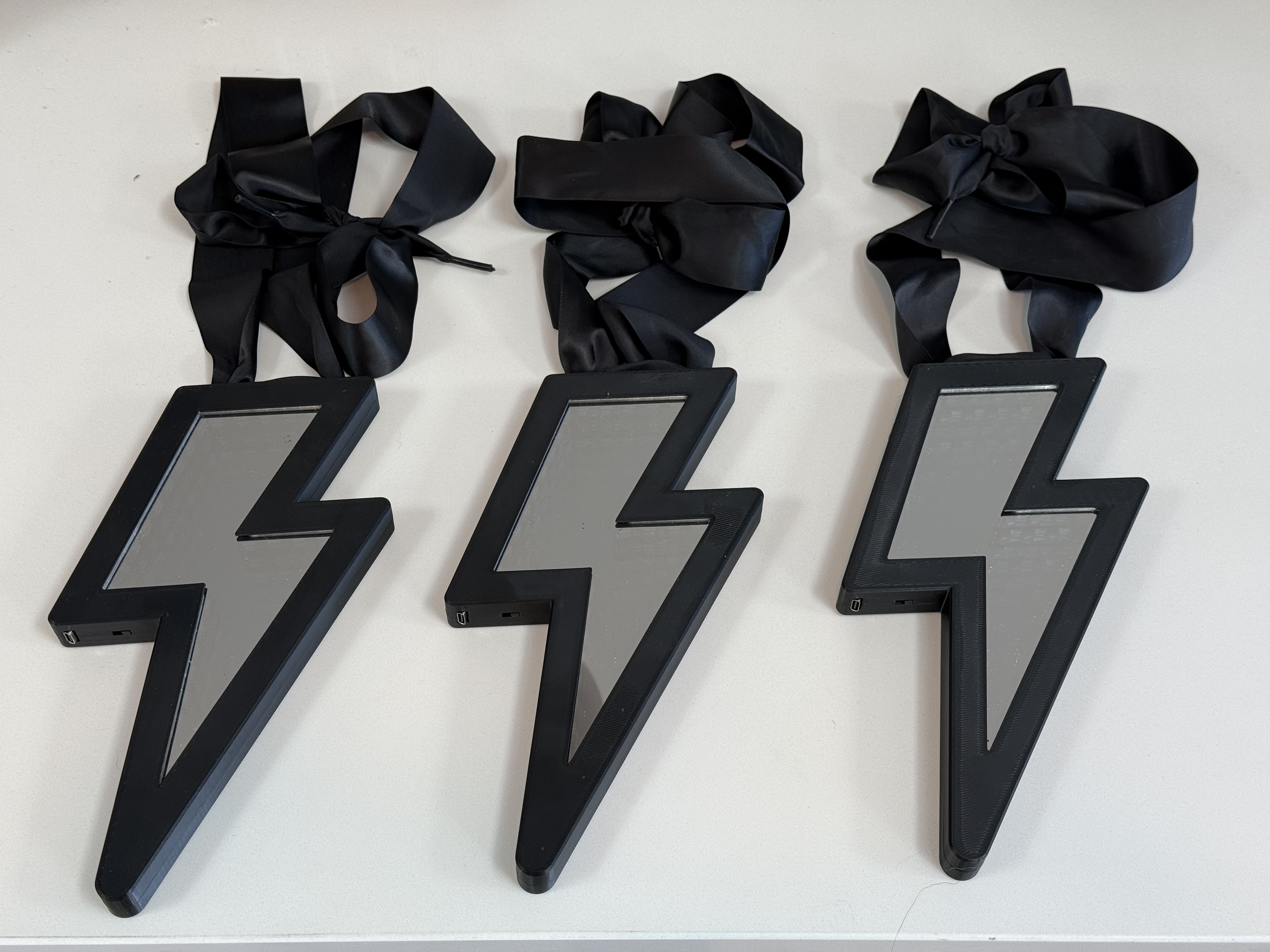

LED wearable project with an infinity mirror effect.
BOM
| # | Qty | Ref | Description | Mfg/Supplier | Part # | Notes |
|---|---|---|---|---|---|---|

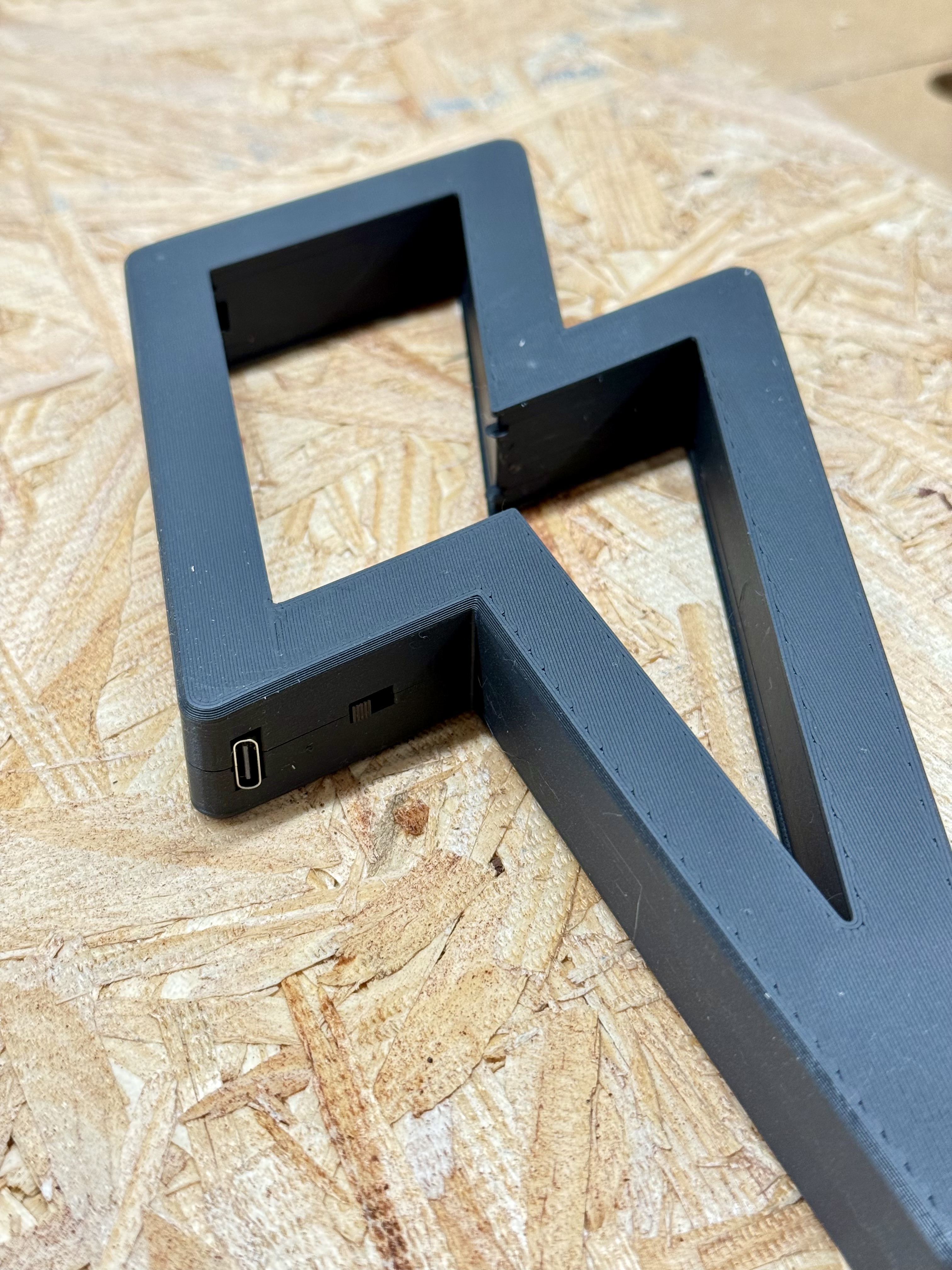

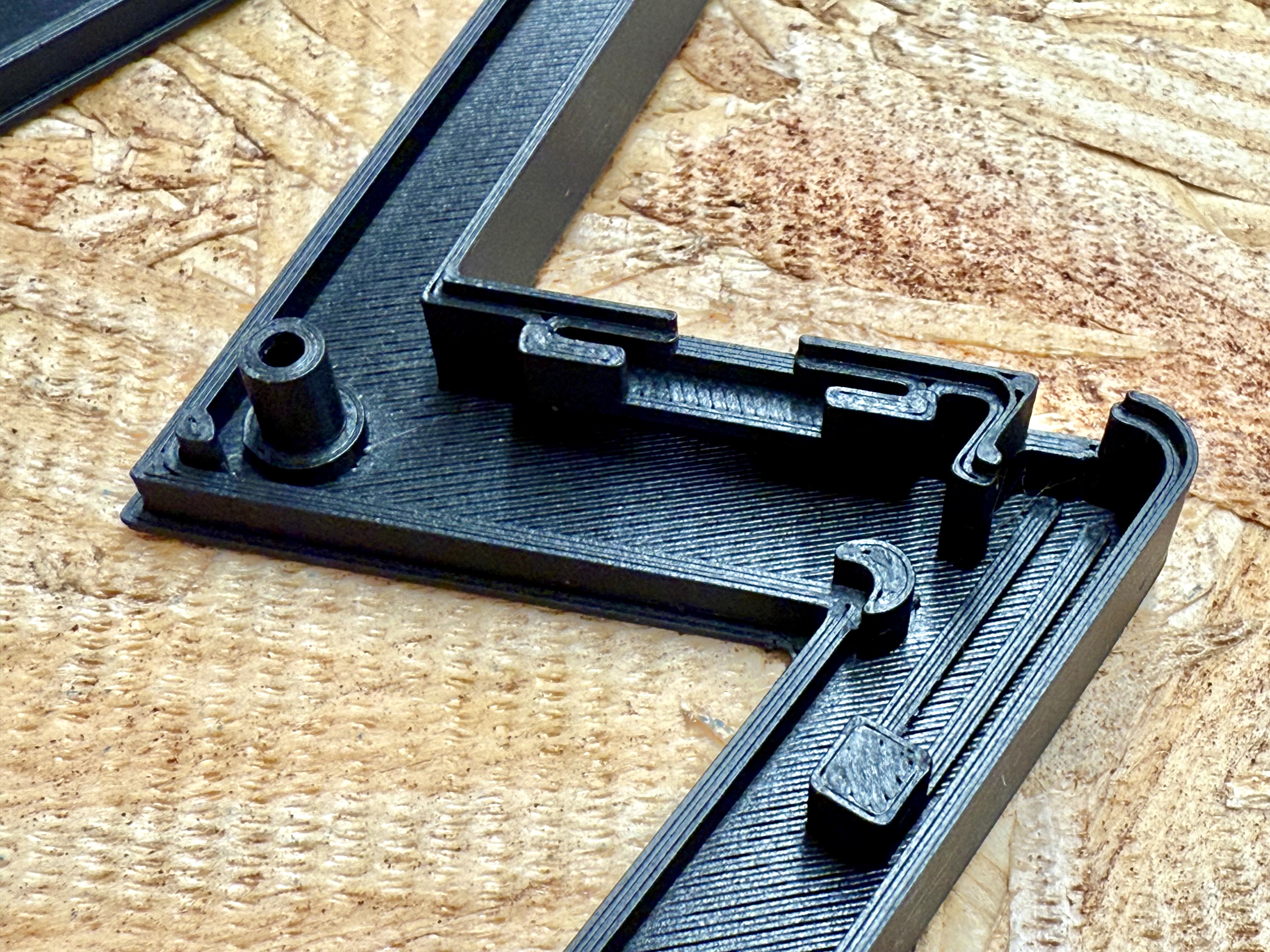

| 1 | 1 | ENC1 | Enclosure front | 3d print | Lightning bolt front.3mf | |
| 2 | 1 | ENC2 | Enclosure back | 3d print | Lightning bolt back.3mf | |

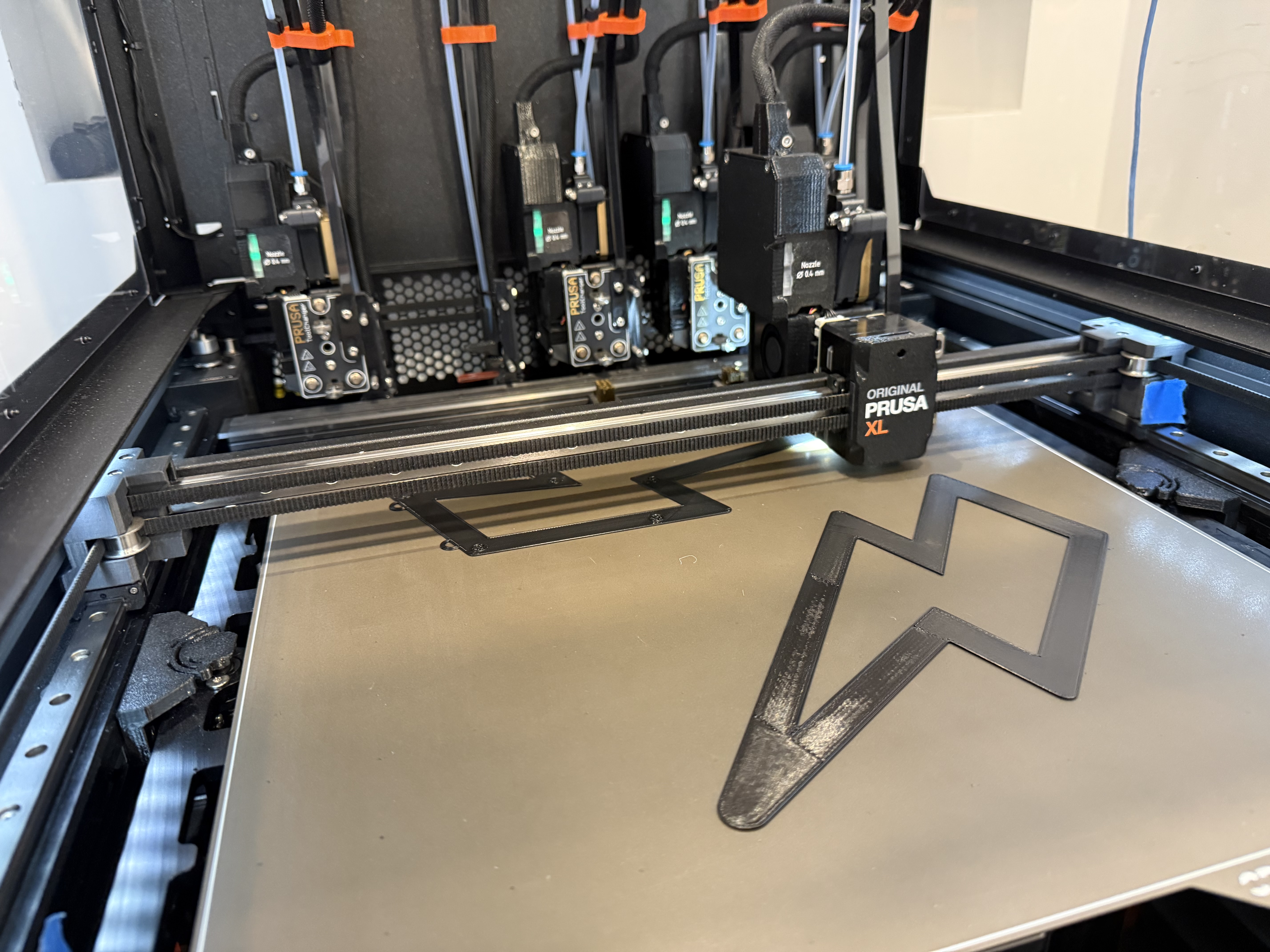

| 3 | 1 | ENC3 | Enclosure frame | 3d print | Lightning bolt led frame.3mf | |

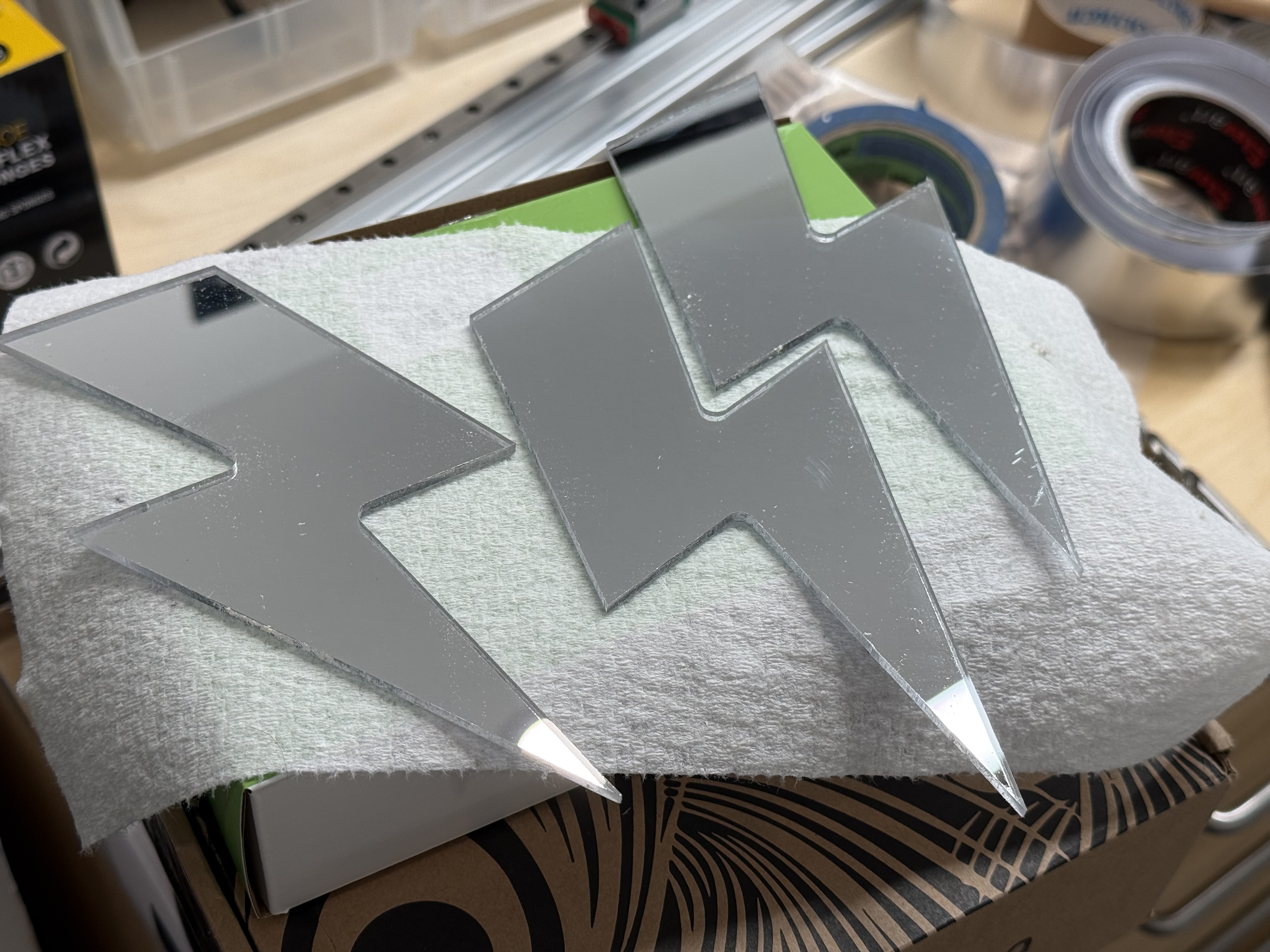

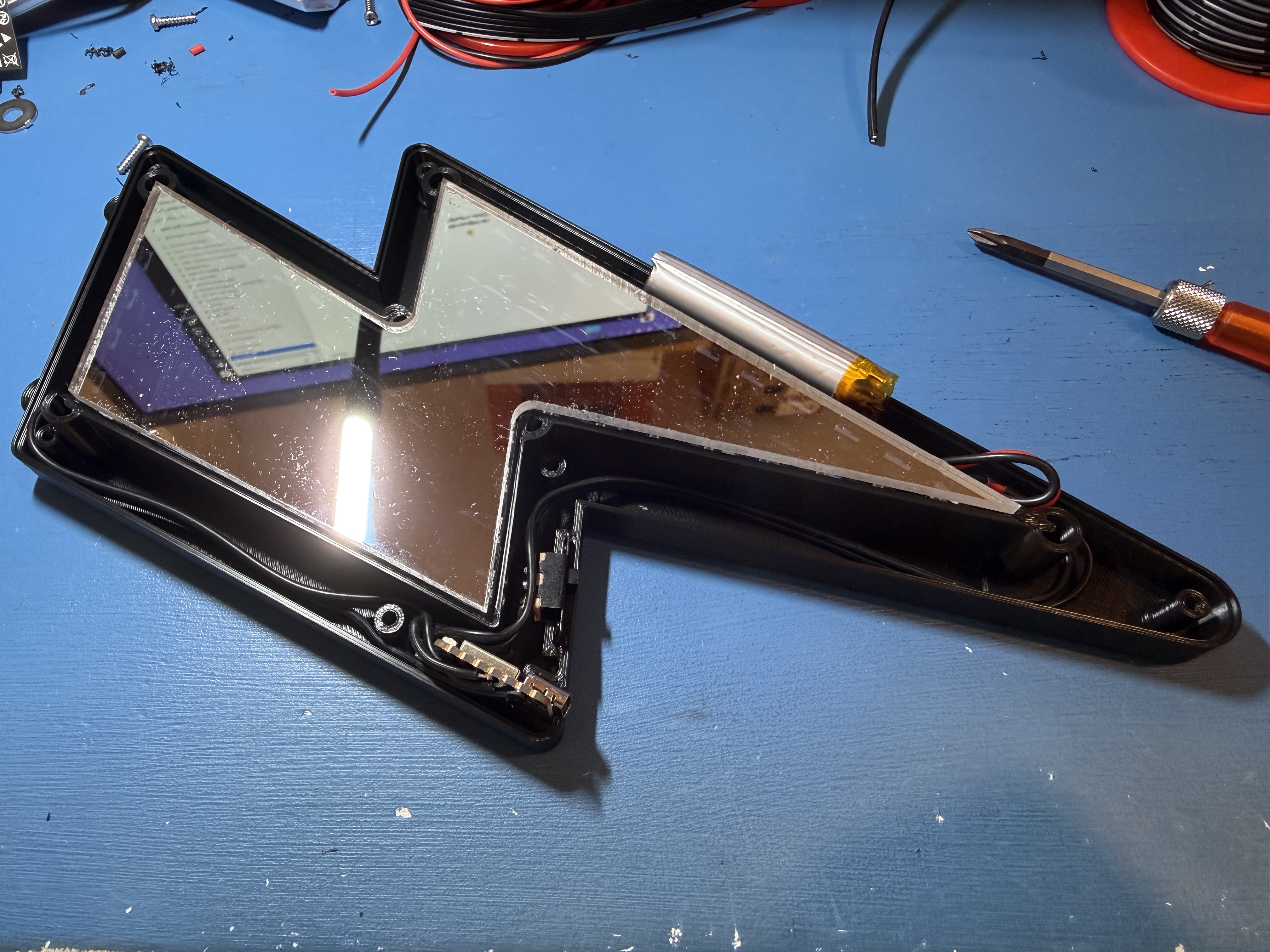

| 4 | 1 | ENC4 | Acrylic two-way mirror - front | Evonik Industries/ttplasticland.com | 12"x12" sheet ⅛" thickness | CNC cut using attached SVG file. Reflective side towards inside. Front and back are flipped and not interchangeable. |
| 5 | 1 | ENC5 | Acrylic two-way mirror - back | |||

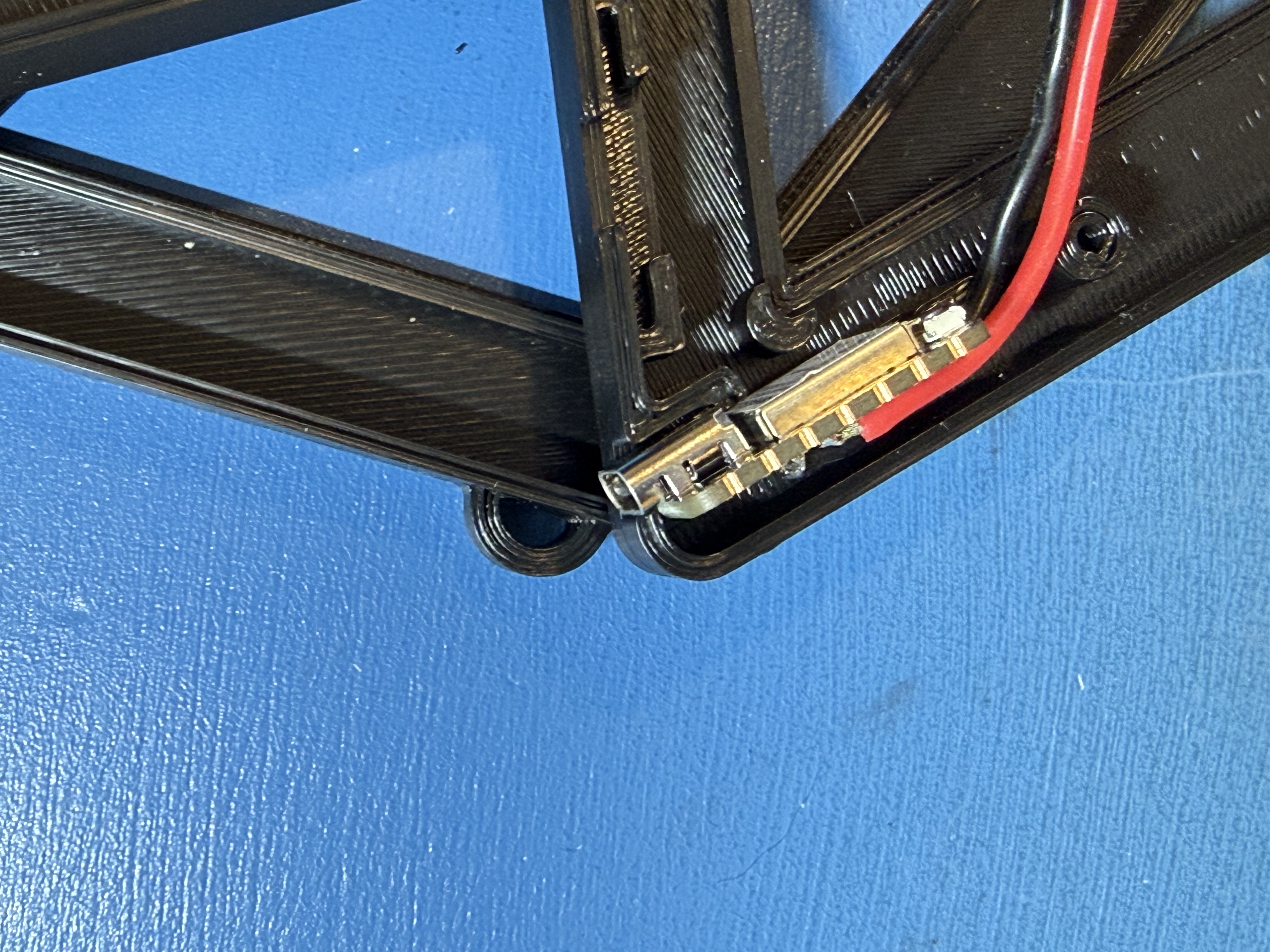

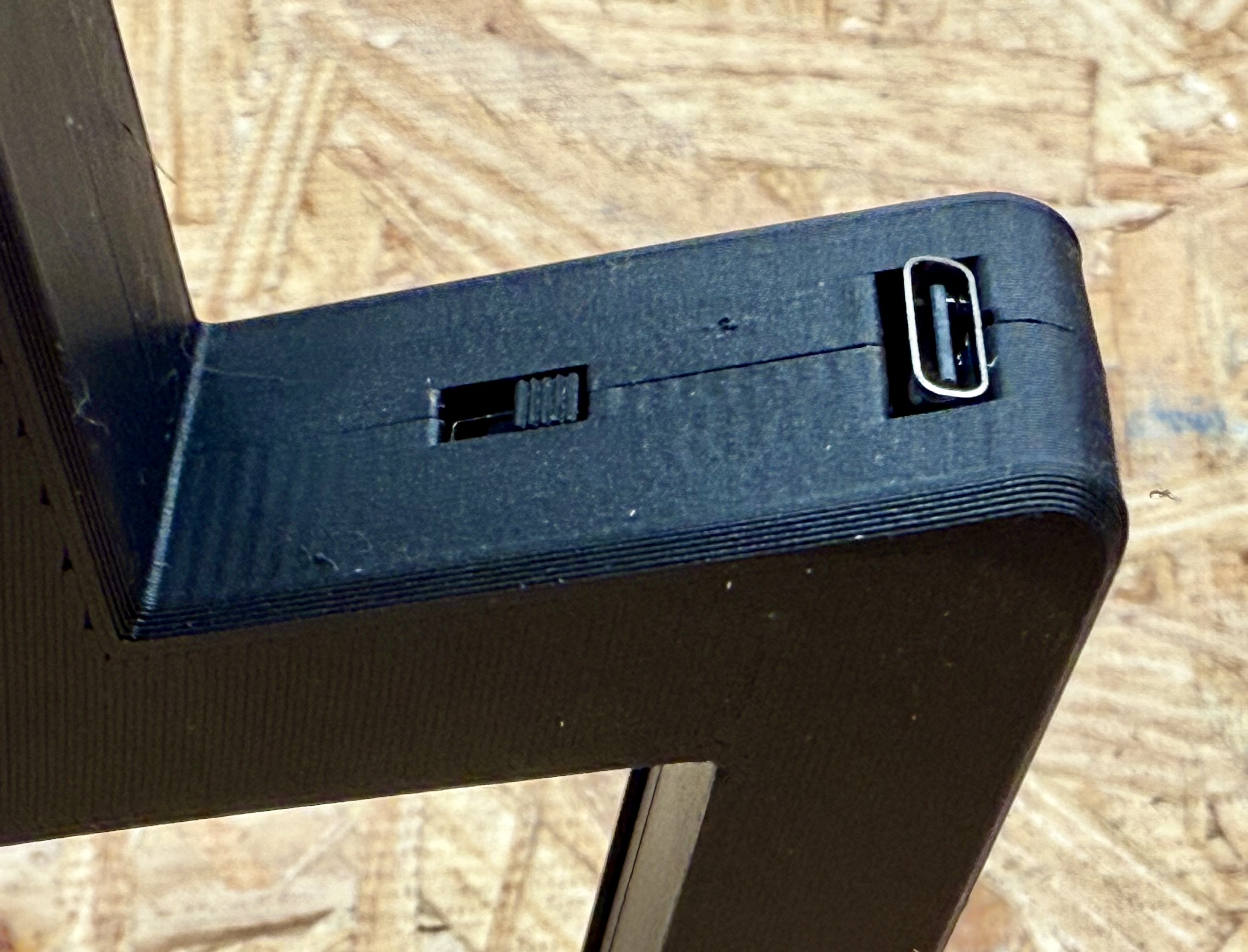

| 6 | 1 | SW1 | Slide switch panel mount SPDT 19.6x5.6mm flange | Amazon | ASIN B0799R529Z | |

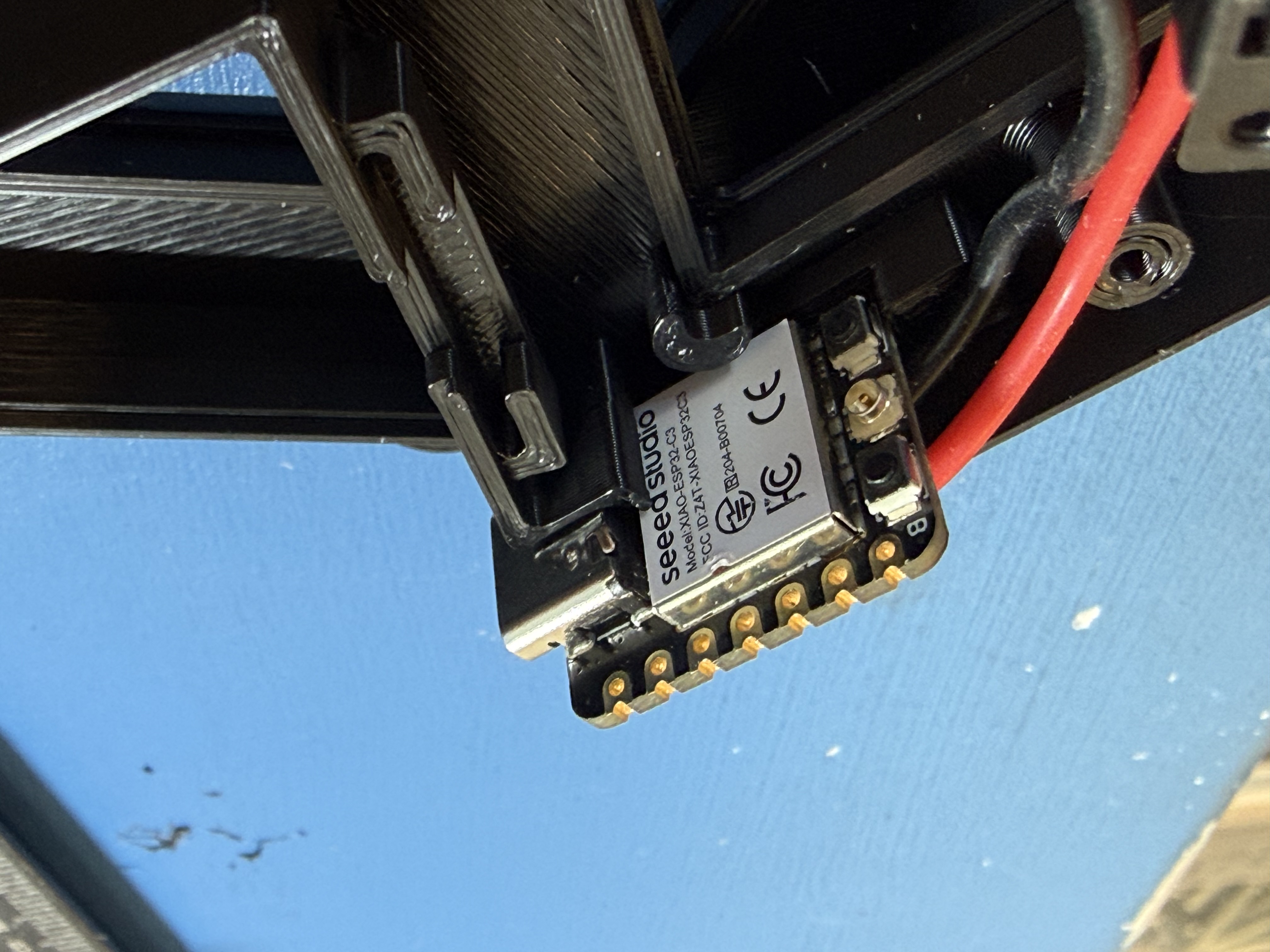

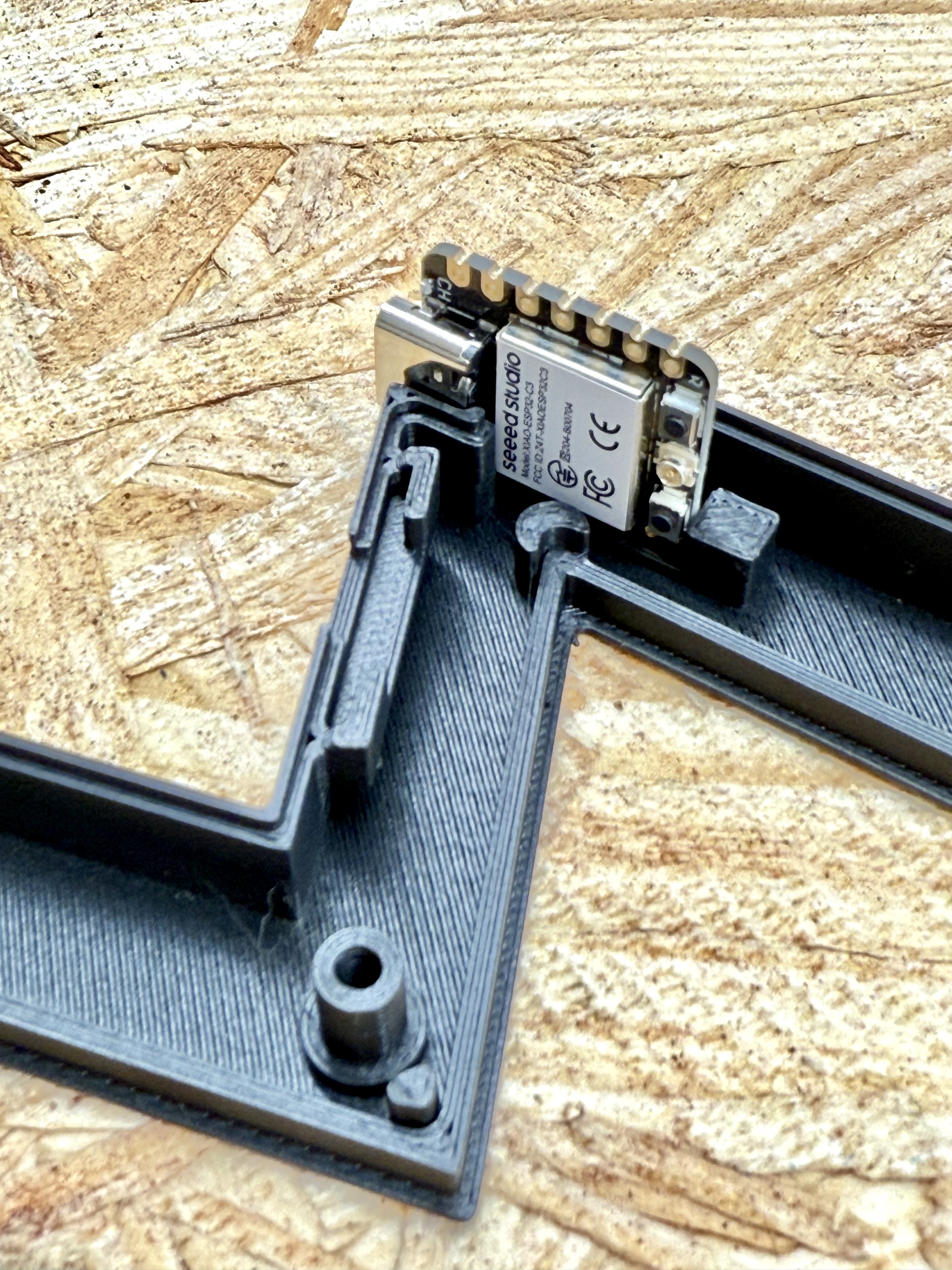

| 7 | 1 | PCB1 | Main PCB | Seeed Studio | XIAO ESP32C3 | |
| 8 | 7 | H1 | Thread-forming screws for plastic #2 ½-⅝ or M2.2 12-14mm | McMaster-Carr | #2 x ⅝" Black Oxide #2 x ½" Black Oxide M2.2 x 12mm M2.2 x 14mm | Any option |
| 9 | see wiring table | see wiring table | 24 AWG wire | BNTechgo/Amazon | ASIN B09X47PFHQ | |

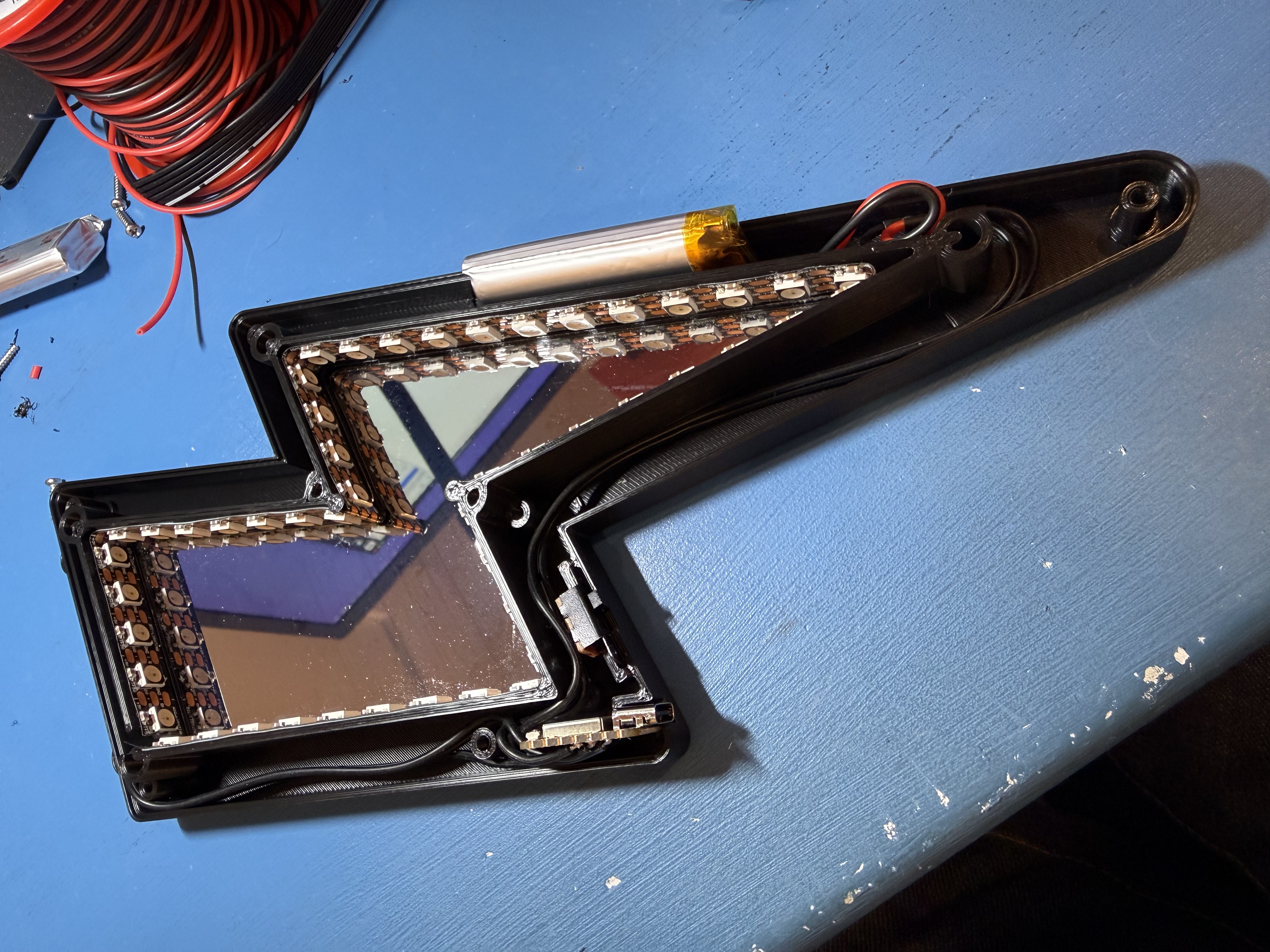

| 10 | 1 | BAT1 | Li-Ion flat battery cell 3.7V 1000mAh 50x20x10mm | Amazon | PL102050, ASIN B0D9K7HQHT | Connected to charger PCB pads. I originally used two cells in parallel but one ended up being enough. If you do use two, make sure to balance them to max 10-30mV difference before connecting. |

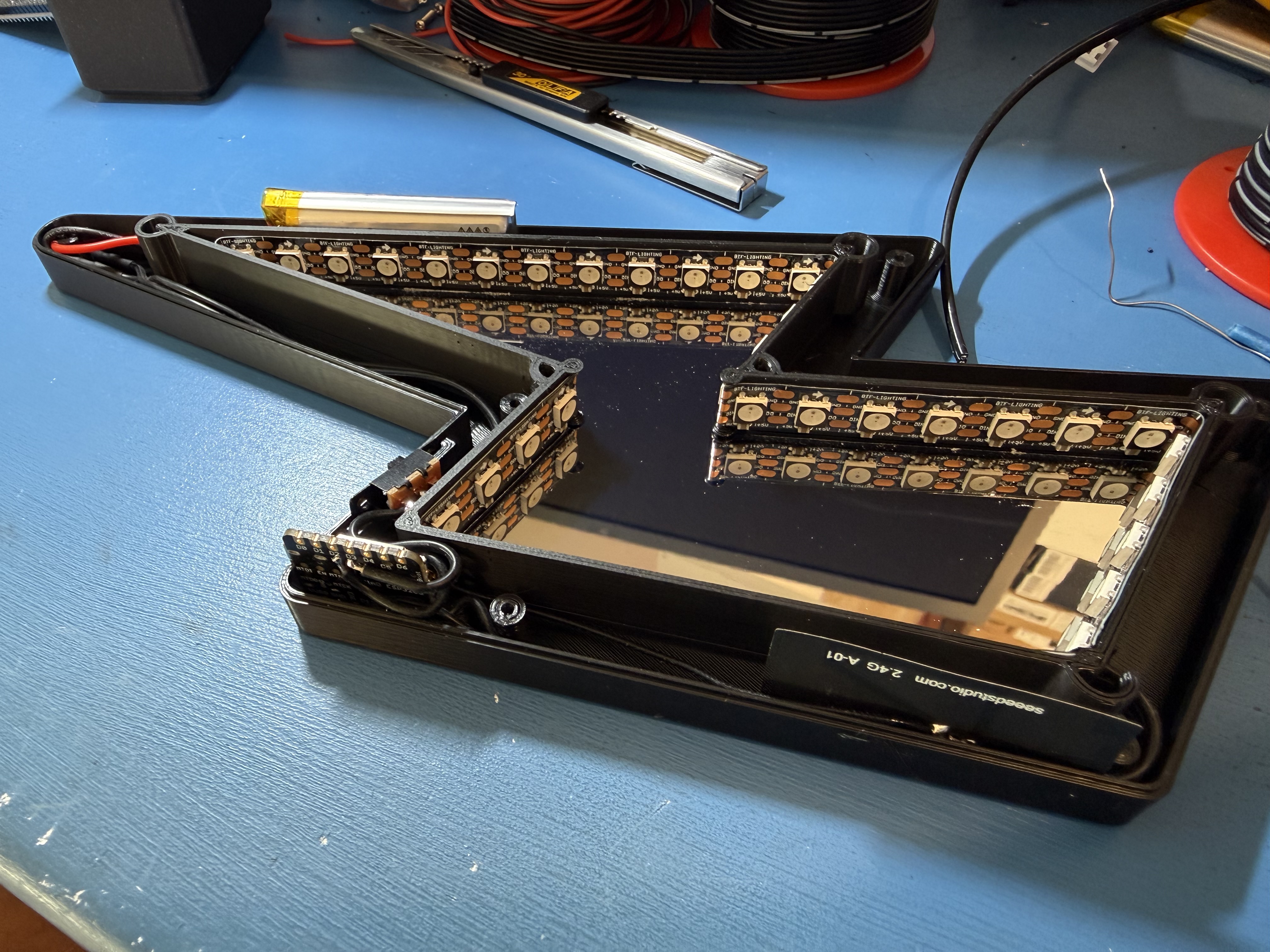

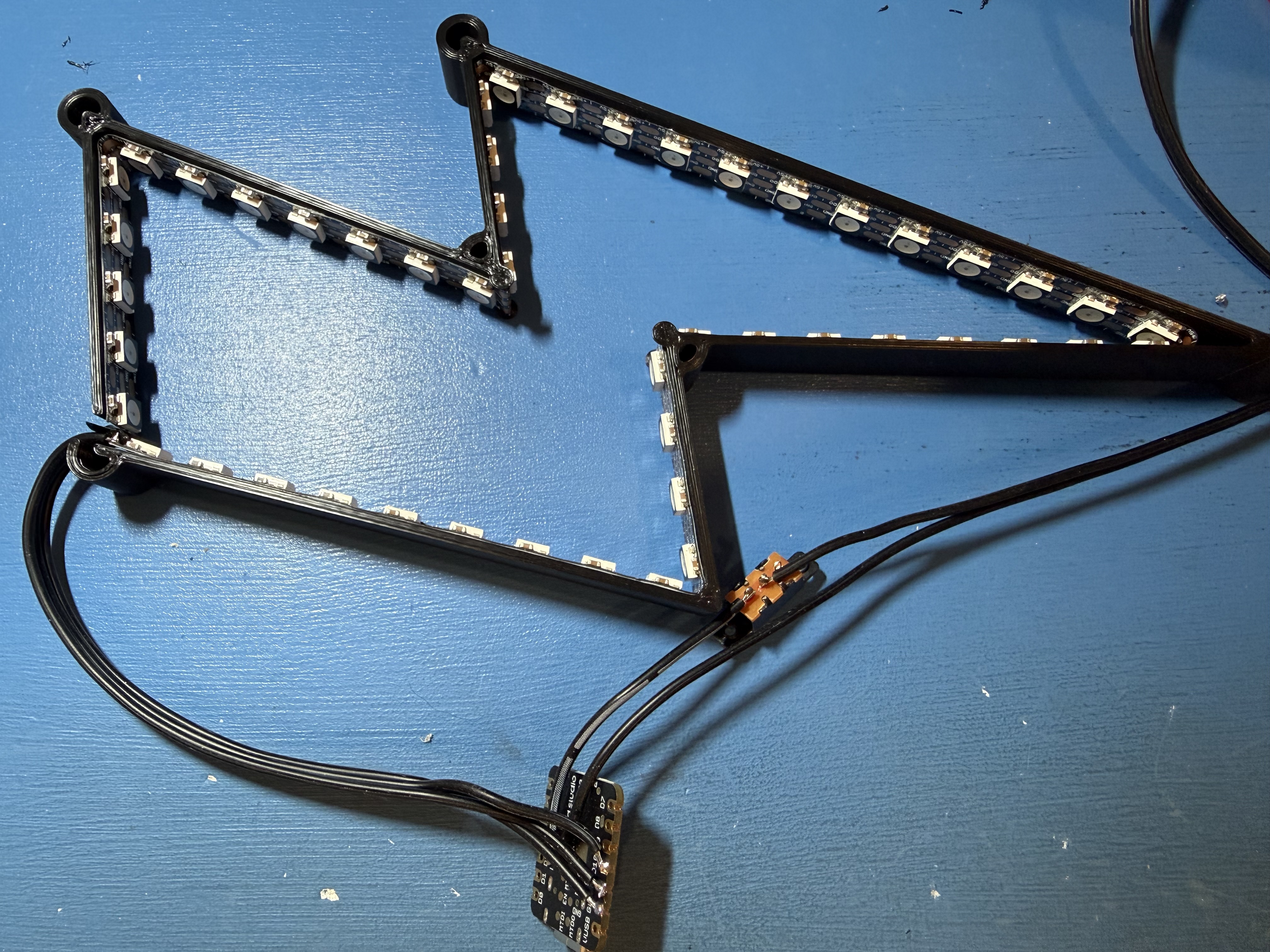

| 11 | 1 | LED1 | WS2812B LED strip 5V, 100 LED/m, black PCB, cut to 49 LEDs length (= 490mm) | BTF-Lighting, Amazon | WS2812B1M100LB30, ASIN B07BTTY4FL |
Wiring
| Ref | From | To | Length (mm) | Notes |
|---|---|---|---|---|
| W1 | PCB1 D10 | LED strip data in | 130 | |
| W2 | PCB1 3v3 | LED strip + | 130 | |
| W3 | PCB1 GND | LED strip - | 130 | |
| W3 | SW1 pin 1 | PCB bat + | 50 | |
| W4 | BAT1 + | SW1 pin 2 | 140 | |
| W5 | BAT1 - | PCB bat - | 190 |
Software
We just slapped WLED onto it using the online installer (using Microsoft Edge on macOS, since Safari is not supported).
Acknowledgements
This design was inspired by Adafruit's Pocket Galaxy.
