Tile Spacers For Flooring Wall Tile Spacer Carrelage Tile Leveling System

• Recyclable.
• Easy to use
• Balance tiles in the same horizontal position.
• Improve the installation speed of tile.
• Reduce the fatigue/pressure of installers.
• Prevent tiles from moving during solidification.

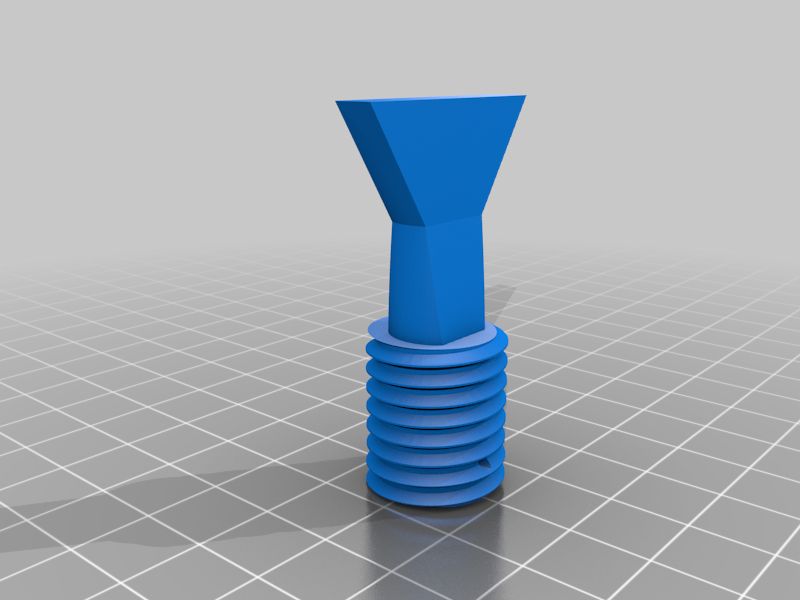

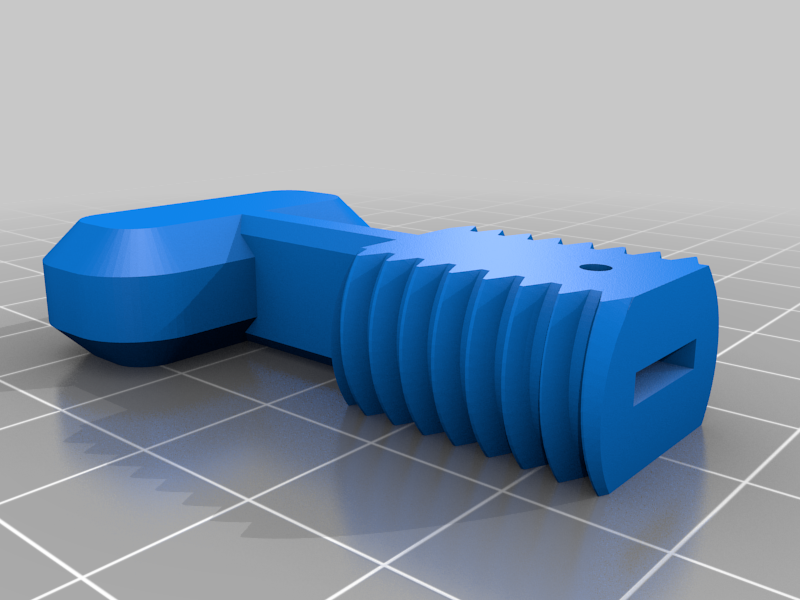

Two version screw for print.

• First version is printed on the height.
• Second version is printed on the width. Second version is better for mechanical stress

Both version don't need support for print

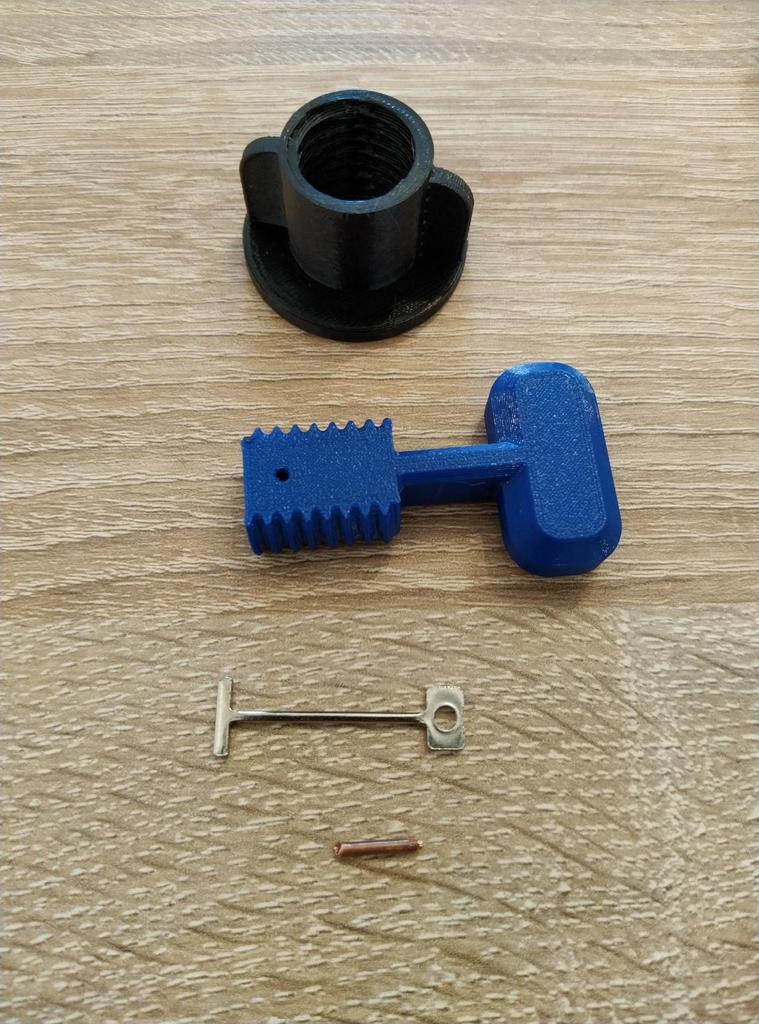

Mechanical parts:

• - Steel Needles, Length: 32mm, Thickness: 1.5mm  [https://www.aliexpress.com/item/1005003721902727.html?spm=a2g0o.order_list.0.0.21ef18026ThKMv](https://www.aliexpress.com/item/1005003721902727.html?spm=a2g0o.order_list.0.0.21ef18026ThKMv)
• As fuse we can use standard solid copper wire with diameter 1.5mm2 (16 AWG), with length ~11mm

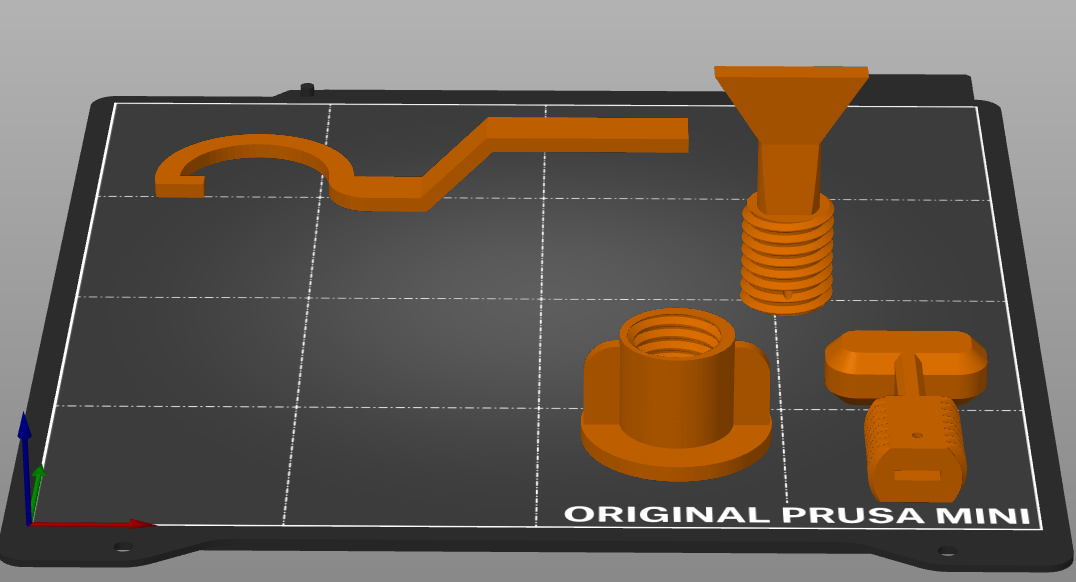

Print settings:

Infill: minimum10%

Material: PET-G

noze: 0.4

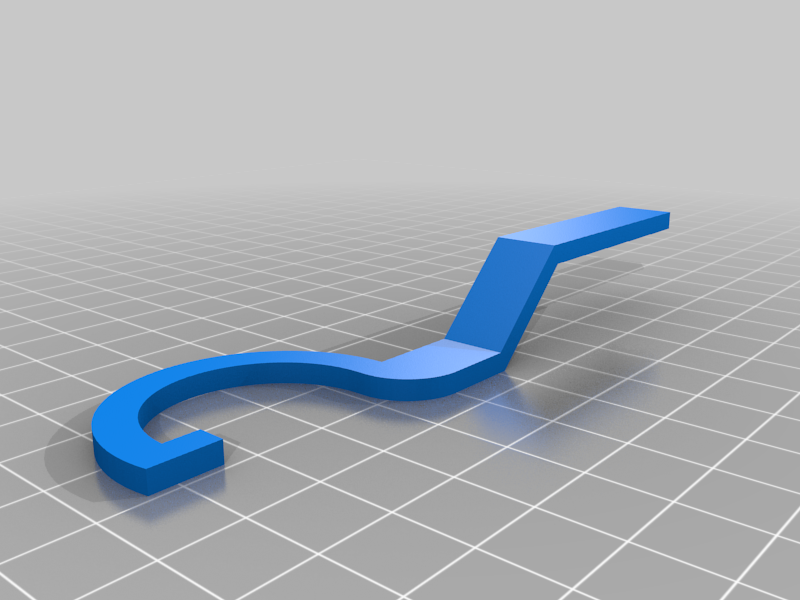

Support required only for wrenches

Category: DIY
