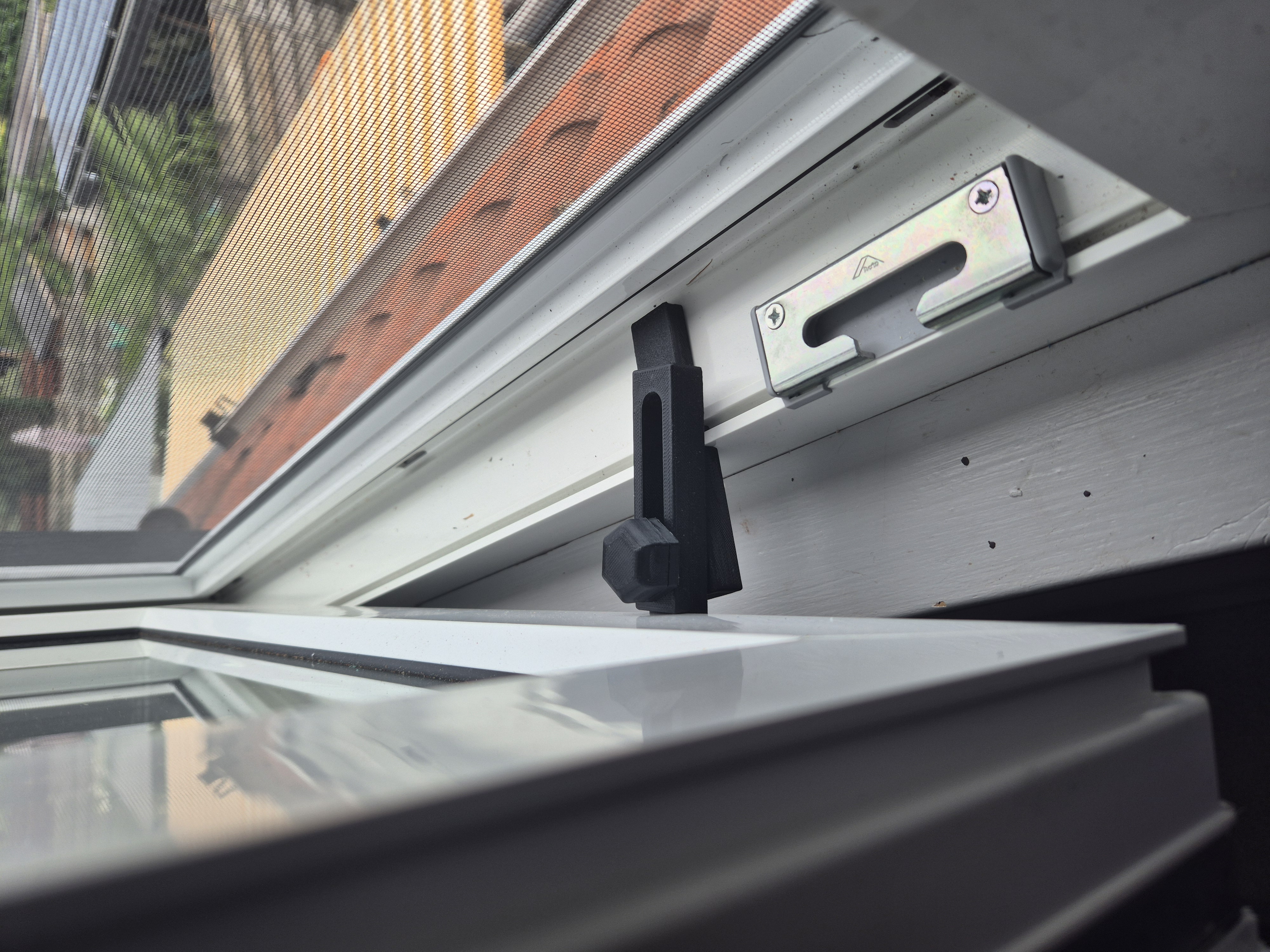

Adjustable door/window stop

Prevents windows from closing or opening in the pivot position. Use it to secure a window in any desired position. Tighten the bolt to the desired position using the sliding system. The sliding system can be adjusted 50 mm. All corners are nicely rounded with a radius of 1.

It is made for Salamander window frames. Purchased from Creon-kozijnen.

Dimensions:

Frame: 100 x 20 x 13 mm: with and without text.

Window: 100 x 20 x 14 mm: with and without text.

Bolt consists of two parts: the top is 26 x 10 mm and the bottom is 26 x 4 mm with an 8.5 mm hole: with and without text.

Ring: 18 x 1 mm with a 9 mm hole.

Anything with text that is 1 mm deep.

This applies to the window and frame.

The text on the bolt is 1 mm deep.

You can use glue to glue the two parts together. Below is a link to the one I used:

Revell 29604 29604

[https://www.amazon.nl/Revell-Revell_29604-Professional-modelbouw-knutselaccessoires/dp/B000RMJ2H8](https://www.amazon.nl/Revell-Revell_29604-Professional-modelbouw-knutselaccessoires/dp/B000RMJ2H8)

The bolt I used is an M8 x 30MM. Below is a link to the one I used:
