Modelo 3D Camera Backpack Clip por Magmabow no Printables

Descrição

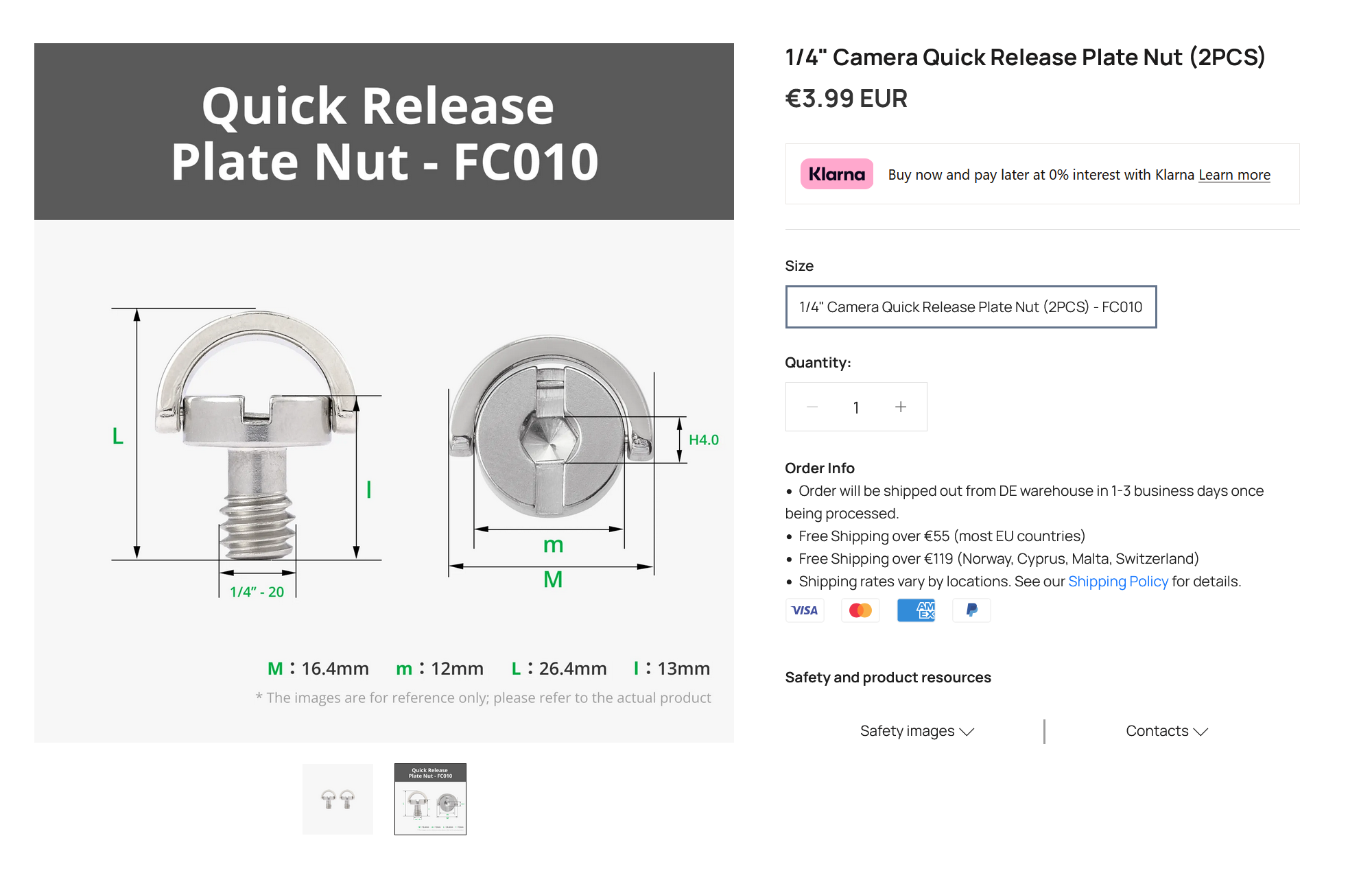

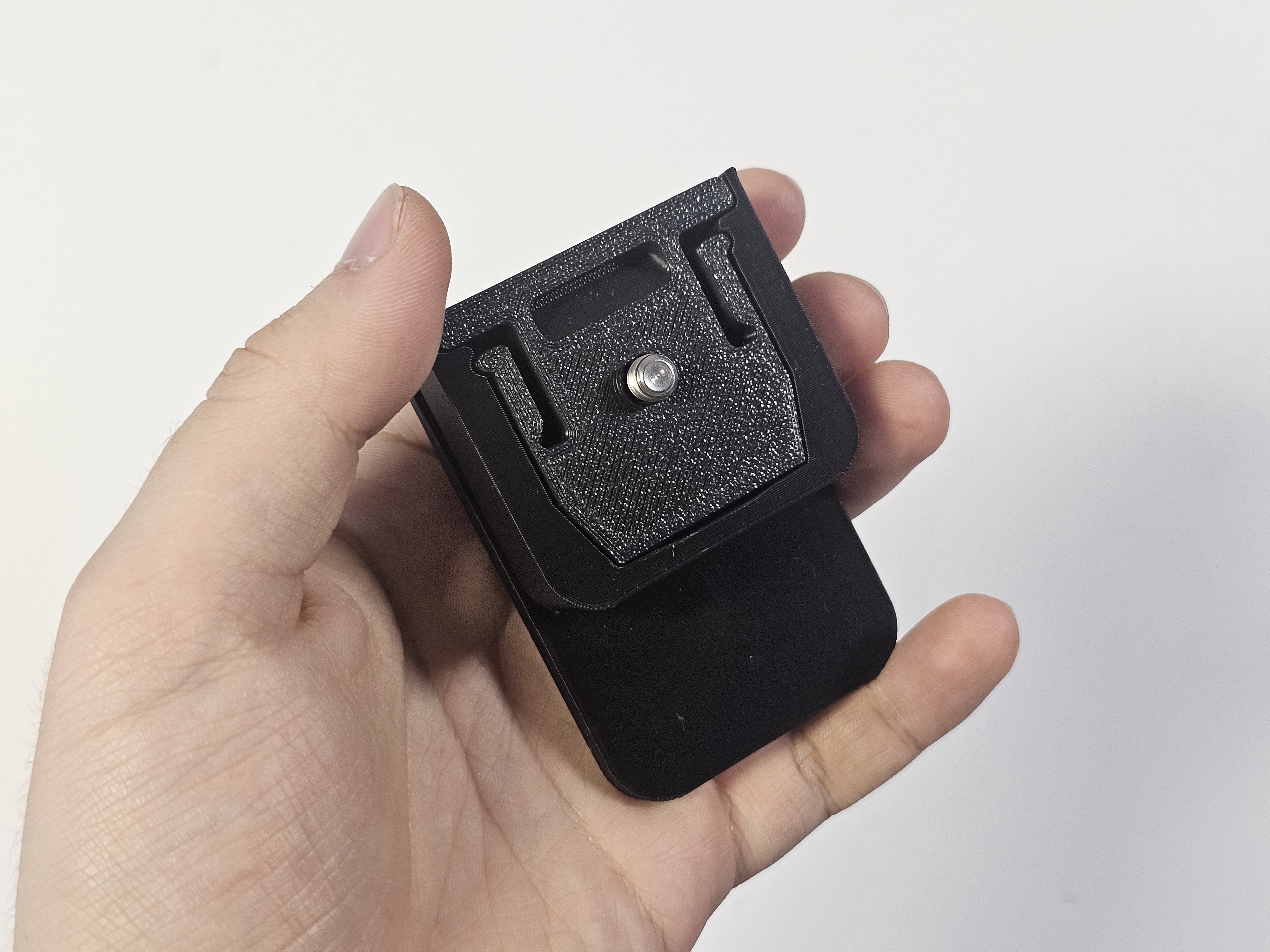

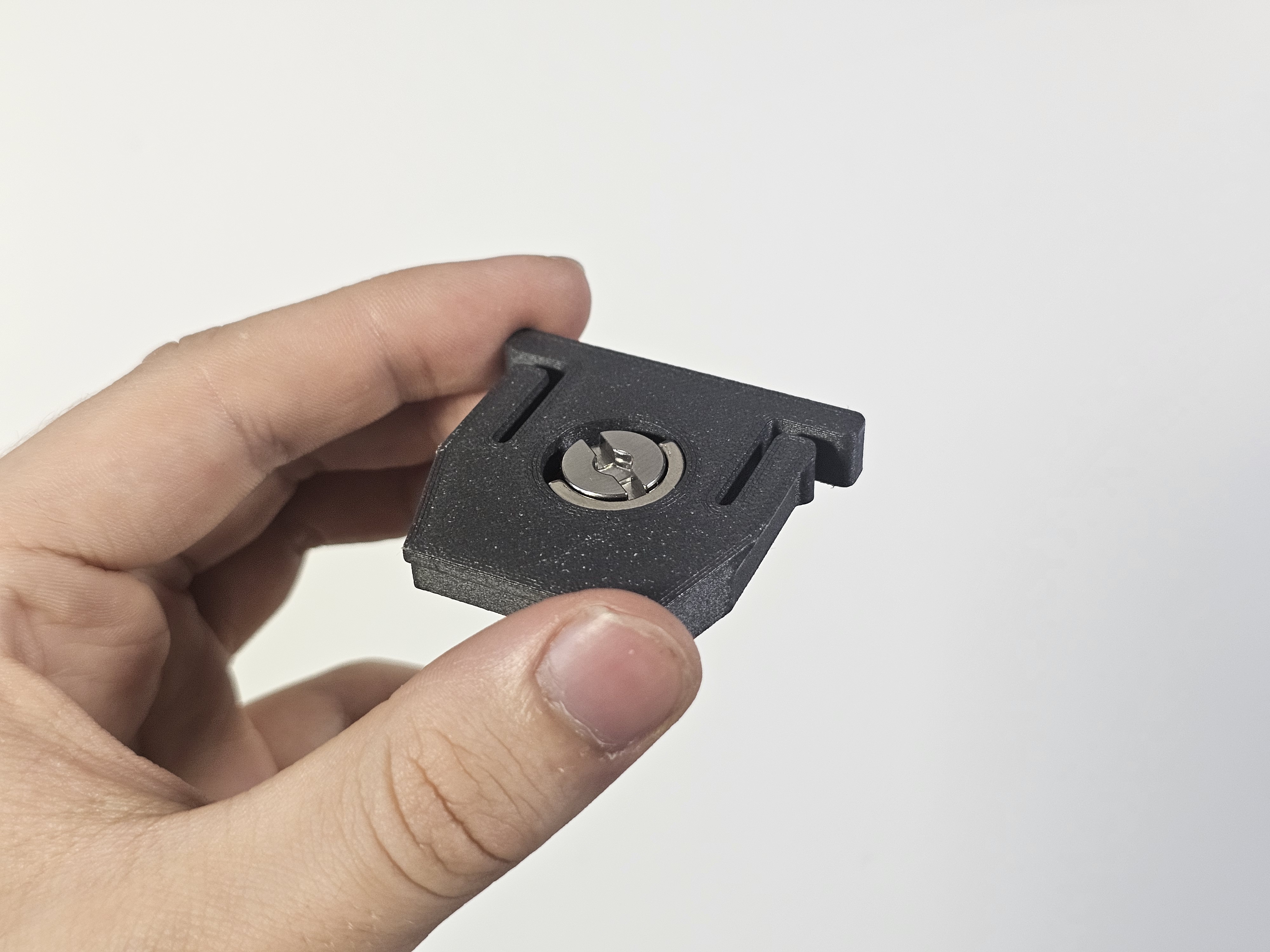

Designed for use with a ¼ inch screw:

I suggest using a strong/tough material. AT LEAST PETG-CF. Use 4 walls with 50+% rectilinear infill.

If you are doing something that requires a lot of motion, use the stronger variant of the male clip. Otherwise, I suggest the weaker clip as it makes camera removal easier.

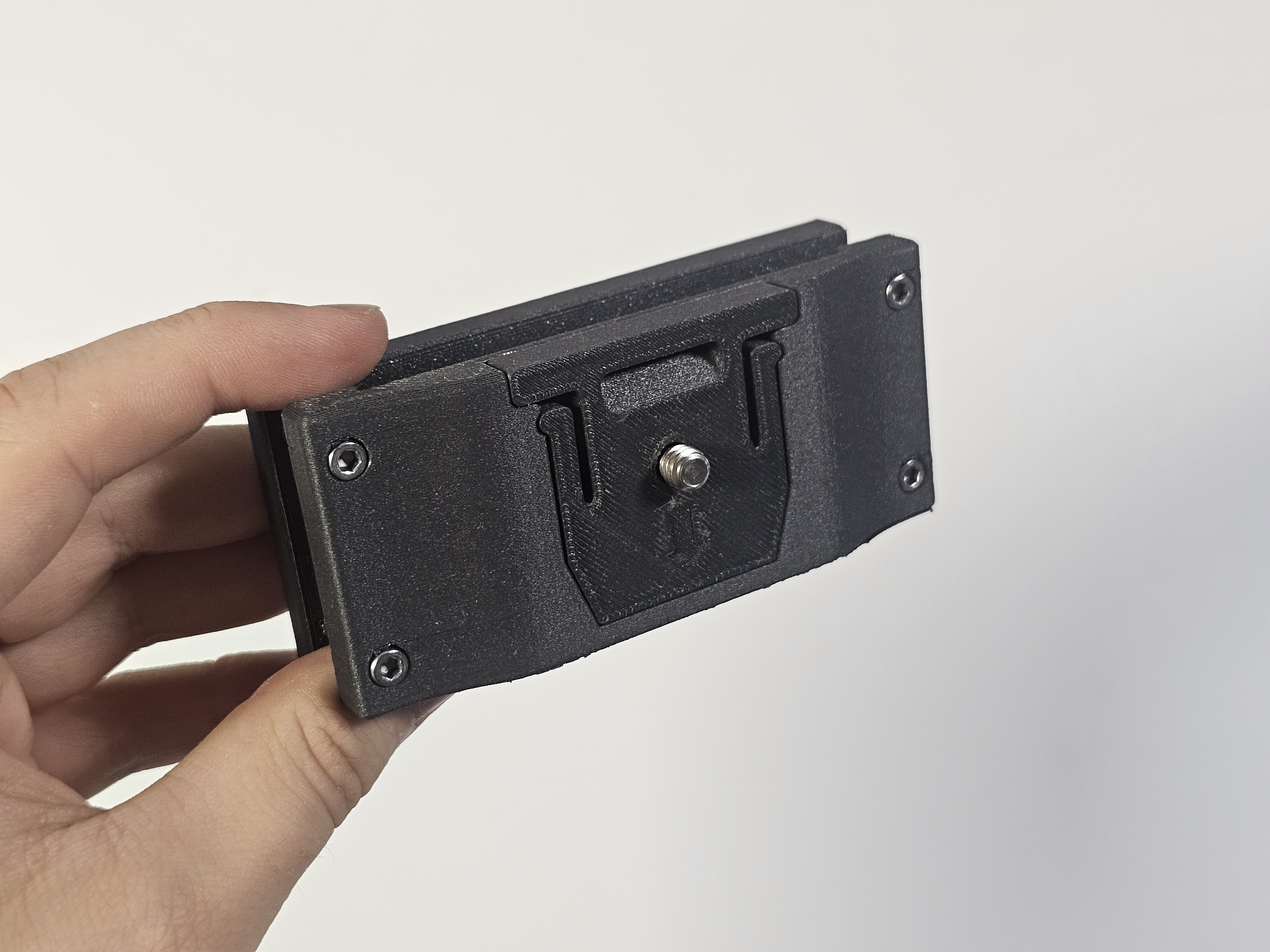

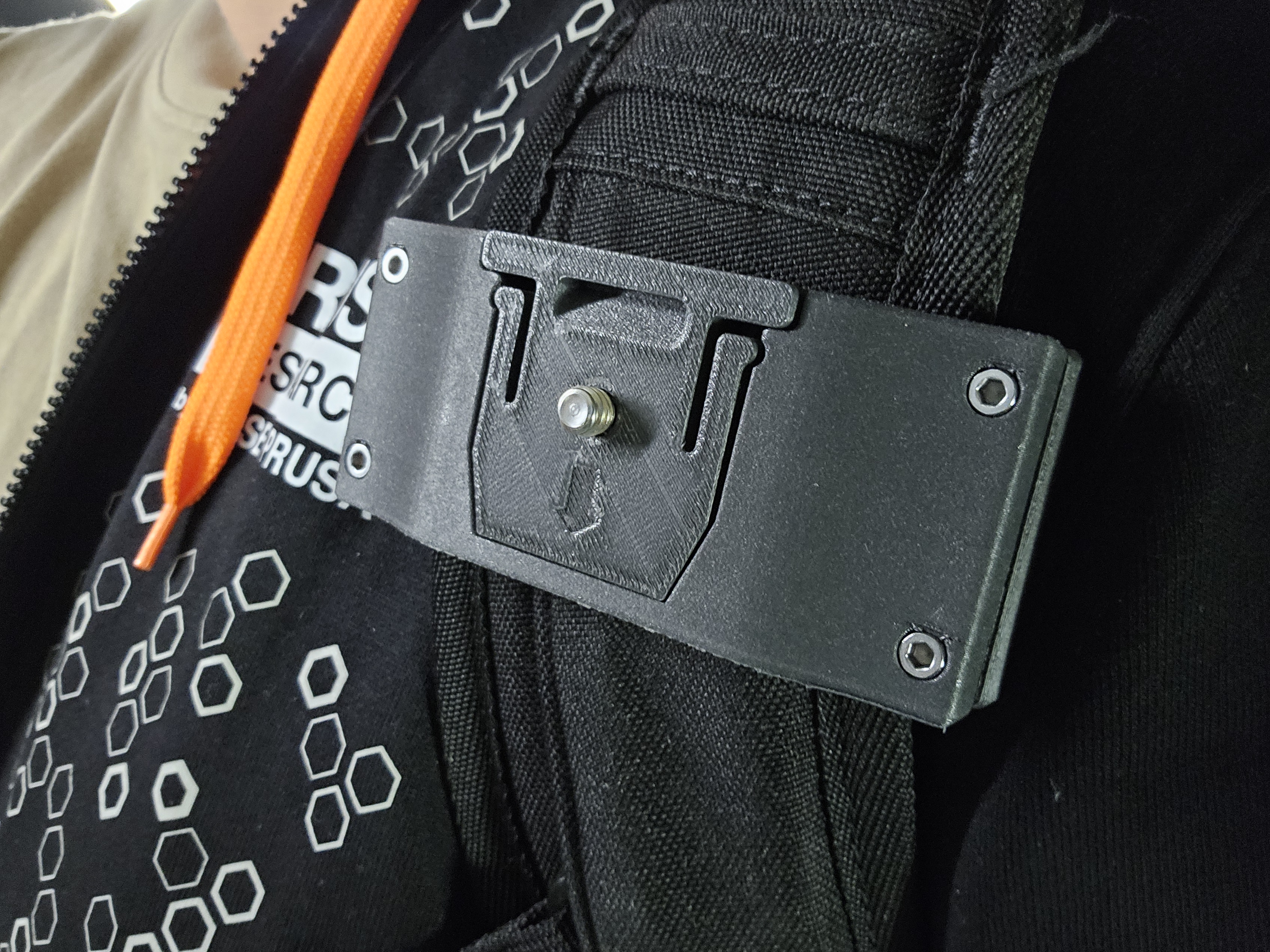

I have attached STEP files for your modification and adaptation for your custom use case. There is also an example clip for backpack straps that are 80mm in width. Use M3 heatset inserts and machine screws to attach. Also print with a strong material

This has been designed to not come loose over time, or disconnect by itself, but i am still not responsible for your camera if it breaks :-) use with caution!

Keep in mind that using a filament with an additive such as carbon fibre will make the fit tighter

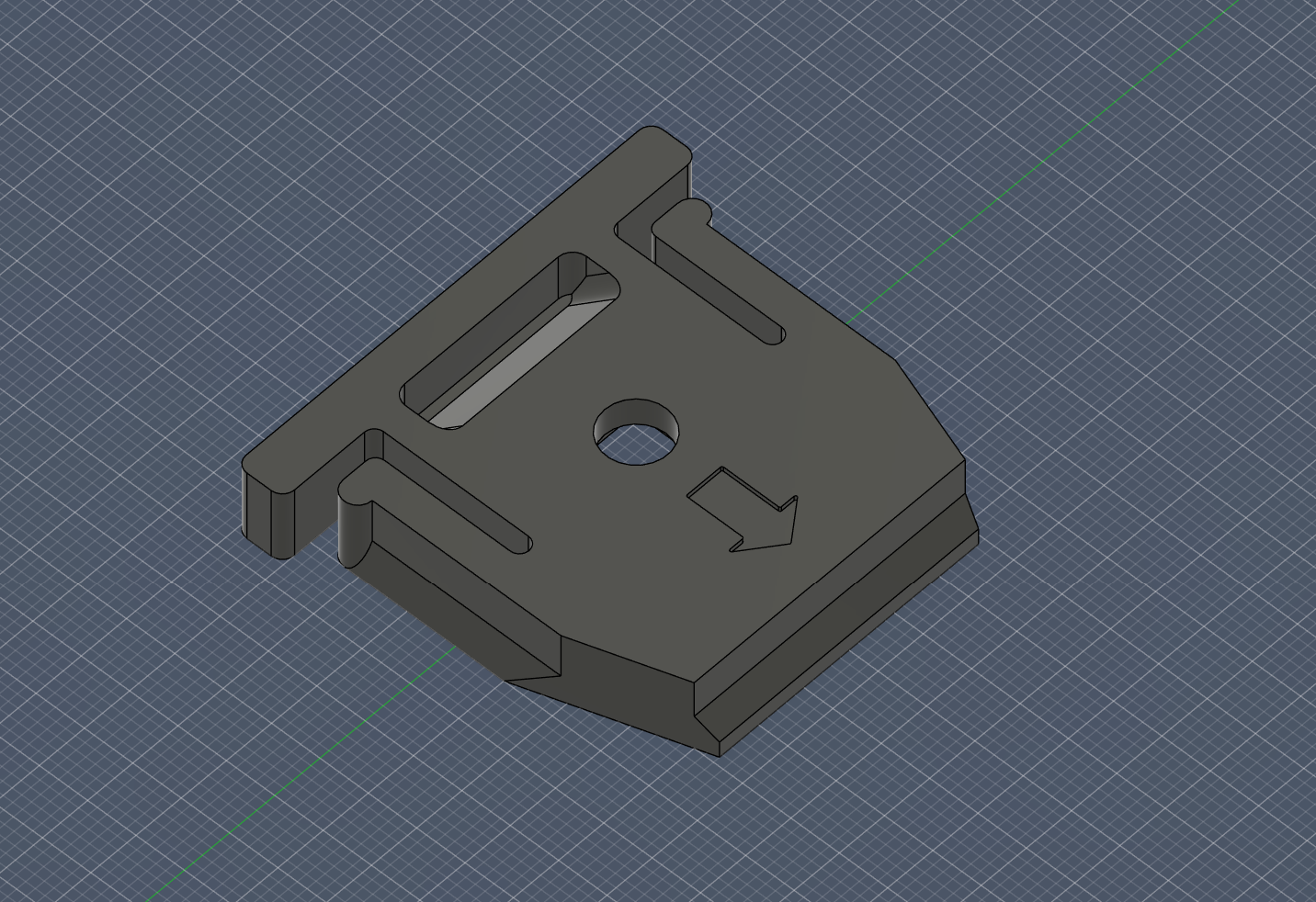

Weaker clip (notches at base of flexure):


Stronger clip (no notches at base of flexure)

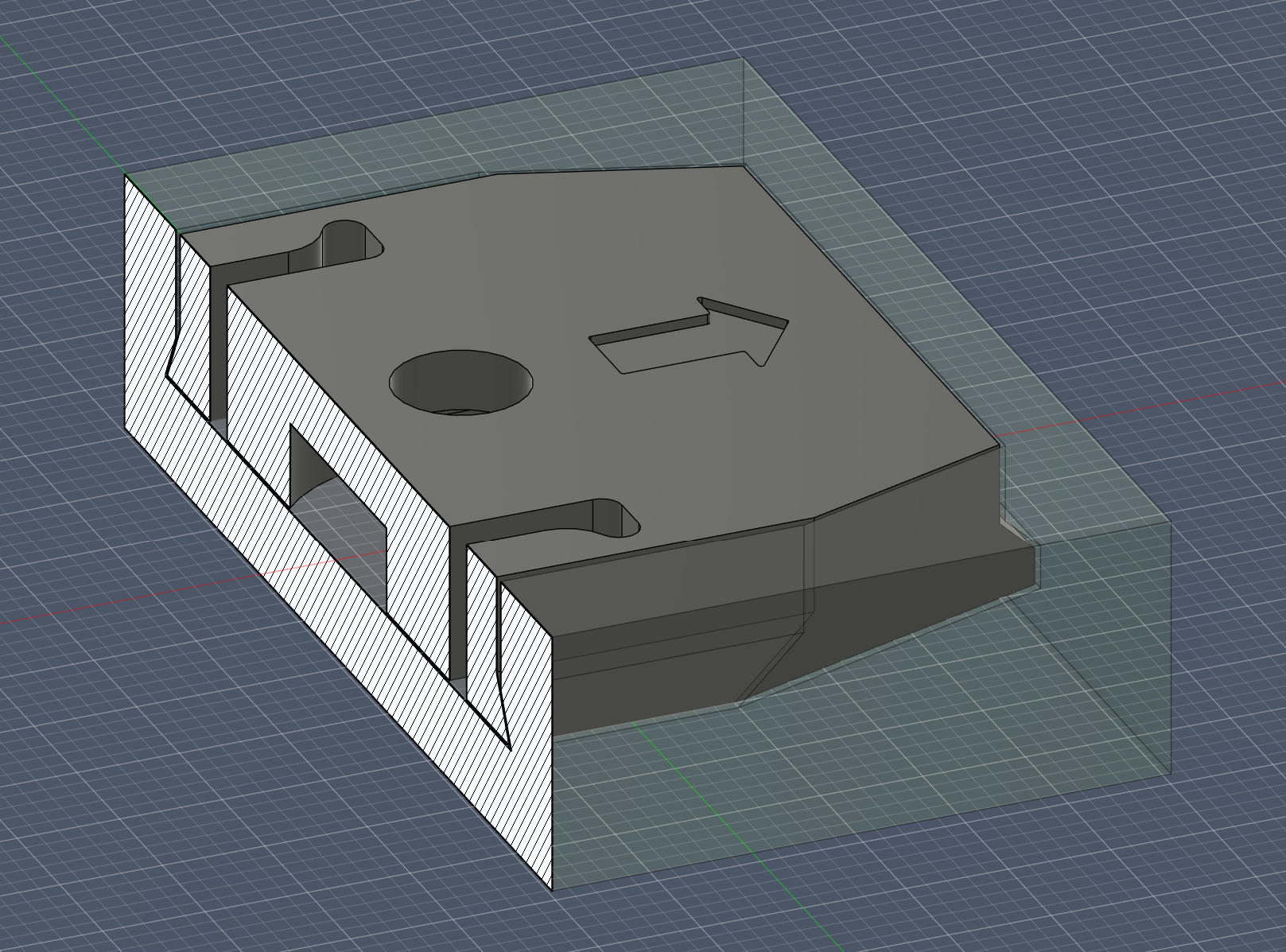

Designed for a secure connection:

Left image in thumbnail photo is not mine. I have not recieved my camera back yet. I will update the photo as soon as I can.

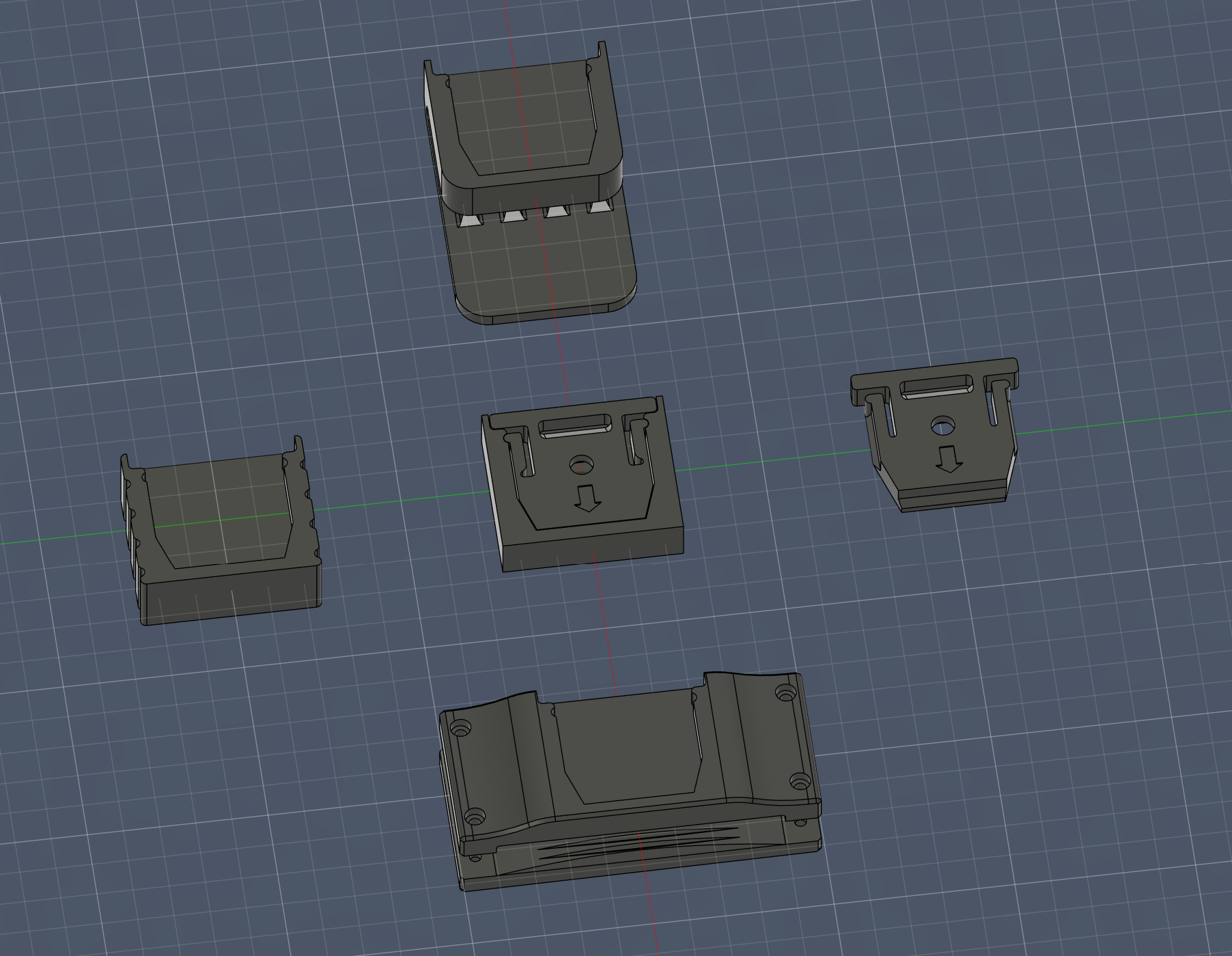

Step file:

Printables

Camera Backpack Clip

Publicado em 9 de ago de 2025

66
Curtidas
117
Downloads
Categoria Photo & Video
Tags
camera holder clip cannon accessory quarter mirrorless backpack inch dslr sony travelling
Licença Creative Commons — Attribution — NoDerivatives
Arquivos (8)
Clip Male (Weak).stl 156.7 KB
Clip Male (Strong).stl 144.6 KB
Slot-In clip (50mm width).stl 1.2 MB
Clip Female (Isolated).stl 37.8 KB

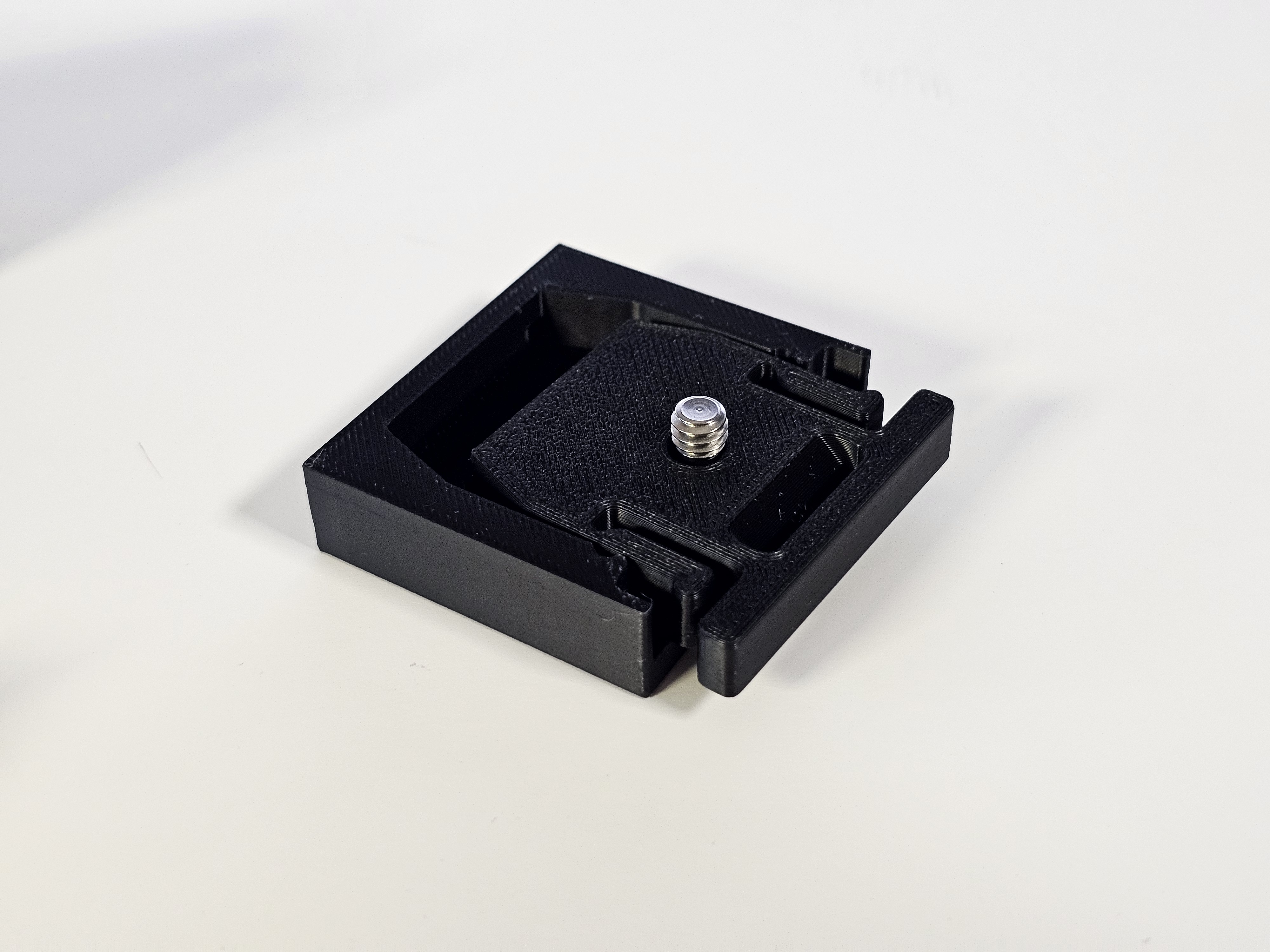

Clip Female (Tripod mount) 8mm diameter hole.stl 273.1 KB
Clip Female (80mm strap example) Top.stl 199.3 KB
Clip Female (80mm strap example) Base.stl 157 KB
All designs.step 1.1 MB
