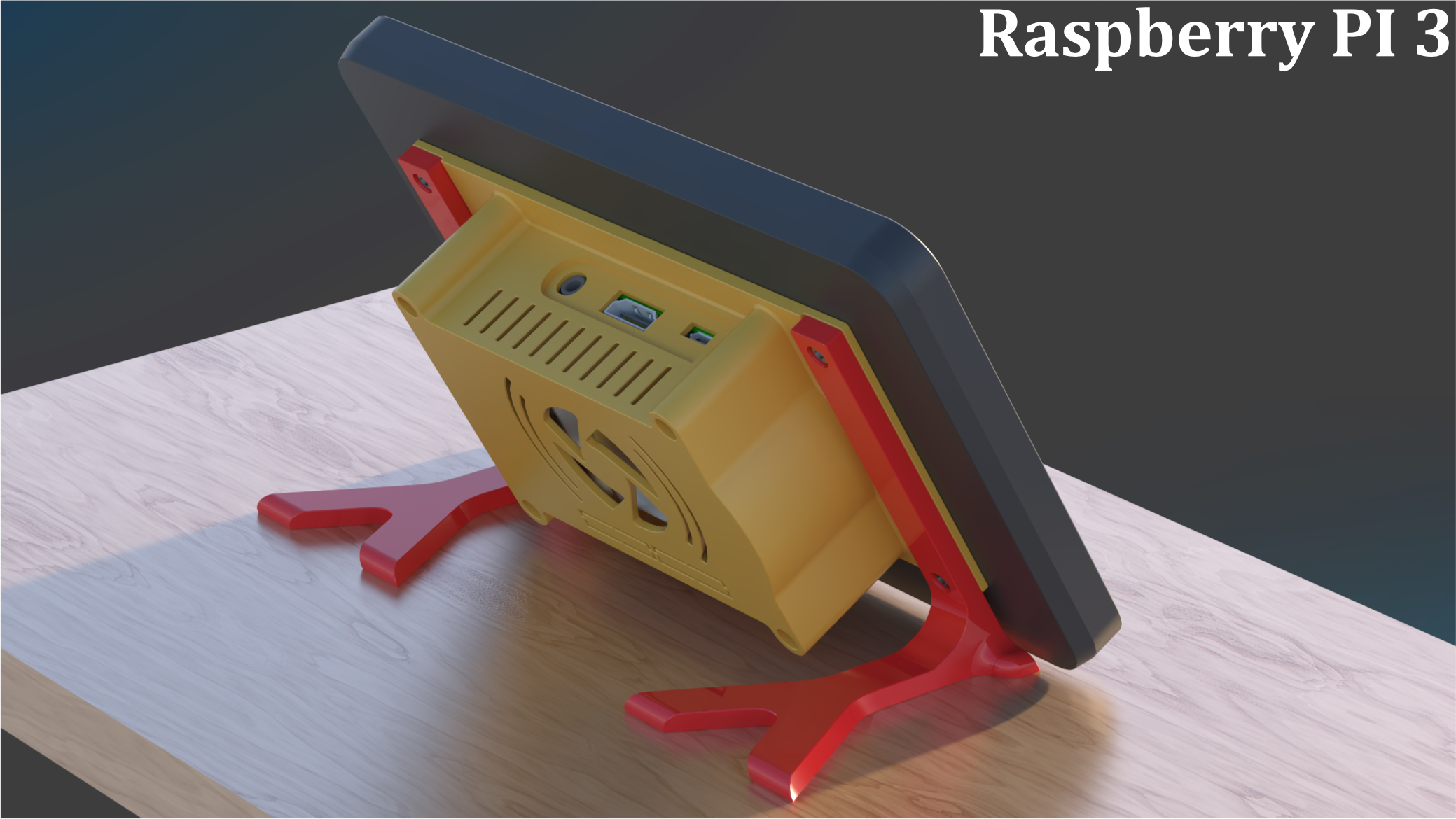

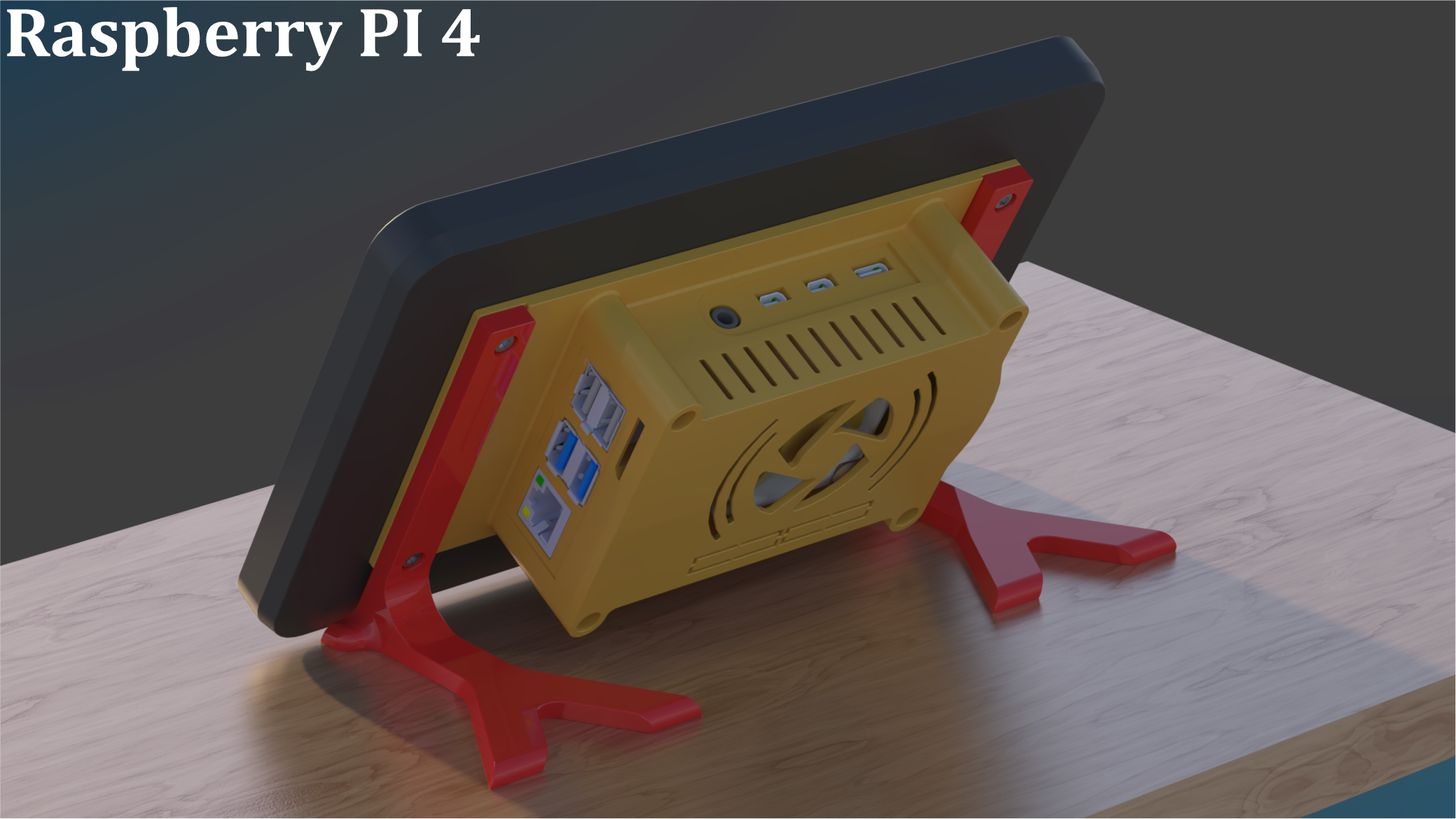

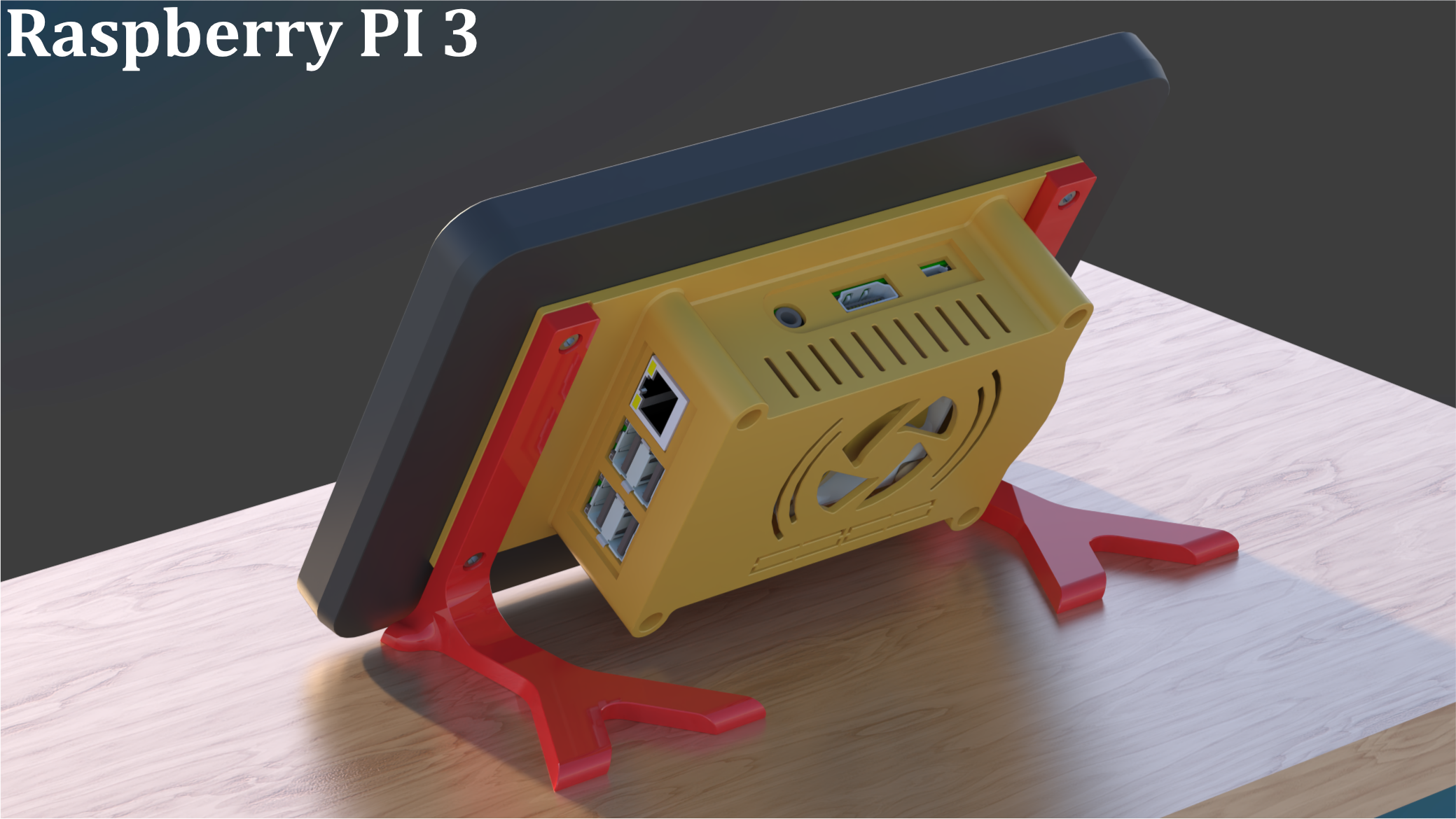

Case for Raspberry Pi Touch Display 2 with housings for the Raspberry Pi 3 (B/B+), 4 and 5.

Updates

• 2025-08-11: Various models revised, the thread for the screw connection between the display case and the stands is M2.5 and not M3.

Features

• Internal fan mount (40mm x 40mm x10) - optional
• Thread inserts
• Raspberry Pi 5, access hole to on/off button
• Raspberry Pi 4 / 5, additional slot for camera ribbon cable (located over the ethernet port)
• Stands and brackets can be rotated 180° to adjust the position of the USB ports (left or right)
• Alternative mounting bracket for V-Slot profile 2020
• Alternative mounting bracket for plate (wall),  with additional long version and M1:1 drilling pattern as pdf

Required parts

• Raspberry Pi Touch Display 2
• Raspberry Pi 3 (B/B+) / 4 / 5
• 4x M3 thread inserts → Ruthex RX-M3x5.7
• 4x M2.5x6+6 Male-Female PCB standoff → Spacer set
• 4x Cylindrical head screw M2.5 x 16mm (for version with optional fan)
• 4x Cylindrical head screw M2.5 x 5mm (for version without optional fan)
• 4x Cylindrical head screw M2,5 x 12mm (for connection stands or brackets)
• 4x Cylindrical head screw M3 x 16mm (for connection Raspberry Pi housing)

Optional

Fan

• Fan 40x40x10, 5V → Noctua NF-A4x10 5V incl. anti-vibration mounts
• 4x Anti-vibration mounts (see fan)
• 2x 1P Single Dupont connectors (for fan)

Mounting brackets

• 2x M3 thread inserts
• 2x Cylindrical head screw M3 x 10mm

Assembly

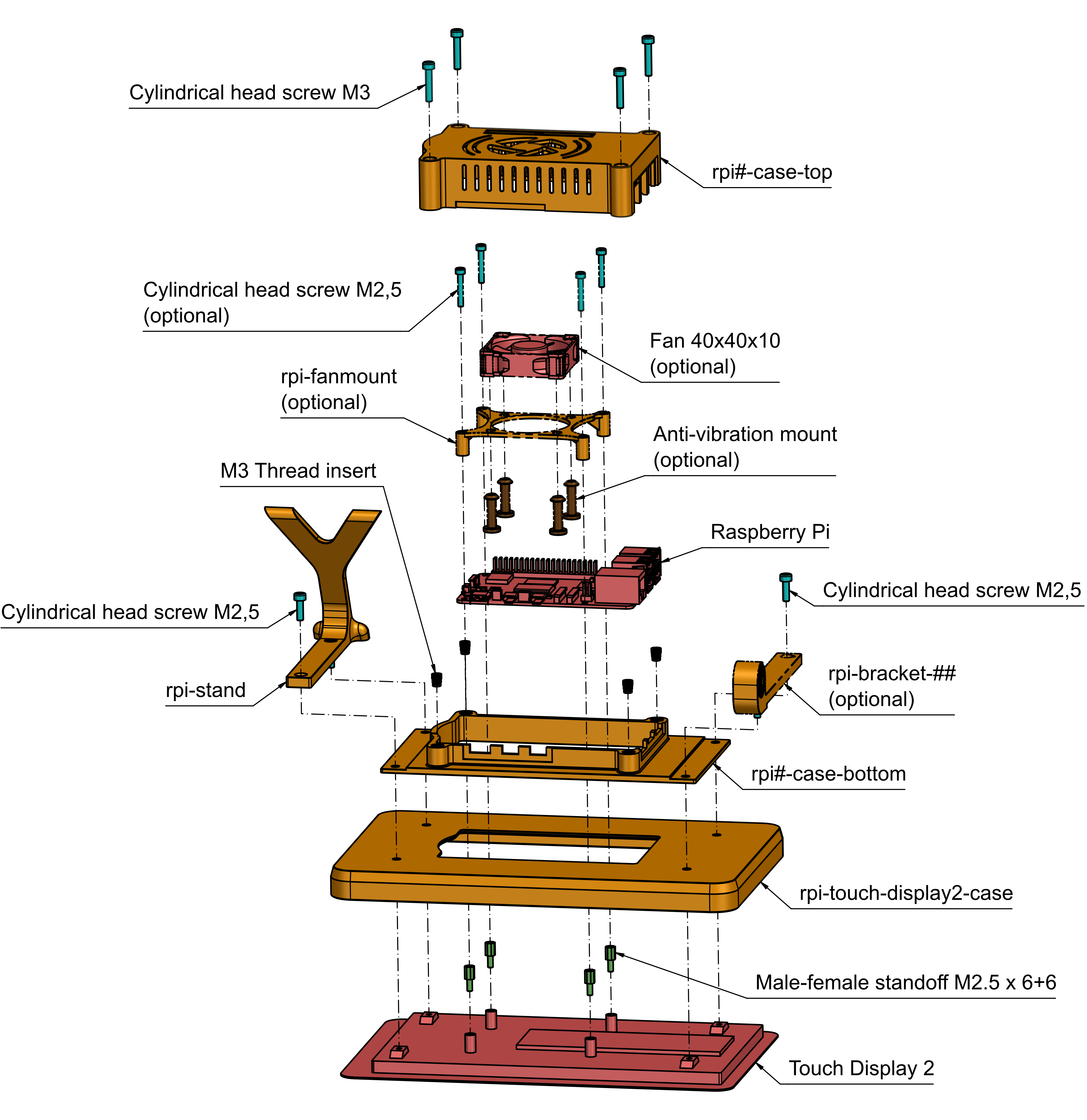

Assembly brackets

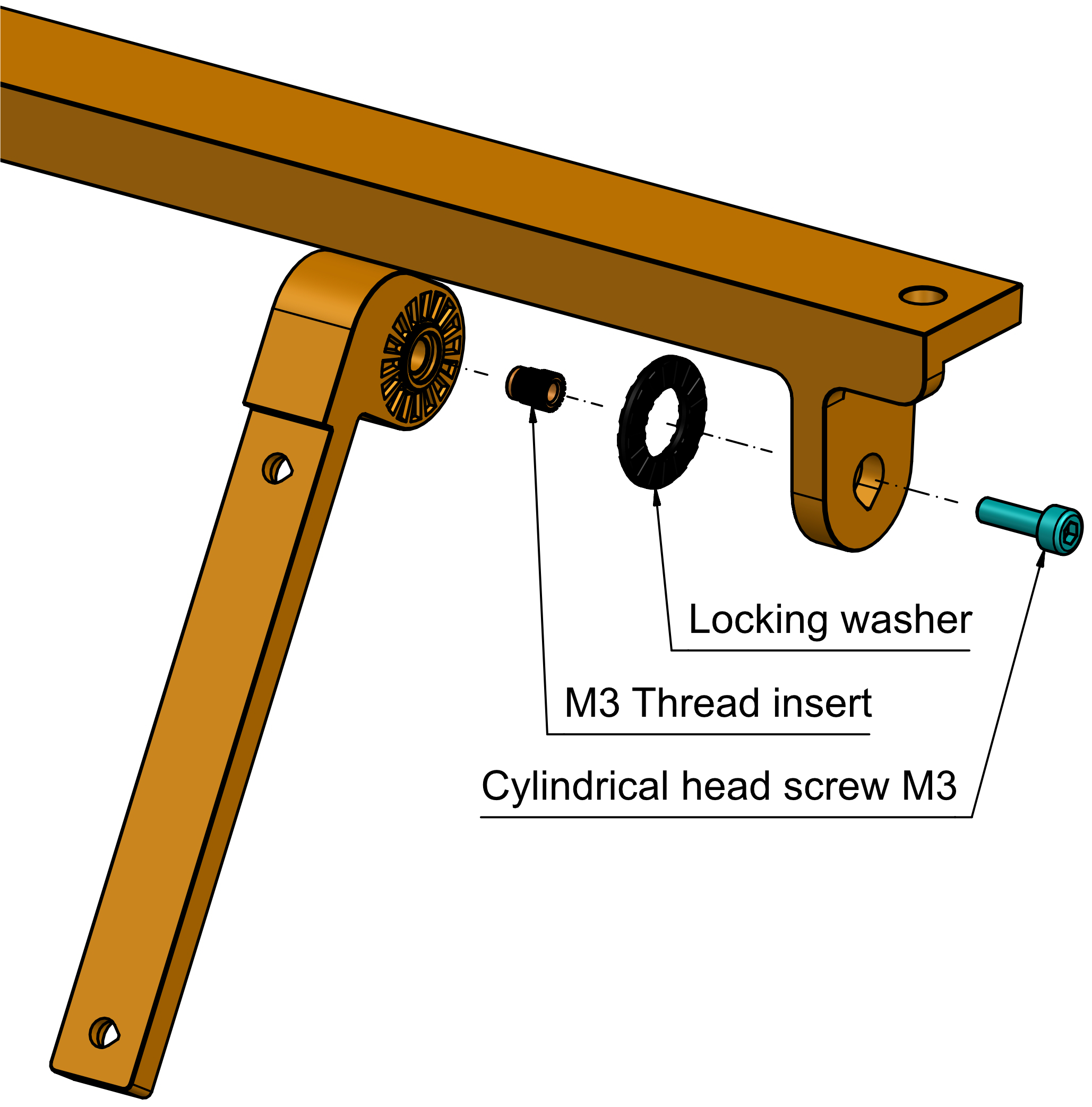

rpi-bracket-plate / rpi-bracket-plate-long	rpi-bracket-vslot

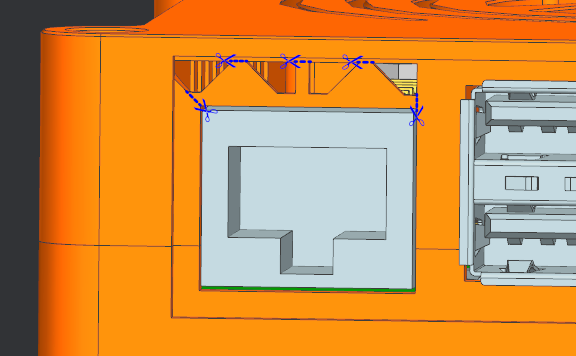

Raspberry Pi 5, Break out cover slot for camera ribbon cable

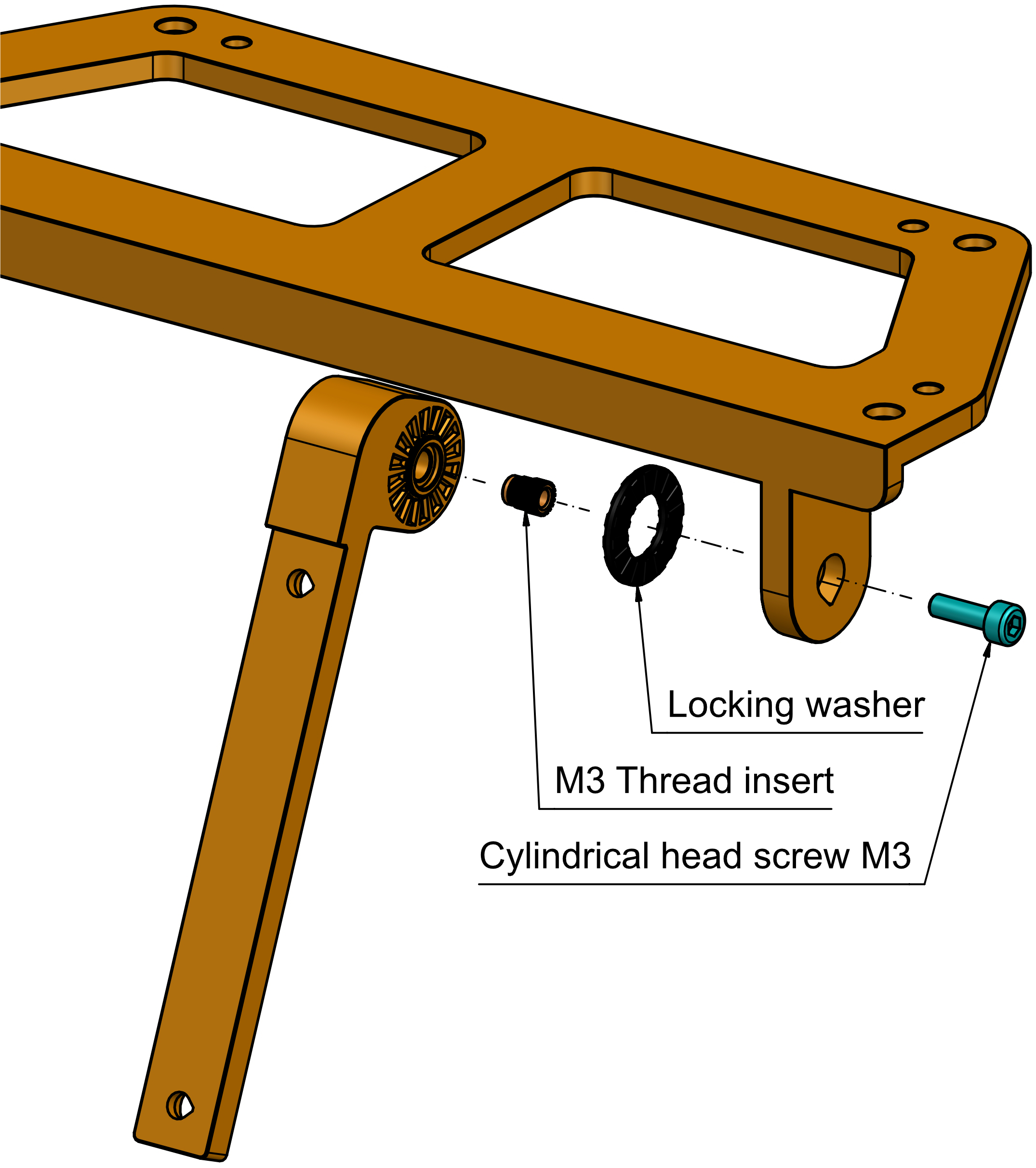

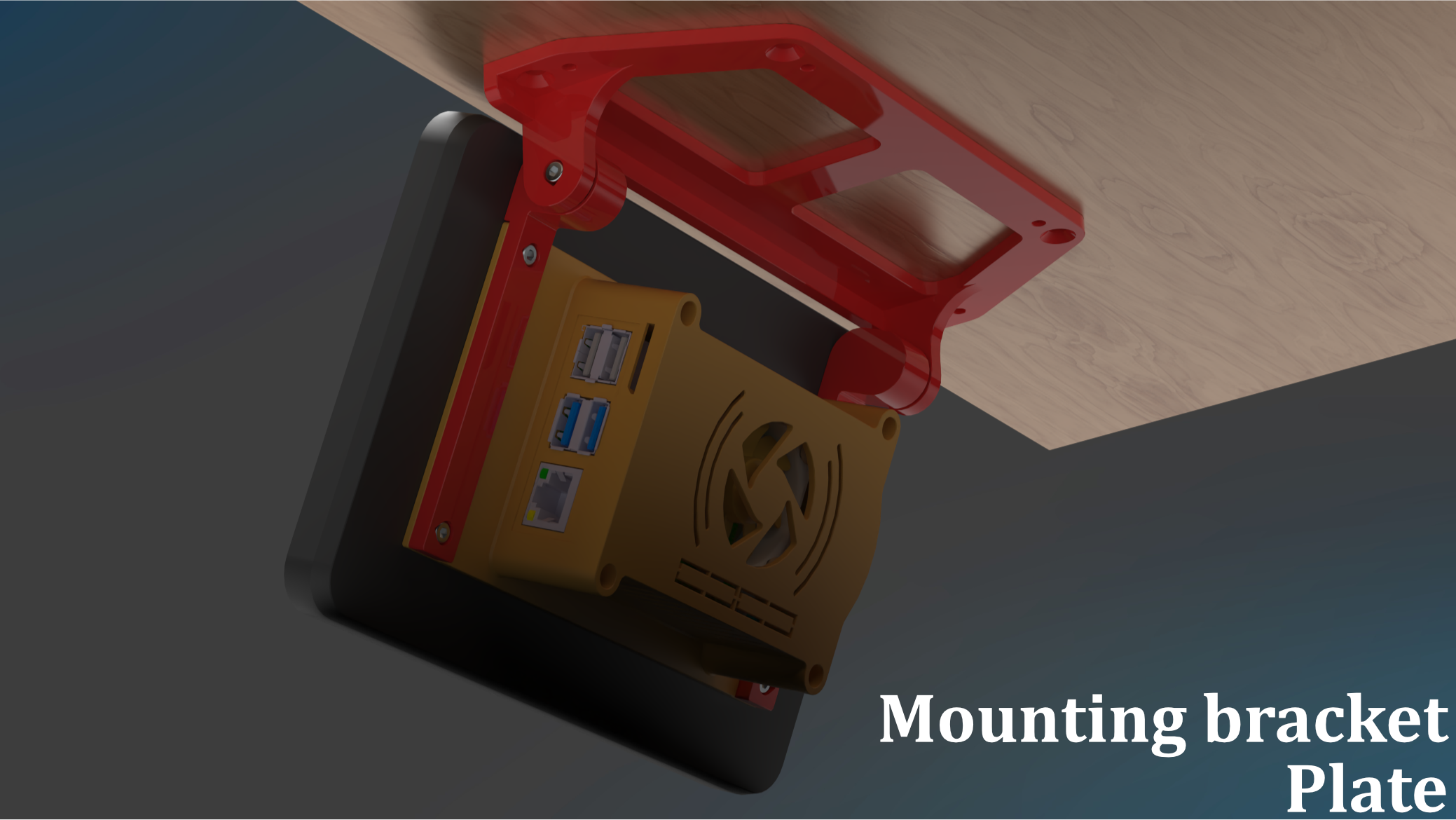

Mounting bracket for plate

For fastening use 4x 4,5 Countersunk screws or 4x M3 screws.

Print instructions

Supports: No
