Modelo 3D RatRig VCore 3 Tool Changer por psyvision no Printables

Descrição

About

This is a tool changer modification for the RatRig VCore 3 printer that utilises an E3D style coupling.

Belts

This modifications is designed with the intention of being used on an VCore 3 with the so called “OpenFront” modifications where an alternative location exists for tensioning the printer belts.

Z-Probe

This modification is designed with the intention of using the z-probe mounts (or similar) used with the EVA system and specifically a SuperPINDA.  I will possibly design an alternative mount using a SPDT endstop type switch.

X-Endstop

This modification uses the blank EVA MGN12 top and therefore EVA X-endstop mounts can be reused.

Y-Endstop

This modification moves the Y-endstop to the front of the frame - once tested I will attach an STL.



Demo



Upcoming Enhancements

CAN Board Mounts

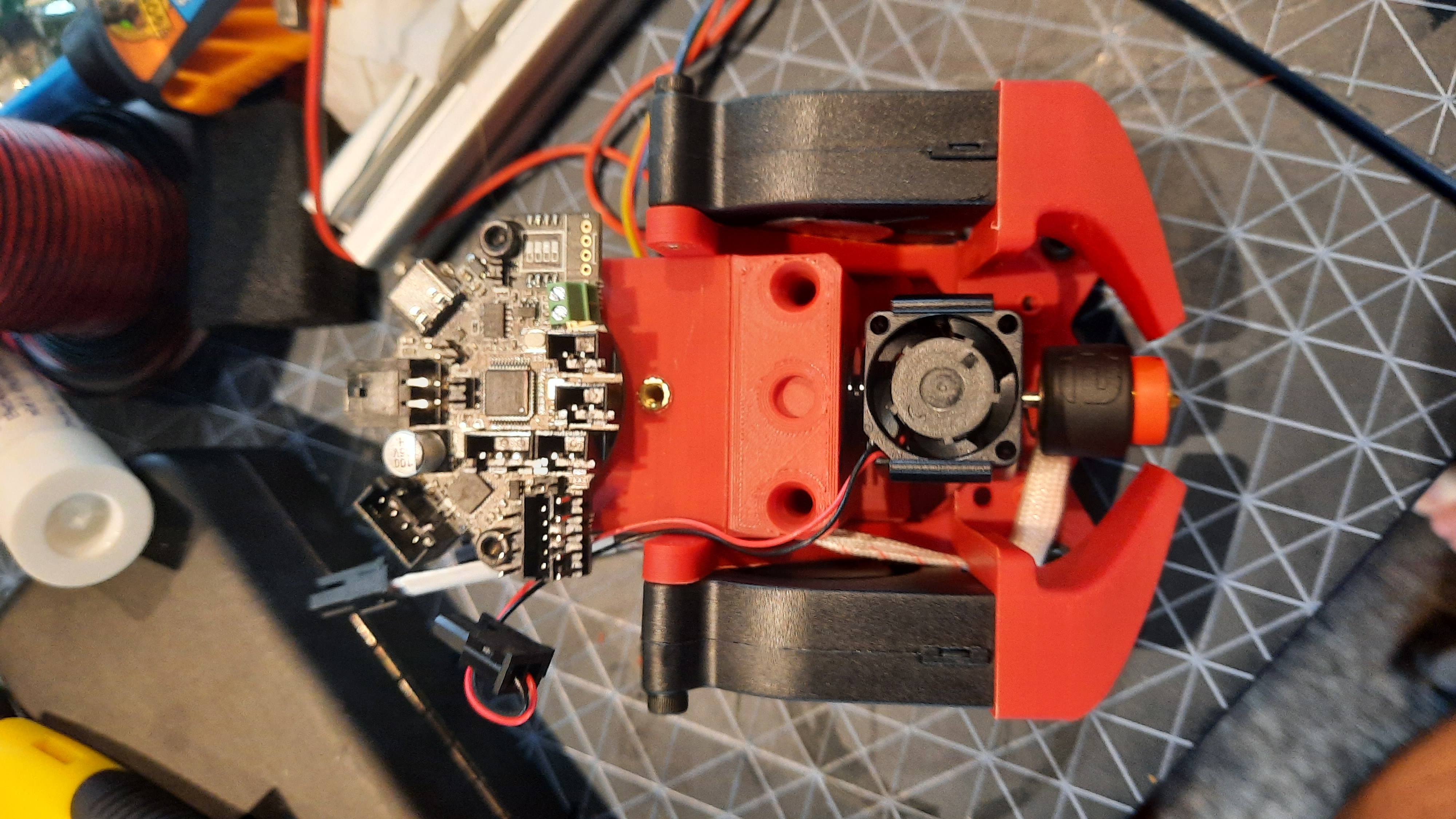

I am currently testing alternative extruder mounts that can fit 36 size CAN boards, e.g. BTT EBB36.

Heat Insert Sizing

I am investigating increasing heat insert chamfer from 0.5mm to 1.0mm to create a better fit.

Dock Improvements

I am going to implement some screw holes to retain the docking pins as I have had one pin start sliding out when un-docking tools.



Bill of Materials

Head

PartQuantityComment
TC - Head - Front.stl16 perimeters / top / bottom
TC - Head - Top.stl14 perimeters / top / bottom
TC - Head - Bottom - Small.stl14 perimeters / top / bottom
TC - Head - Back.stl16 perimeters / top / bottom
TC - Head - Belt Grabber.stl44 perimeters / top / bottom
10mm x 4mm Dowel Pin6
SF695ZZ Bearing1
4mm E-Clip1
12mm x 3mm Dowel Pin1
M3x3mm Grub Screw1
Tool Coupler Shaft1From E3D
M3x6 Socket Head Screw1
MR105RS Bearing1
F5-12M Thrust Bearing1
15mm x 1mm Spring1
40T Mod 0.5 Gear1From E3D
M3 Washer1
M3x10 Socket Head Screw1
20T Mod 0.5 Gear1From E3D
M3x50 Socket Head Screw4
Stepper Motor1From E3D
M3x8 Socket Head Screw13
M2.5x8 Socket Head Screw2
Omron D2HW-C201H Switch1Optional tool detect switch
M3xD4.6mmxL5.0mm Heat Insert3
M3 Full Hex Nut12
M3x6mm Grub Screw2
Motor Brace Options
Small - As designed by E3D
TC - Head - Motor Brace - Small.stl14 perimeters / top / bottom
16mm Standoff215mm standoff if using non-E3D stepper
M3x8 Socket Head Screw2
M3xD4.6mmxL5.0mm Heat Insert2
Large - A larger version of the E3D design with 4 standoffs for more support
TC - Head - Motor Brace - Large.stl14 perimeters / top / bottom
16mm Standoff415mm standoff if using non-E3D stepper
M3x8 Socket Head Screw4
M3xD4.6mmxL5.0mm Heat Insert4
Switches - A 4 standoff version with 2 SPDT switches for lock/unlock detection
TC - Head - Motor Brace - Switches.stl14 perimeters / top / bottom
TC - Head - Cam.stl14 perimeters / top / bottom
16mm Standoff415mm standoff if using non-E3D stepper
M3x8 Socket Head Screw6
M3xD4.6mmxL5.0mm Heat Insert6
Omron D2HW-C261H Switch2

Stepper Motor: This build assumes the usage of the motor although I have trialled and used a 24BYJ-48 (available from Mouser and RS Components) which seems to work well too. I can provide alternative parts for this if required.

Spring: I purchased a 20mm spring initially which was too long and I cut it down, the 10mm I have is slightly too short so would recommend a 15mm or 20mm and cut if required.

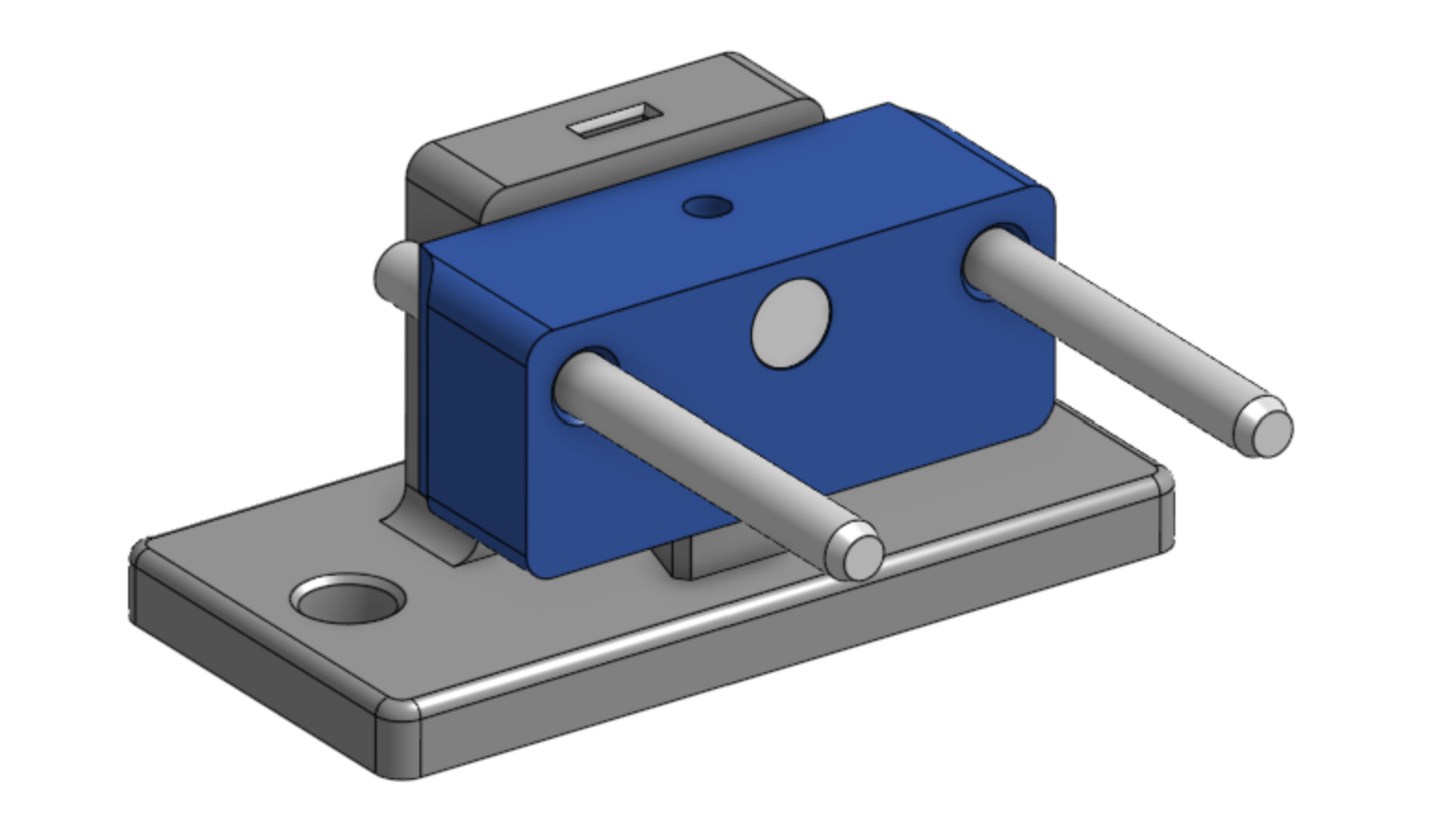

Dock

Note: This is for a single tool dock.

PartQuantityComment
TC - Dock - Stand.stl14 Perimeters / top /bottom
TC - Dock - Receiver.stl14 Perimeters / top / bottom
M6x12 Socket Head Screw2
M6 3030 T-Nut2
M3xD4.6mmxL5.0mm Heat Insert3
M4x45 Locating Dowel Pin2Can be longer
M3x10 Socket Head Screw1
M3x12 Socket Head Screw2
M3x6mm Grub Screw1
6mmx3mm Neodymium Magnet1



Tools

Helical Lock Ramp: This can be 3D printed (TC - Tool - Ramp.stl) and I would recommend 0.1mm layer height or less.

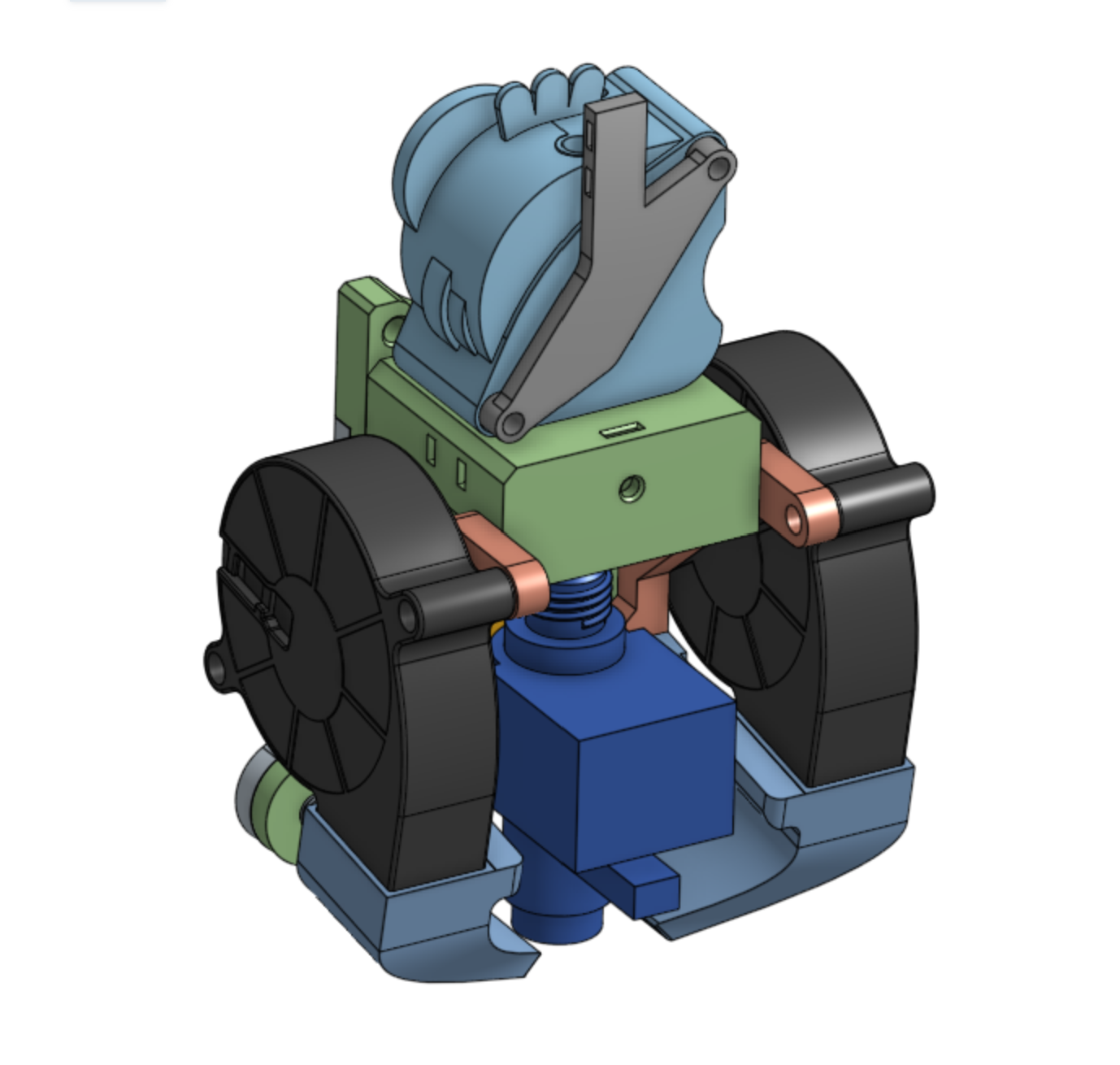

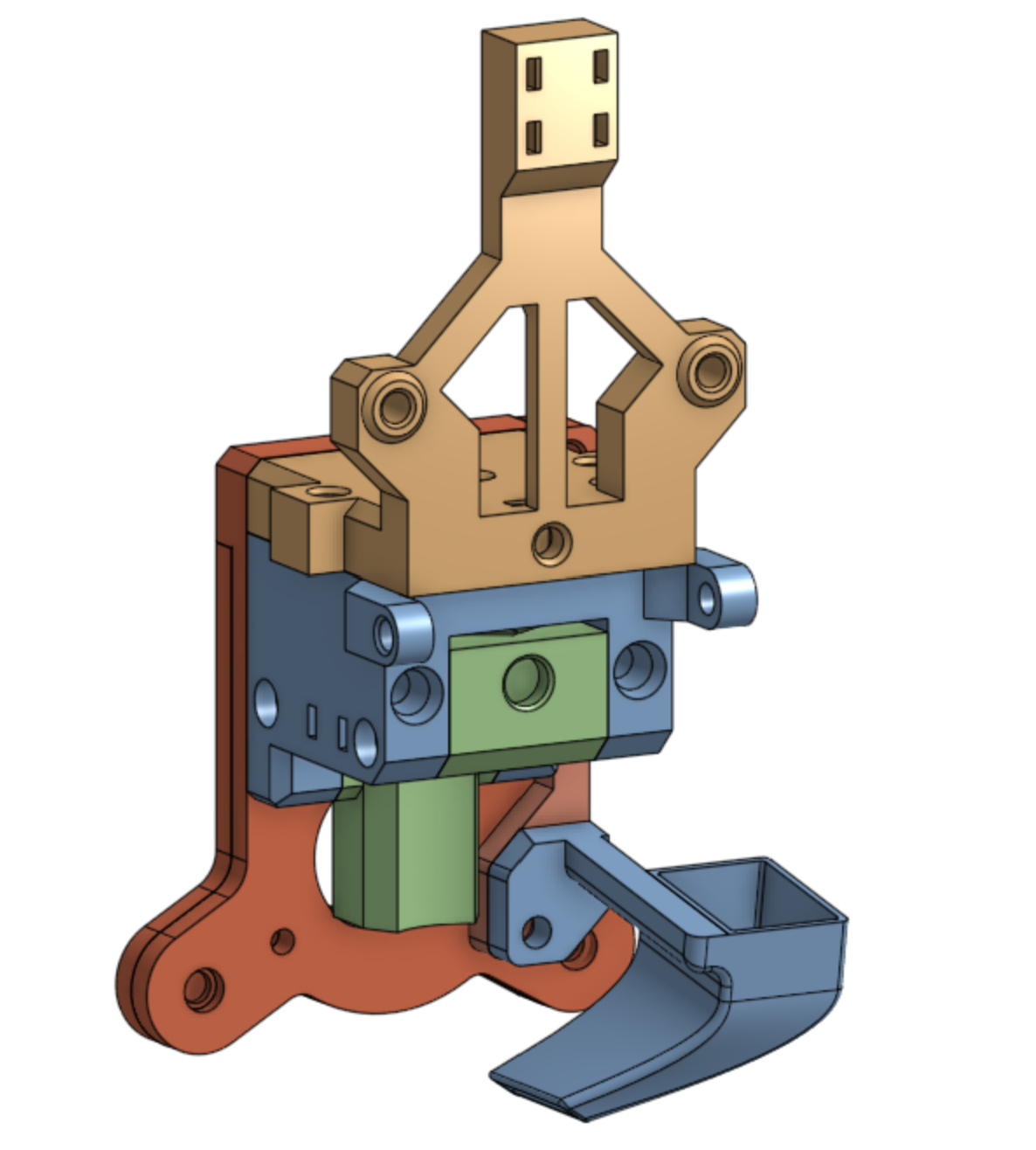

Tool v2

BOM coming soon.

This tool is a modular tool which:

  • Enables easier changing of parts (e.g. swap a hotend or extruder easily)
  • Easier printing
  • Better airflow for inward facing 5015

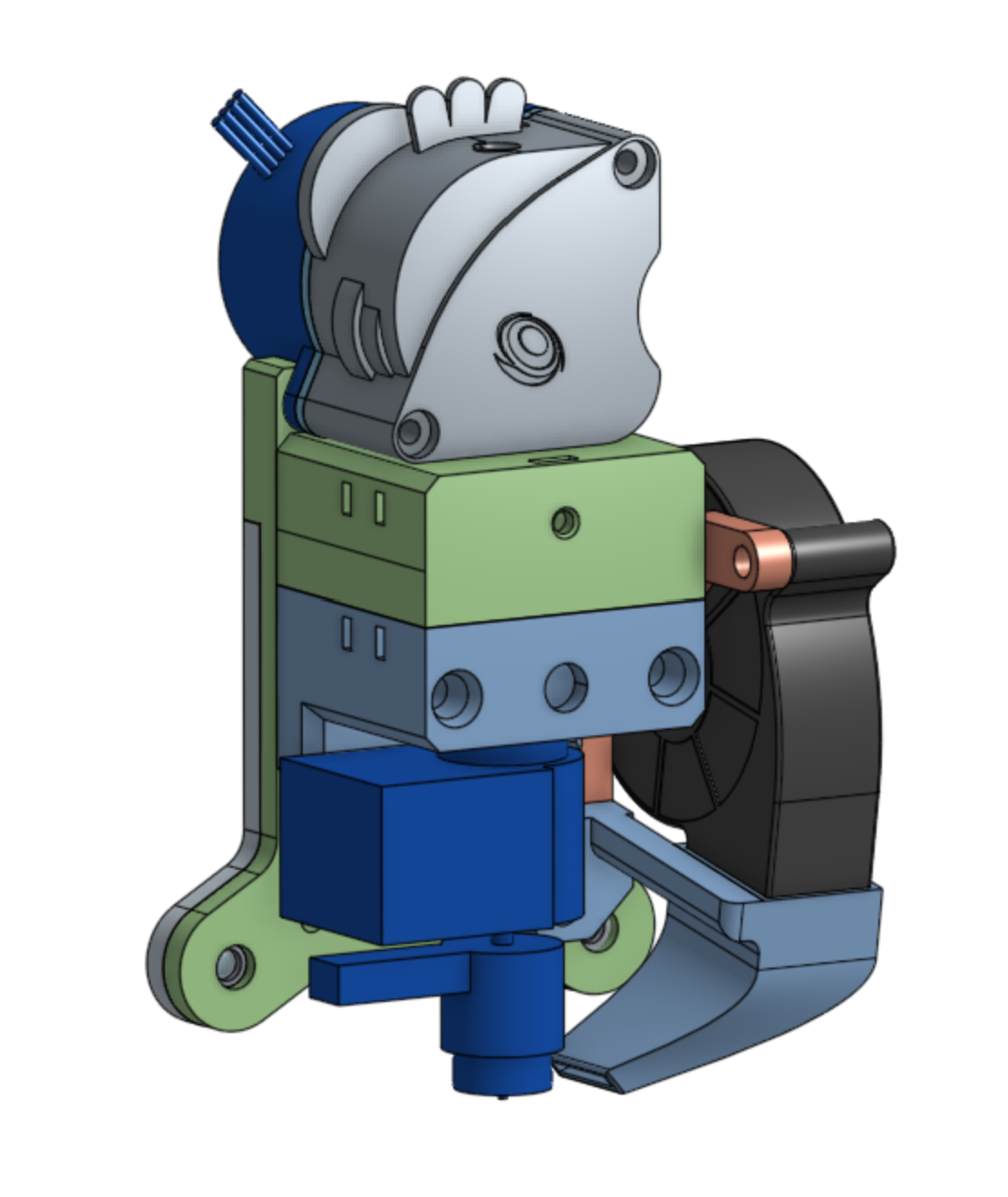

E3D Revo Micro / LGX Lite (Tool v1)
PartQuantityComment
TC - Tool - Face.stl16 Perimeters / top / bottom
TC - Tool - LGX Lite Mount.stl16 Perimeters / top / bottom
TC - Tool - Revo Mount.stl16 Perimeters / top / bottom
TC - Tool - 5010 Fan Mount.stl1 (or 2)6 Perimeters / top / bottom
TC - Tool - Revo Fan Duct.stl1 (or 2)4 Perimeters / top / bottom
LGX Lite1
E3D Revo Micro1
8mm M3 Steel Ball 3
Helical Lock Ramp1From E3D
M3xD4.6mmxL5.0mm Heat Insert15
M3x6mm Grub Screw1
6mmx3mm Neodymium Magnet1
Bowden Tube (2mm ID, 4mm OD)1
M3x10 Countersunk Socket Head Screw5
M3x6 Socket Head Screw3
M3x16 Socket Head Screw4

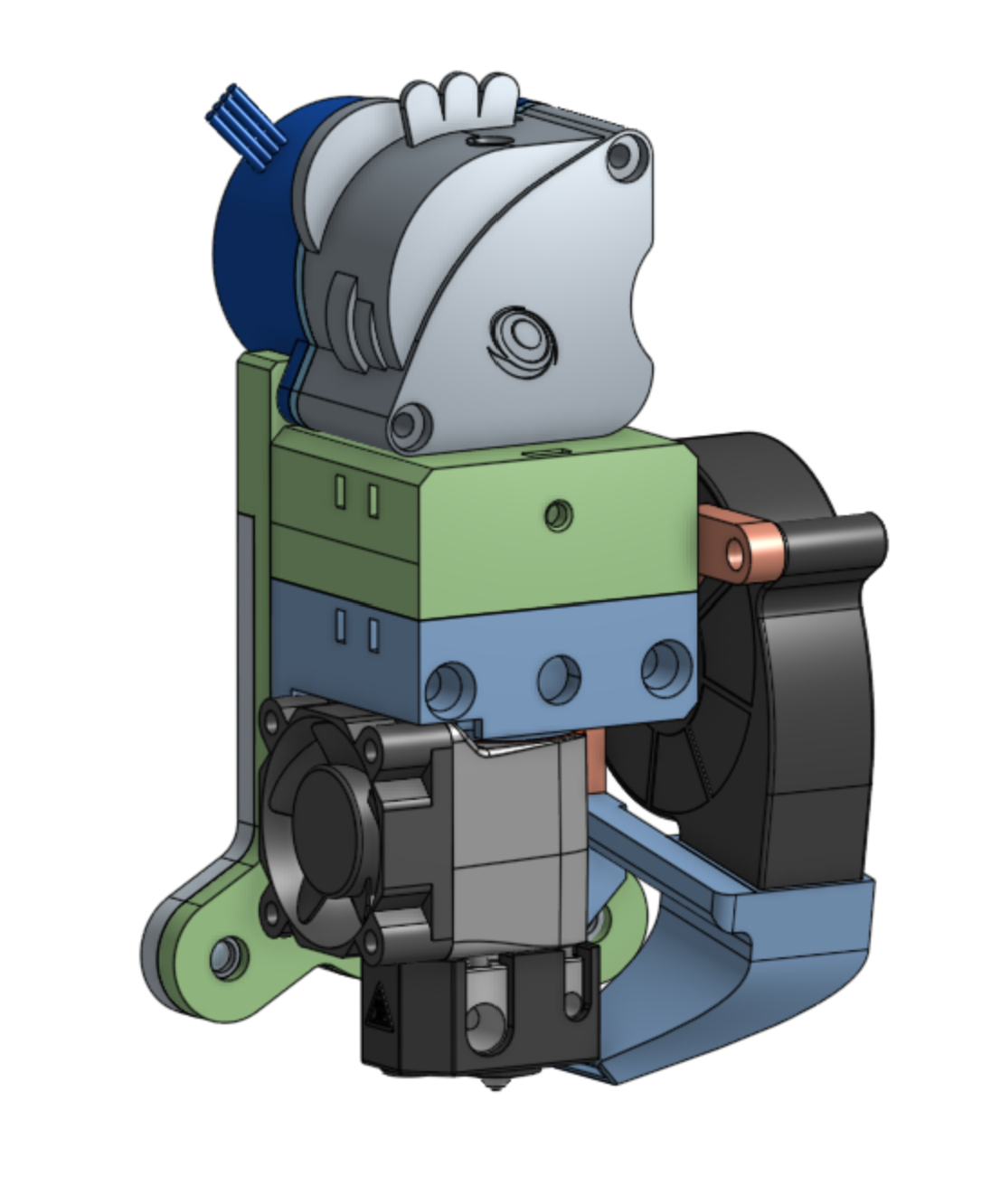

Phaetus Dragon HF / LGX Lite (Tool v1)
PartQuantityComment
TC - Tool - Face.stl16 Perimeters / top / bottom
TC - Tool - LGX Lite Mount.stl16 Perimeters / top / bottom
TC - Tool - Dragon Mount.stl16 Perimeters / top / bottom
TC - Tool - 5010 Fan Mount.stl16 Perimeters / top / bottom
LGX Lite1
Phaetus Dragon1
3010 Fan w/ Duct1
8mm M3 Steel Ball 3
Helical Lock Ramp1From E3D
M3xD4.6mmxL5.0mm Heat Insert15
M3x6mm Grub Screw1
6mmx3mm Neodymium Magnet1
Bowden Tube (2mm ID, 4mm OD)1
M3x10 Countersunk Socket Head Screw5
M3x6 Socket Head Screw3
M3x16 Socket Head Screw4



Tool v1 Beta Tooling
PartComment
TC - Tool - Orbiter Face.stlTool interface plate without LDO36 motor support
TC - Tool - LGX Lite Mount CAN.stlLGX Lite mount with CAN board support
TC - Tool - Orbiter Mount CAN.stlOrbiter mount with CAN board support



Software Configuration

The configuration here presumes the usage of Klipper - Duet is not covered.

Plugin Installation

Install this excellent Klipper plugin by Andrei Ignat - [https://github.com/TypQxQ/Klipper_ToolChanger](https://github.com/TypQxQ/Klipper_ToolChanger)

Klipper Configuration

I have uploaded my RatOS configuration folder to the following repository:

[https://github.com/psyvision/vcore3-configuration](https://github.com/psyvision/vcore3-configuration)

This is mostly typical RatOS configuration and the tool changer configuration is in the “additions” folder:

File / FolderPurpose
coupler.cfgConfiguration and macros relating to the tool head coupler
dropoff.cfgMacros relating to dropping tools onto docks
pickup.cfgMacros relating to picking up tools from docks
tX.cfgConfiguration relating to individual tools
toolchanger.cfgToolChanger Klipper plugin configuration
tools.cfgToolChanger Klipper plugin tool configuration

speed-limits-performance.cfg

steppers.cfg

tmc2209-performance.cfg

These files provide the same functionality/configuration as the original RatOS configuration except removing the extruder configuration



Version History

VersionDateComment
v0.1028/10/2022Added Tool Version 2
v0.915/10/2022

Added Orbiter CAN mount - currently under test

Added LGX Lite CAN mount - currently in use

Updated all dock files

v0.813/07/2022

Added Revo Mount for using M12 A2 Nut

Added LGX cable brace

v0.728/06/2022Added Tool STEP files
v0.608/04/2022Updated TC - Head - Back files
v0.501/04/2022

Revised dock with cable bracing

Partial STEP file publication

v0.431/03/2022

Improved dock cable management

Mirrored fan/cable on LGX Lite mount

Software configuration update

Add head bottom with ADXL mounting

v0.310/03/2022

Update dock files

Added carriage motor brace options

v0.225/02/2022Updated after initial trials
v0.121/02/2022Initial beta release



Attribution

This modification would not be possible without designs from:

  • E3D Online (Tool changer)
  • Pawel Kucmus (EVA platform)
  • Joshua Vasquez (Jubilee 3D)
  • Andrei Ignat (Klipper Toolchanger plugin)
