Modelo 3D DIN Rail Socket Holder por phillips no Printables

Descrição

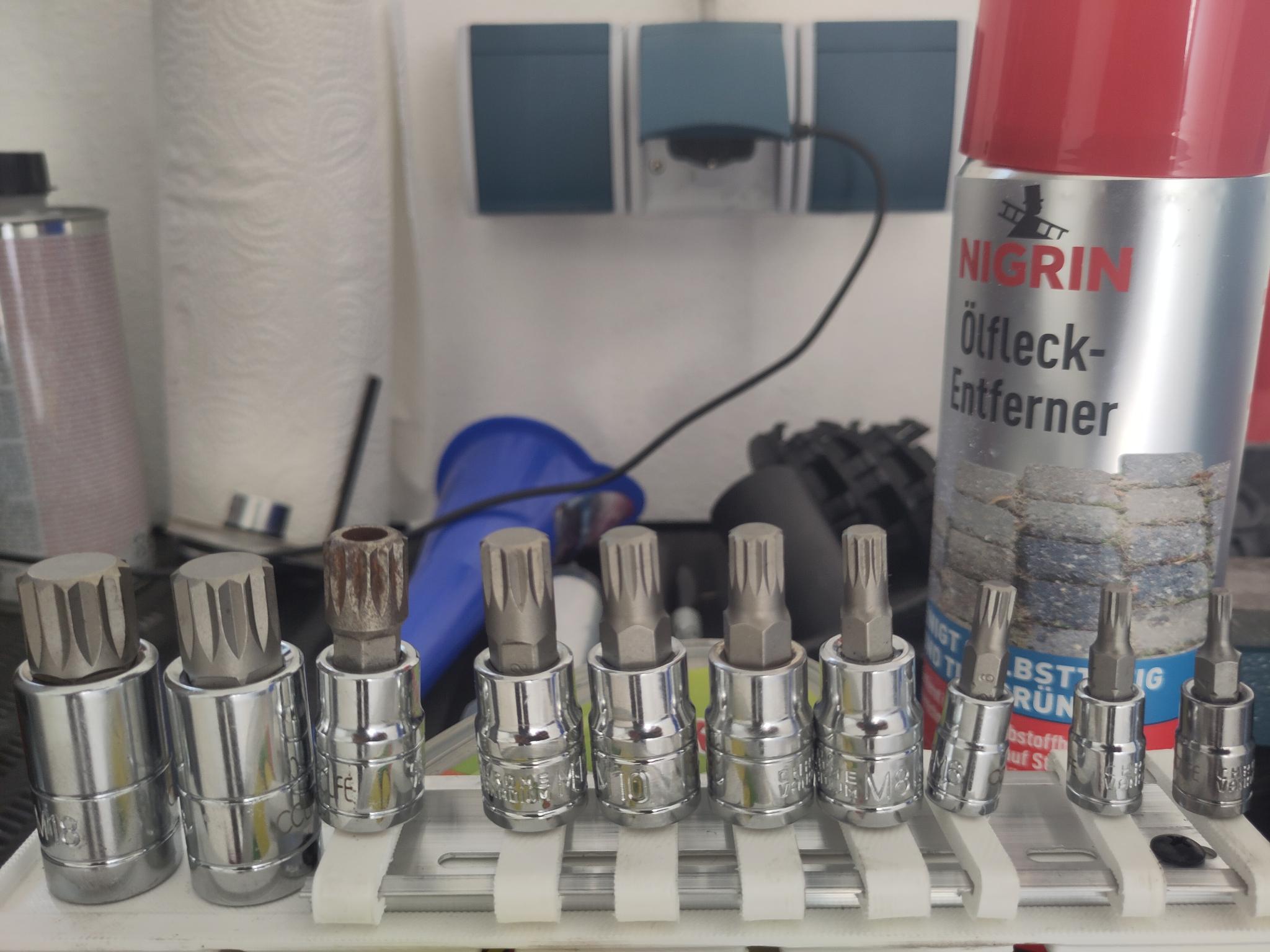

This is to mount different sizes of sockets at a variable distance from another. All the other holders I found depended on the outside diameter being the same as my socket set, or the spacing wasn't changeable.

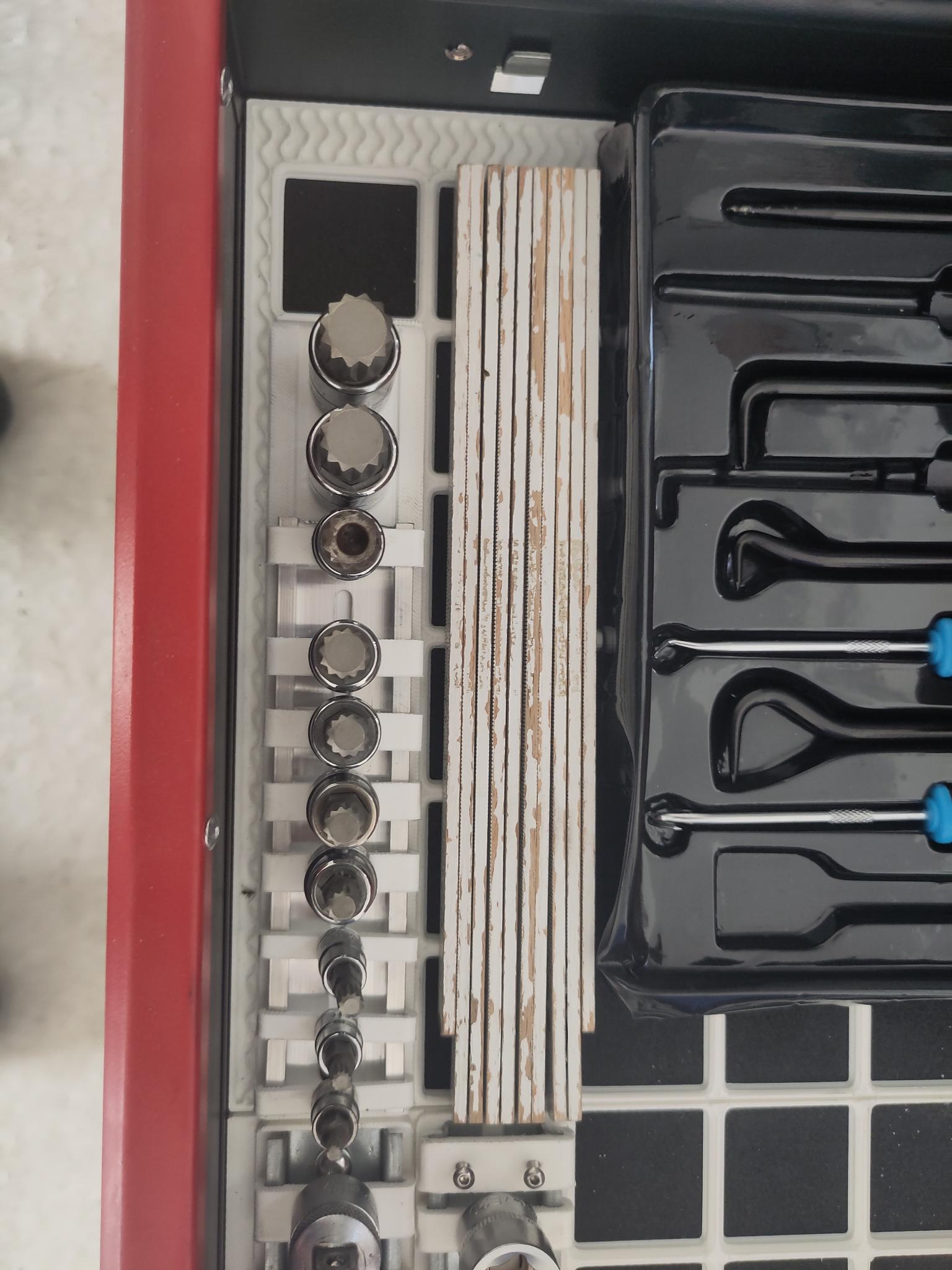

Included are sliding mounts for ½" 3/8" and ¼" sockets. The holders get put onto the rail before mounting the rail to the gridfinity bin. It is also possible to remove the lips at the edge of the gridfinity bin and use the clamps, then they holders can be swapped out without taking off the rail.

I also included 2 ½" socket holders directly on the din rail to accommodate two longer sockets I have.

If you make a change to have a special socket or something work please post it as a remix so we can all benefit.

Printables

DIN Rail Socket Holder

Publicado em 30 de jul de 2025

8
Curtidas
10
Downloads
Categoria Tools
Tags
socket sockets din dinrail dinrailmount socketholder gridfinity gridfinty socketset gridfinityholder socketstorage
Licença Creative Commons — Attribution — Noncommercial
Arquivos (11)
Socket Holder DIN Rail Assemblies.step 2.6 MB
Gridfinity Socket Holder 1x6.stl 318.2 MB
Clamp 2.stl 114.4 MB
Socket Holder DIN Rail 3-8.stl 57.3 MB
Socket Holder DIN Rail 1-4.stl 36.3 MB
Gridfinity Socket Holder 1x3.stl 230 MB
Clamp 1.stl 55.6 MB
Gridfinity Socket Holder 1x4.stl 259.4 MB
Gridfinity Socket Holder + 2 1x5.stl 287.4 MB
Socket Holder DIN Rail 1-2.stl 75 MB
Gridfinity Socket Holder 1x5.stl 287.4 MB
