Draw slides for pred Gridfinity Boxes

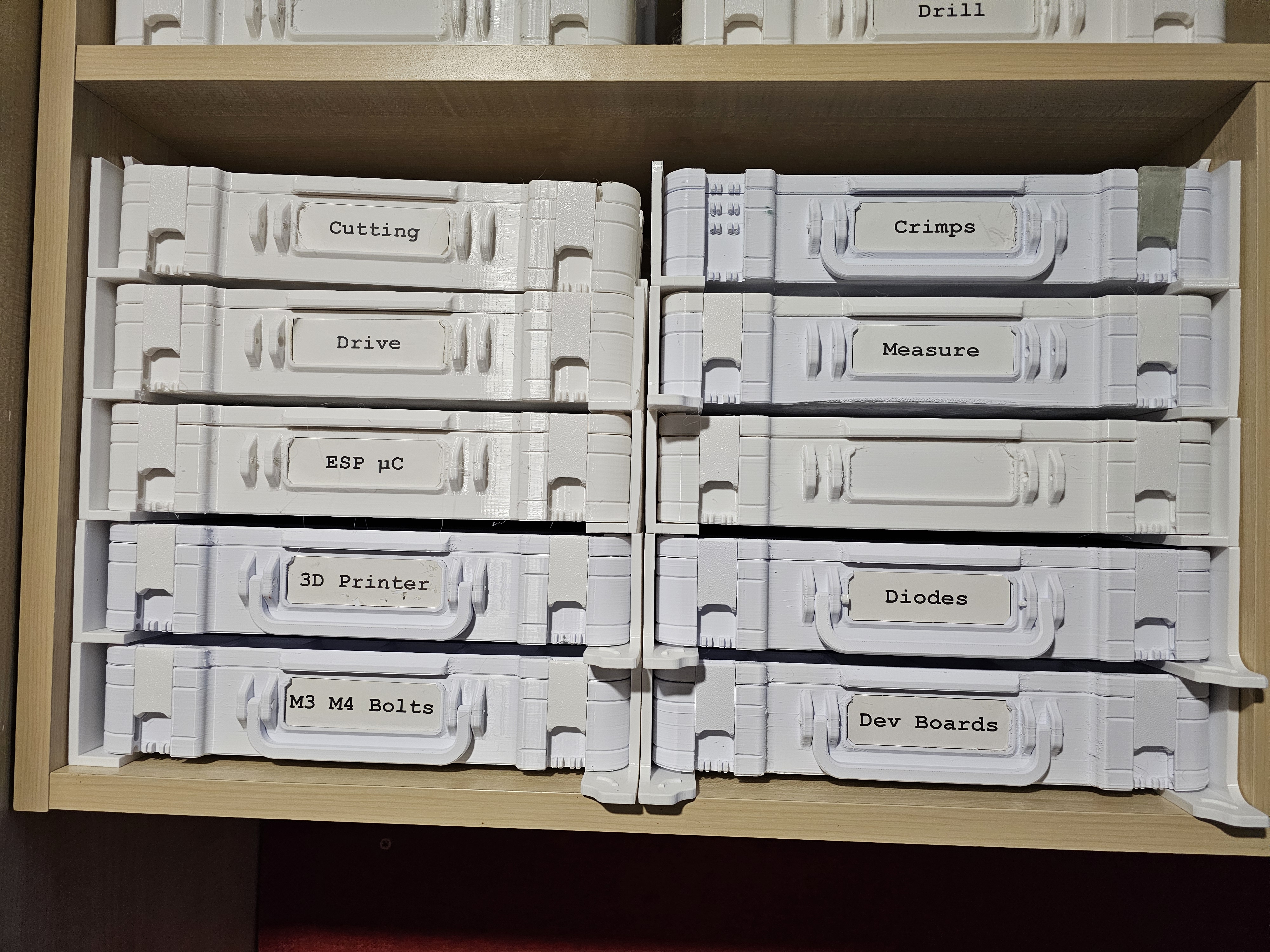

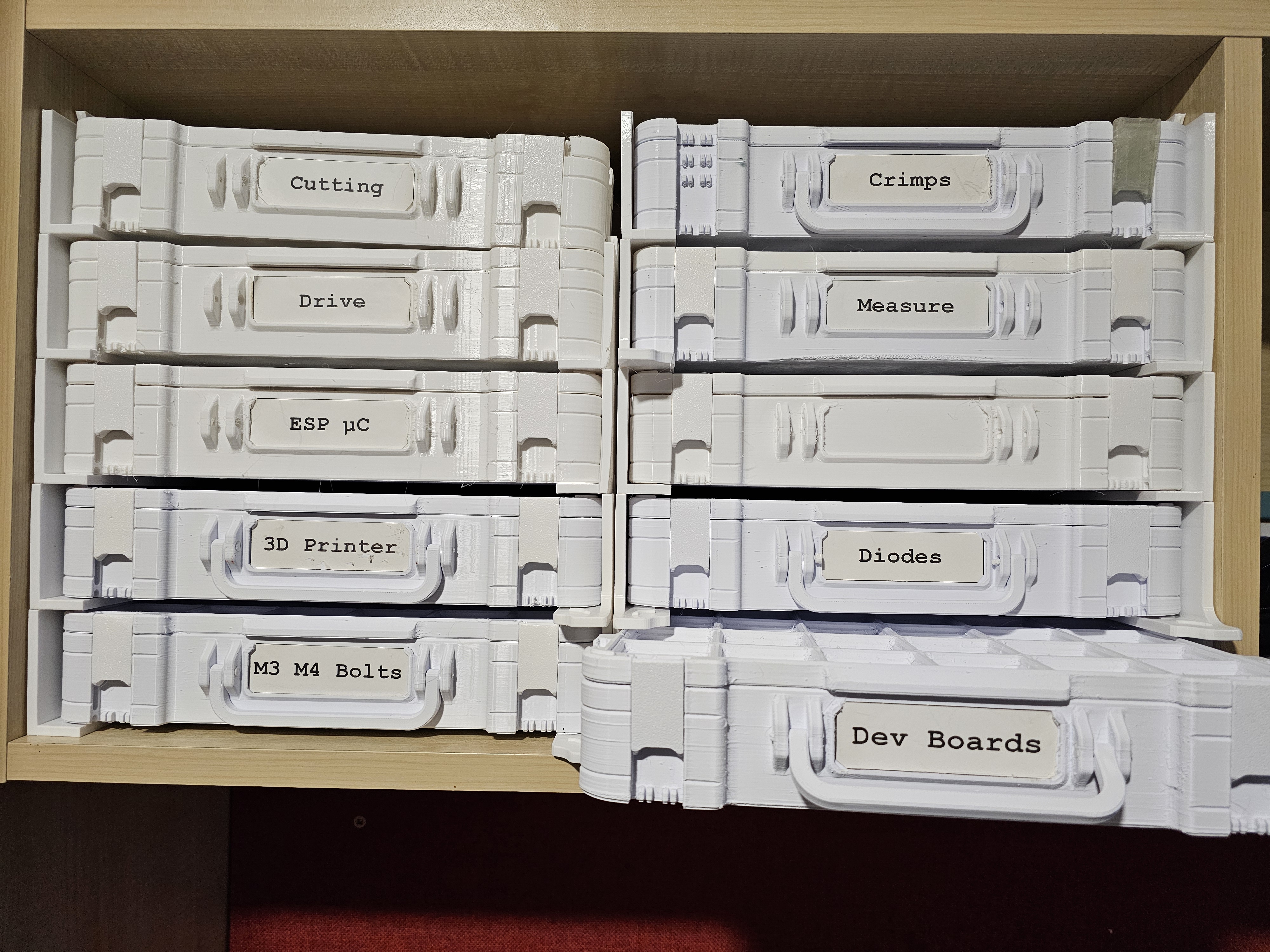

These snap-together drawer slides are designed to stack Gridfinity boxes vertically (5-unit depth) for easy access without unstacking everything above. The concept allows you to pull a box out like a drawer using the front handle.

Designed for 5 unit depth Gridfinity bins. However can be easily adjusted with the f3d file in fusion.

Snap-fit tolerances are tight – currently needs force to connect (I use my table leg!) but they hold very securely once assembled.

Stability is decent, especially when not removing all boxes at once.

Further refinements planned, including a better method to connect the rear ends of the slides.

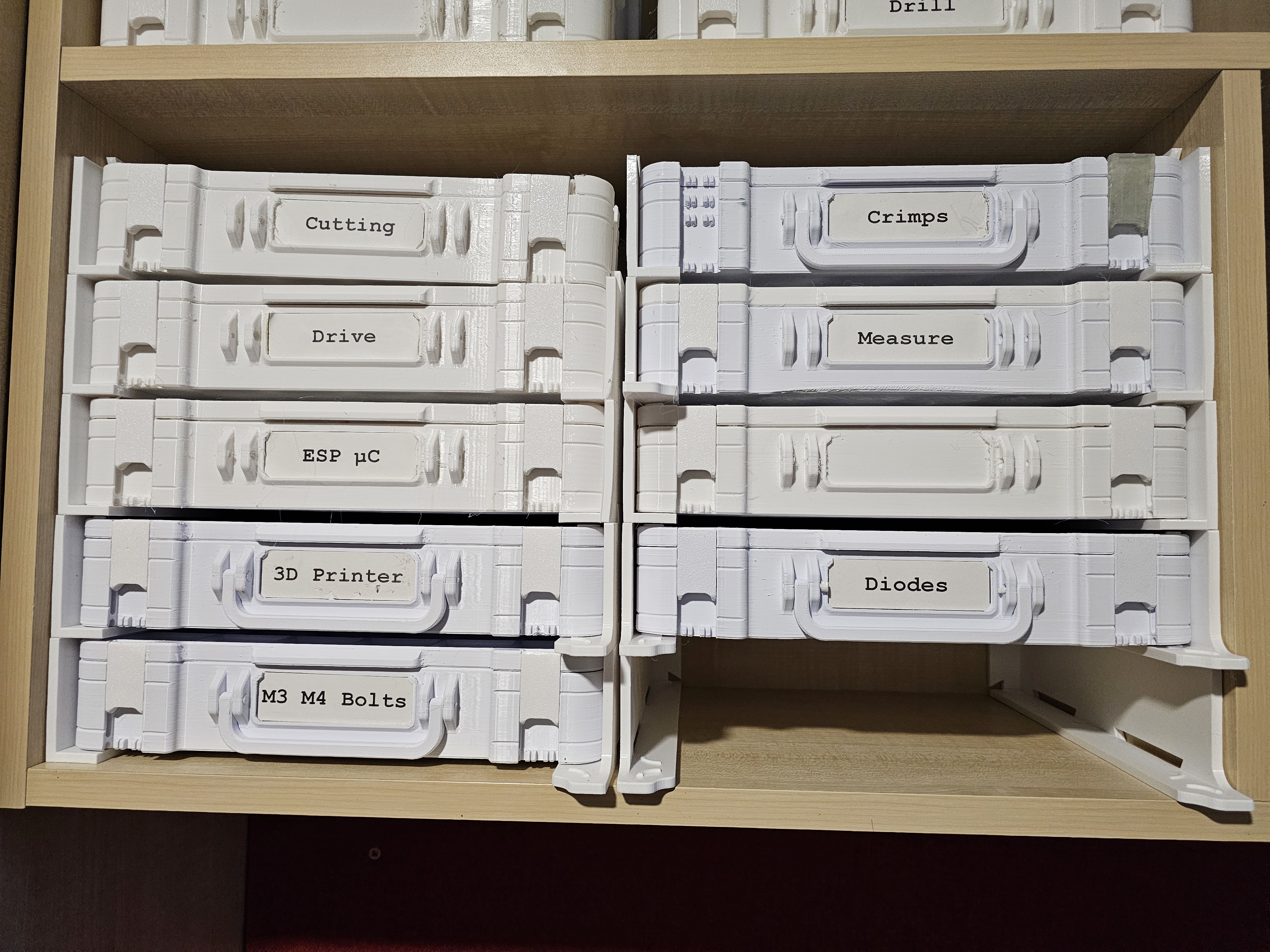

For best results, affix the slides to a base or enclosure so you can smoothly pull boxes out without shifting the entire stack.

This is a work-in-progress concept, but it’s already proving super useful in my setup!
