Descrição

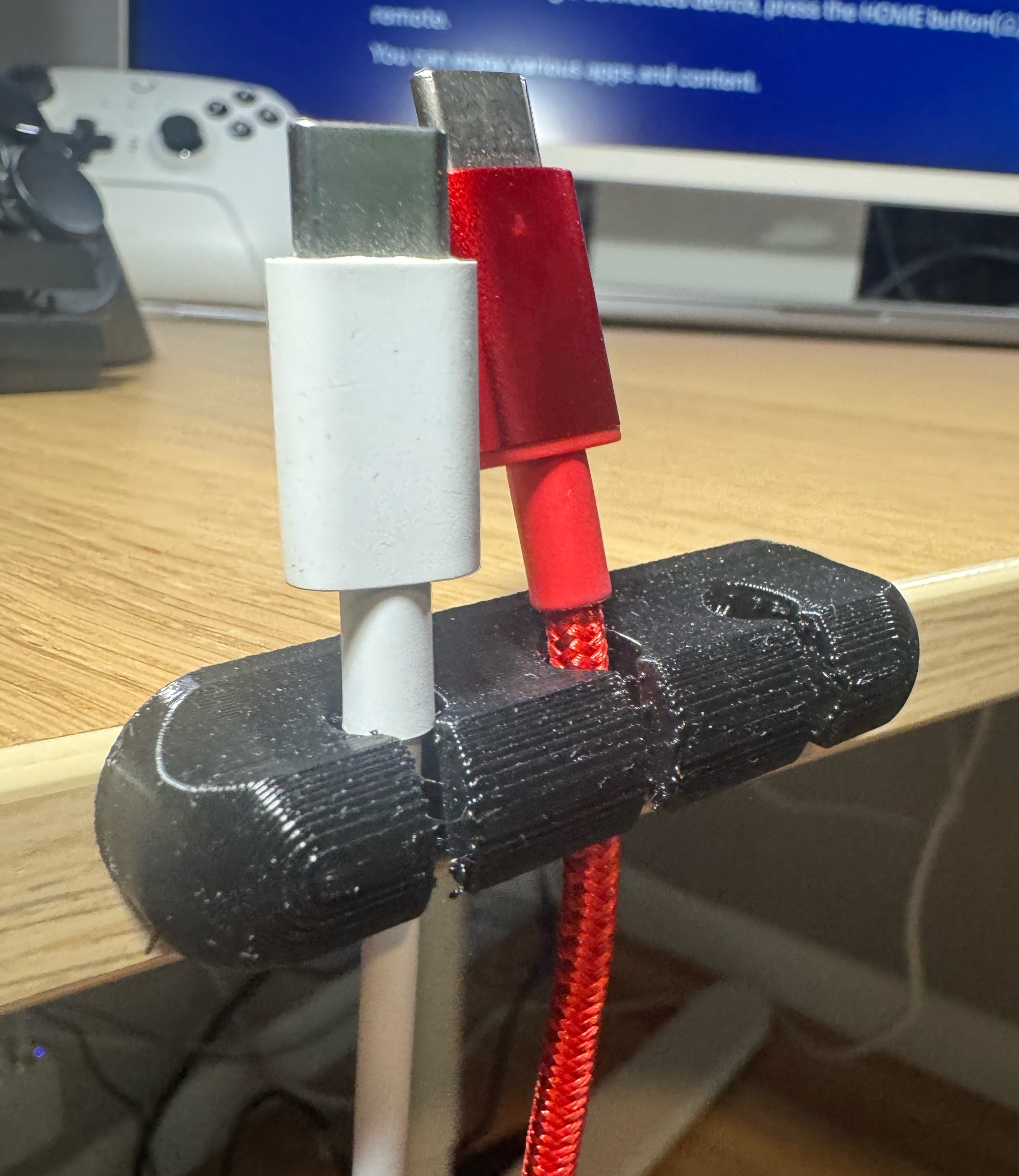

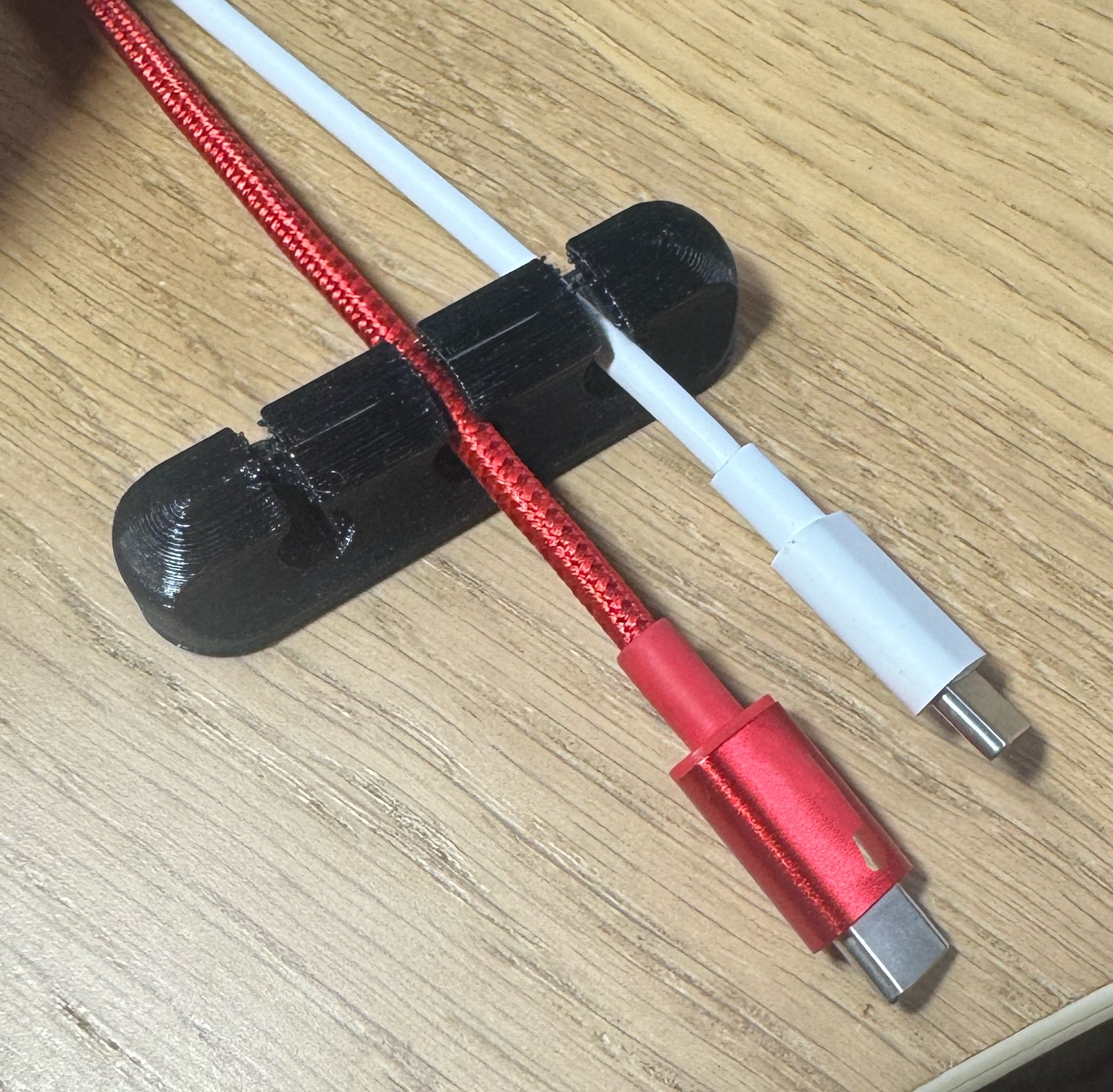

Printed in TPU with Creality Ender 3 S1.
Using the Parameters
Open the .f3d file in fusion 360. Select Solid → Modify → Parameters
| Parameter | Default | Description |
| POSITIONS | 9 | Number of cable positions. Odd numbers only 3+ |
| HEIGHT | 15mm | Overall height |
| WALL_OFFSET | 8mm | Offset of the center of the cable opeing from the base |
| CABLE_SPACING | 15mm | Space between cables |
| WIDTH | 16mm | Overall width at the base |
| CABLE_OPENING | 3.4mm | Opening for the cable to pass through |
| OPENING_RATIO | 0.4 | Top opening for the cable to enter, originally 0.5. Relative to CABLE_OPENING |
Note: If you change the parameters too drastically, you may need to correct the selection on the extrusion or sweeps.
3
Curtidas
39
Downloads
Categoria
Office
Tags
organizer
cable
desk
usb
organization
usbholder
cablemanagement
cableholder
usbcable
cableorganizer
Licença
Creative Commons — Attribution
Arquivos (5)
Cable_Organizer_3.3mf
38.8 KB
Cable_Organizer_5.3mf
29.1 KB
Cable_Organizer_7.3mf
31 KB
Cable_Organizer_9.3mf
33.8 KB
Parametric Cable Organizer v7.f3d
589 KB
