Modelo 3D Gridfinity case for "Mini temp tower" por osamutake no Printables

Descrição

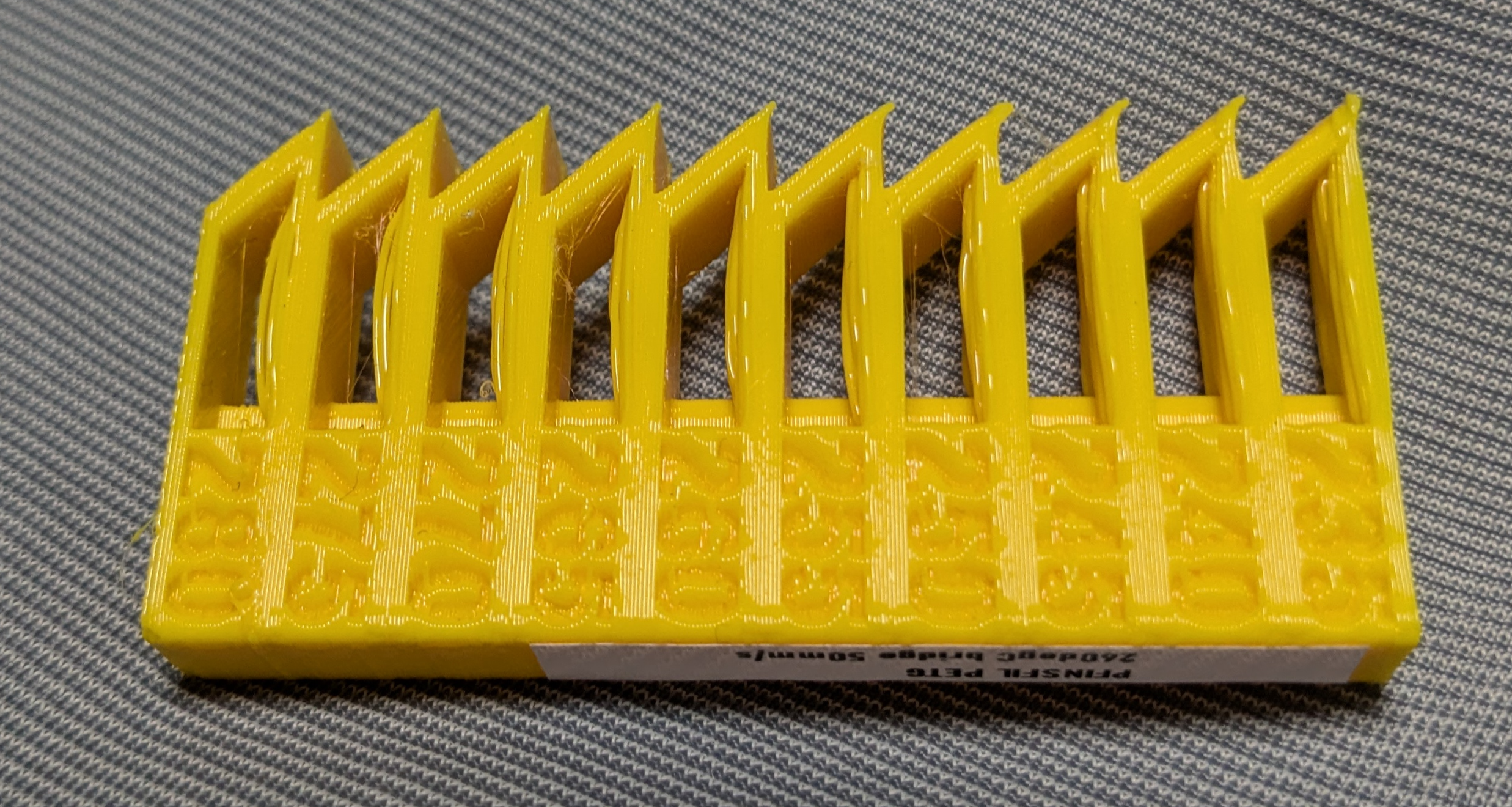

"Mini temp tower" by Tommy Zero is excellent. We can test a filament with short time and little materials.



I wanted to store the printed towers as filament swatches.

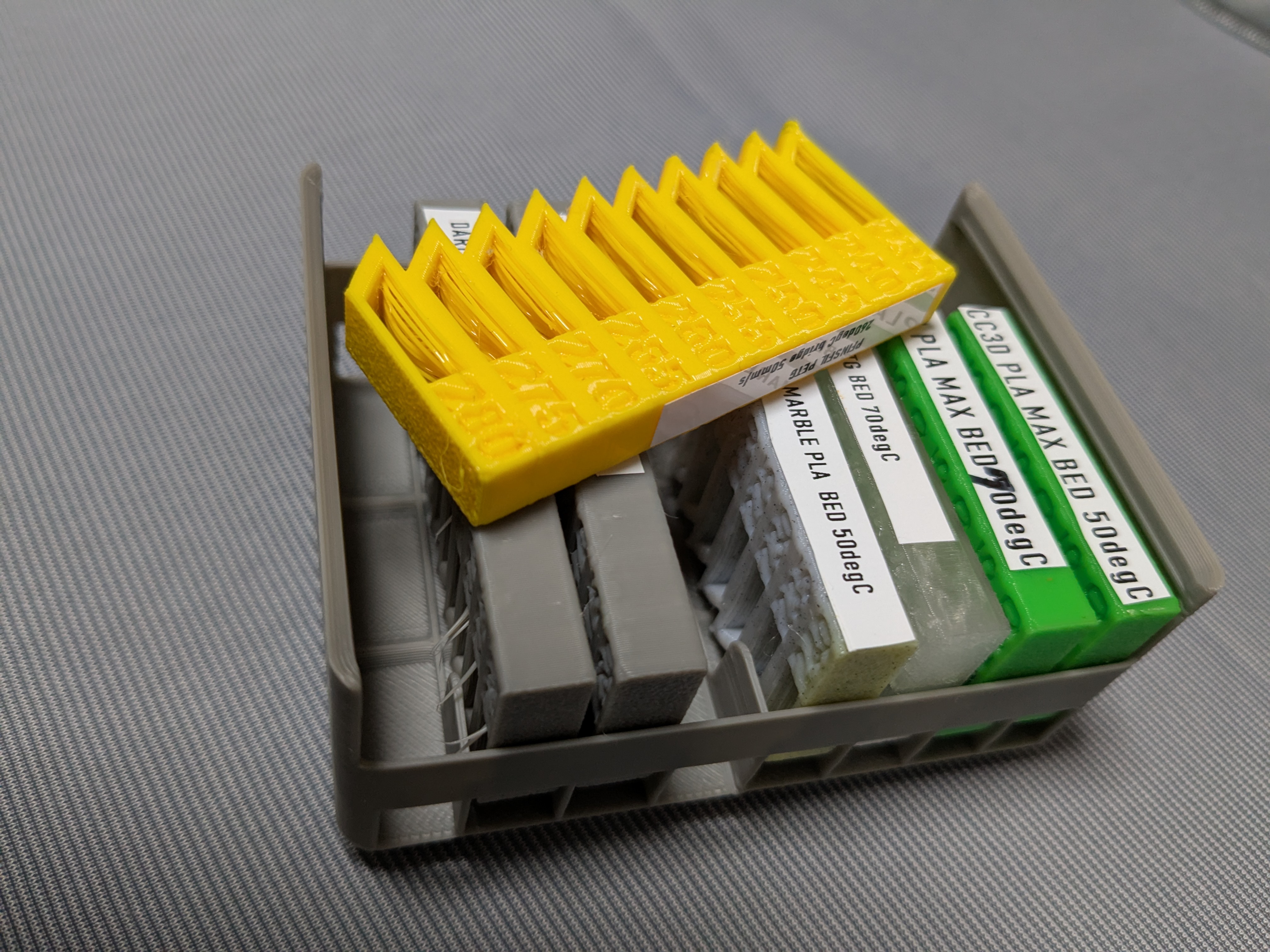

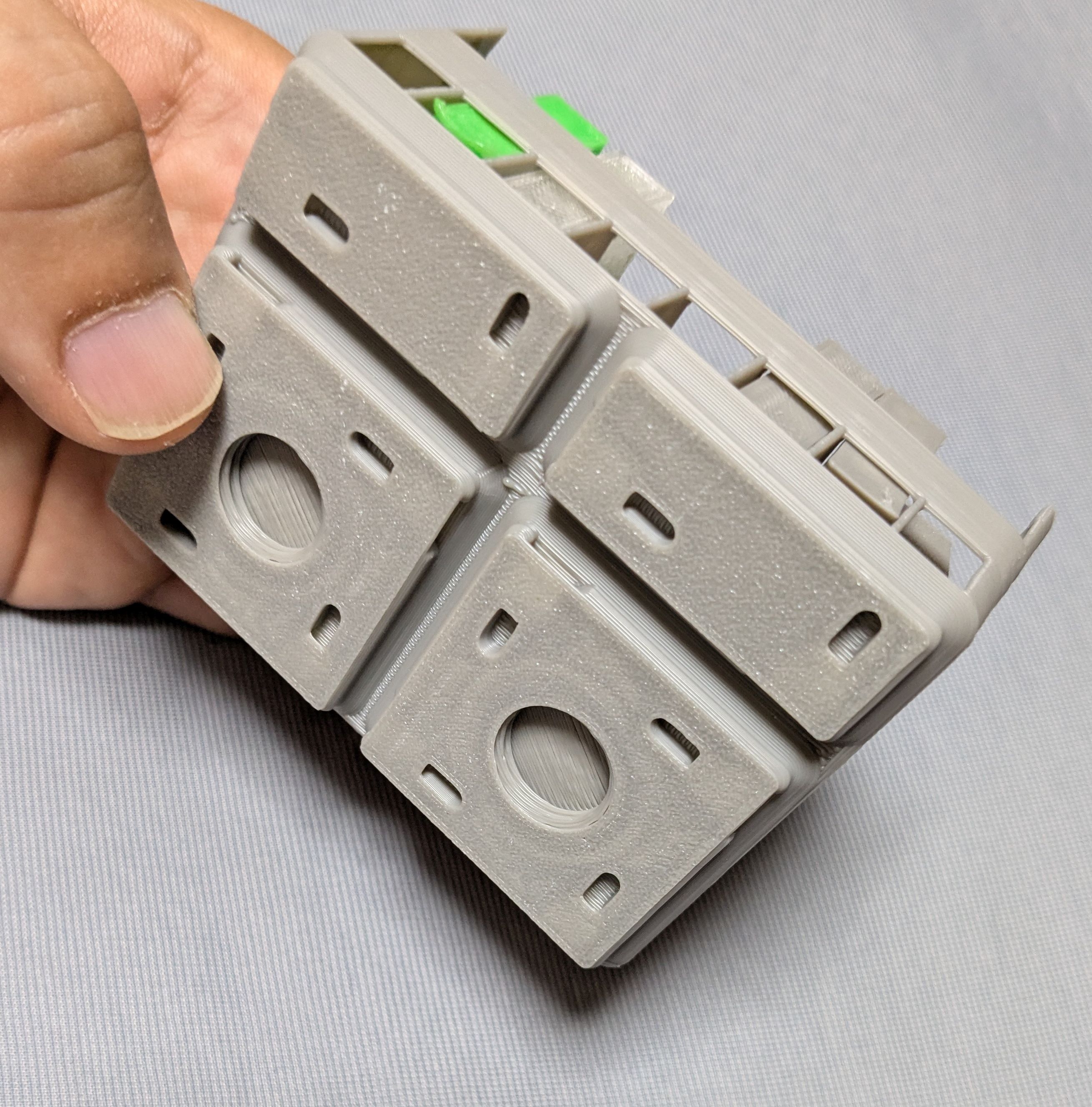

This model can store eight mini temp towers, and it is gridfinity compatible (fractional 1.5x2), refined with the snap-in magnet slots (ϕ6mm x 2mm) and thumb screw holes.

Fractional Gridfinity
[https://www.printables.com/model/616289-fractional-gridfinity](https://www.printables.com/model/616289-fractional-gridfinity)

Gridfinity refined
[https://www.printables.com/model/413761-gridfinity-refined](https://www.printables.com/model/413761-gridfinity-refined)

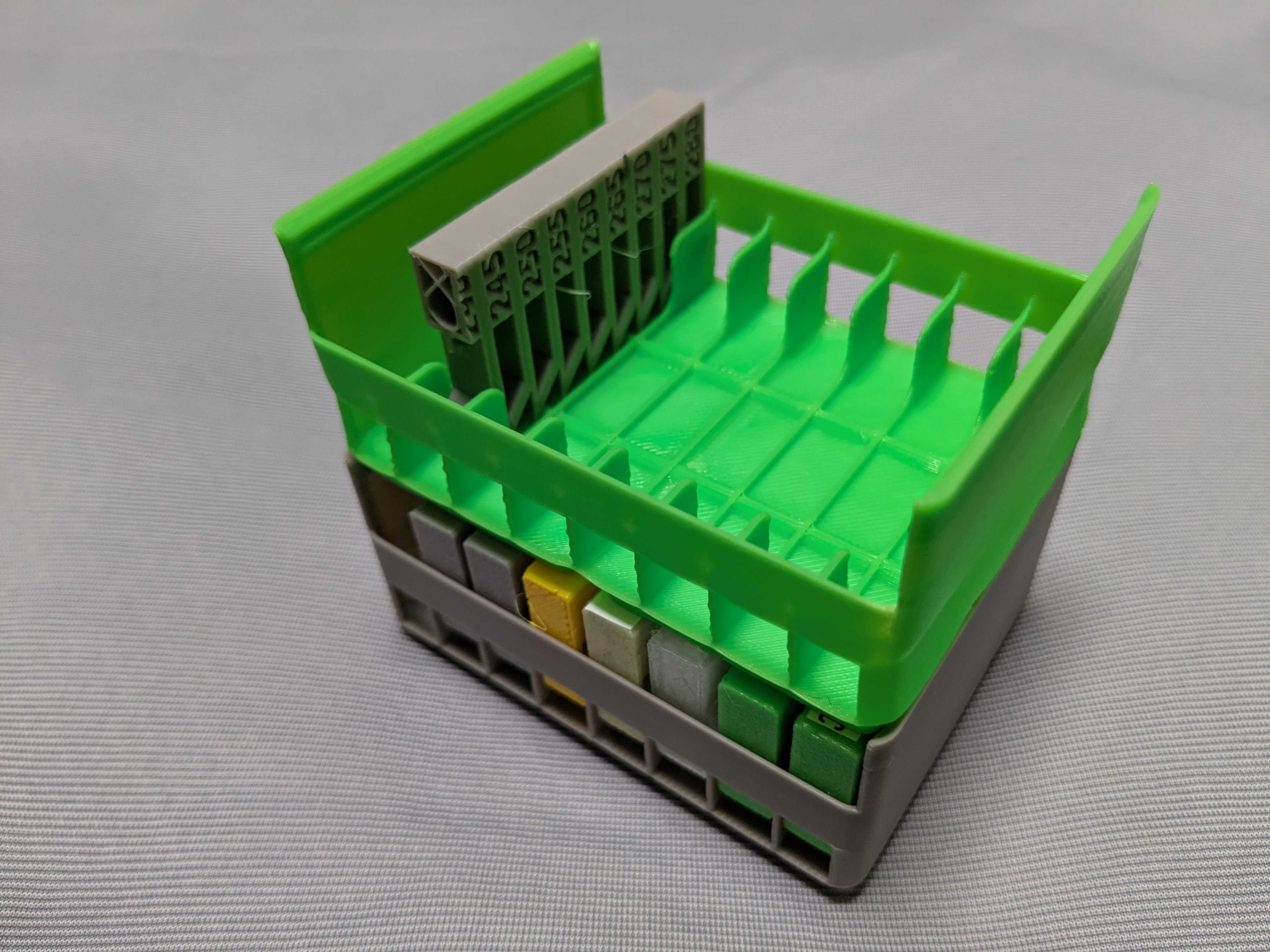

When stored, the top of the temp towers is at 5 unit (35mm) high and the case have partial gridfinity lips on both ends. So, the case becomes pseudo gridfinity 1.5x2x5 unit, allowing another Mini temp tower case stacked on it.



The side walls of the case have openings at the bottom to have the ability of storing warped towers.



Printing

  • No support is needed.
  • With PLA, the bridges in the side wall may pull and deform the other two taller walls, making the two slots at both ends too tight for full height temp towers. Choose the printer setting carefully or use PETG to avoid it. Or, you can just use those deformed slots to store partial height temp towers.



Happy printing!

Printables

Gridfinity case for "Mini temp tower"

Publicado em 16 de jul de 2025

4
Curtidas
10
Downloads
Categoria Test Models
Tags
case benchmark swatch filamentsample filamentswatch filamentsamplebox temptower filamentcard filamentsamplecard swatchcase swatchbox filamentswatchbox filamentsampleswatch swatchholder filamentswatchcontainer filamentswatchholder filamentswatchcase filamentsampleholder filamentcardholder
Licença Creative Commons — Attribution — Share Alike
Arquivos (1)
MiniTempTowerCase_FractionalGridfinity.stl 980.7 KB
