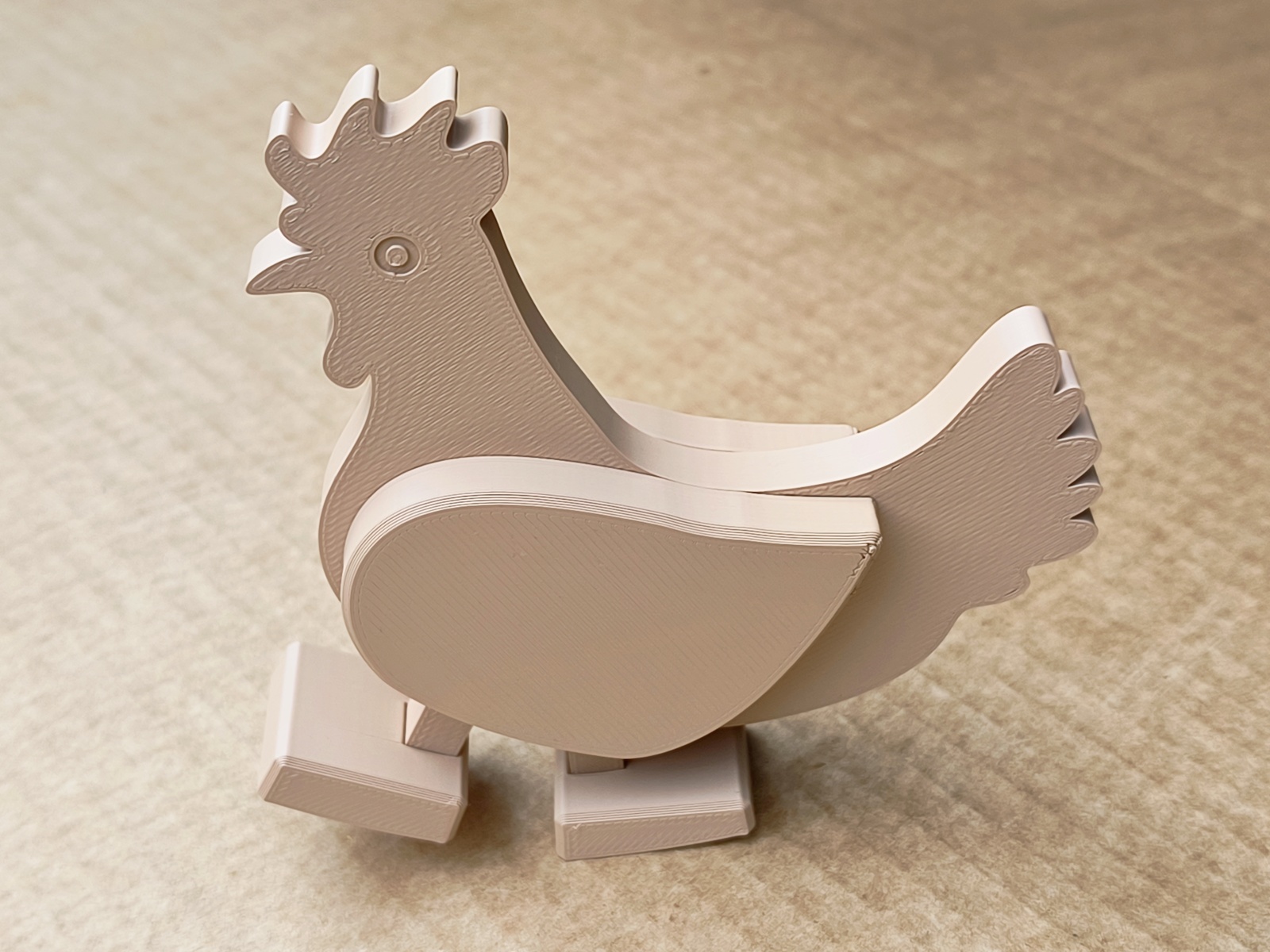

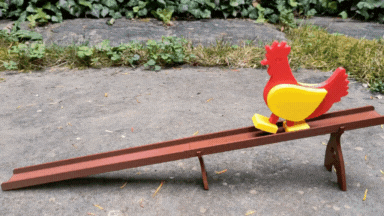

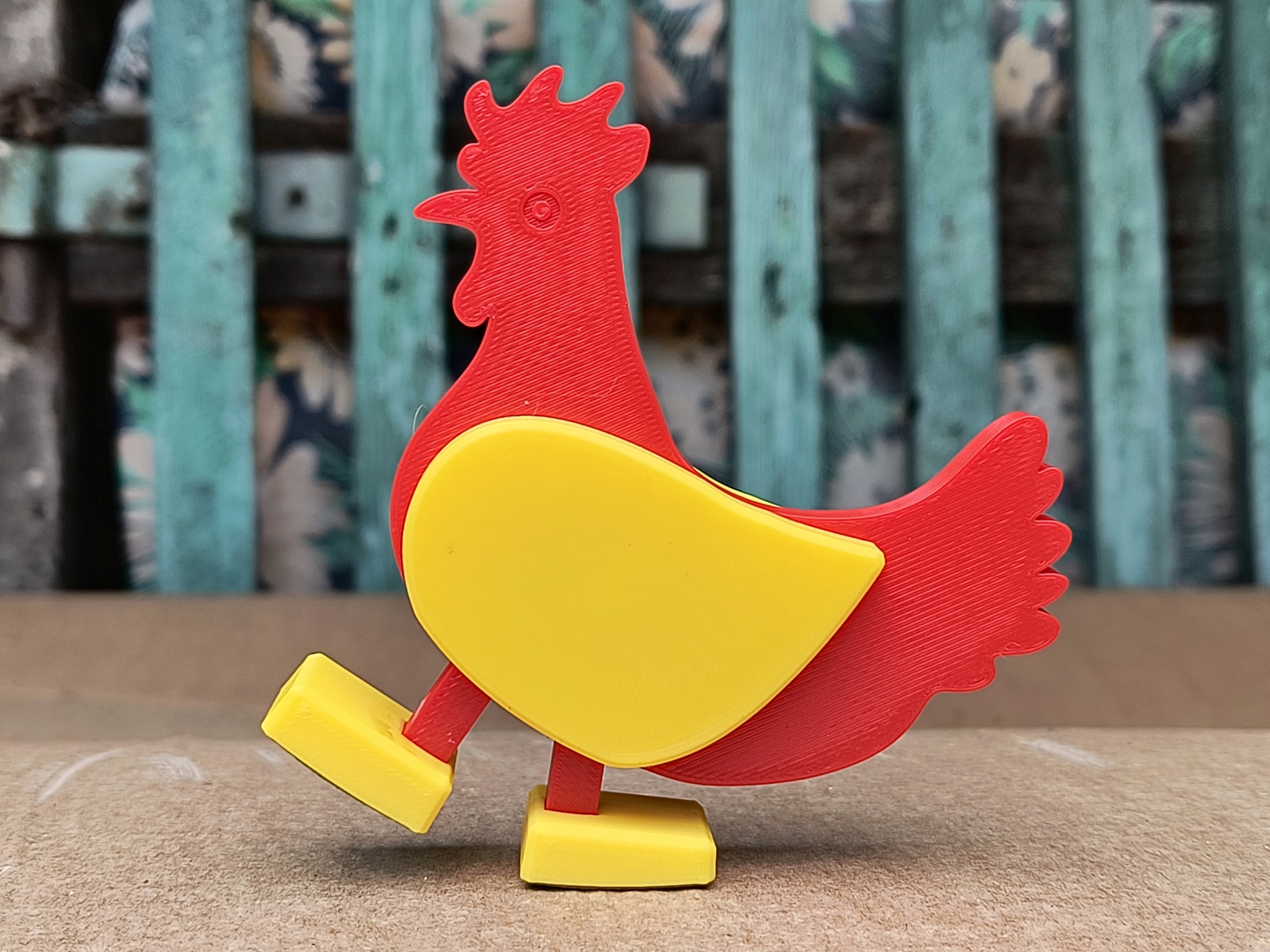

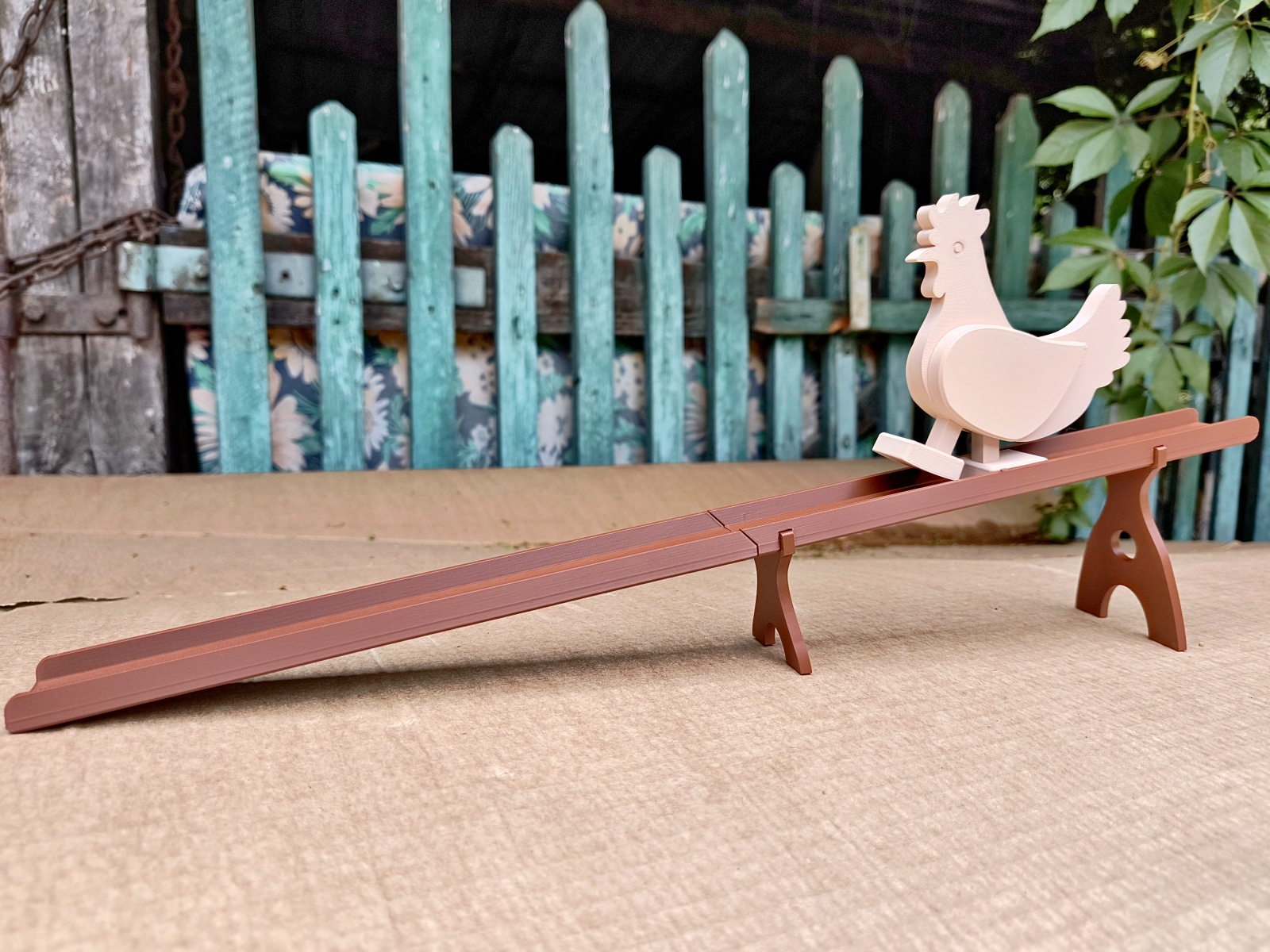

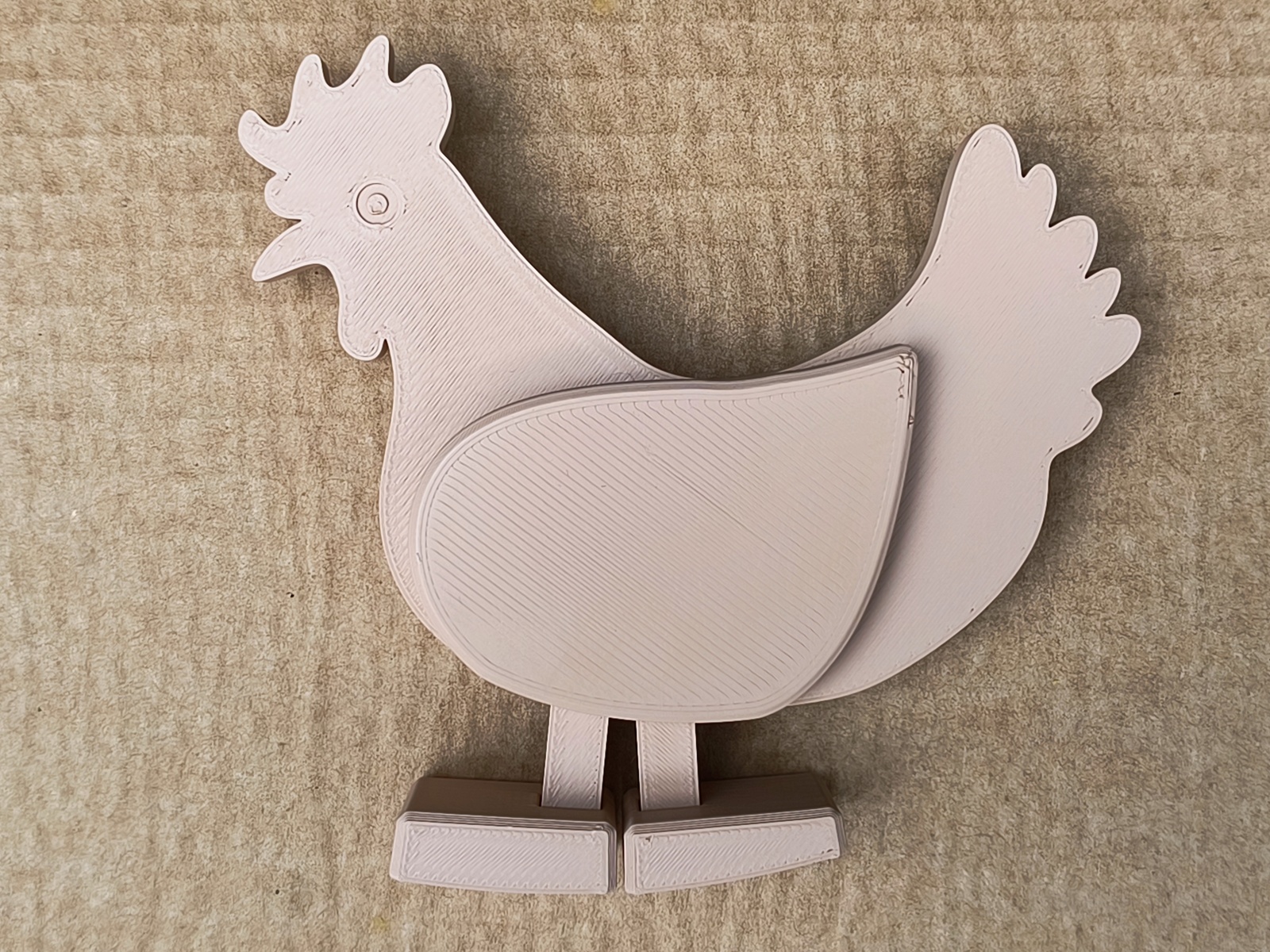

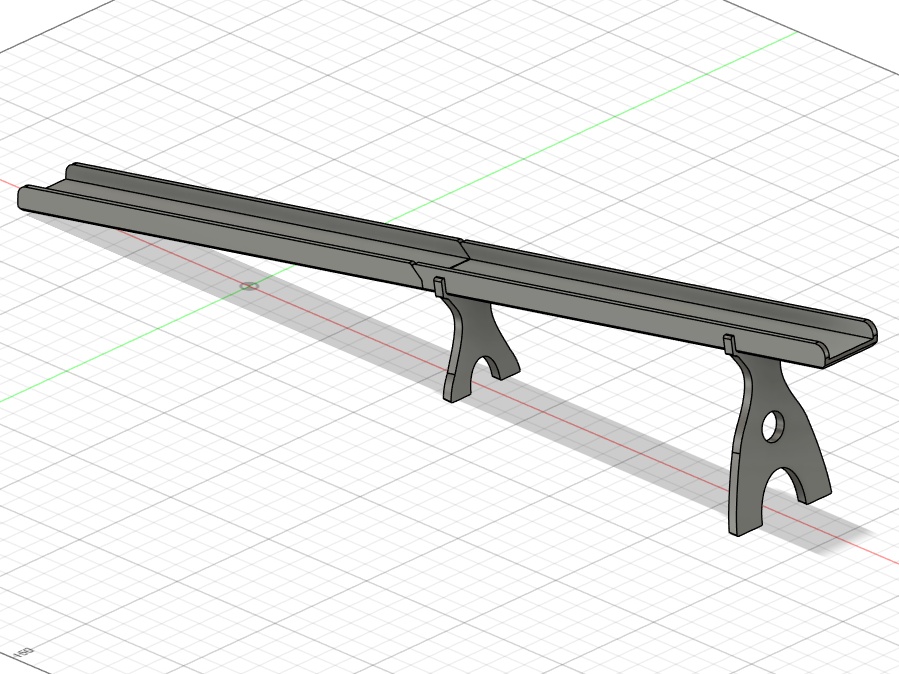

Fun articulated toy - a moving chicken walking along a sloping walkway.

It is a mechanical figure, no electronic device.
The parts fit together tightly, no glue is necessary.
You can use glue on the legs if you want.

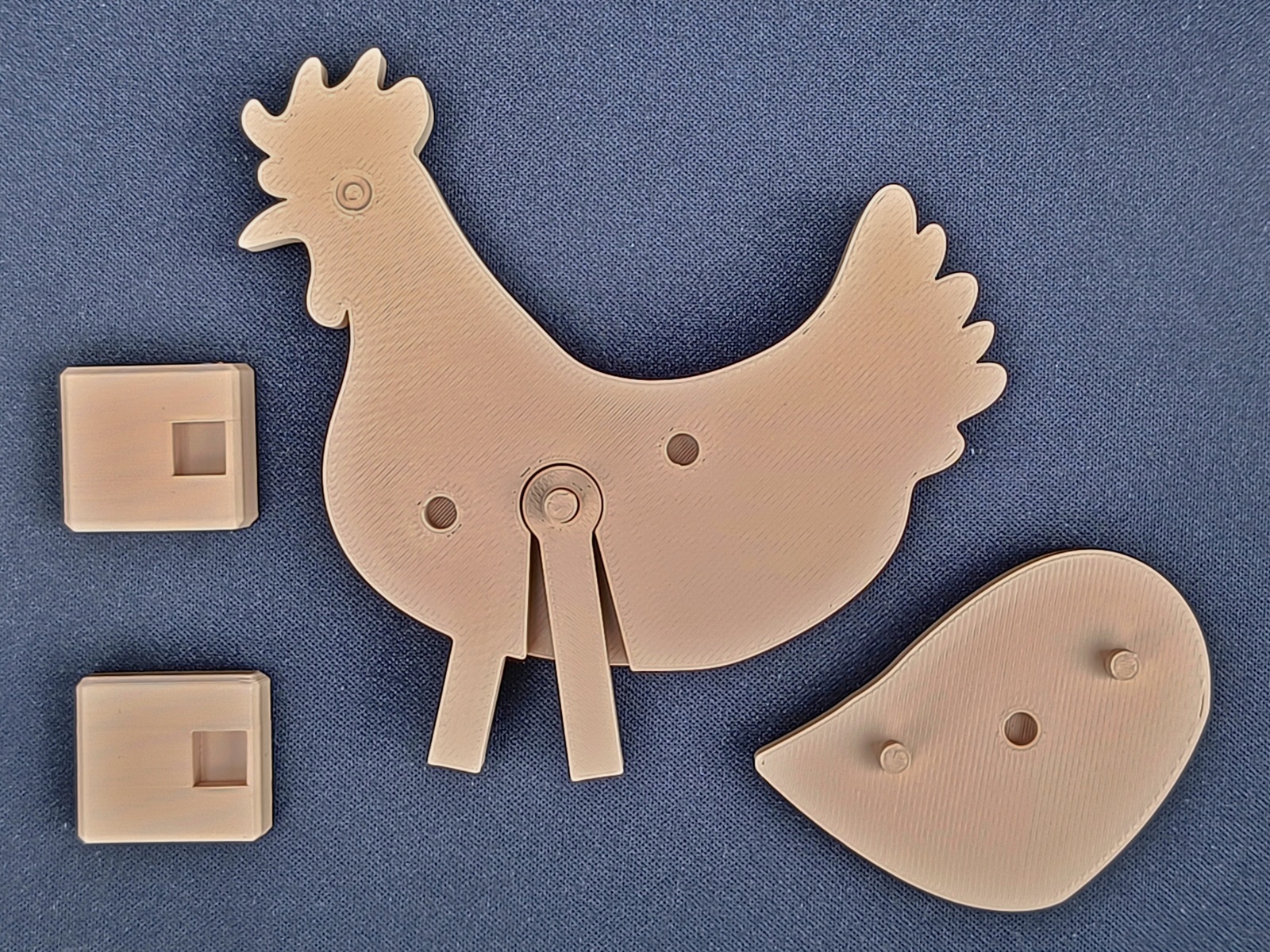

When assembling the figure, pay attention to the position of the legs, this is important for the chicken to walk properly.

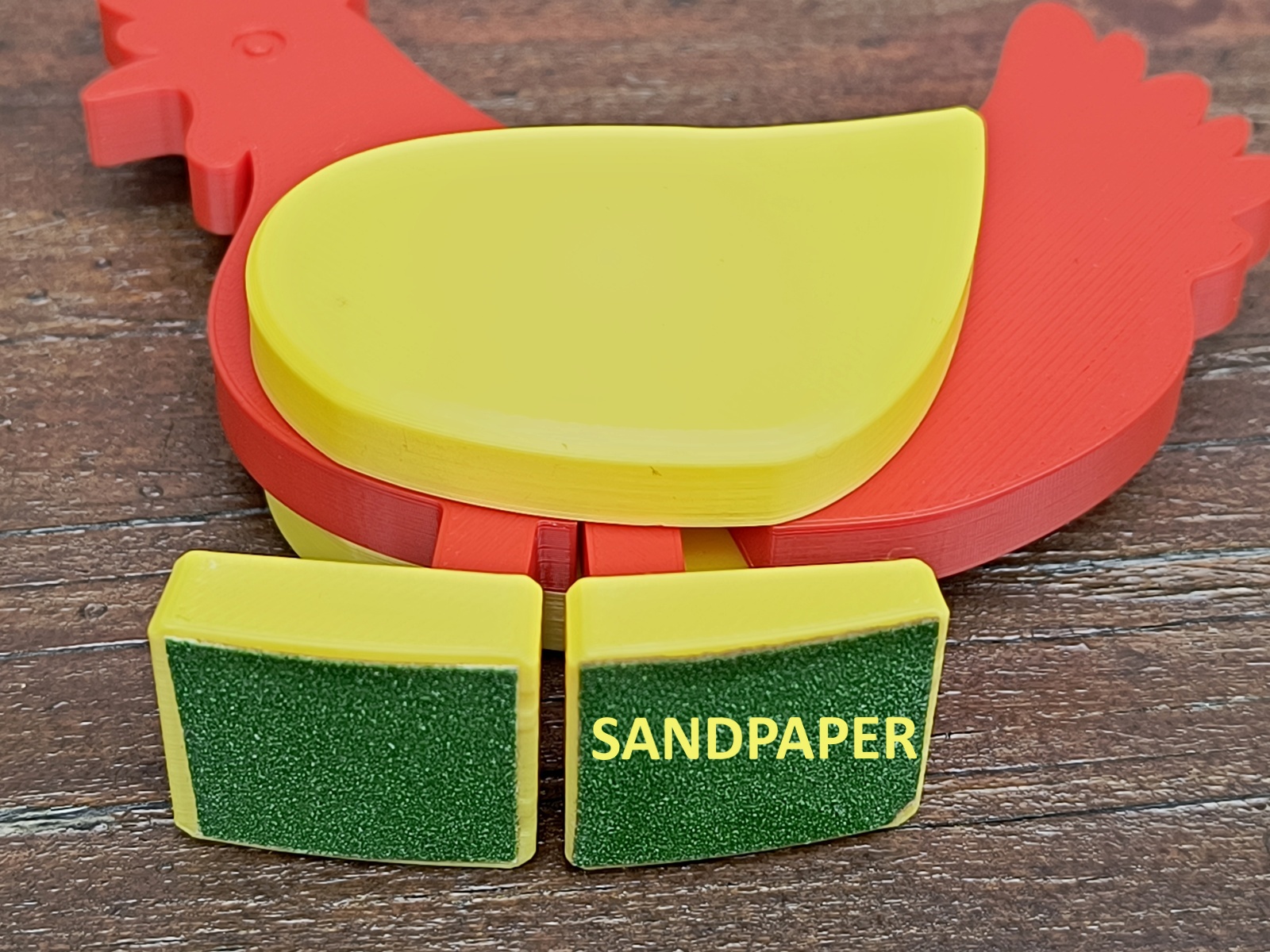

Important: It is necessary to stick pieces of sandpaper (120 grit) on the underside of the legs to prevent the chicken from slipping.

Print settings

0.2 layer height
2 perimeters
NO SUPPORTS, NO BRIM

Other optional print settings

Chicken:
15 % infill gyroid

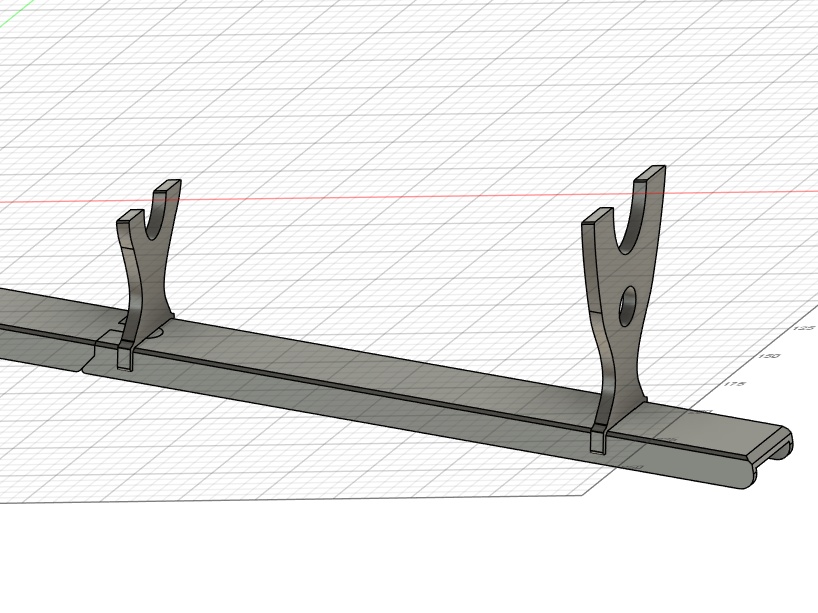

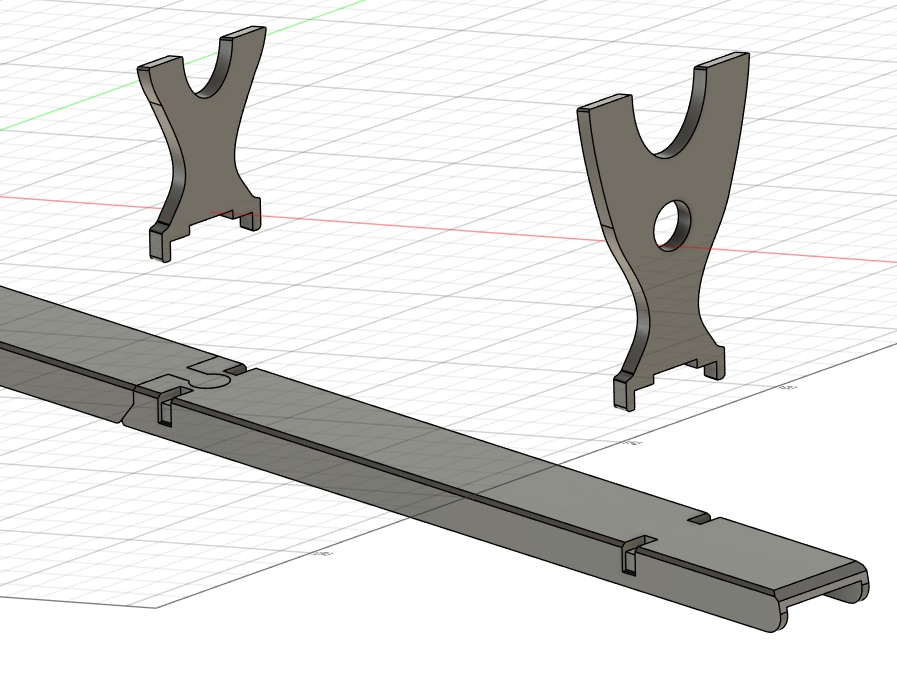

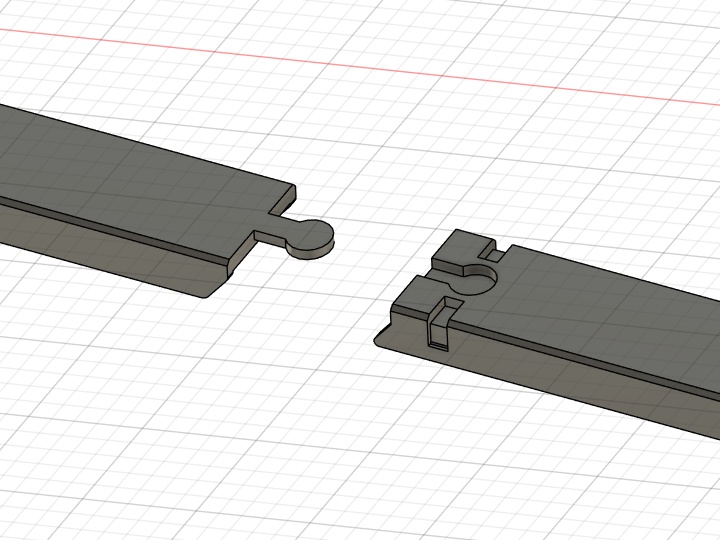

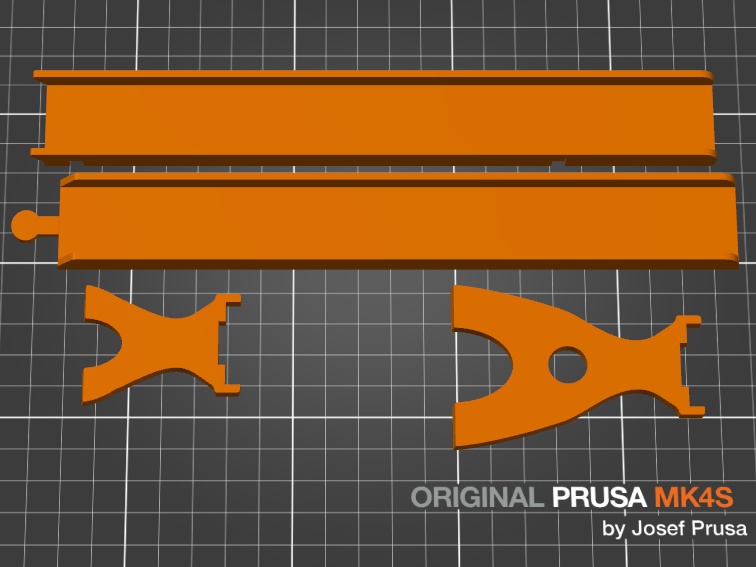

Walkway:
4 solid top layers
3 solid bottom layers
15 % infill grid

**********************

Update August 4, 2025:
Added file chicken_leg_larger_hole.stl for better leg movement.
There is a small joint tolerance when printing on some printers.
The gcode files have also been updated.
