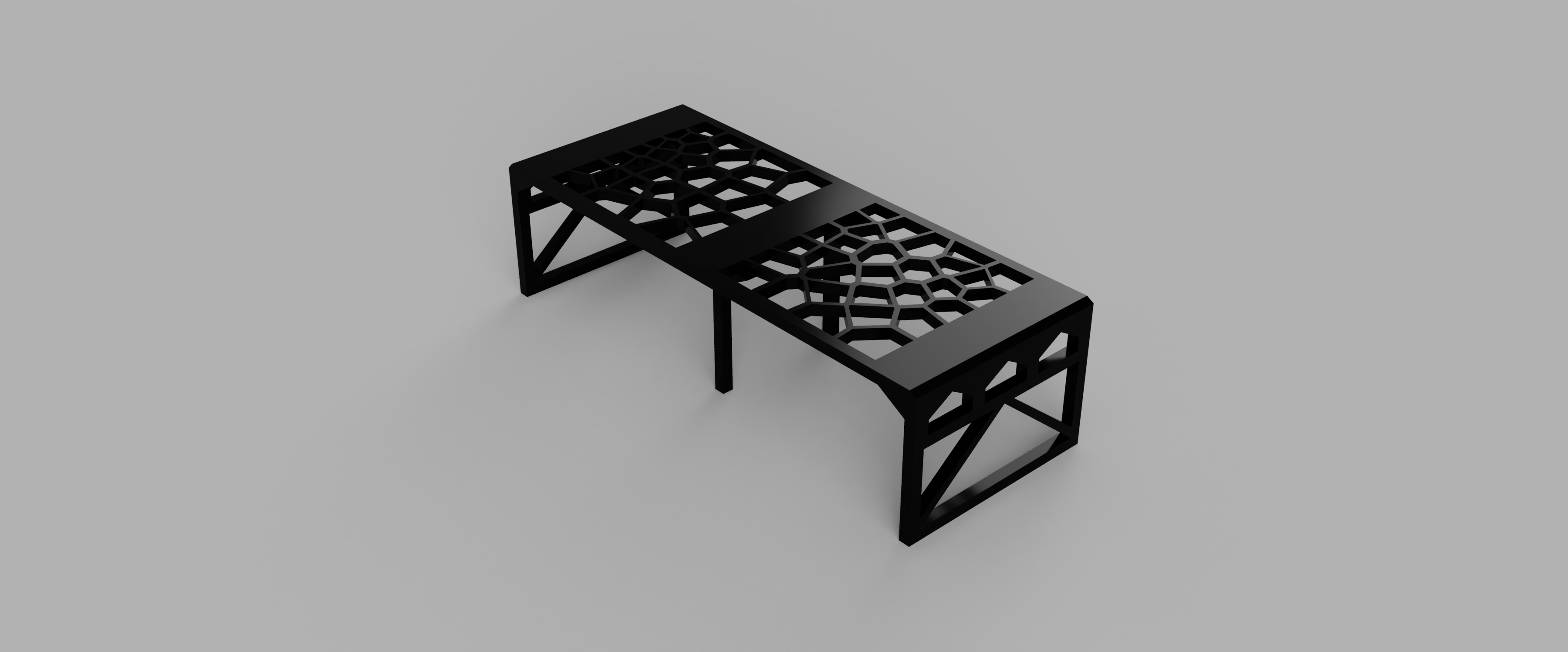

Parametric Kallax Shelf Riser

A riser designed for kallax shelves (the width is the full width of the shelf, and one third of the depth). I made this as an exercise to learn parametric designing in Fusion, and to suit different types of things I display on the shelves.

---

Advice for common displays:

Blurays

Display 3 layers of DVDs stood vertically.

For 3 layers: 90mm, 160mm

DVDs

Can display them 3 deep, but it is a little crowded. I think 2 layers works best.

For 2 layers: 120mm

For 3 layers: 80mm, 120mm

Books

Books are a lot less standard, so do some measuring for your own needs. I've not found a standard height that works best for everything :) 160mm is a little under half of the kallax height, so works well for any 2 layer deep setups.

---

Print Info

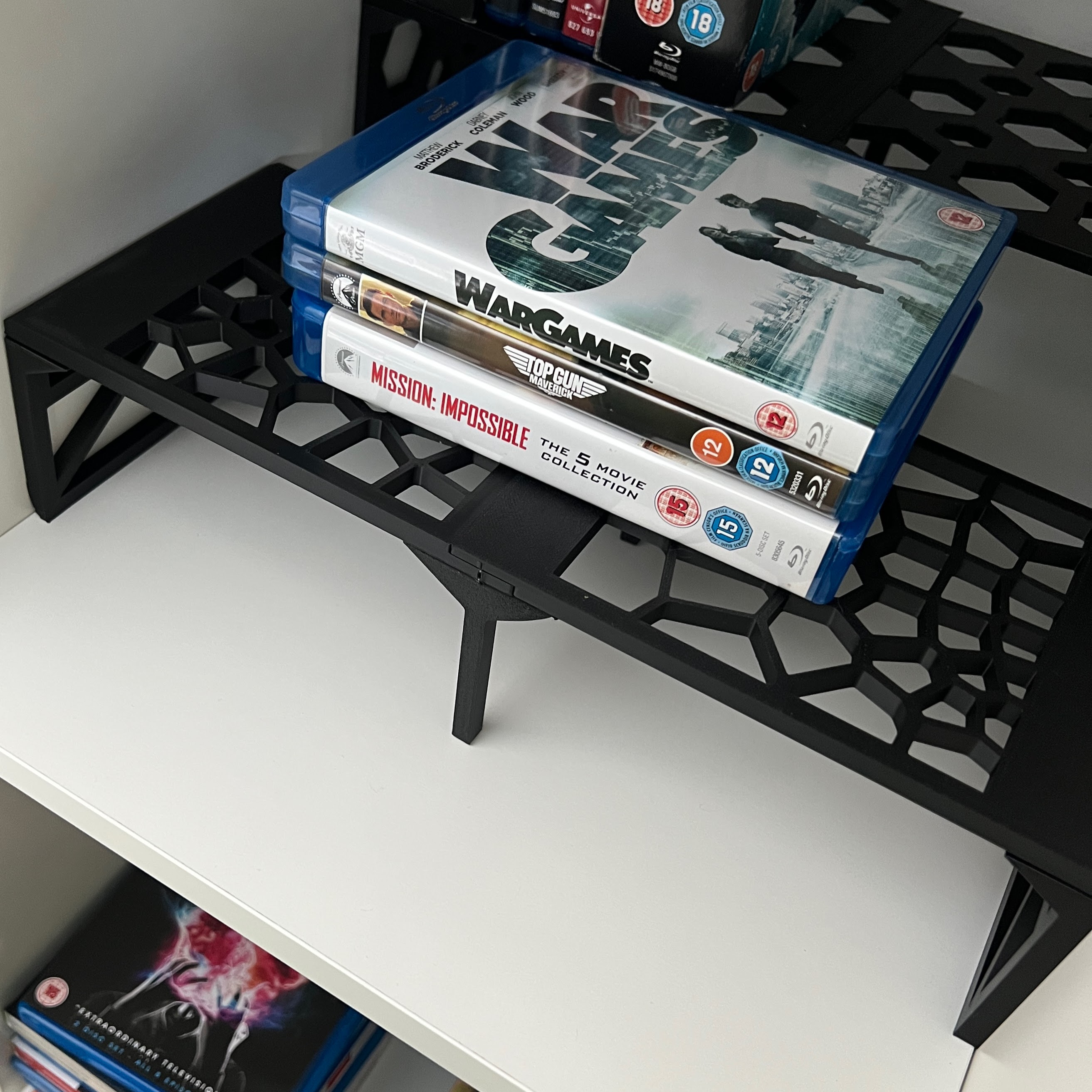

Photos shown are in Elegoo PLA (black) printed on the standard A-side Textured PEI plate on the Centauri Carbon.

0.4 mm nozzle
.20 layer height
2 walls
15% gyroid infill
Supports for the left + right walls

Material: 162g
