Modelo 3D Dana Crystal Models - tetragonal por ntdesign no Printables

Descrição

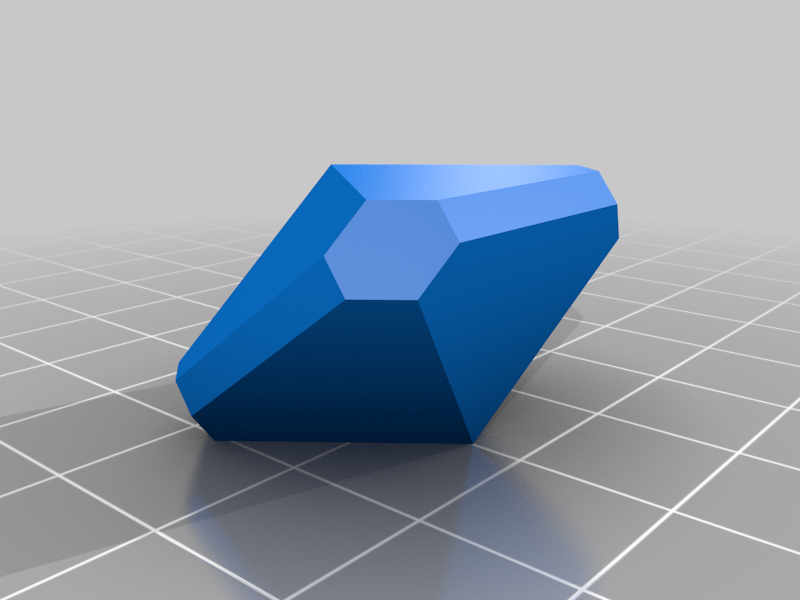

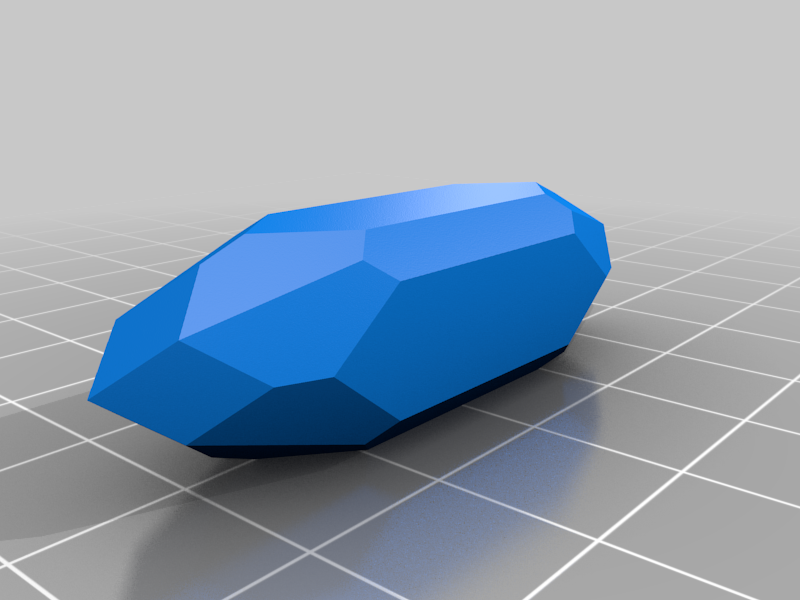

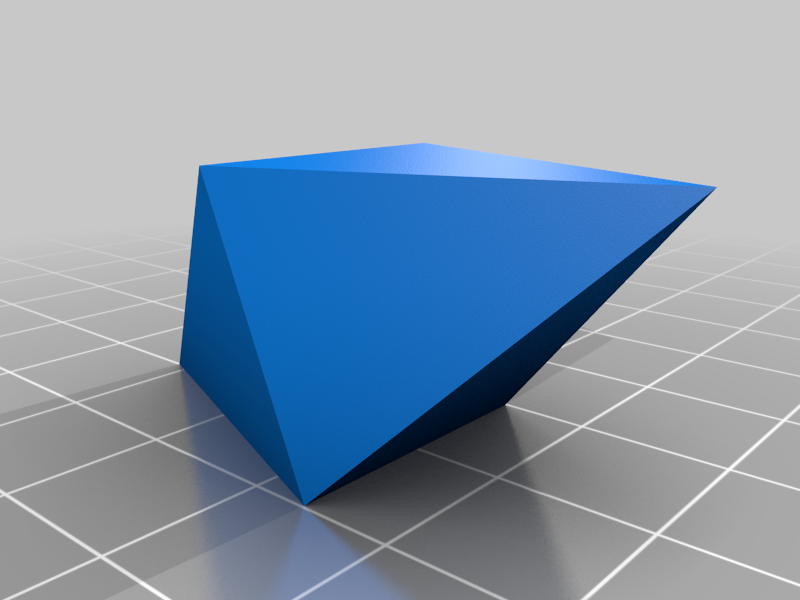

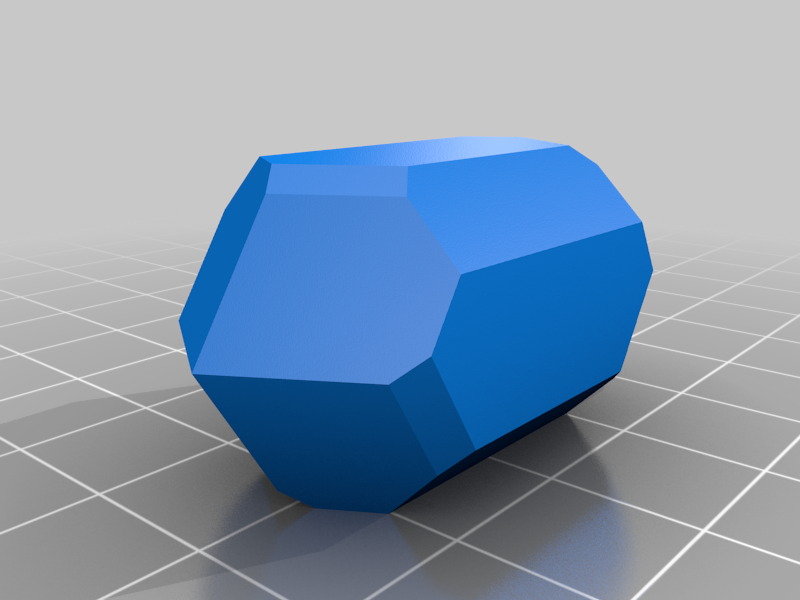

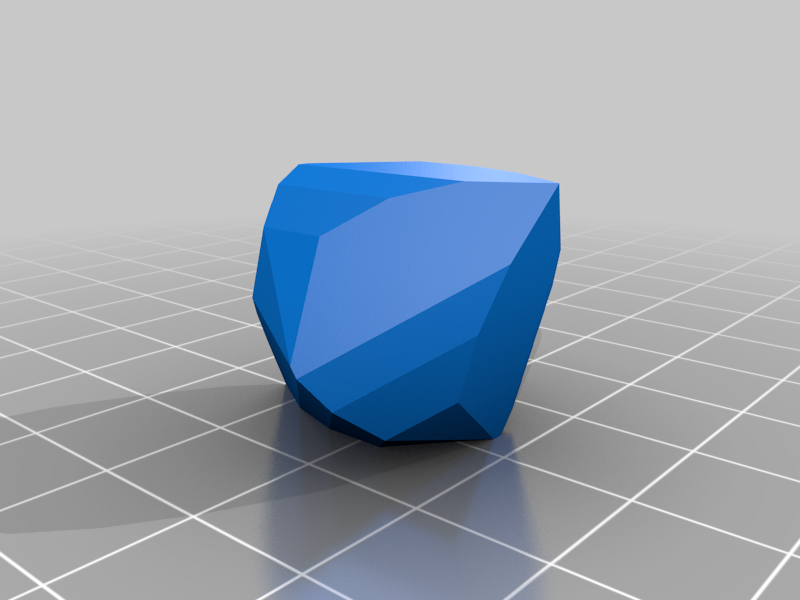

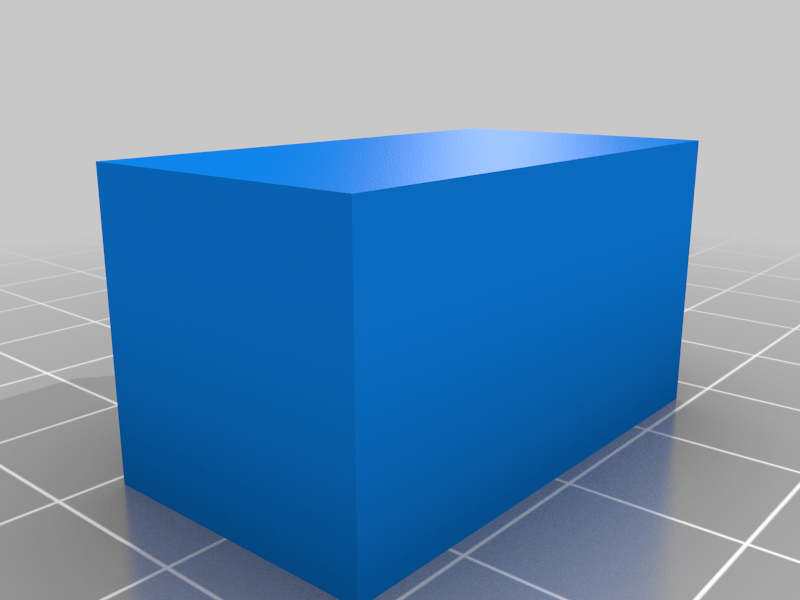

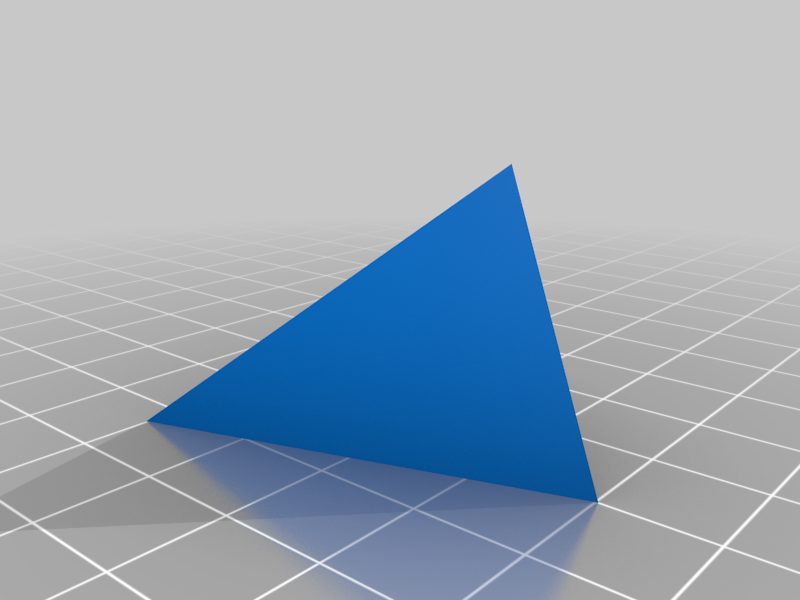

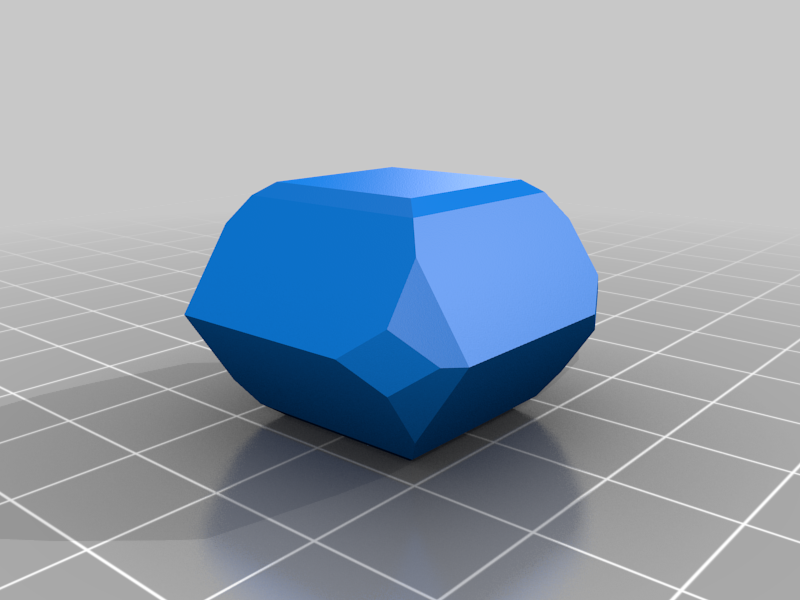

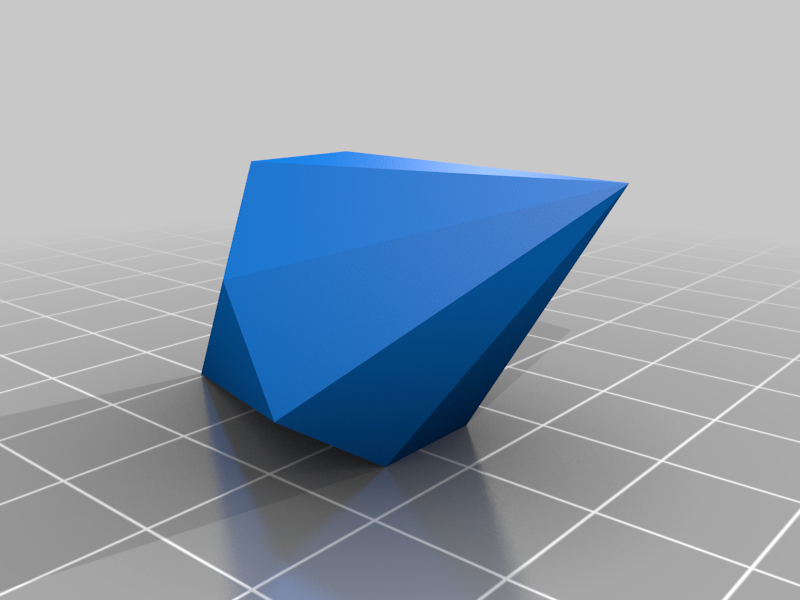

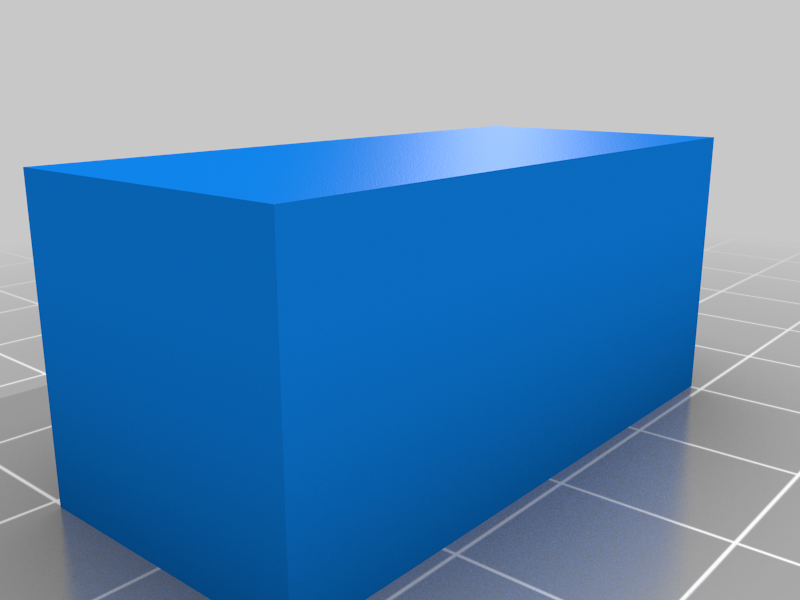

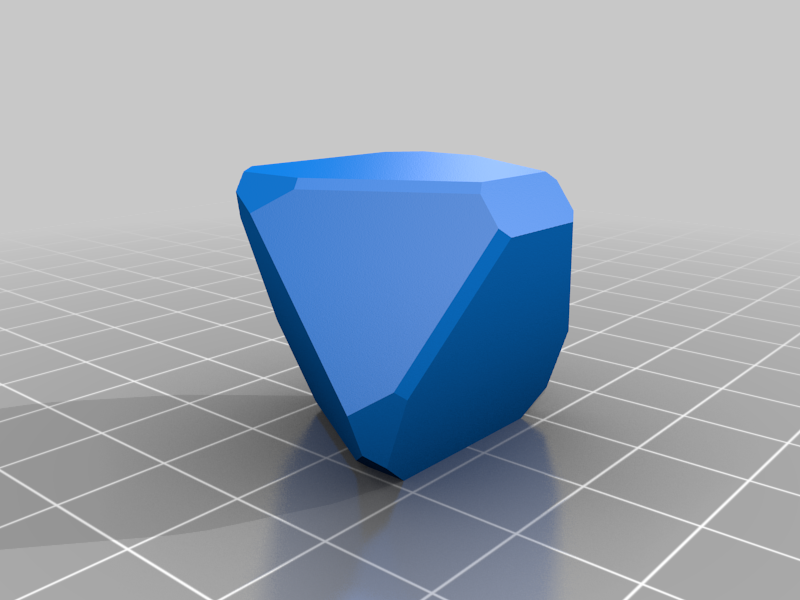

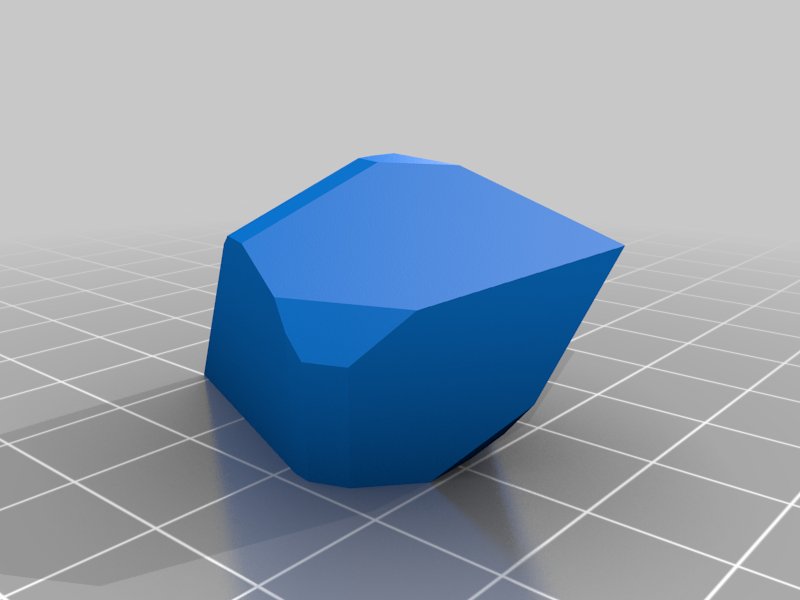

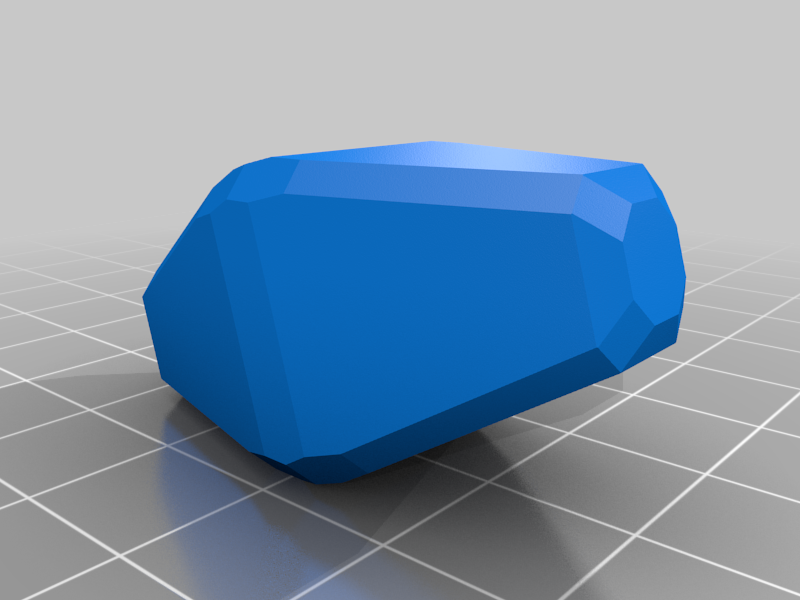

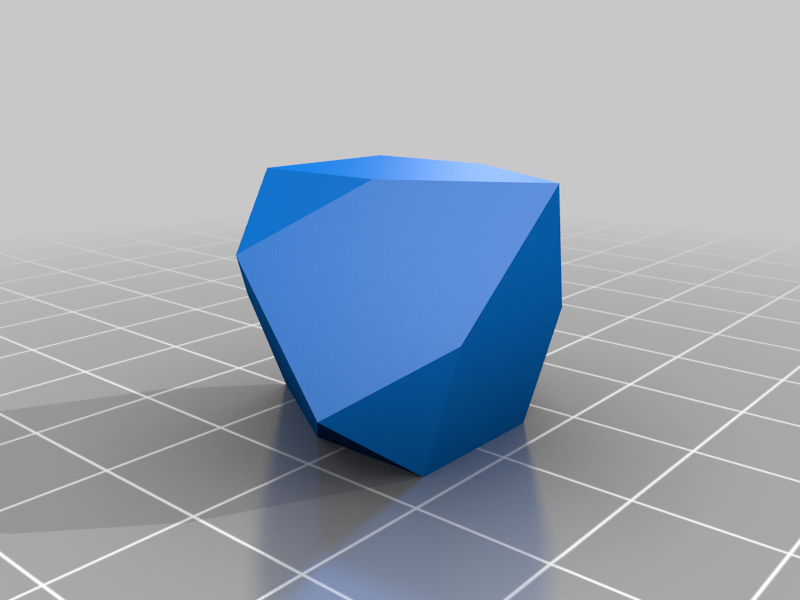

This is a reproduction of "The Dana Set of Wooden Crystal Models" originally produced by Dr. Krantz Rheinisches Mineralien-Kontor (Bonn).

triclinic
monoclinic
orthorhombic
hexagonal/trigonal
tetragonal
cubic

I recreated the models based on reference images in "Dana's Textbook of Mineralogy" ([https://archive.org/details/DanasTextbookOfMineralogy](https://archive.org/details/DanasTextbookOfMineralogy)), with forms taken from the catalogue available here (provided by the company): [https://mineralogy.eu/models/Krantz/Krantz_31_3.pdf](https://mineralogy.eu/models/Krantz/Krantz_31_3.pdf)

Whenever a model corresponds to a crystal structure, the known unit cell constants were used. In all other cases I approximated to match the pictures in Dana's book. Please note that I do not have an original set to compare, so there might be small differences. Also the scaling is arbitrary and probably totally different.

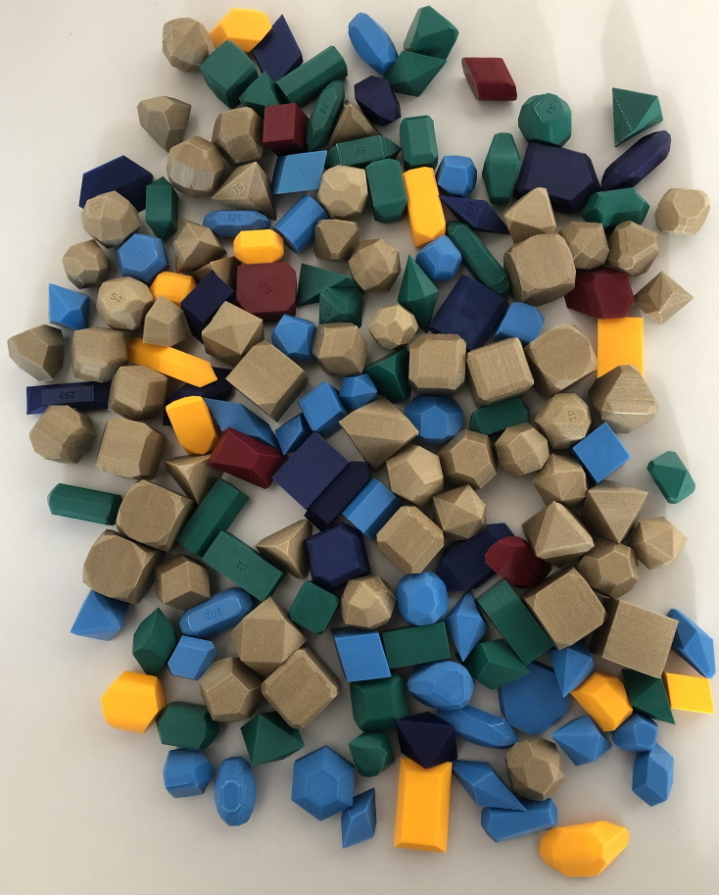

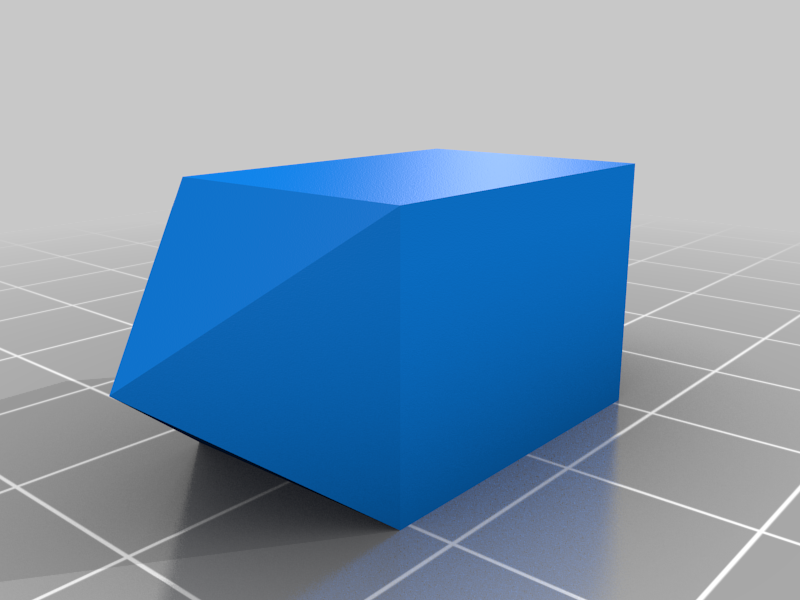

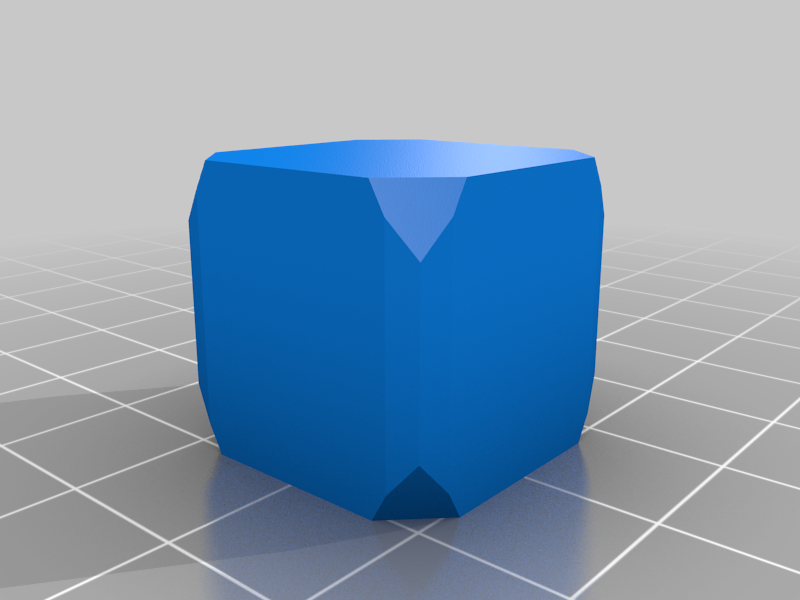

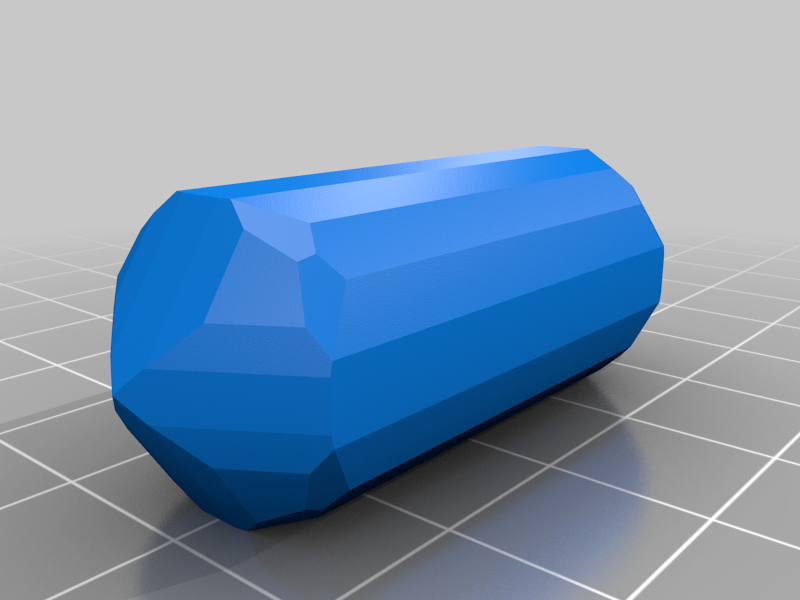

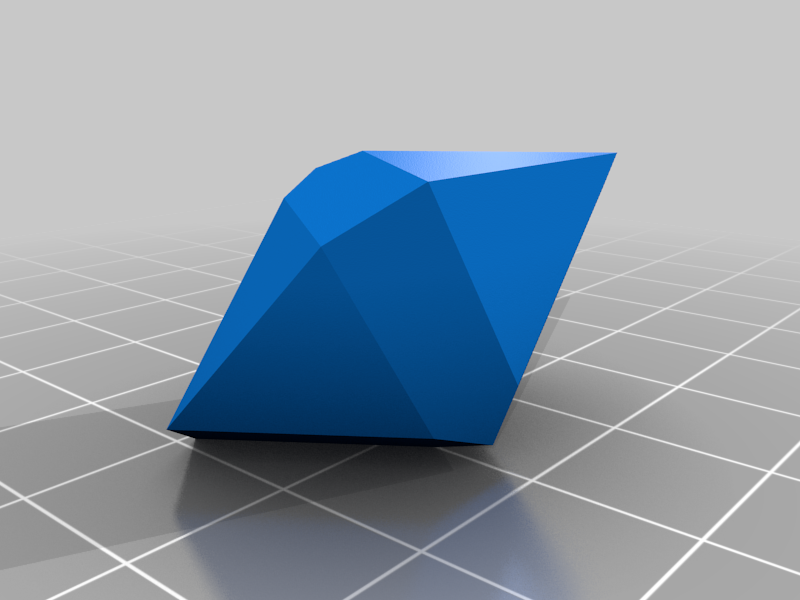

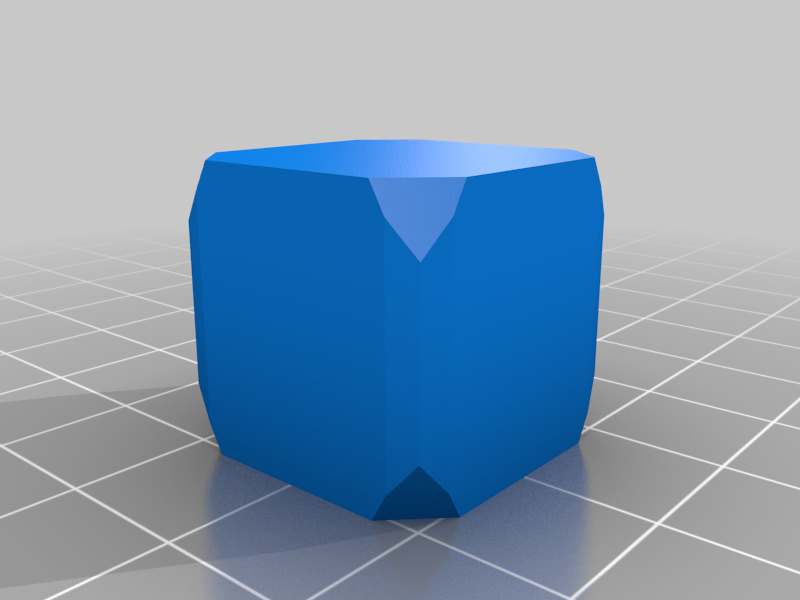

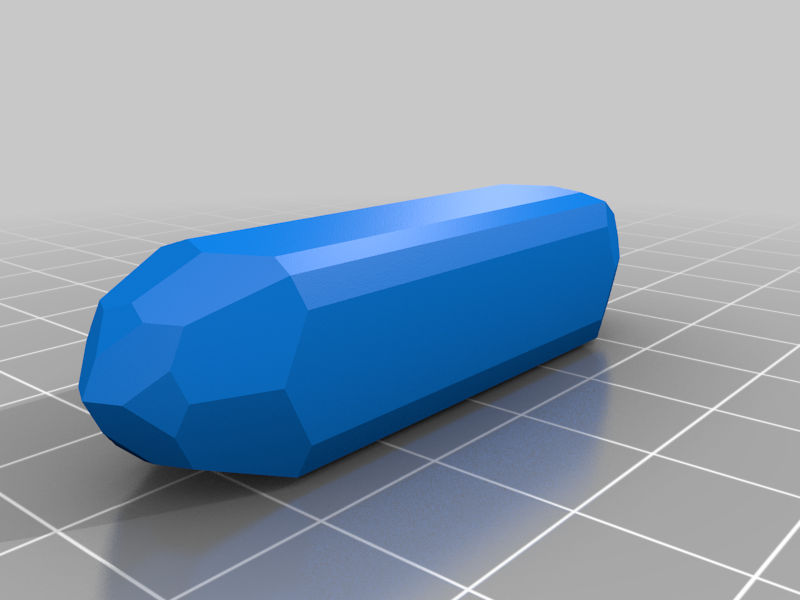

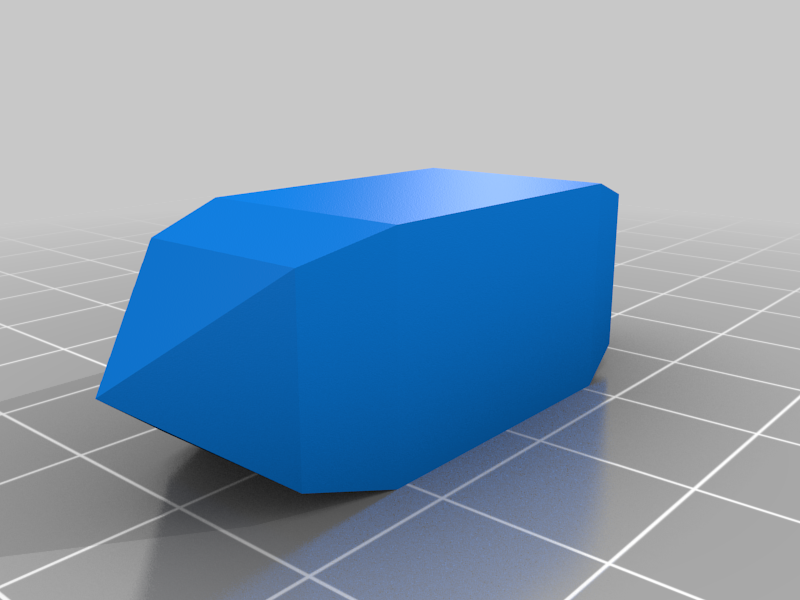

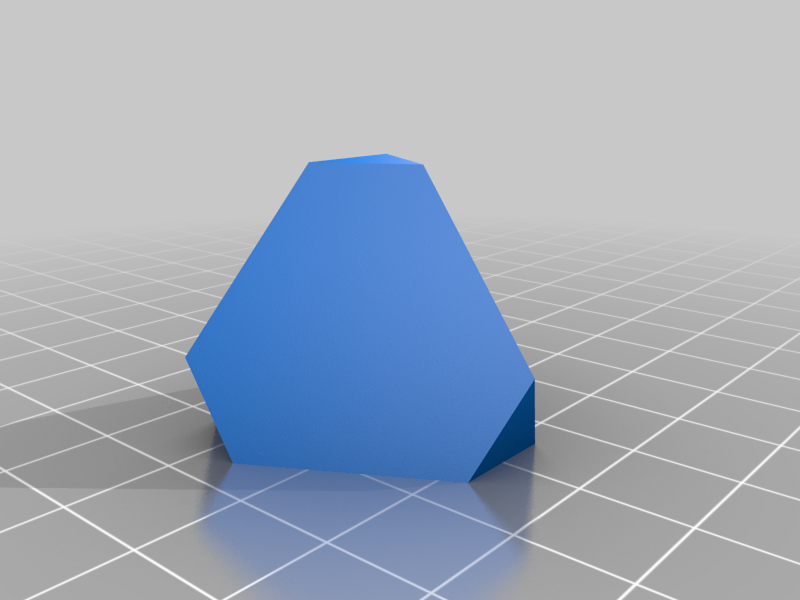

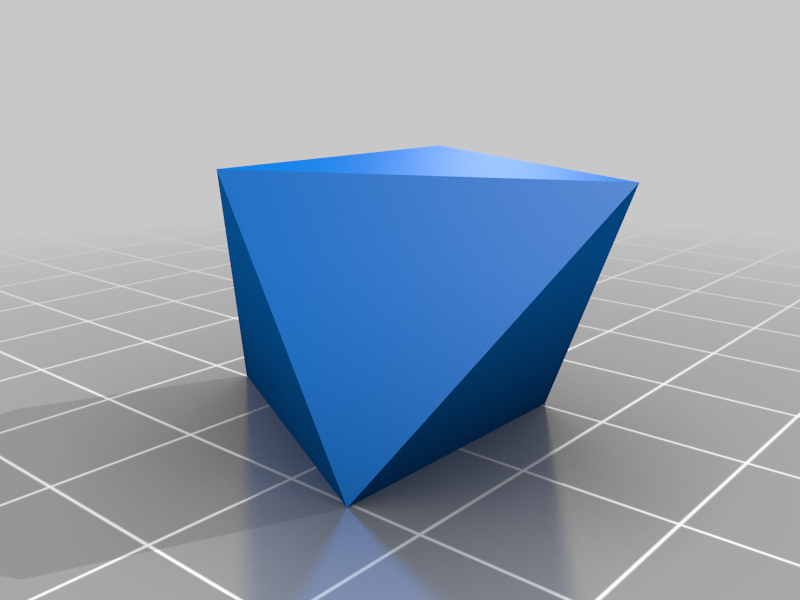

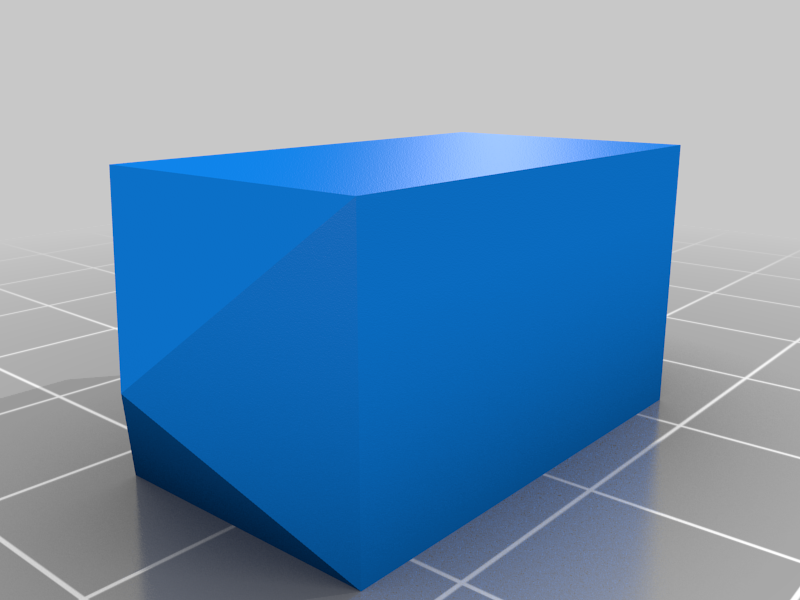

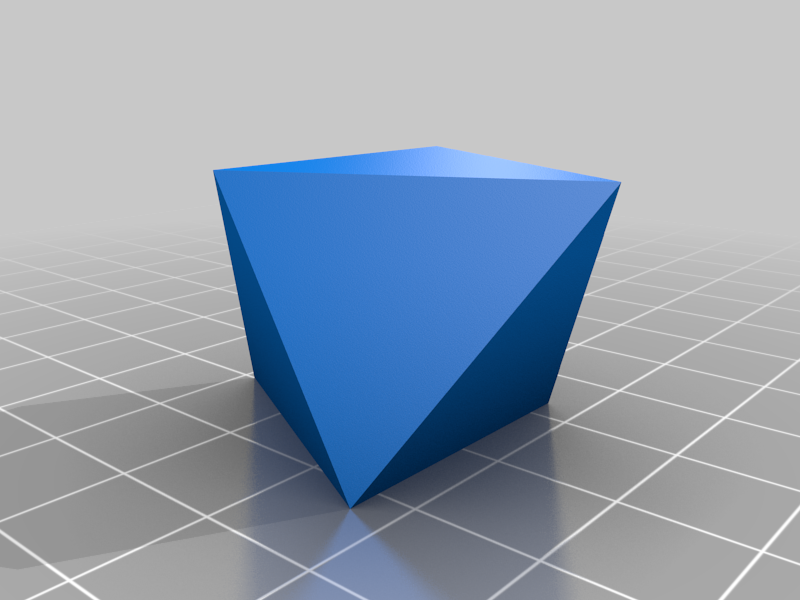

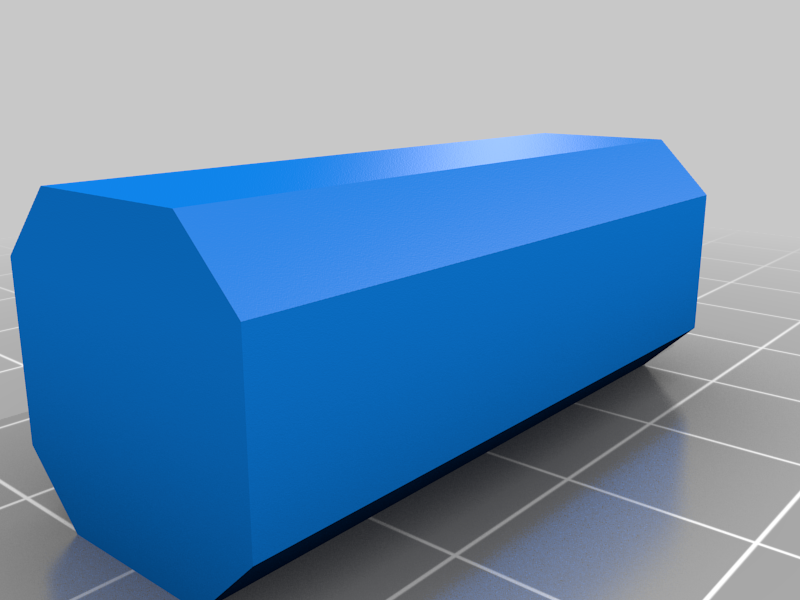

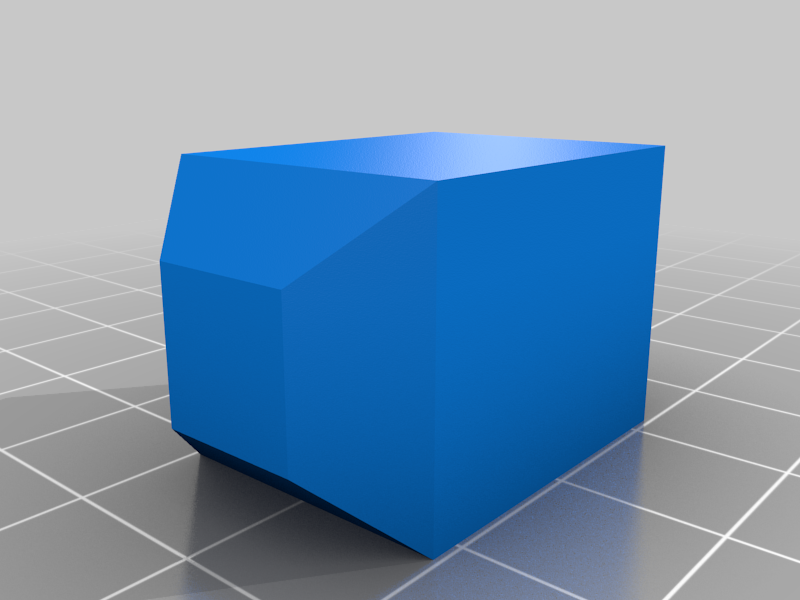

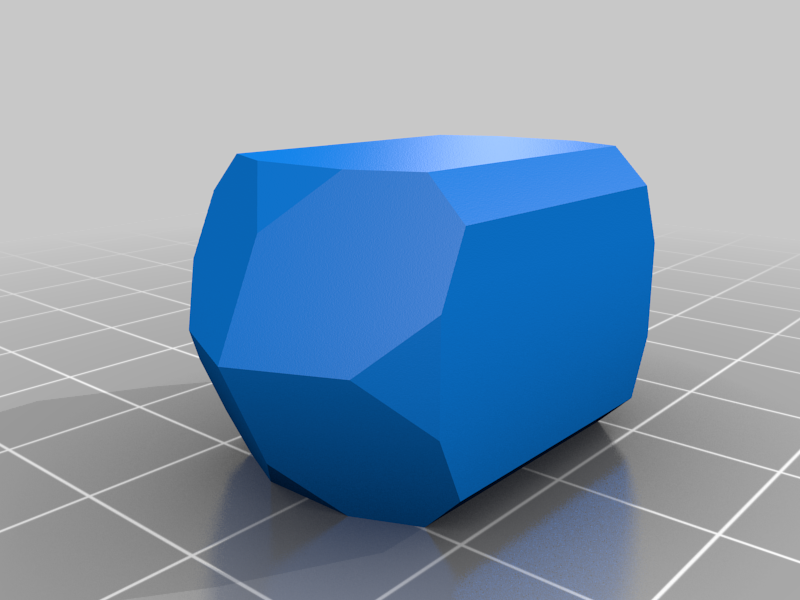

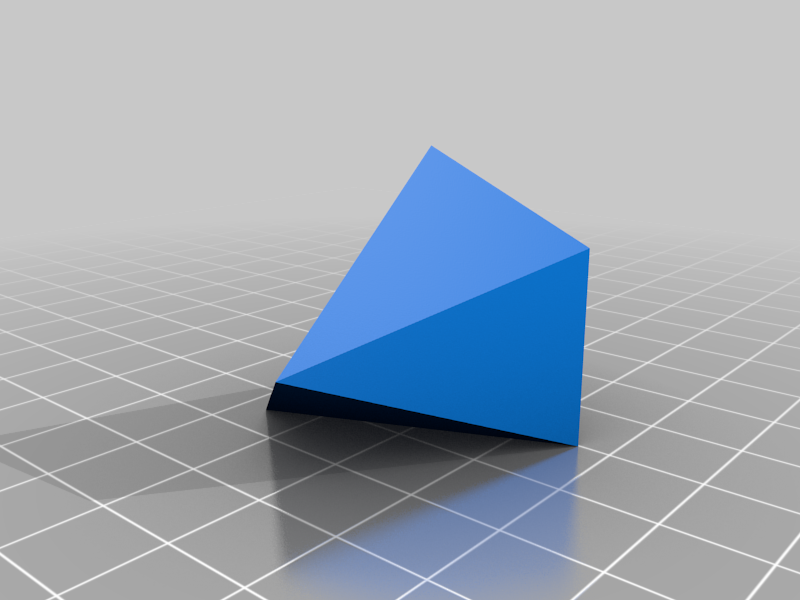

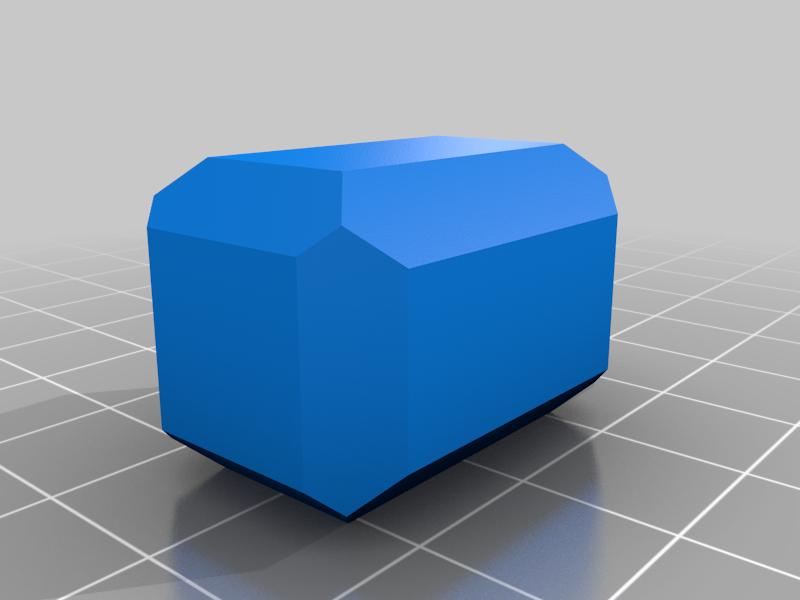

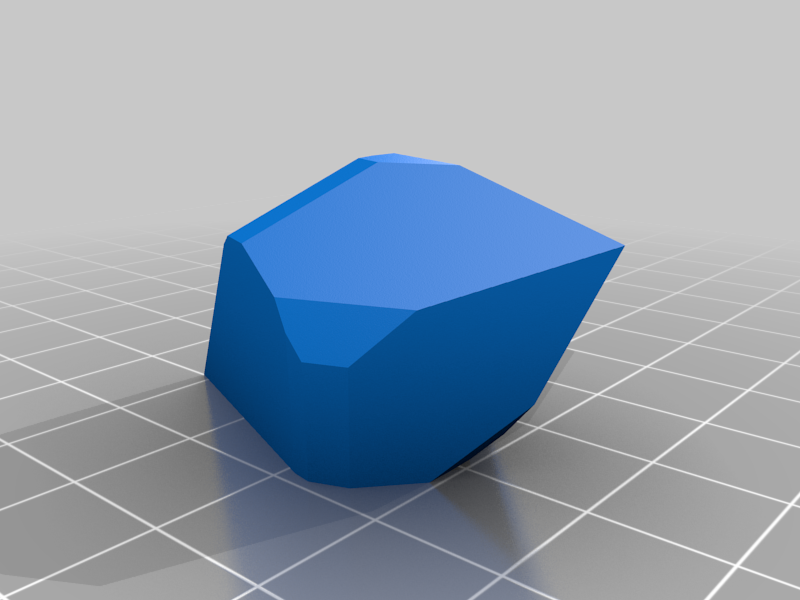

There's a labelled (by catalogue number) and unlabelled version. I also include the OpenScad file I used for embossing, in case somebody wants to adjust the labels.

Changes I made to correct apparent errors in the catalogue (to match Dana's book):

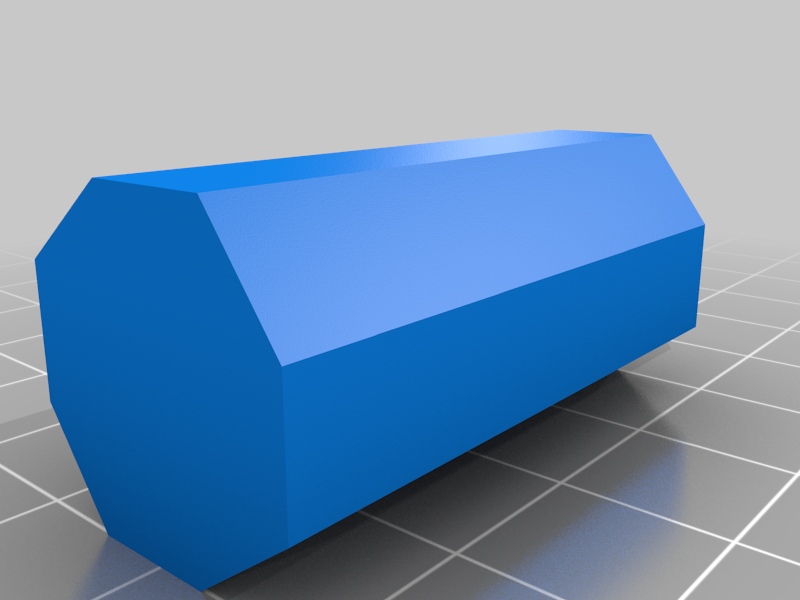

No. 64: {120} added (missing in catalogue)

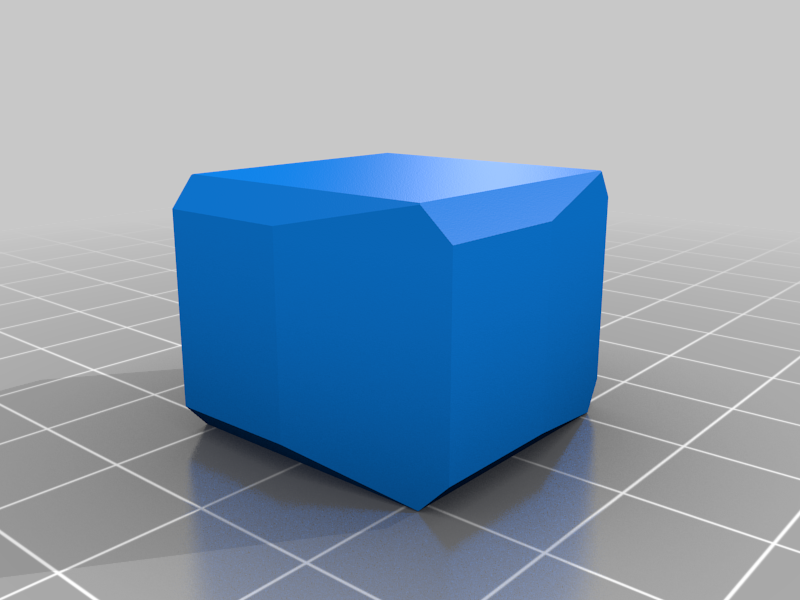

No. 87: {11-1} removed (not in the book/picture)

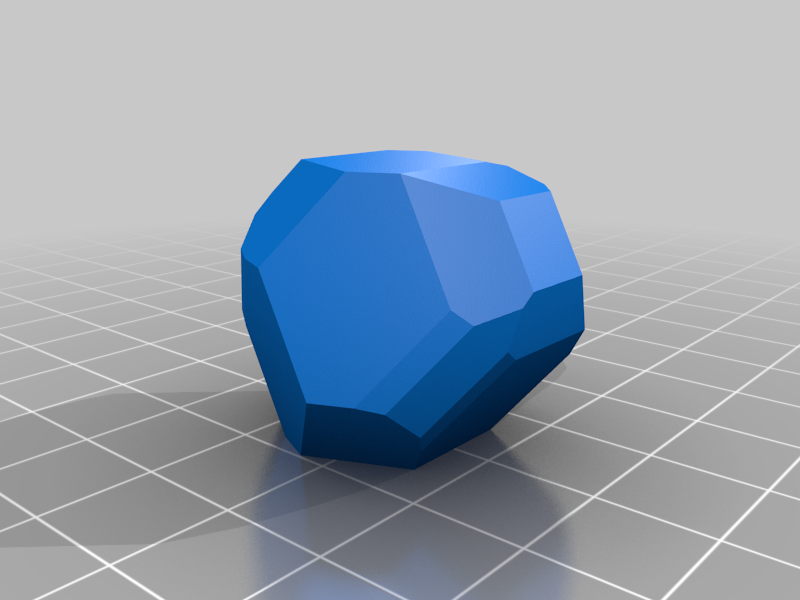

No. 94: {135} changed to {153} to match picture

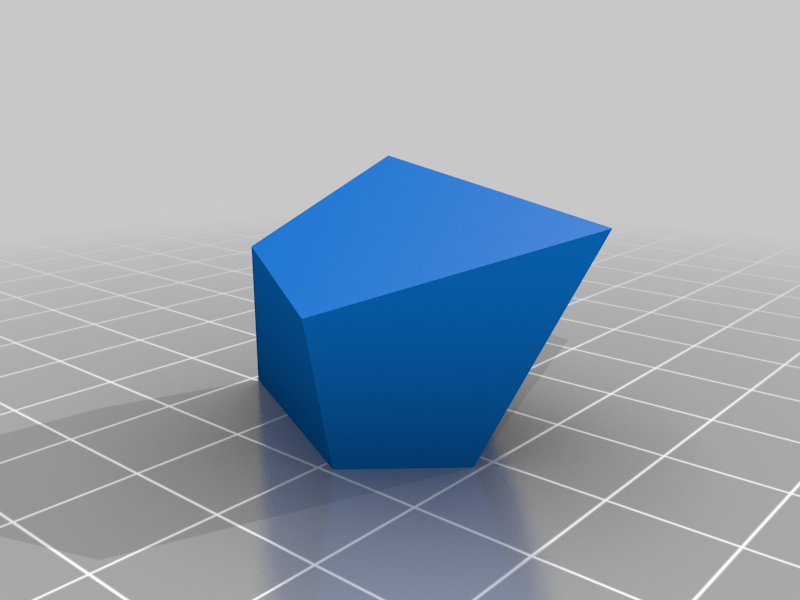

No. 95: face not in catalogue, used {121} to match picture

Big Thanks to Prof. Gervais Chapuis for making me aware of this set's existence and sending me his catalogue!

Print Settings

Printer:

Biqu B1

Supports:

Yes

Resolution:

0.2mm

Infill:

10%

Filament: 3DJake PLA dark green




Notes:



Some of the models require supports. Models are pre-oriented for best print quality.





Category: Learning

Printables

Dana Crystal Models - tetragonal

ntdesign ntdesign (abre em nova aba)

Publicado em 2 de ago de 2024

57
Curtidas
420
Downloads
4
Impressões
Categoria Other 3D Objects for Learning
Tags
models thingiverse crystals crystallography
Licença Creative Commons — Attribution
