Modelo 3D Test Models por Mads Grefsrud no Printables

Descrição

There are 7 total Test Models and i use UltiMaker Cura for the slicing program.

Stringing test: This is for testing stringing. Use higher "Retraction distance" to reduce stringing and lower temp

Top and bottom test: Use in the initial Layer and Top/Bottom settings to create a good lower and top layer.

Horizontal expansion test: The model is 10mm wide. The setting "Horizontal expansion" will make the model bigger or smaller. So if you have printed the model and you get a 9.8mm in diameter, you can use this to make it bigger. A positive value makes the wider and a negative value makes it smaller.

Hole Expansion test: Same as Horizontal expansion, but only in holes. Its good for making moving parts

Support test: For testing support setting

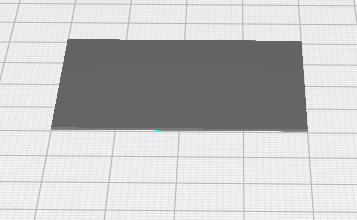

Initial layer small test: Test inital layer. Make the model the same hight as the inital layer hight.

Tolerance test: To check tolerance from 0.5mm to 0mm.

Printables

Test Models

Publicado em 27 de jun de 2025

1
Curtidas
15
Downloads
Categoria Test Models
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (6)
Stringing.stl 140.9 KB
Top and bottom calibrator.stl 684 B
Horizontal expansion 10mm.stl 12.4 KB
Hole Expansion.stl 1.4 KB
Support test.stl 2.4 KB
0.1 mm test.stl 631.7 KB
