Modelo 3D Threaded Buffer Tube Battery Stock Points por Perry - LikeThePlatypus no Printables

Descrição

These Threaded Buffer Tube Battery Stock Points are alternative M29x1.5mm buffer tubes optimized to fit the Jikey 1100mAh 3S LiPo used in many electronic blasters. Featuring a chamfered end on the inside, this stock point can easily be installed and uninstalled to access an AEB's spring or other internals without risking wire damage. Additionally, the adapted locking castle nut allows the use of more common wrenches or tongue-and-grove "channel lock" pliers to secure the stock at the appropriate orientation. Remixed to a variety of maximum lengths to accommodate both taller and shorter users while still having enough room for a battery and voltage alarm.

FEATURES:
• Threaded Buffer Tube Battery Stock Point
• Chamfered end prevents wire damage
• Multiple maximum length options
• Easier installation with common tools
• Compatible with Zius BK1s
• Compatible with with M29x1.5mm threaded stock attachments
• Designed for the Jikey Slim 1100mAh 3S LiPo
• Limited compatibility with other slim + “nunchuck” LiPos

FILES INCLUDED:

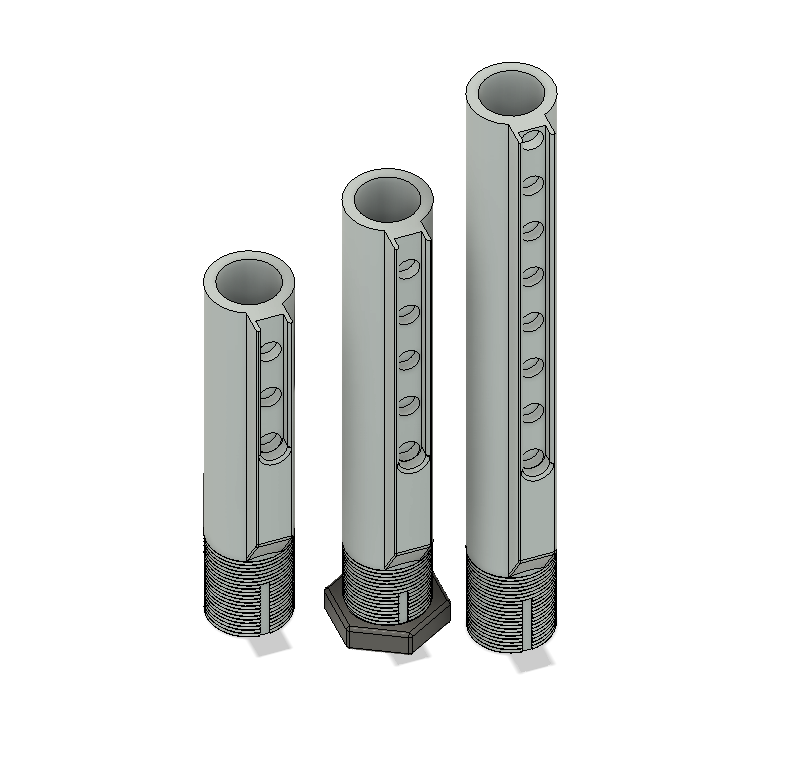

• 3 Buffer Tubes of varying maximum lengths
     • Small - 145mm
     • Medium (Standard/Default) - 185mm
     • Large - 234mm

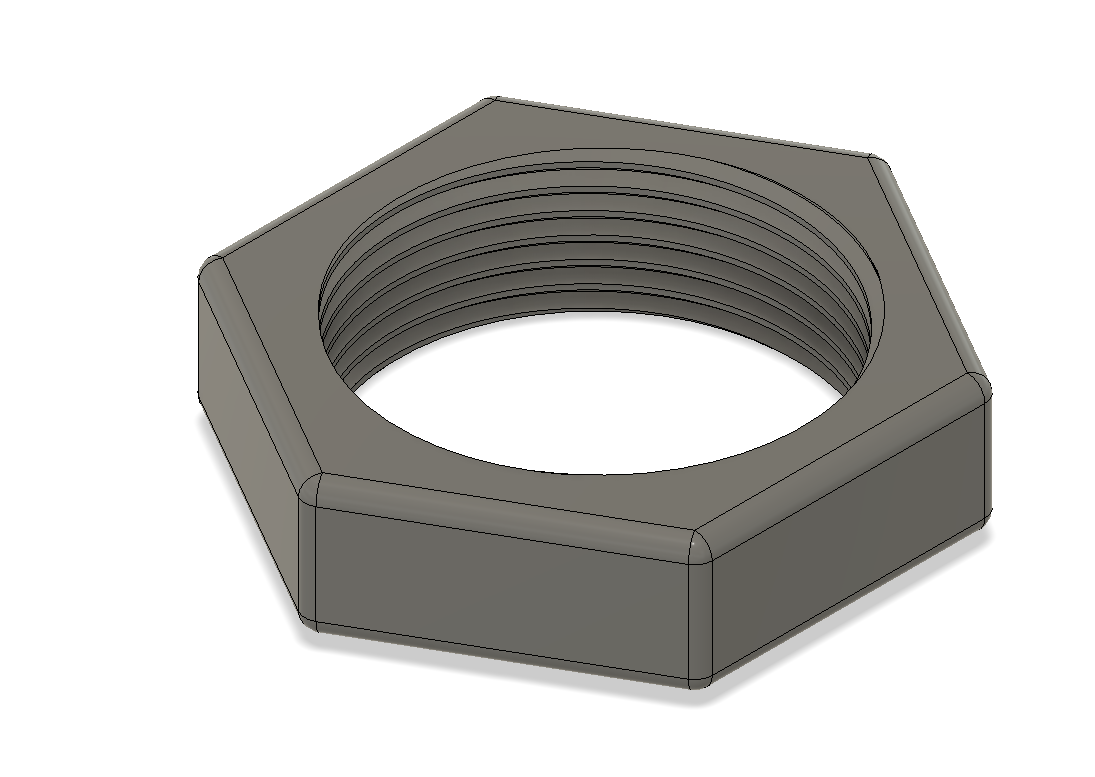

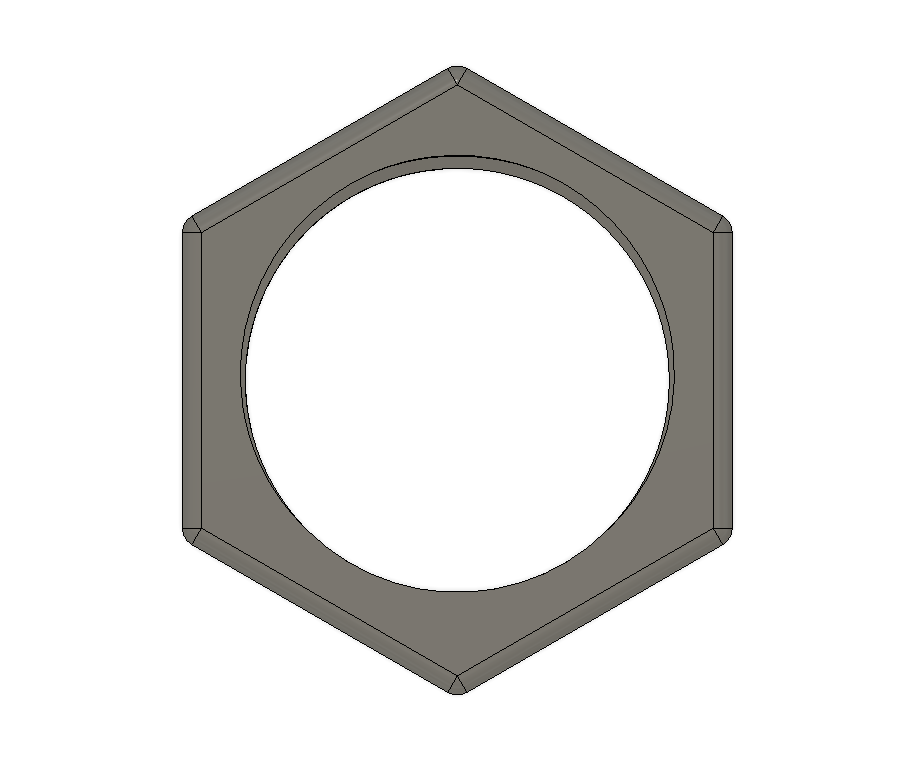

• 1 M29x1.5mm castle nut (hex drive)

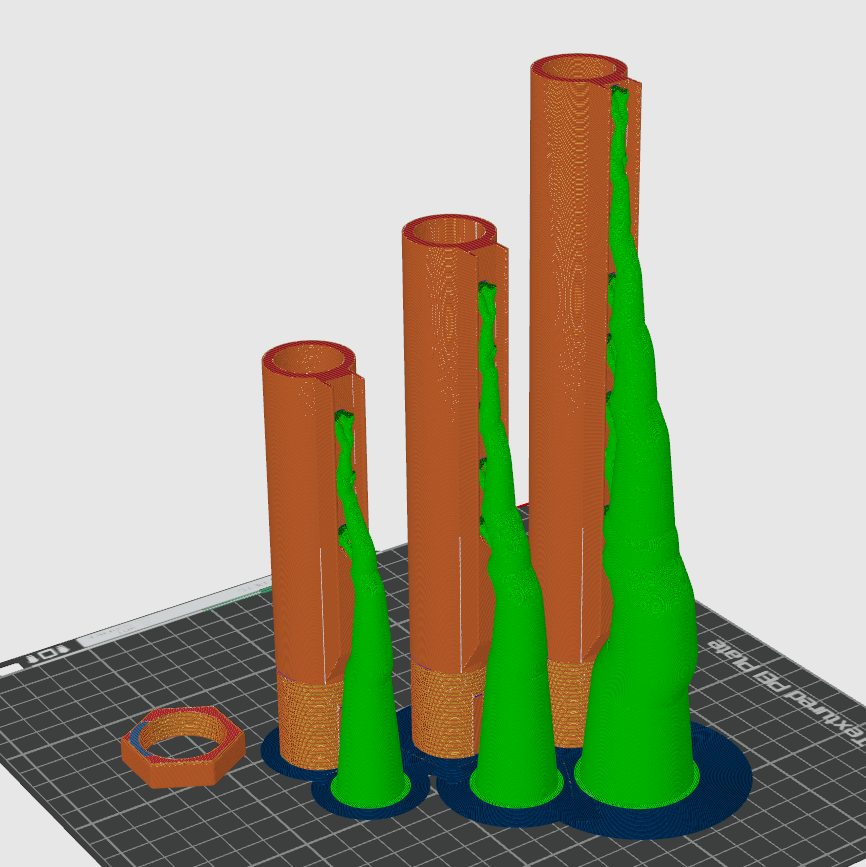

RECOMMENDED PRINT SETTINGS:
• Quality: No scarf seams or joints
• Strength: 4-6 wall loops, gyroid infill

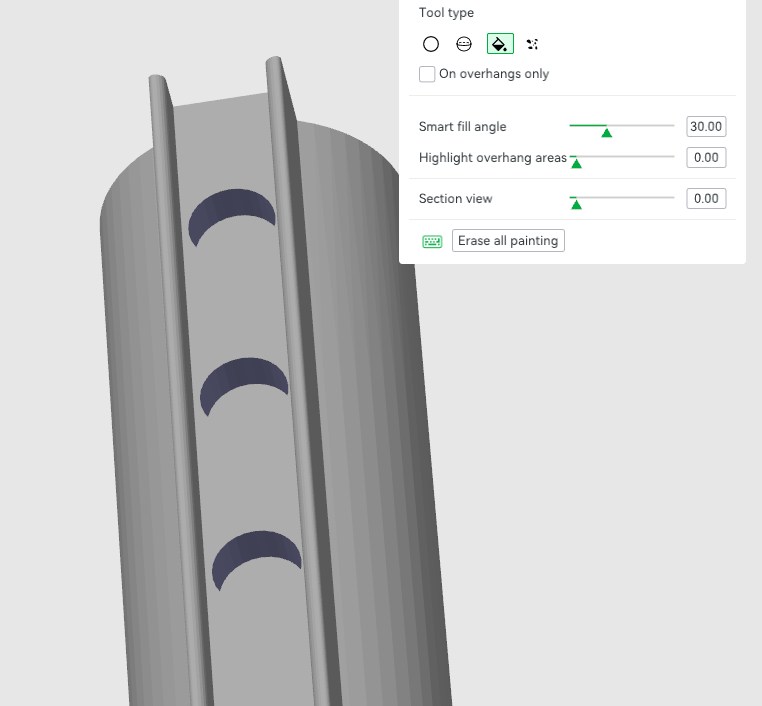

• Supports: Tree (Manual), painted on the adjustment holes
• Others: Inner brim for better bed adhesion

LINKS:
Zius BK1s
Buffer Tube Stocks
Jikey 1100mAh 3S LiPo
More Stock Point Designs

Printables

Threaded Buffer Tube Battery Stock Points

Publicado em 21 de jun de 2025

15
Curtidas
133
Downloads
Categoria Outdoor Toys
Tags
adjustable stock buffertube buffertubenut adjustablestock buffertubestock castlenut
Licença Creative Commons — Attribution — Noncommercial — Share Alike
Arquivos (2)
LikeThePlatypus_THREADED BUFFER TUBE BATTERY STOCK POINT_.3mf 8 MB
LikeThePlatypus_THREADED BUFFER TUBE BATTERY STOCK POINT_Bambu Studio.3mf 6.4 MB
