Description

Einhell 18v Power X-Change for Multiboard

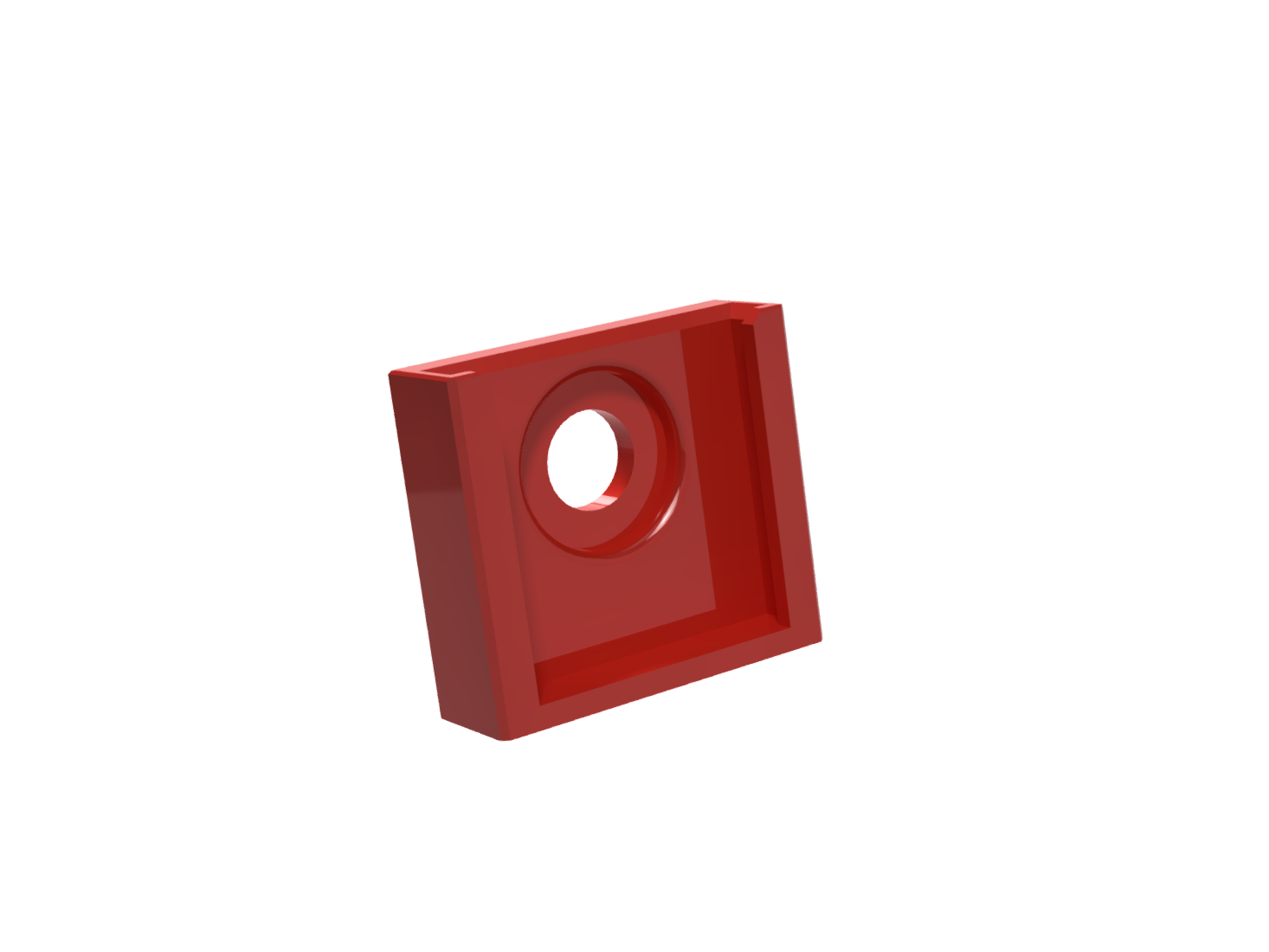

This mount is designed to connect the Einhell 18v Battery firmly with the Multiboard. The mount is secured with a T-bolt so that it cannot be pulled out upwards.

Connects via Mid Thread T-Bolt screwed into a Flush Large Thread and an Flush Multiconnect v2.

For the modeling of this connection I used the Multiconnect v2 - Modeling files.

Also available for Bosh Professional or Metabo

Assembly

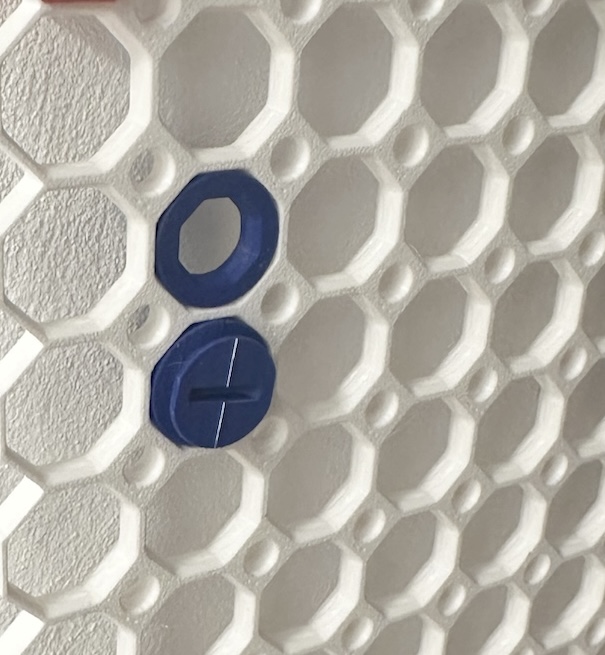

Screw the ‘Multiconnector’ into the Multiboard. The ‘Flush Large Thread’  is inserted into the opening above it. The mount is now placed on the ‘Multiconnector’ and secured with the ‘Mid Thread T-Bolt’ to prevent it from being pulled upwards. Ideally tighten the T-Bolt with pliers, to prevent movement.

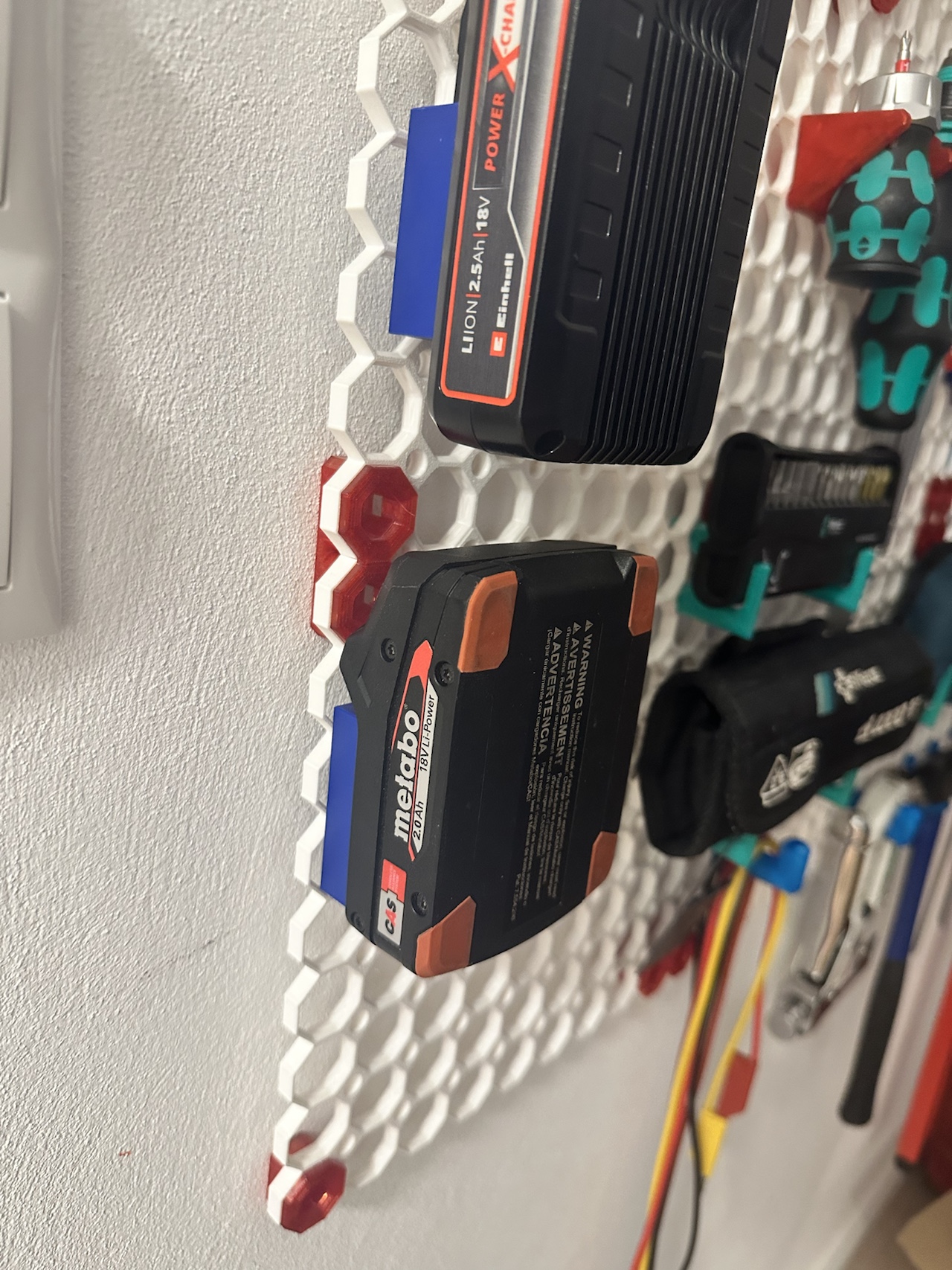

Can also be mounted sideways.
