Ender 3 Reverse Bowden Block

A reverse Bowden block for the Creality Ender 3 and others which use the 20-- Extrusion

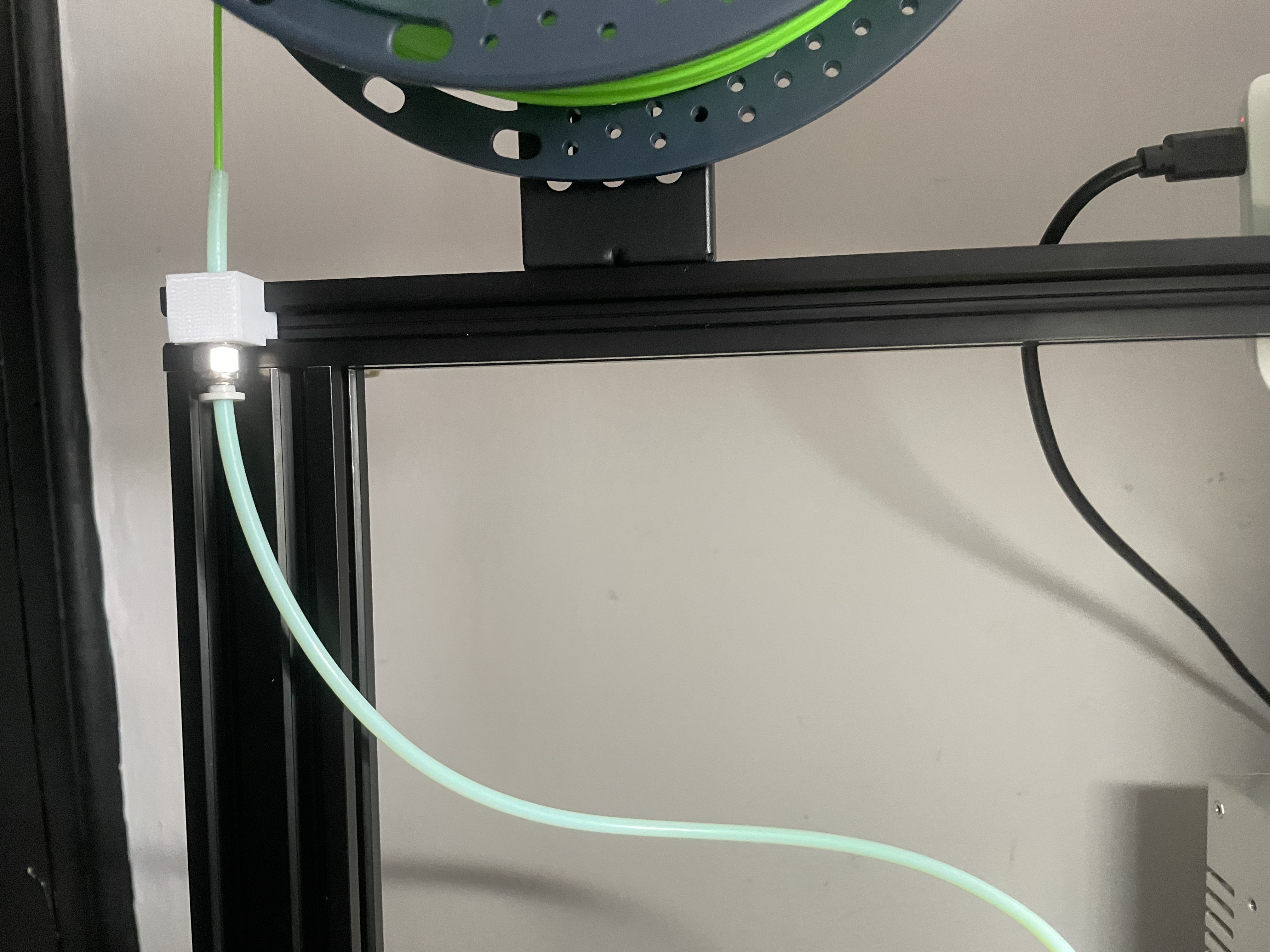

Whilst considering upgrading my Ender 3 to either a Voron Enderwire or the ENDER 3 NG v1.2 I notices both use a reverse bowden system. Upon looking into it i found it to have a lot of benefits and decided to try and implement it onto my old Ender 3 as it has a lot of harsh pulling of the filament causing a lot of vibration with heavier rolls.

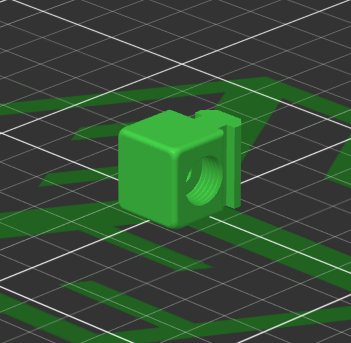

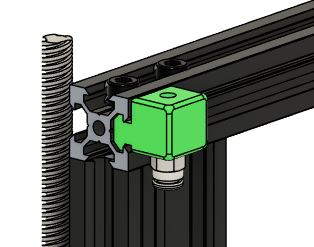

This is a quick and simple make that I made in Fusion360 for this kind of system. It uses the M10 Pneimatic Joint from the old Ender 3 extruder to hold the tube in place. The joint simply screws into the larger opening

Feel free to download, post makes, remix and comment as all helps out!!
