Modelo 3D Nintendo Switch 2 Grip por stevQ no Printables

Descrição

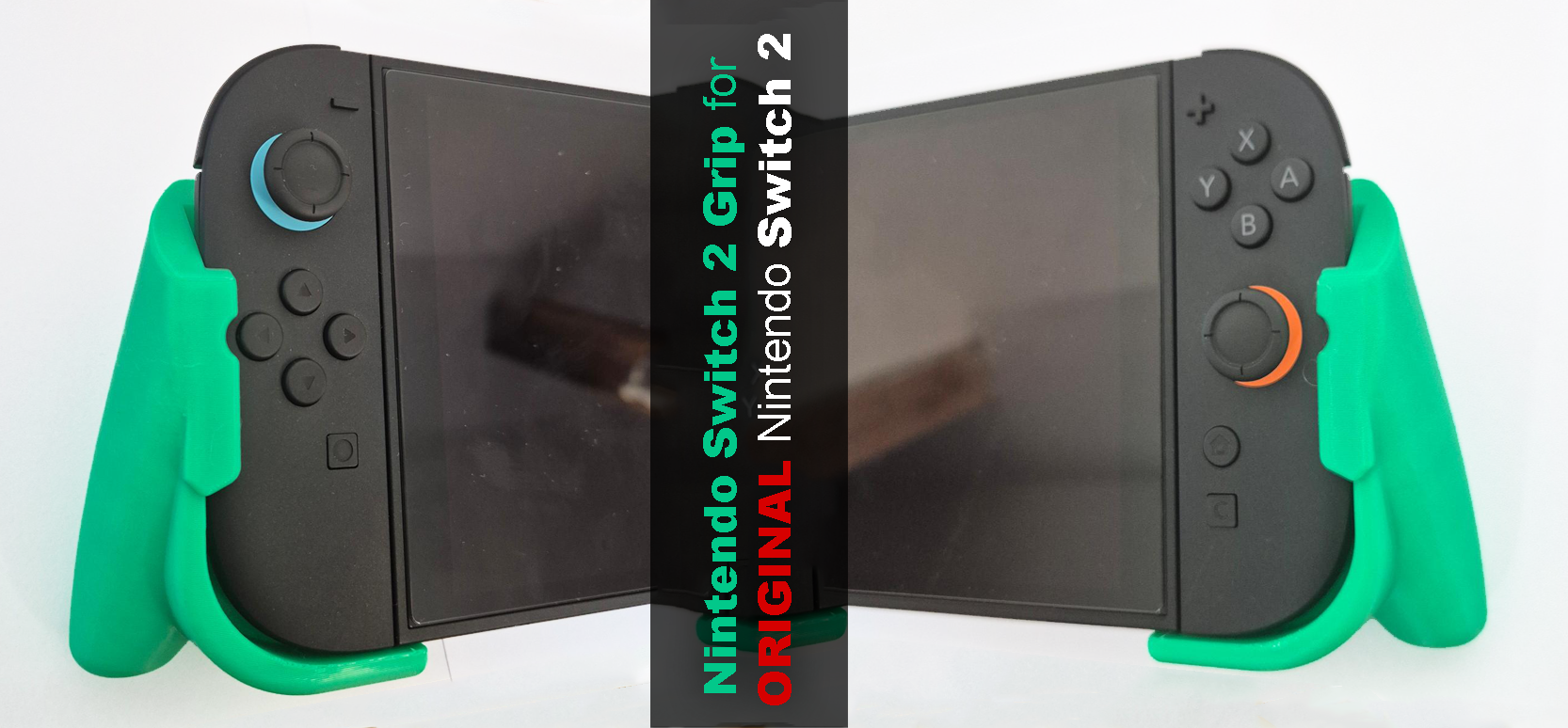

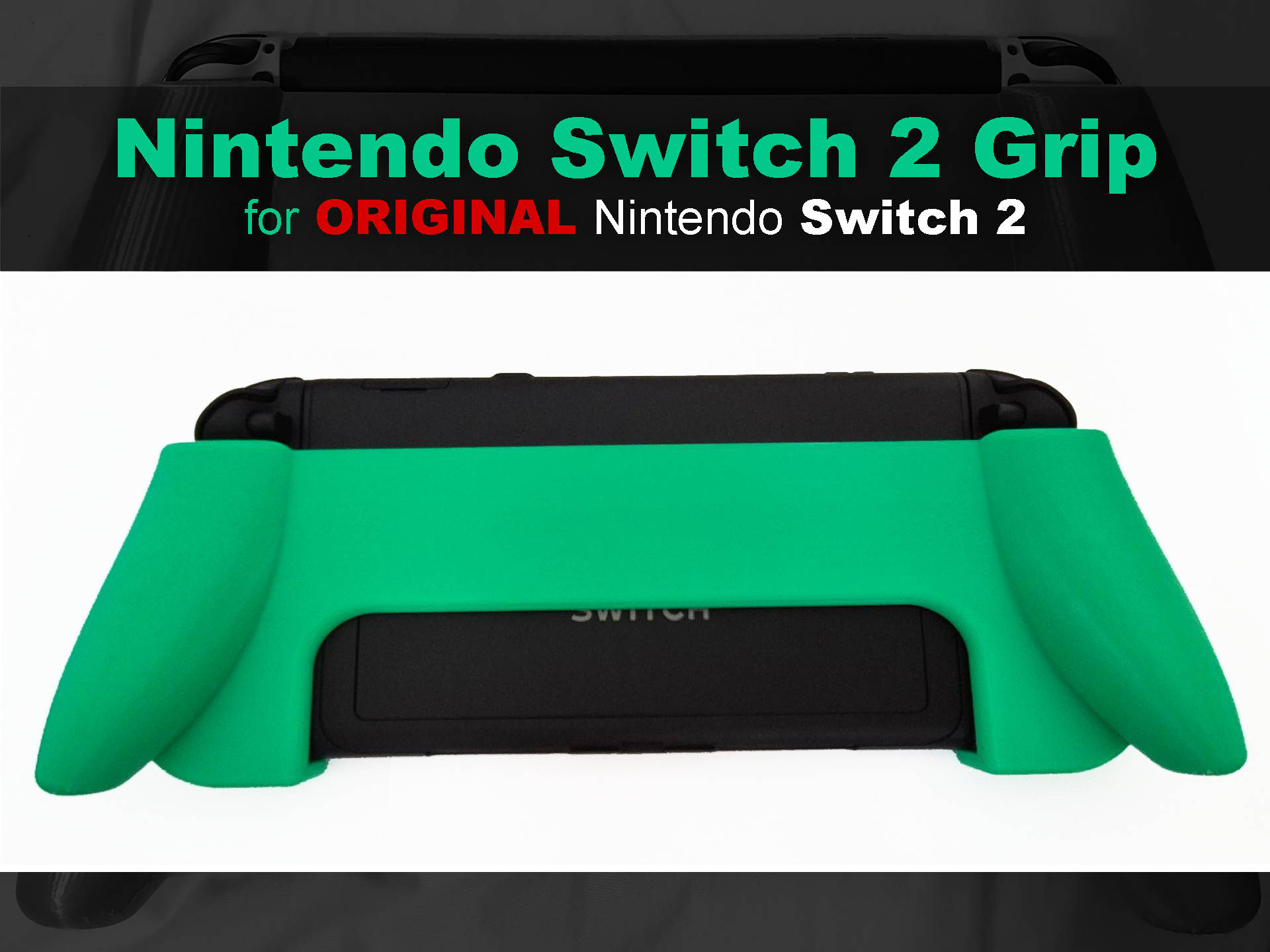

After some adaption to my model for the original switch (Nintendo Switch Grip for v1/v2/oled) I am finally able to publish this one. Significant changes have been made, as the switch 2 is quite a big larger. The handles at the back were shifted upwards, their size has been reduced and the form adapted slightly.

Print in the orientation of the STL files with support. The support contact face is nearly non-functional and you will not touch it, therefore even some roughness at that surface doesn't matter. Organic support are suggested.

Both .STL are the same model, but the orientation is already adapted for the different printbed sizes.

Be aware: It is a tight fit, but does not take too much force for the Switch to be put in. If it is too tight on your printer, try enlarging it by 0,1 to 0,2%

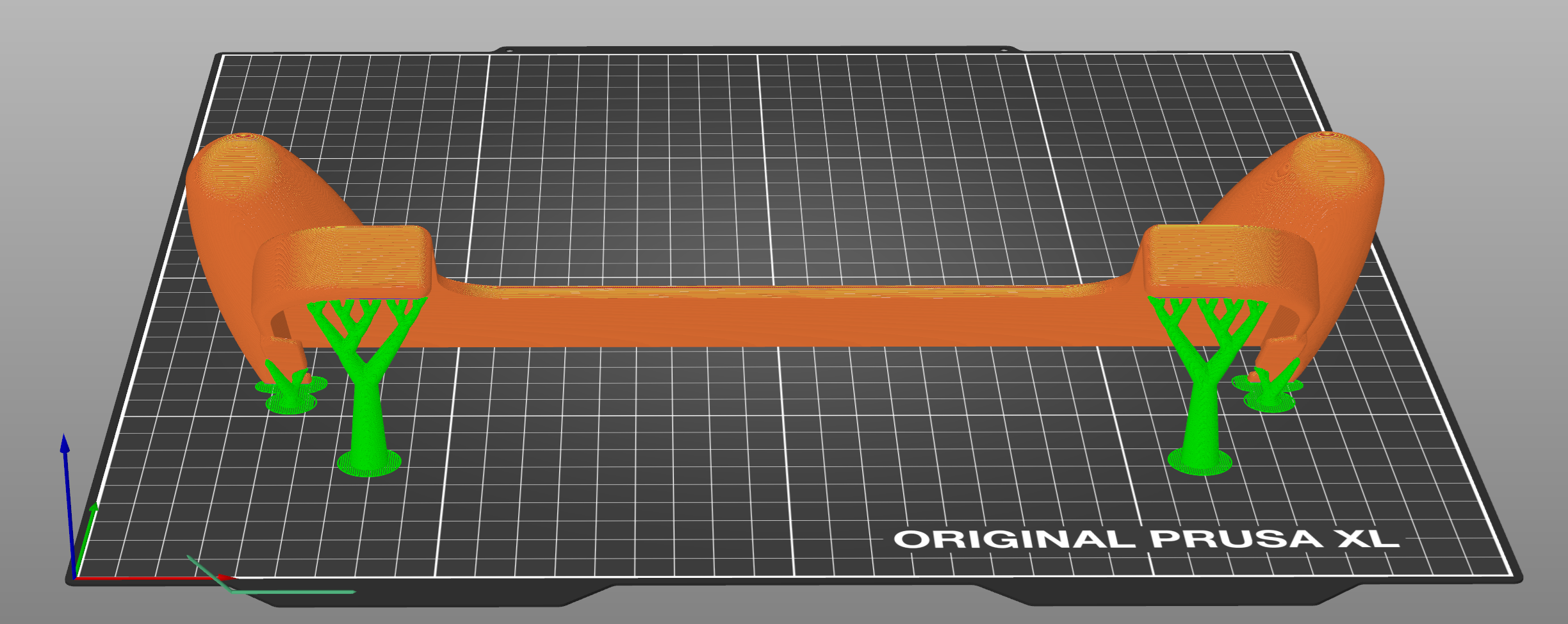

Fits on a Prusa CoreOne / MK4 / MK3 print bed, if turned at an angle (see pictures). For bigger printers, put the top side flat on the printbed.

Printables

Nintendo Switch 2 Grip

Publicado em 16 de jun de 2025

150
Curtidas
1,507
Downloads
2
Impressões
Categoria Portable Devices
Tags
nintendo switch2 nintendoswitch2
Licença Creative Commons — Attribution — Noncommercial — NoDerivatives
Arquivos (1)
Switch2_Grip_for_big_Beds.stl 2.9 MB
