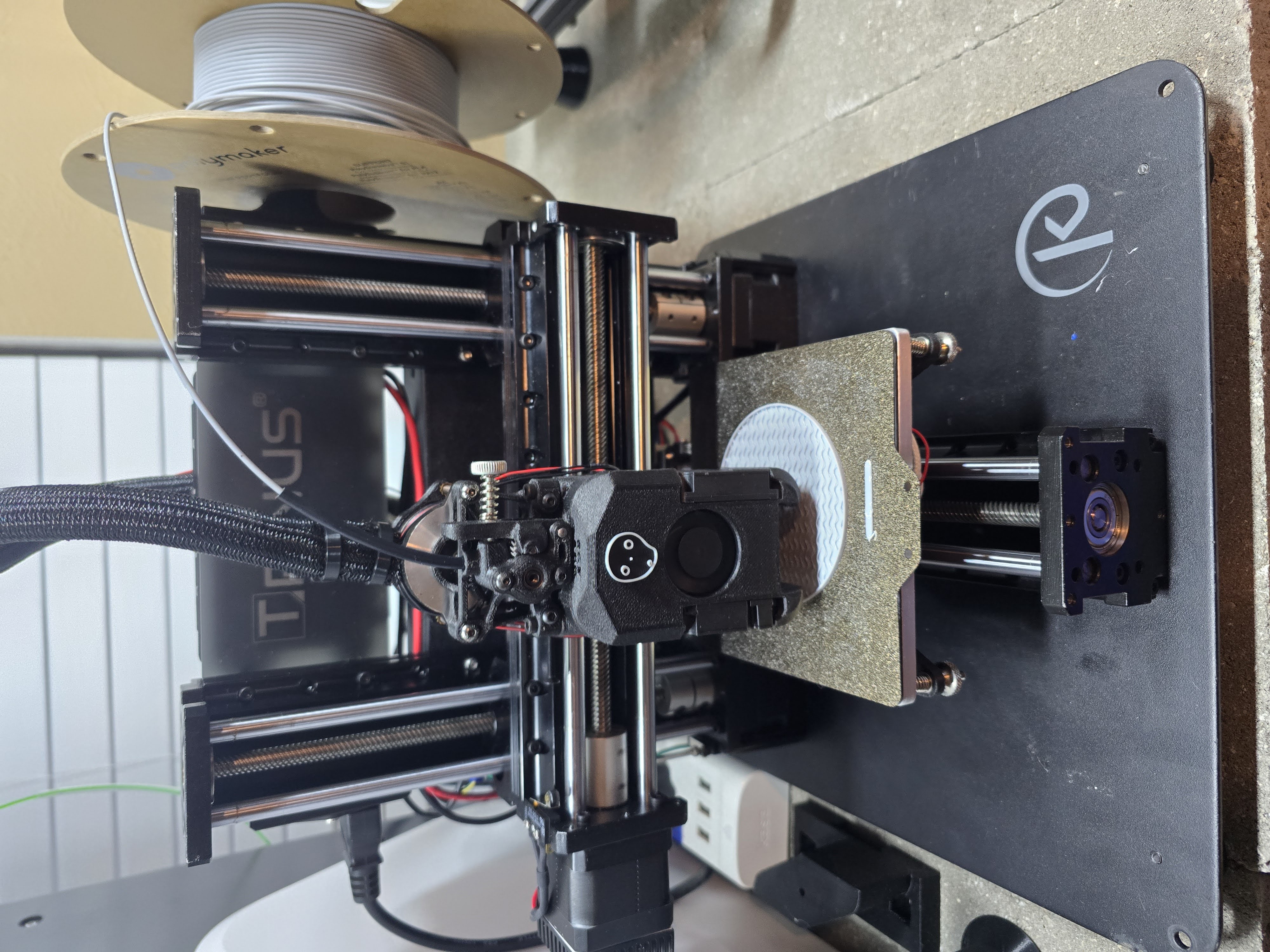

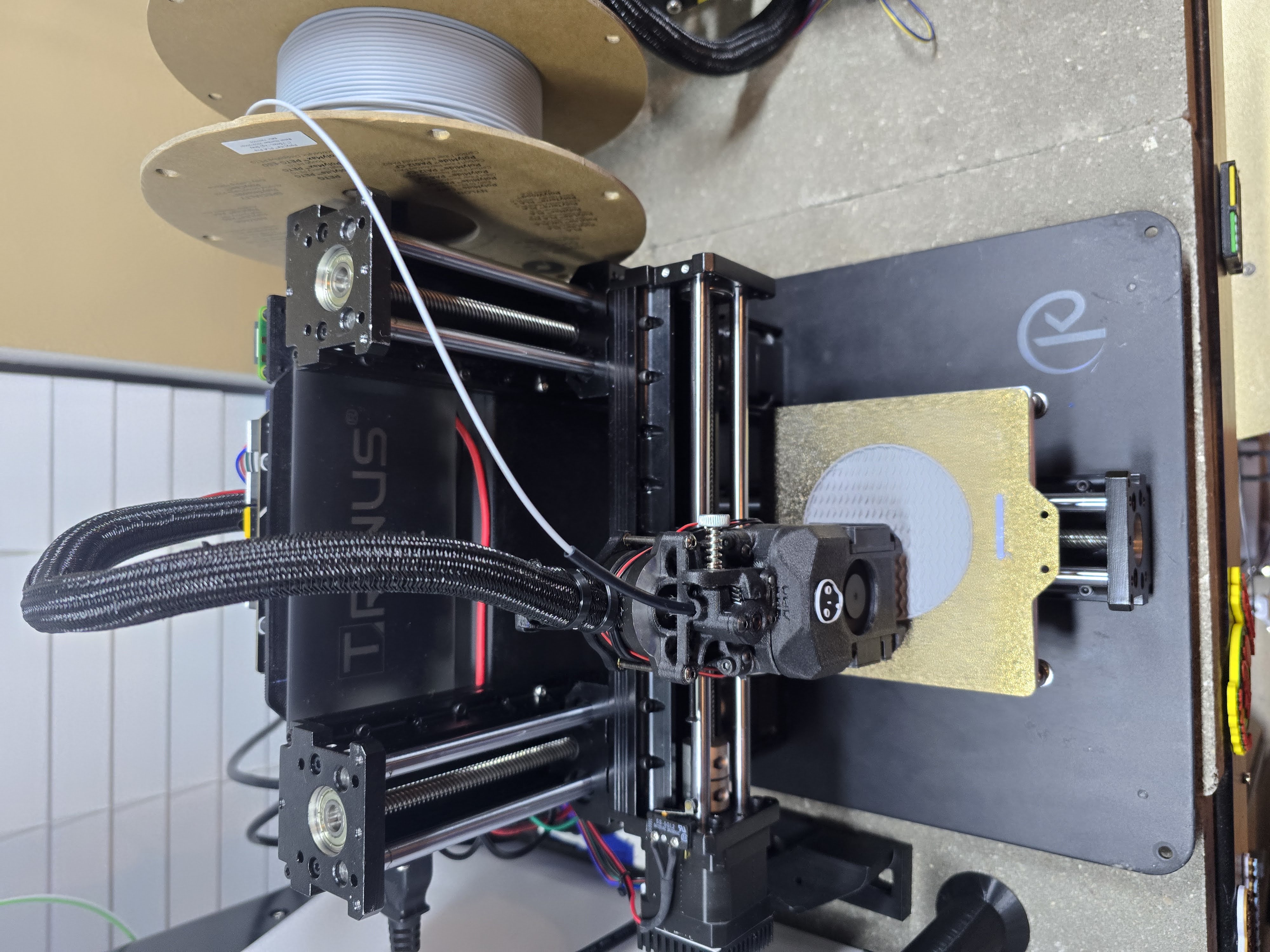

I purchased a “for parts” Kodama Trinus off eBay having no idea what it was or it's history.  The Trinus was a Kickstarter 3d Printer that never took off.  It was designed to be a 3D printer with the option to add a laser toolhead.  Because of this, the frame is all cast aluminum with X and Y lead screws.  It's a little tank.

I decided to bring it up to modern specs with a full Klipper install.  I added the following:

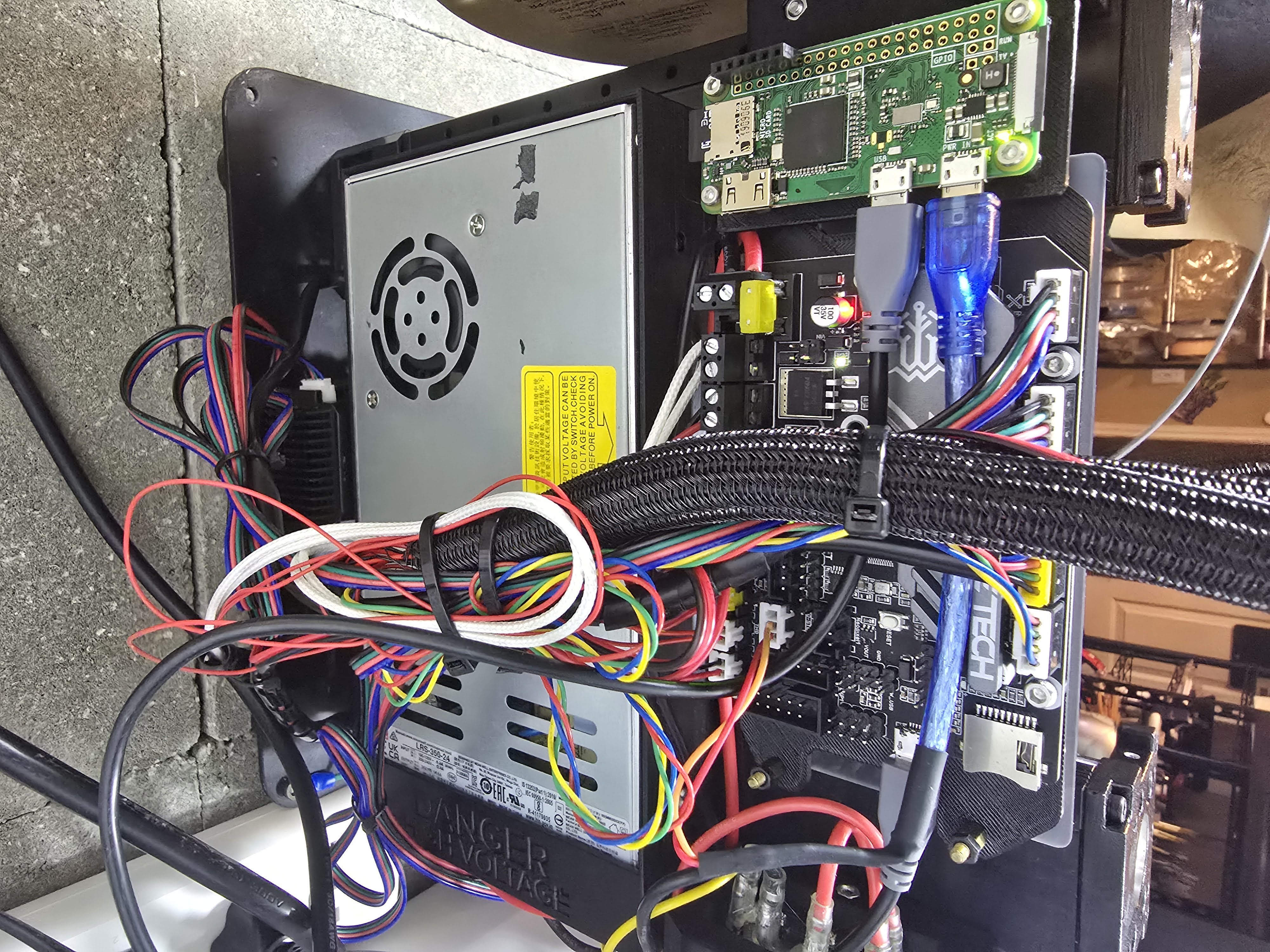

-BTT SKR Mini E3 V3 Board

-V0, 120x120 heated bed

-Rapid Burner toolhead

-Sherpa Mini Extruder

-Updated X and Y motors

-Raspberry Pi Zero 2

-Meanwell LRS350 Power Supply

-Power Inlet Switch

-Side spool holder

Because of the dense motion system and small size, I am currently printing at 600mm/s with 8000mm/s2 acceleration.  The motion system is capable of higher acceleration but I kept getting motor skipping.  I may upgrade to LDO speedys in the future.

Thank you to @SquirrelBrain for the TicTac design as I used his heat bed bracket to install a V0 bed on the Trinus.

Thank you to @PhilM for the BTT mount.

Thank you to @Chirpy2605

I printed all parts in ABS GF with the exception of the heat bed bracket which I printed in Polymaker PA6-CF20.  I also annealed it in an emersion circulator.

Please let me know if you have any questions!
